Nikrans NS-GDW-Drive Manuale utente
MYAMPLIFIERS.COM
%&&! '
"! !!%&$
34;+7< %);3?/
Freq.: 900, 1800, 2100 MHz
Coverage: 30 m²
"$
This user’s manual describes the installation and maintenance of wide band consumer boosters. Please do
read user manual carefully before installing and maintaining repeaters. The information in this manual is
subject to change without prior notice.
%&*)$ %
Users must follow the principles below?
Repeater should follow system requirements; assure good grounding and lightning
protection.
The power supply voltage of repeater should meet security requirements; any operation
shall be carried out only after turning o[ power in advance. Only the professional is
authorized for the operation.
o not dismantle machine, maintain or replace its components by yourself, because this
way the equipment may be damaged and you may even get an electric shock.
o not open the repeater, touch the module of the repeater, or open the cover of the
module to touch electronic component. The components will be damaged due to
electrostatic.
Please keep away from heating equipment, because the repeater dissipates heat during
working. And do not cover a booster with anything that in]uences heat dissipation.
Wir möchten Sie über Besonderheiten der Booster-Nutzung für TMA in Österreich informieren. ie Signalverstärker funktionieren auf
TMA Mobilfunk Frequenzen und daher der Betrieb des Signalverstärkers einer Einverständniserklärung und zusätzlich einer Bewilligung
bedarf der TMA erfordert. In diesem Zusammenhang empfehlen wir, dass Sie der Bewilligung erhalten. Andernfalls, nach TKG 2003,
Betrieb der Signalverstärker für TMA untersagt ist und mit einer Verwaltungsstrafe belangt werden kann.
&$!'&! $%! %!$)
'$% %
Cell Phone Signal Booster is a perfect solution for providing improvement of cellular signal reception inside
a house, o^ce, restaurant, VIP Room, apartment, building or shopping mall.
Generally cell phones cannot pick up or maintain a strong cellular signal due to one of the two following
reasons:
1. 8-+=38780=2/ /+;/<=+</%=+=387 – Base stations are used to provide broad coverage. However
there are many areas in which signal strength gets reduced due to topographic peculiarities or local
Governmental restrictions regarding the height or location of base stations. Rural areas generally have
fewer base stations than urban regions.
2. +=>;+5+7.+7+./!,<=;>-=387< – Signal strength can also be negatively a[ected by trees, hills,
buildings, weather and other obstructions. You may be relatively close to a base station but still unable to
make a call. This often occurs inside houses, o^ces and other buildings with stucco, concrete or metal
walls that may block the signal.
The Signal Booster works with two antennas. An Indoor antenna communicates with your cell phone and
an Outdoor antenna communicates with the base station (BS). The Outdoor antenna receives a signal from
the BS and sends it through the cable to the Signal Booster, where it gets ampli\ed and re-transmitted by
the Indoor antenna throughout a building. When the Indoor antenna picks up a signal from your cellular
device, the Signal Booster ampli\es that signal and transmits it through the cable to the Outdoor antenna
and back to the BS.
(Note: The Signal Booster will only operate if there is an adequate signal to amplify.)
!%$"&!
Nikrans NS-G W- rive is a professional mobile signal amplifying system developed 08;369;8?371@/+4
9287/<317+537-+;< and other means of transport, such as ?+7<,></<=;>-4< etc. This car repeater
will ensure stable mobile connection when you are on the go regardless of your location.
This %-+;,88<=/; will make your trips more comfortable and enjoyable. It is /+<35A37<=+55/.
+7.<+0/37><+1/. The full kit includes everything needed for mounting so you won’t have to purchase
anything additionally. There are 37-+;+7.8>=80-+;+7=/77+< in the set. The \rst one is placed inside
the car with suction tools while the other one is mounted on the roof of the car with a magnet. The 8>=80
-+;+7=/77+3<8673.3;/-=387+5 which means that it is able to catch signal in all direction around the
vehicle. The tri band car booster itself works from a cigar lighter. As soon as you plug it in the device will
start improving poor mobile signal in the transport, no matter where you will be.
Nikrans NS-G W- rive is compatible with numerous providers as it has three working frequencies -
BB+7.B. The model supports all %<=+7.+;.<08;-+55< (900 and 1800
MHz), as well as main standards of +7. 68,35/37=/;7/=-877/-=387 (3G at 900 and 2100
MHz and 4G at 1800 MHz). So you can freely =;+?/5@2/;/?/;A8>@8>5.534/ (even in neighboring
countries!) without being afraid of disconnections, drops and slow internet.
This signal booster for car is safe and corresponds to the international technical standards, which is proved
by +7.$8% certi\cates.
%"&!
Indoor coverage: 30 m²
Up-link freq: 890-915 & 1710-1785 & 1920-1980 MHz
own-link freq: 935-960 & 1805-1880 & 2110-2170 MHz
Up-link Gain: 40 dB
own-link Gain: 45 dB
Power Output: Input AC90~264V,output C5V/2A
Working t °C: -25/+55
Humidity: 5 - 95 %
Size (mm): 129*95*30mm
Booster Weight: 3.2 kg
dBm: 33 dBm
$"&$%*%&!($()
The picture below shows how simple and fast booster installation is and how e[ectively it works.
Out-of-car antenna should be \xed in a proper place (for example, on a car trunk) and connected with the
booster by cable. Then fasten the in-car antenna to the booster and plug the power supply into the cigar
lighter. Just in a few seconds the signal will become boosted in your car.

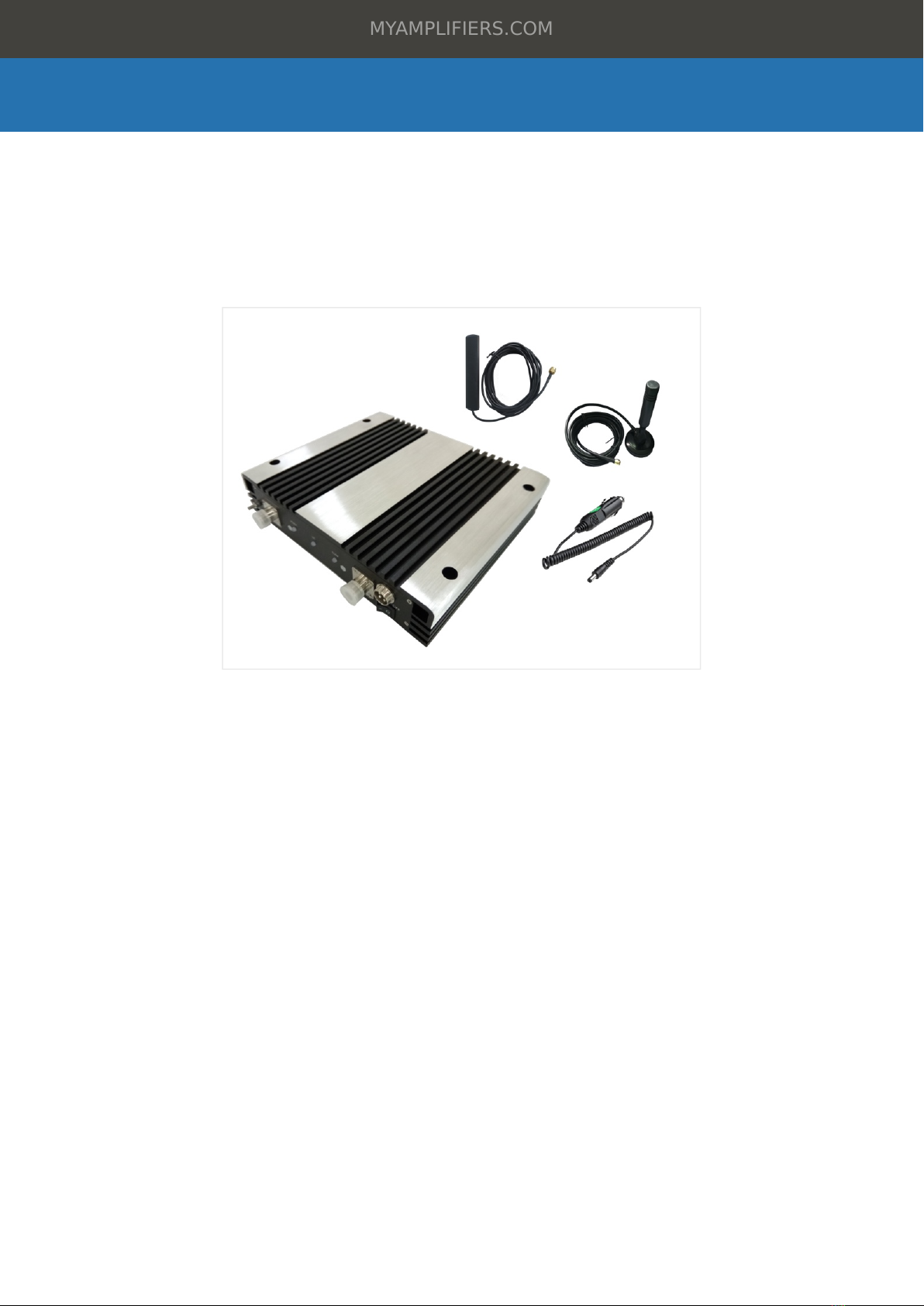

A repeater kit includes:
•!>=80-+;7=/77+?
Function: To pick up outside signals from the base station and send them by cable to the repeater;
out-of-car antenna also transmits the uplink signals from the repeater back to the base station.
•7-+;7=/77+:
It is mounted inside the vehicle with the purpose to transmit the improved signals throughout the
coverage area.
•+,5/<: cables for connecting indoor and outdoor antennas.
•8>7=371<: Special mountings for antennas and the booster (depends on a booster model)
• Power Supply (12V for a cigar lighter)
& % %%&& '"
!>=.88;+7=/77+37<=+55+=387
Mount out-of-car antenna onto the car trunk \xing it on a magnetic antenna's surface.
+,5/5+A8>=+7.-877/-=8;+<</6,5A
1. Keep the type, speci\cations, routing direction, location and curvature radius of cables in
compliance with the model requirements. Place cables in correct order, bend them smoothly, and
protect the surface from any damage.
2. Place RF cables separately from power cables. Take proper isolation measures if they have to be
placed on the same cable racks owing to the site condition restrictions.
3. Fasten all connection parts of the whole system in correct order, from the antenna to repeater
interfaces, and make sure that the electrical interfaces are well contacted. Give waterproof
treatment to outdoor connection parts.
4. Take lightning protection measures for the antenna and feeder system in accordance with the
system requirements. Avoid deforming the antenna feeder where grounding clips are placed, and
give waterproof treatment to the feeder.
7.88;+7=/77+37<=+55+=387
1. Find a suitable position for an in-car antenna (e.g. under the seat of a driver).
2. Clear and dry the place where you’re going to \x the in-car antenna. Put up the nylon strap tightly
on the chosen position and stick the antenna \rmly.
3. Plug in the in-car antenna into the booster interface and fasten it tightly.
$"&$ %&&!
7<=+55+=387;/:>3;/6/7=<
7<=+55+=3878-+=387$/:>3;/6/7=<
No speci\c installation requirements shall be followed.
"8@/;;/:>3;/6/7=
C 12V. Connect the Power adapter to the cigar lighter.
7<=+55+=387%=/9<
7<=+55+=387<-2/6/<
%&&! %&"%
1. Find a suitable position for an in-car antenna (e.g. under the seat of a driver).
2. Clear and dry the place where you’re going to \x the in-car antenna. Put up the nylon strap tightly
on the chosen position and stick the antenna \rmly.
3. Plug in the in-car antenna into the indoor booster interface and fasten it tightly.
4. Mount out-of-car antenna onto the car trunk \xing it on the antenna's magnetic surface.
5. Plug in the out-of-car antenna into the outdoor booster interface and fasten it tightly.
6. Connect the Power adaptor to the cigar lighter. If the indicator on the booster lights up the
installation has been made correctrly.
NOTE: Switch on the signal booster only after installing out-of-car and in-car antennas correctly!
7. Test the signal of your mobile telephone. After installation, mobile signal should get maximally
strong within all the car area. In case the mobile connection is still instable try to change the
position of the antennas for a better result.

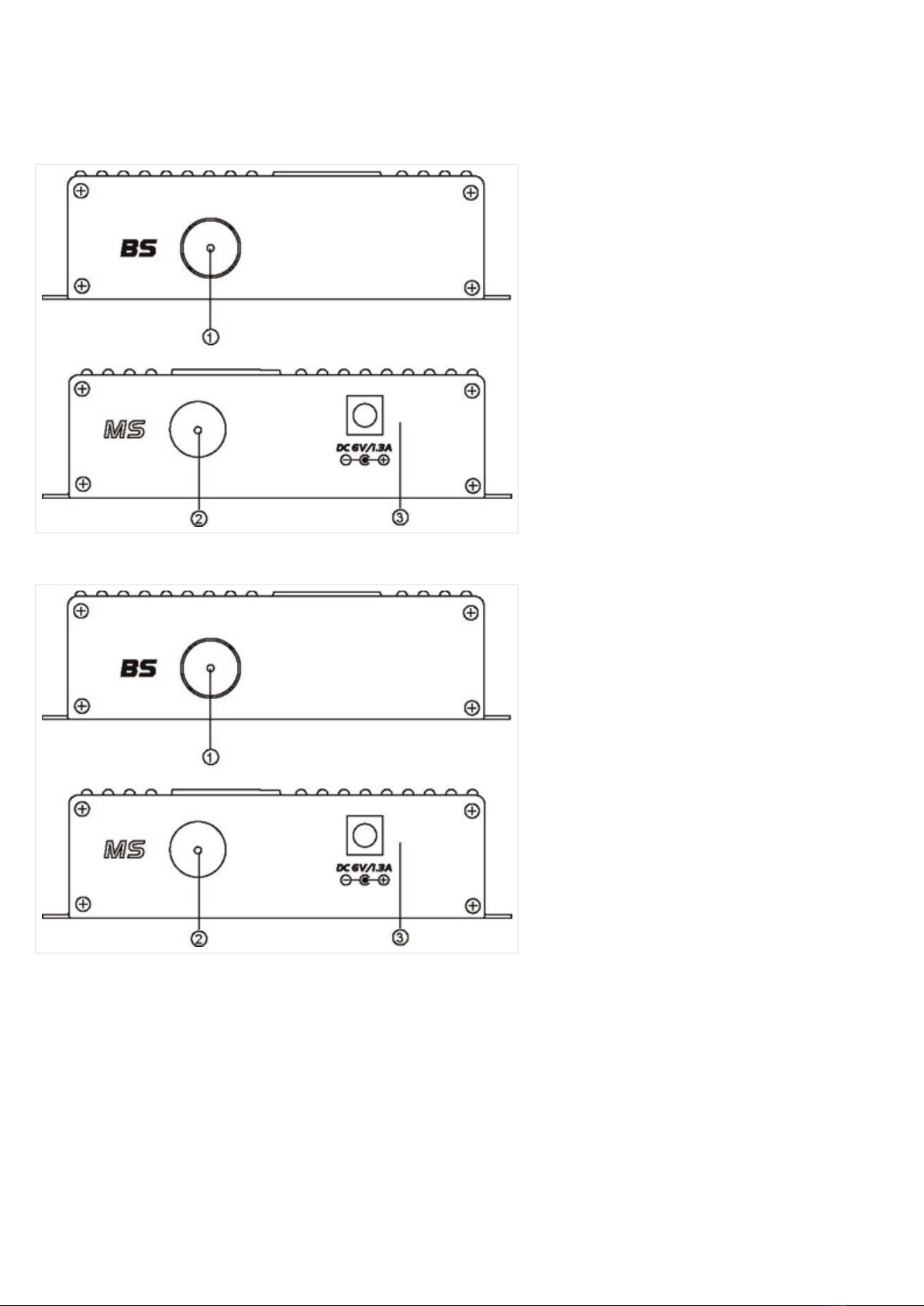

$/9/+=/;C<98;=<./<-;39=387
1. Outdoor port: connected with the outdoor antenna by cable
2. Indoor port: connected with indoor antenna directly or by cable (depending on a booster model)
3. Connect the Power supply into the cigar lighter.
--/<<8;3/<</5/-=387
No need. Use standard accessories.
$/9/+=/;%/==371<
7.3-+=8;312=7<=;>-=387<
1. BS: connect outdoor antenna
2. MS: connect indoor antenna
3. Power/signal strength two color indicator: green light on means power on, red light on or ]ash
means signal well received, the communication is smooth.
&;8>,5/<288=371
&2/98@/;37=2/0;87=80=2//:>396/7=.8/<7=5312=>9+5=28>12=2/
/:>396/7=3<-8695/=/5A37<=+55/.+7.<@3=-2/.!
Check whether the power is normally supplied in the AC power source outlet.
&2/")$5312=<>978;6+55A,>==2/5/?/56/=/;.8/<7=5312=>9+=+55
&875A
Check whether the outdoor antenna is correctly connected.
&2/<317+55/?/53<78=.3<95+A/.87=2/-/55>5+;9287/+5=28>12=2/98@/;
5312=<>978;6+55A
a. Check whether the power indicating light turn to yellow or not if so, it mean the machine works normal,
better signal. (AT-600 only)
b. Check whether the antenna cable (coaxial cable) or the connector is correctly connected. When signals
are very weakly received from the base station, normal reception is unavailable even outdoor (where the
outdoor antenna is installed), check it with the cellular phone or measuring instrument. If the signals are
poor, adjust the position of the antenna. Nevertheless if they are poor, use the optional antenna to
increase the gain of the antenna.
%/508<-355+=3878-->;<
May due to the short distance between the outdoor and indoor antenna, Please change the installed
places of the antennas in order to maximize the distance between them.
&2/<317+53<<=;87137<86/95+-/<+7.@/+437<86/95+-/<
That means power is distributed unevenly, due to something wrong with the indoor distribute. If the signal
in several positions is weak, you should distribute the signal like \gure 3.
&2/<317+53<@/+4+7A@2/;/
That means the power and gain of repeater is not enough, changing a high one or multi-combination.
%A<=/6&/<=
2/-4@2/=2/;=2/-8?/;+1/3<188.
1. If the signals in small parts of the area have not been improved, please check the following:
- Check whether the indoor antenna is installed correctly or not; you may try to change the
antenna location to improve coverage.
- Check if it is necessary to adjust the direction of the indoor antenna.
