SPECIFICATIONS SHEET

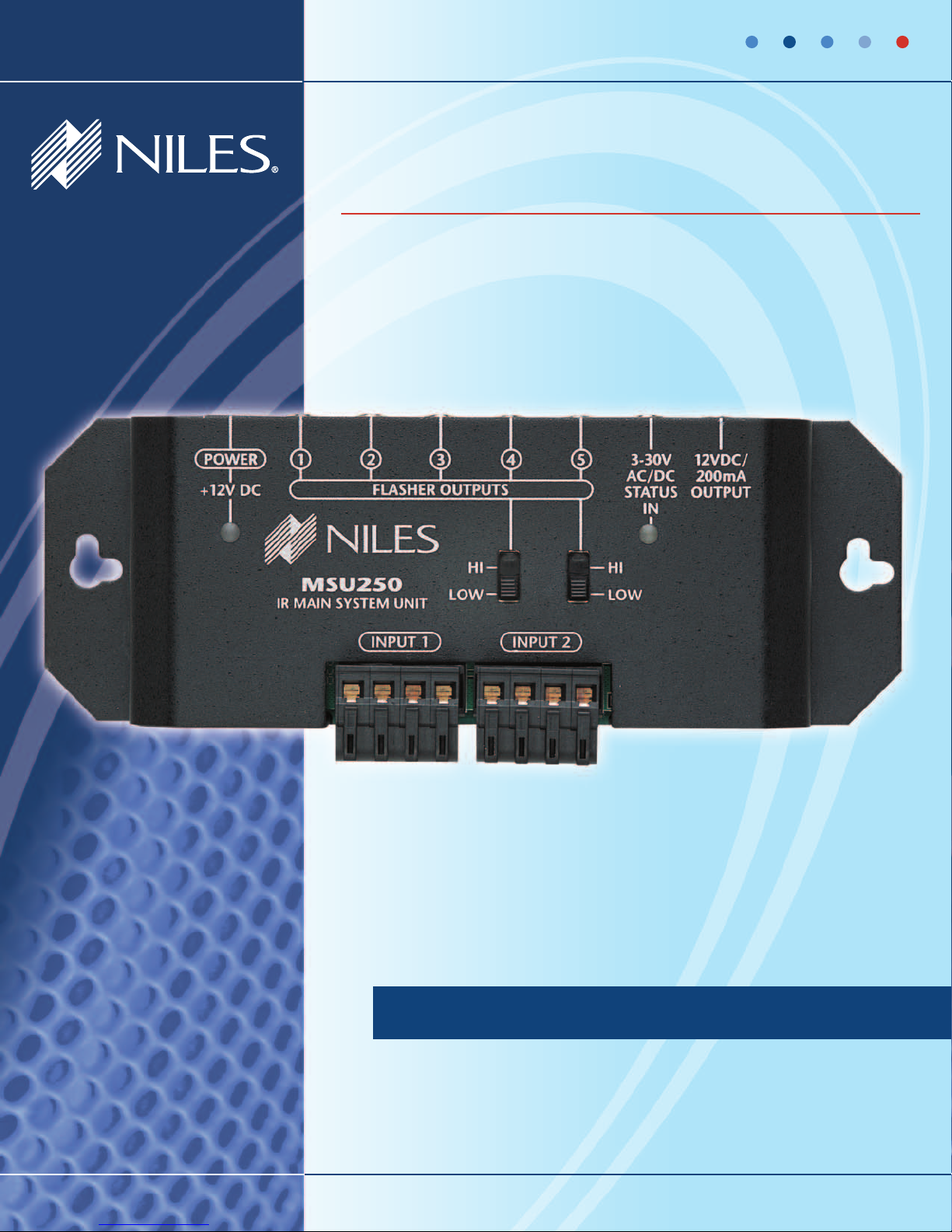

MSU250

INFRARED EXTENDER SYSTEMS

• Two sensor inputs with five flasher outputs

• Packaged for retail display

IR repeater system for single zone applications

INFRARED EXTENDER SYSTEMS

FEATURES

nTwo sensor inputs with removable screwless connectors

nUse with IRH610 (FG01018 to provide additional inputs)

nFive flasher outputs with 3.5mm flasher output jacks including: two switchable high/low flasher

jacks for driving IRB1 flooding flashers or MicroFlashers®

nLow profile, small footprint for unobtrusive installation

nIntegrated mounting wings accommodate both vertical and horizontal installation

nUL-listed regulated in-line power supply with universal voltage capability

n12Volt DC status input jack

nSystem feedback LED indicator provides visual indication of operation

nRugged all metal chassis construction

SPECIFICATIONS

nDimensions: 5-5/8" wide x 1-1/4" high x 2" deep

Warranty: Two-year limited

IR Main System Units

PLUG-AND-PLAY CONNECTIONS

Facilitates quick and easy system installation

SINGLE & MULTIZONE CONFIGURATIONS

Installers have an IR solution for virtually every application

12VOLT TRIGGERS AND CONTACT CLOSURES

Provide unique automation capabilities for advanced system designs

STATUS FEEDBACK

Gives visual indication that the system is on

IR CONFIRMATION LEDS

Confirms the reception of IR commands for system troubleshooting

SYSTEM EXPANSION HUBS FOR STRUCTURED WIRING INTEGRATION

Simplifies rewiring and eliminates clutter behind the equipment cabinet

IN-LINE POWER SUPPLIES WITH UL-LISTING

Makes installations clean, reliable, and safe

MOUNTING WINGS

Enables vertical or horizontal mounting for professional-grade installations

MSU250

Stock Number

FG01003

Technology

Details

NILES AUDIO CORPORATION 12331 S.W. 130 Street, Miami, FL 33186 Tel: 800.289.4434 – www.nilesaudio.com NAMSU250PDF

©2004 Niles Audio Corporation. All Rights Reserved. Niles and the Niles logo are registered trademarks of Niles Audio Corporation.
