GD 930 & GD 930S2

PARTS LIST

822 9401 000

56042413

2000-08

00-082

WHEN ORDERING PARTS ALWAYS STATE

* MODEL - QUANTITY - PART NUMBER - DESCRIPTION

* Specify the serial number of the machine.

* Use the space below ro record the model and serial number for future reference.

Model______________________________ Serial no._________________________________

NOTES________________________________________________________

_______________________________________________________________

________________________________________________________________

__________________________________________________________________

___________________________________________________________________

_____________________________________________________________________

____________________________________________________________________

_____________________________________________________________________

____________________________________________________________________

00-08

DESCRIPTION PLAN

Lower parts, line-drawings 4

Lower parts, part number 5

Fan unit Line drawing 6

Table with fan units, sleeves and cords 7

Upper parts, line-drawings 8

Upper parts, part number 9

Nozzles, line drawings 10

Nozzles, part number 11

Nozzle, line drawings 12

Nozzle, part number 13

Hose, line drawing 14

Hose, part number 15

Tubes, line drawing 16

Tubes, part number 17

Wiring diagrams 18-24

TABLE OF CONTENTS SPARE PARTS

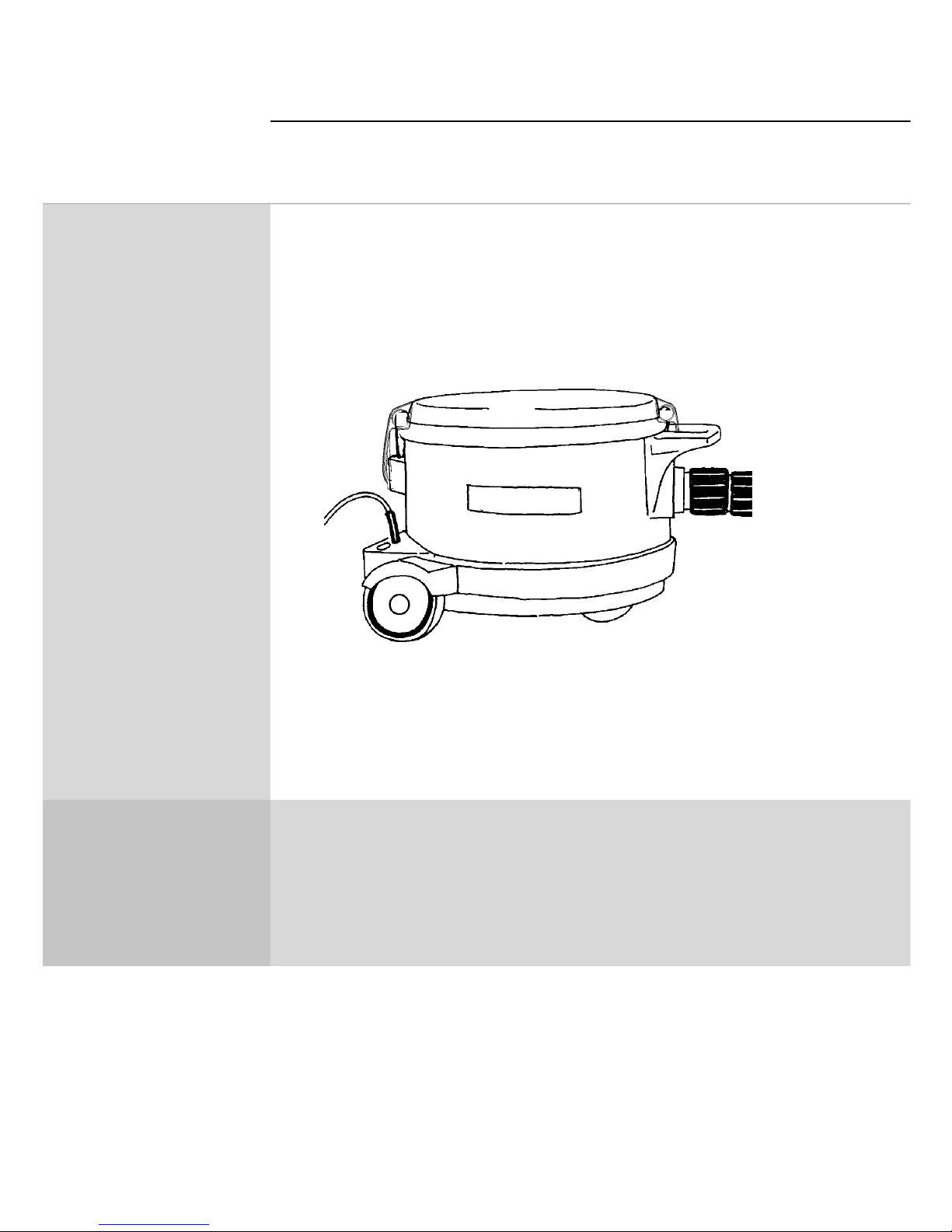

GD 930 & GD 930S2DRY VACUUM CLEANER 3

00-08

SPARE PARTS

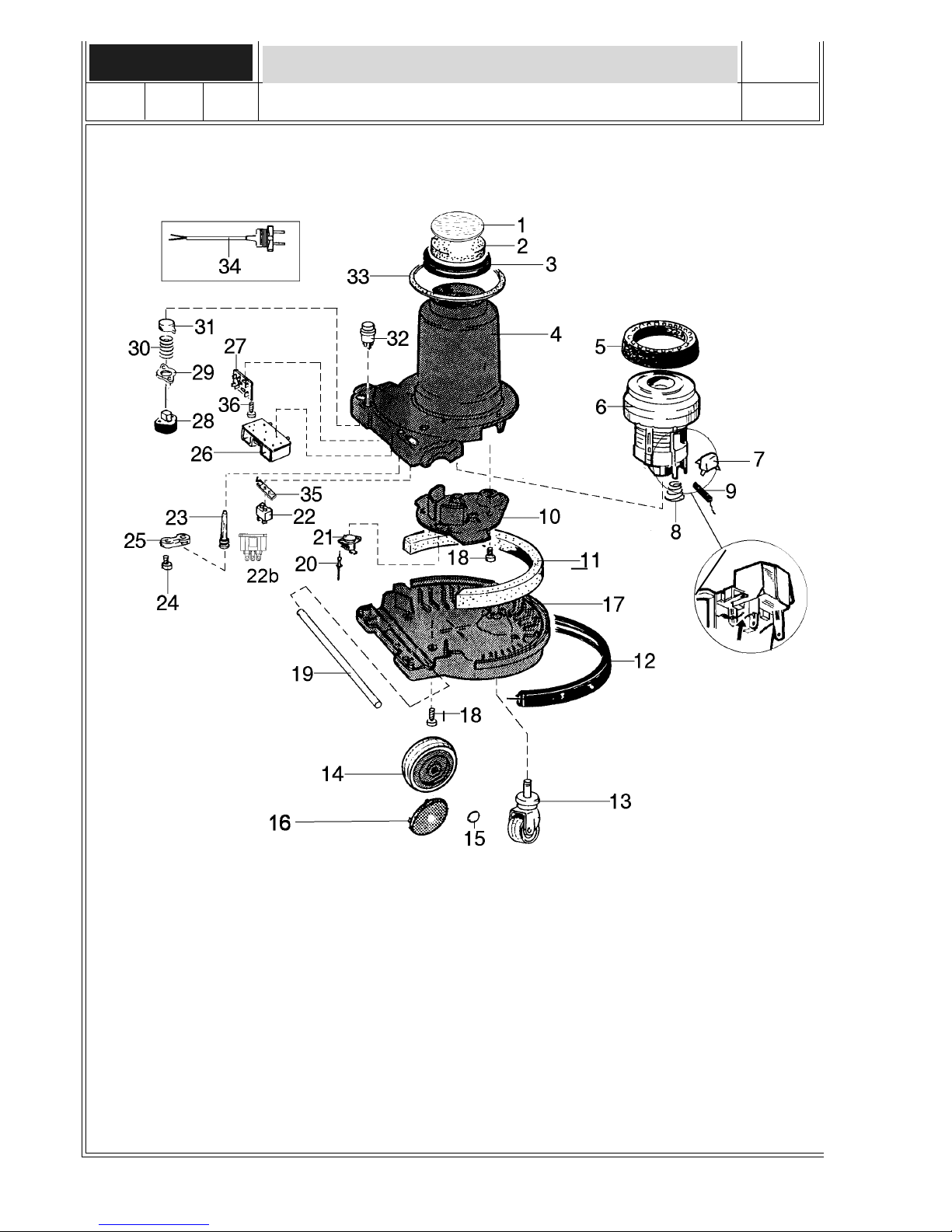

GD 930 GD 930S2 LOWER PARTS

00-08

Item No. Qty.Part no. Description

1 1 140 3261 000 Paper filter

2 1 140 1535 000 Filter

3 1 140 2847 000 Gasket

4 1 140 7010 000 Stand, regular GD 930

1 140 7010 010 Stand, S2 versions

1 140 7010 030 Stand UL-listed, for model 905 5313

1 140 7010 080 Stand, UL-listed, for model 905 5314

1 140 7010 090 Stand, S2 UL-listed for model 905 5345

5 1 140 7901 000 Suspension ring, for the new domel motors

1 011 1548 000 Suspension ring, for the old type of motor

6 1 Fan unit (see table)

7 1 140 8166 010 Capacitor

8 4 140 7016 000 Spring

9 2 001 8619 110 Carbon brush

10 1 140 7012 000 Motor plate

1 140 7012 010 Motor plate UL-listed

11 1 140 7022 000 Silencer

12 1 140 7018 000 Bumper

13 1 140 7025 000 Castor wheel

14 2 140 5055 010 Wheel

15 2 140 5058 000 Locking cap

16 1 140 7835 000 Wheel disc

17 1 140 7011 000 Bottom part

1 140 7011 010 Bottom part UL-list.

18 14 140 9214-070 Screw PTK 50*14

19 1 140 5059 000 Shaft

20 2 140 5694 000 Rivet

21 1 140 3894 000 Thermo switch

22 1 010 9678 000 Extra outlet

22b 1 140 7665 000 Electrical outlet (USA)

23 1 Sleeve (see table)

24 2 140 9214 040 Screw PTK40*14

25 1 056 1014 060 Anti strain clip

1 140 6560 000 Strain clamps UL-list

26 1 140 7026 000 Circuit board S2 220-240V

1 140 7026 010 Circuit board S2 100-120V

27 1 140 7024 000 Anti static board

28 1 140 7033 000 Switch

29 1 140 1508 000 Washer

30 1 140 1522 000 Spring

31 1 140 7805 010 Push button, silver

32 1 140 7023 000 Switch S2 version

33 1 140 7021 000 Gasket

34 Cord set (see table)

35 1 011 7365 000 Protection plate

36 1 140 7027 000 Screw

SPARE PARTS

GD 930 GD 930S2 LOWER PARTS 5

00-08

SPARE PARTS

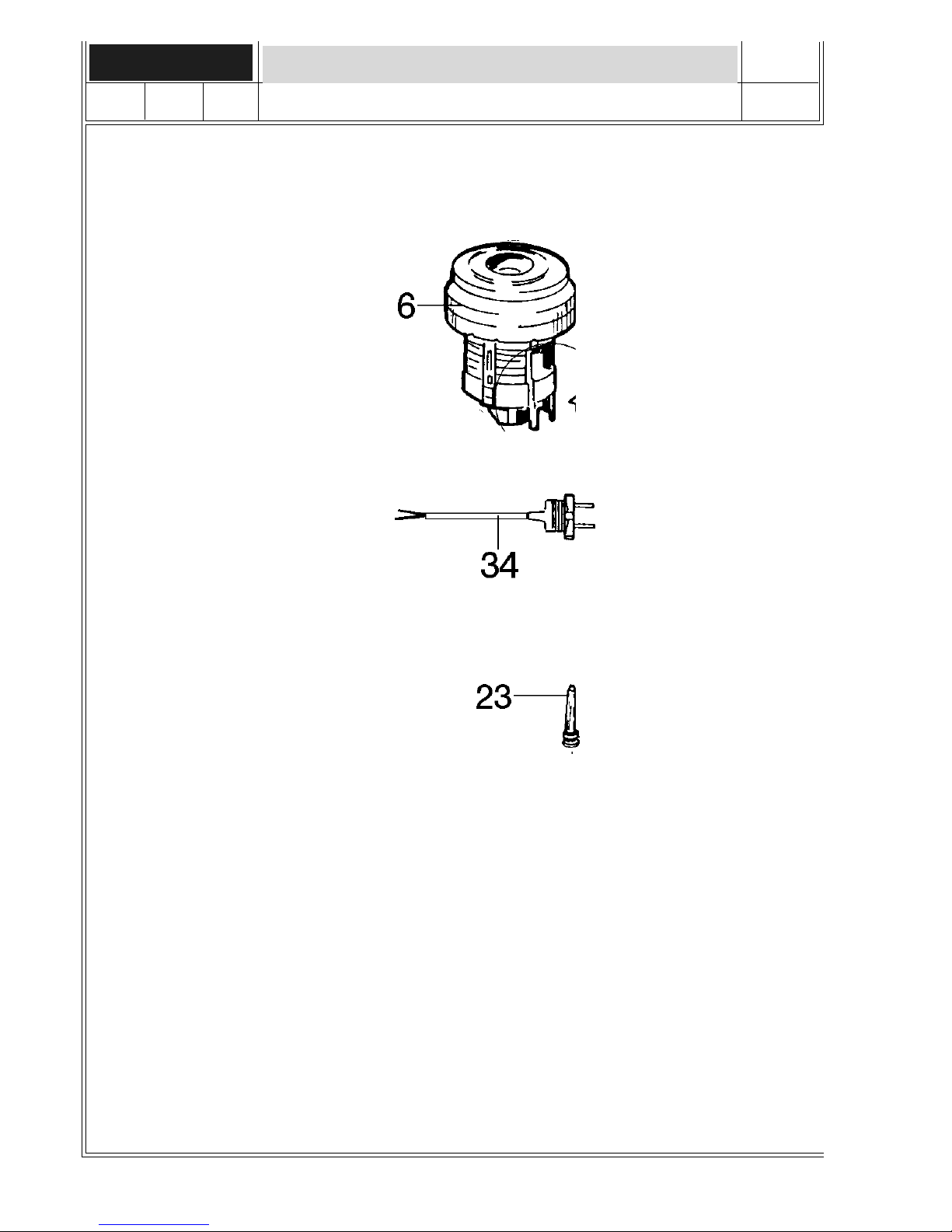

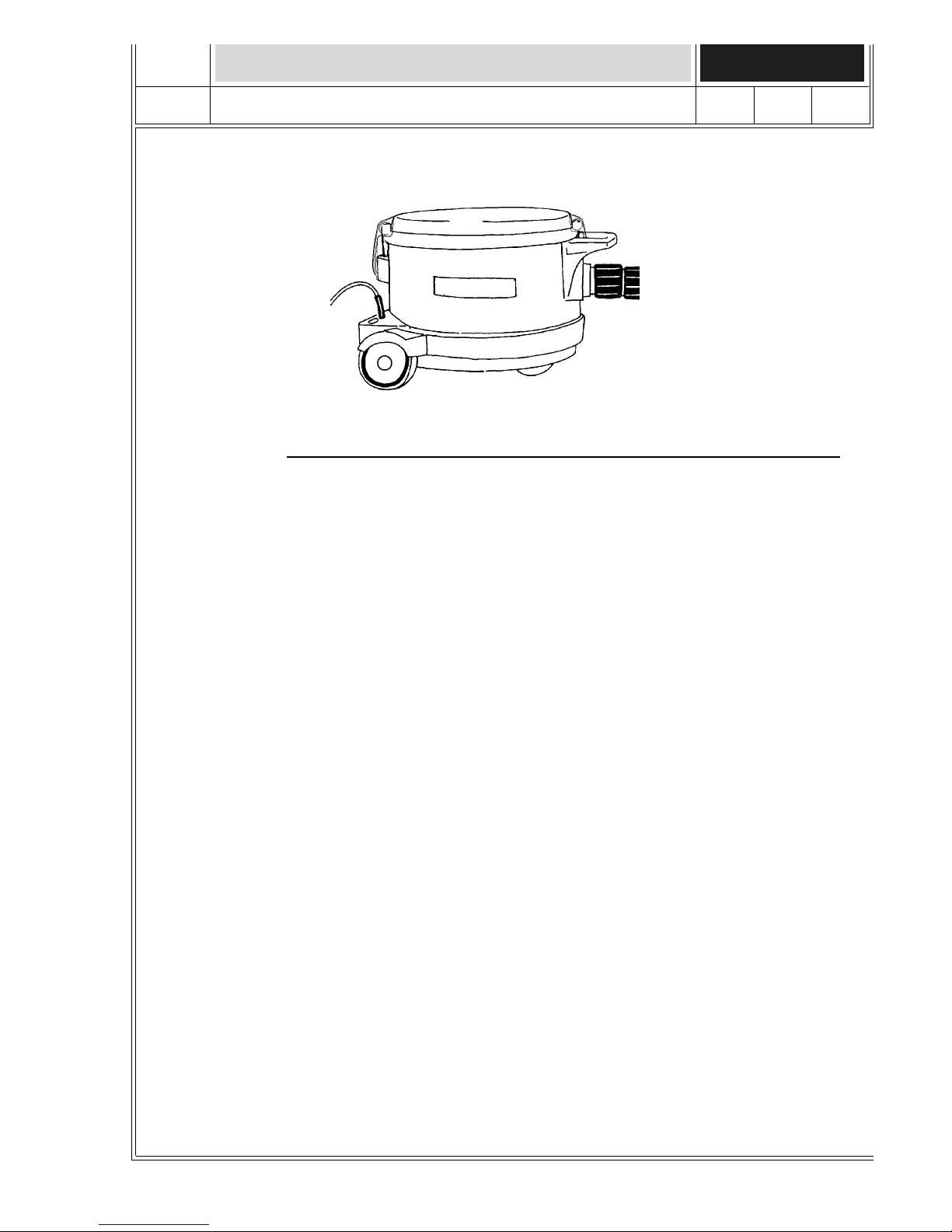

FAN UNIT LINE DRAWING

00-08

on.dorPon.dorPon.dorPon.dorPon.dorPegatloVegatloVegatloVegatloVegatloV6.soptinunaF6.soptinunaF6.soptinunaF6.soptinunaF6.soptinunaF32.sopeveelS32.sopeveelS32.sopeveelS32.sopeveelS32.sopeveelS43.sopdroC43.sopdroC43.sopdroC43.sopdroC43.sopdroC

1035509V0320052097041>>00053070410323246041

2035509V0320052097041>>00053070410203246041

3035509V0320052097041>>00053070410213246041

4035509V0420252097041>>01072013900603246041

5035509V0420252097041>>01072013900603246041

6035509V0420252097041>>01072013900009307041

7035509V021/0110152097041>>01072013900013246041

8035509V0010352097041>>01072013900503246041

9035509V0320052097041>>00053070410323246041

0135509V0220052097041>>01072013900003407041

1135509V032-0220052097041>>01072013900113246041

2135509V0220052097041>>00053070410213246041

3135509V0210152097041>>01072013900209583041

4135509V0210152097041>>01072013900209583041

5135509V7210452097041>>0107201390>0013246041

0435509V0320052097041>>00053070410323246041

1435509V0420252097041>>01072013900603246041

2435509V0420252097041>>01072013900009307041

3435509V0010352097041>>01072013900503246041

4435509V0320052097041>>00053070410213246041

5435509V0210152097041>>01072013900609583041

SPARE PARTS

FAN UNITS & CORDS TABLE

>> Means: New or changed ref. number or/and changed/new specifications

NOTE: New fan units for all GD 930 and GD 930S2 machines.

The spare fan units, will be delivered in a kit with the suspension ring, cables,

suppressor & wiring diagram in a package.

00-08

SPARE PARTS

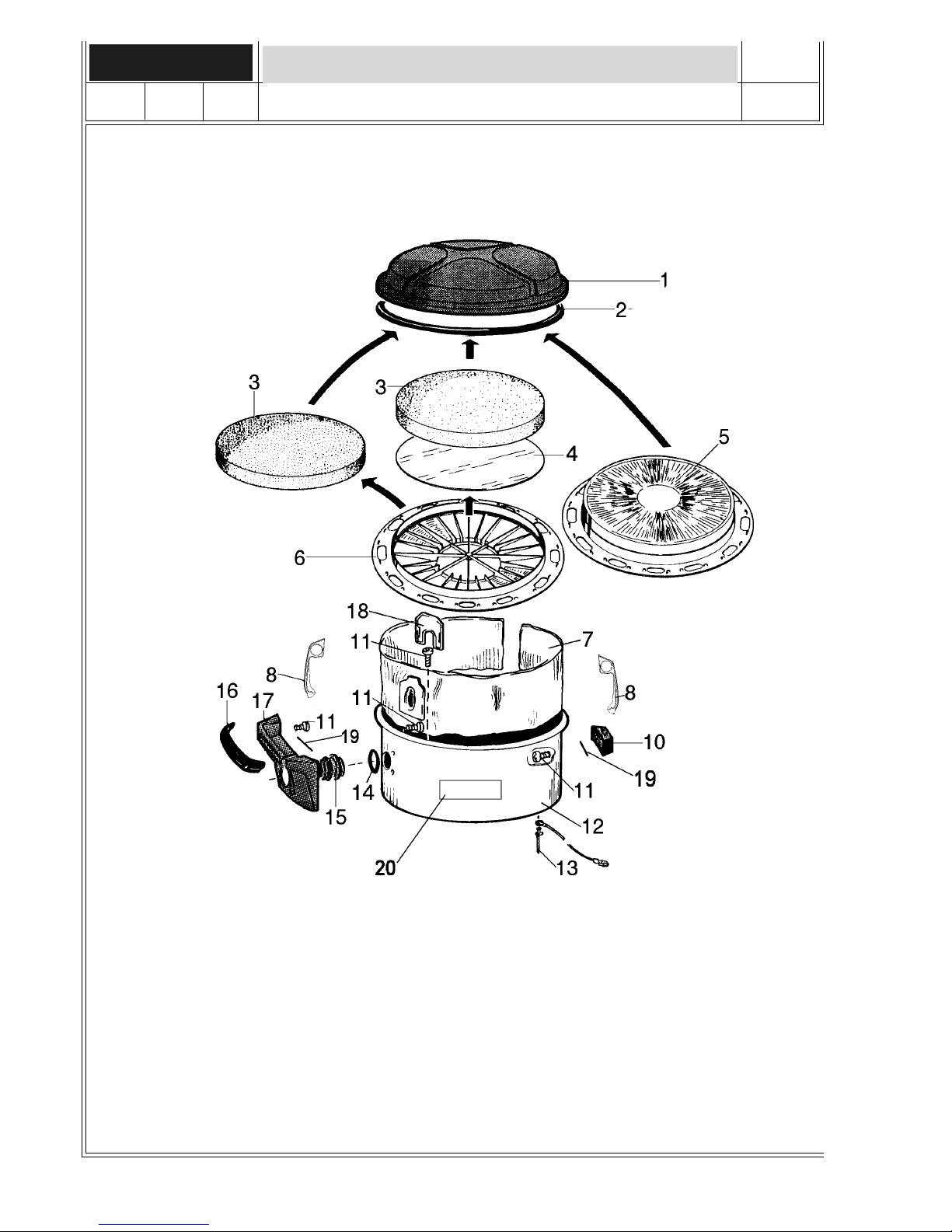

UPPER PARTS8

00-08

Item Qty. Part No Description

1 1 140 7802 040 Cover

2 1 140 0061 030 Gasket

3 1 140 1515 010 Filter

4 1 140 3260 000 Paper filter

1 140 5661 000 Hygiene filter

5 1 140 2666 010 Micro filter

6 1 140 2911 000 Filter holder

7 140 7015 040 Dust bag (10 pcs)

1 140 7019 000 Cloth dust bag

8 2 140 7832 000 Snap locking

10 1 140 7834 000 Support

11 8 140 9214 070 Screw PTK 50*14

12 1 140 7020 010 Container (chrome)

1 140 7020 020 Container (paint.inside)

1 140 7020 030 Container (grey painted outside)

13 1 140 5694 000 Rivet

14 1 740 4416 000 O-ring

15 1 140 7013 000 Inlet

16 1 140 7800 000 Handle protection

17 1 140 2915 050 Handle

18 1 140 7014 000 Dust bag lock

19 2 140 7807 000 Wire spring

20 2 140 7877 000 Decal Nilfisk GD 930

2 140 7878 000 Decal Nilfisk GD 930 S2

2 140 7879 000 Decal Euroclean GD 930

2 140 7880 000 Decal KENT GD 930

2 140 7298 000 Decal Jydsk

2 140 7698 000 Decal Aquatech

2 140 7172 000 Decal Yamazaki

SPARE PARTS

UPPER PARTS 9

00-08

SPARE PARTS

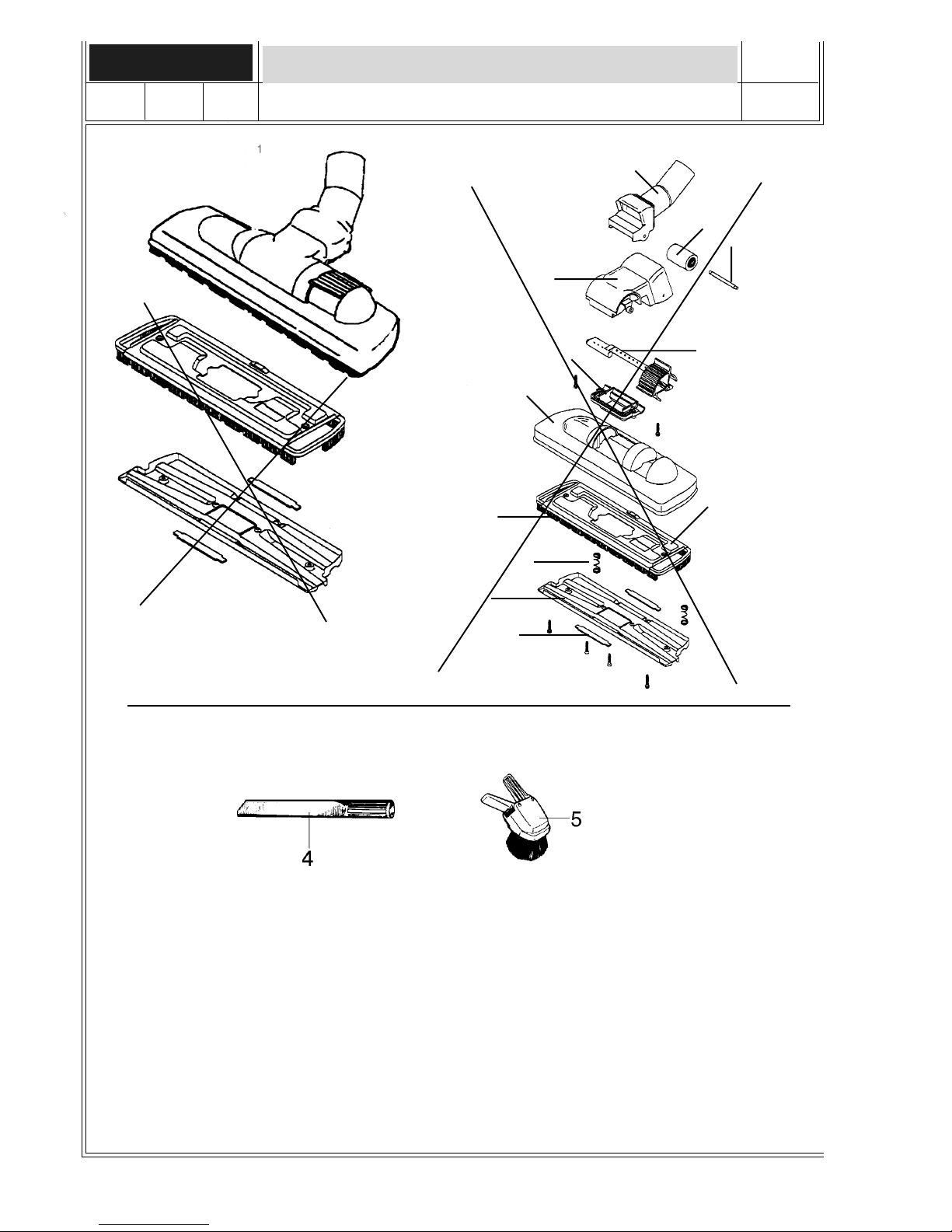

NOZZLES
