TABLE OF CONTENTS SERVICE KIT

GD 2000-SERIES, CANISTAR & WHISPERCLEAN

DESCRIPTION PLAN

Motors and cords B - 2.3.3 - 2

Container upper parts B - 2.3.3 - 4

ElectricaL units B - 2.3.3 - 6

Filter and HEPA filter B - 2.3.3 - 8

Container bottom parts B - 2.3.3 - 10

Nozzles, tubes, hoses and dust bag B - 2.3.3 - 12

Nozzles, special B - 2.3.3 - 14

04-06

BOOK B

B4.6.3 2

MOTOR SERVICE KIT

MOTOR AND CORD TYPES, ALL MODELS

04-04

03-05

BOOK B

B4.6.3

MOTOR SERVICE KIT

MOTOR AND CORD TYPES, ALL MODELS 3

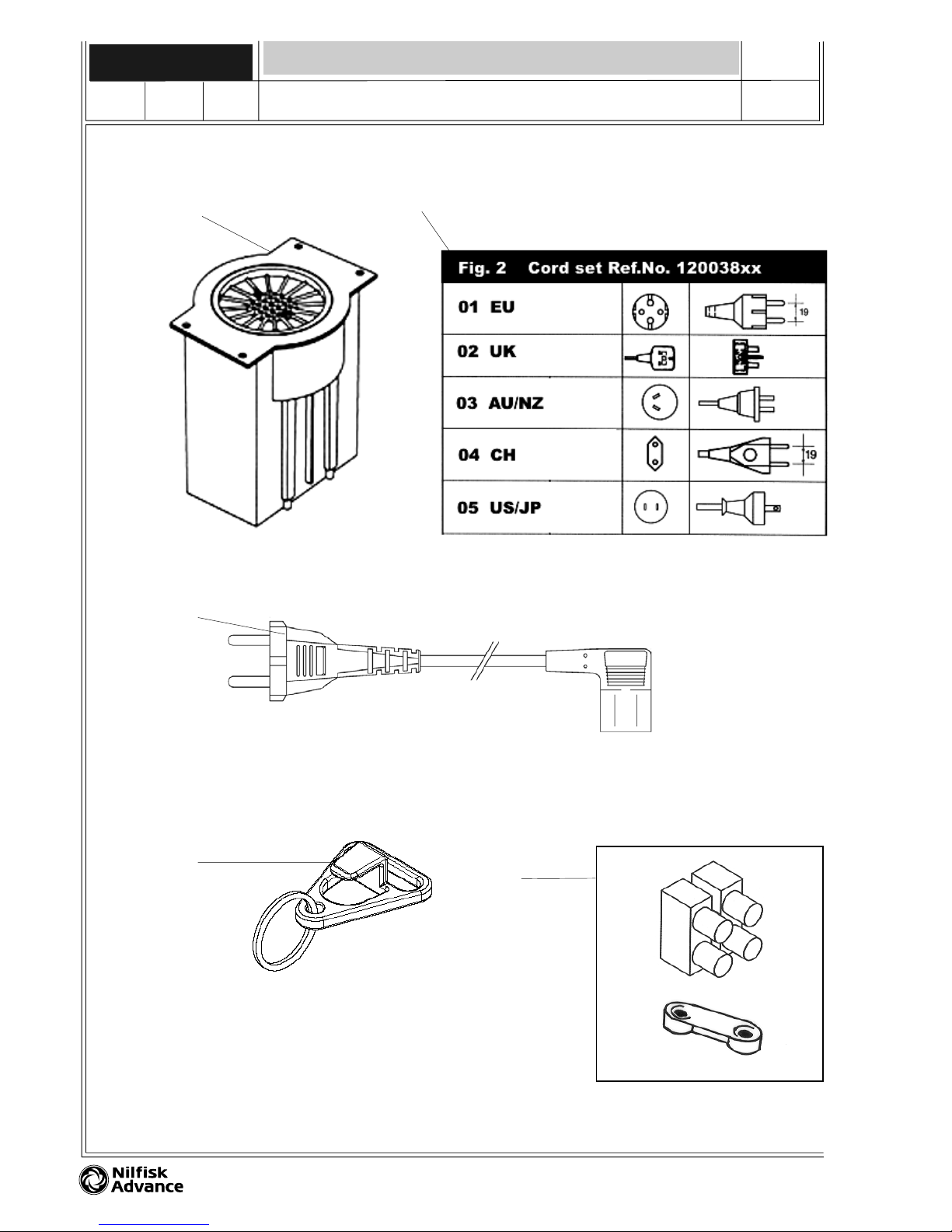

Item Ref.No. Qty. Description Note

1 140 8400 500 1 Motor casette 220-240V Thermal protector included

1 140 8400 510 1 Motor casette 110-120V

1 140 8400 520 1 Motor casette 100V

2 12003801 1 Cord, EU version Mat.: PVC, copper

Cord length=15m Colour: Grey, RAL 7001

2 12003802 1 Cord, UK version

Cord length=15m Colour: Grey, RAL 7001

2 12003803 1 Cord, Australia, New Zealand

Cord length=15m

2 12003804 1 Cord, Switzerland

Cord length=15m

2 12003805 1 Cord, US, Japan, Canada 18 AWG

Cord length=15m

3 140 8434 500 1 Cord, detachable EU version

3 140 8434 510 1 Cord, detachable UK version

4 140 8433 500 1 Cable relief

5>> 147 0503 500 1 Cable locking kit For fixed cord

04-04

03-05

>> Means: New or changed ref. number or/and changed/new specifications

BOOK B

B4.6.3 4

CONTAINERS SERVICE KIT

UPPER PARTS, ALL MODELS

04-06

03-05

BOOK B

B4.6.3 5

CONTAINER SERVICE KIT

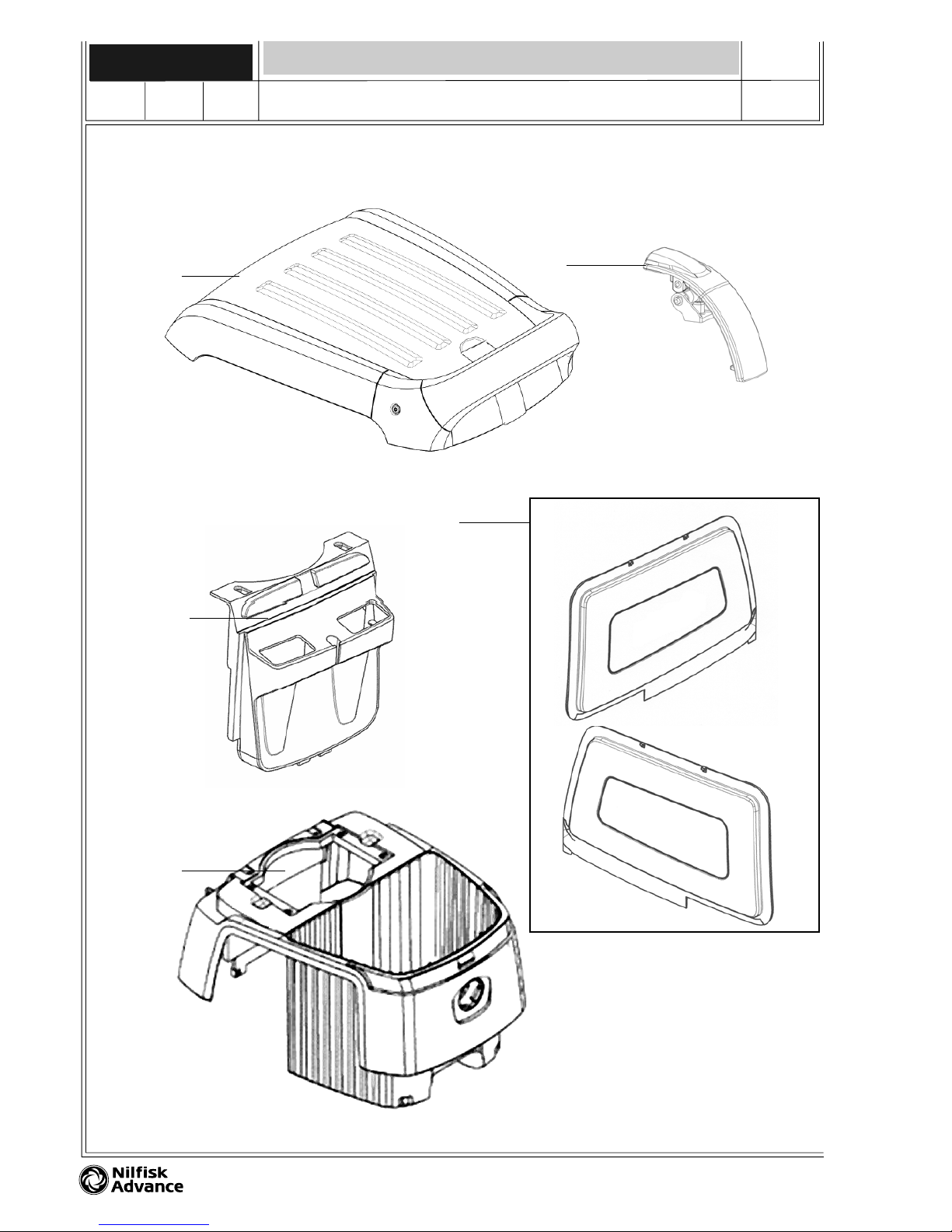

Item Ref.No. Qty. Description Note

UPPER PARTS, ALL MODELS

1 140 8419 500 1 Lid cpl. f. GD versions Colour: grey Handle, latch & filters are included.

1 140 8419 510 1 Lid cpl. w. Sound absorber Handle, latch & filters are included.

Colour:grey

1 140 8419 520 1 Lid cpl. Colour: blue Handle, latch & filters are included.

2 140 8444 500 1 Latch cpl. Colour: grey With bracket

3 140 8560 500 1 Cover rear, Colour: grey With trigger, and spring

for 1 speed versions

3 140 8560 510 1 Cover rear, UL Colour: grey With trigger, and spring

for 1 speed versions

3 140 8560 520 1 Cover rear, UL Colour: blue With trigger, and spring

for 1 speed versions

3 140 8562 500 1 Cover rear, Colour:grey With trigger, and spring

for 2 speed versions For GDS & HDS versions.

4 140 8409 500 1 Chassis Colour: grey

4 140 8409 510 1 Chassis, UL approved Colour: grey

4 140 8409 520 1 Chassis, UL approved Colour: blue

5 140 8569 540 2 Cover, outlet left/right Mat.: Plastic. No brand name

5>> 140 8414 520 2 Cover, outlet left/right Mat.: Steel. No brand name

5>> 140 8571 500 2 Cover, outlet left/right Mat.: Plastic. Nilfisk brand

5>> 140 8571 510 2 Cover, outlet left/right Mat.: Plastic UL-appr. Nilfisk brand

04-06

>> Means: New or changed ref. number or/and changed/new specifications

04-10

BOOK B

B4.6.3 6ELECTRIC OPERATION UNITS

ELECTRIC SWITCHES SERVICE KIT

03-05

BOOK B

B4.6.3 7

ELECTRIC SWITCHES SERVICE KIT

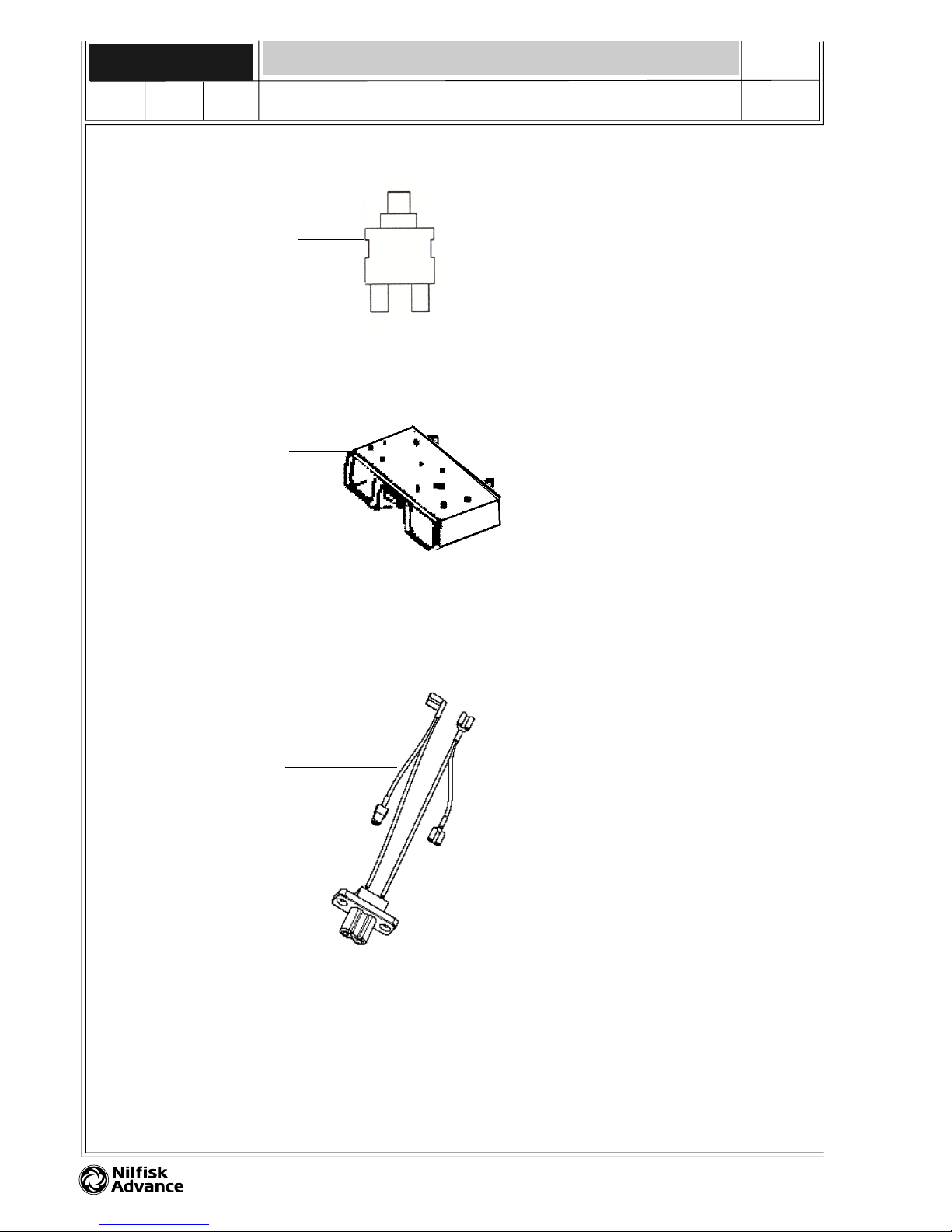

Item Ref.No. Qty. Description Note

1 140 8096 500 1 Switch On-off /2 speed

2 140 7026 500 1 2 speed PCB 220-240V For GDS and HDS versions

2 140 7026 510 1 2 speed PCB 100-120V For GDS and HDS versions

3 140 8497 500 1 Connector Outlet for electro nozzle

3 140 8497 520 1 Connector UL-approved Outlet for electro nozzle

ELECTRIC OPERATION UNITS

03-05

BOOK B

B4.6.3 8

FILTER SERVICE KIT

FILTER, HEPA-FILTER AND SOUND SUPPRESSOR

03-11

03-05

BOOK B

B4.6.3 9

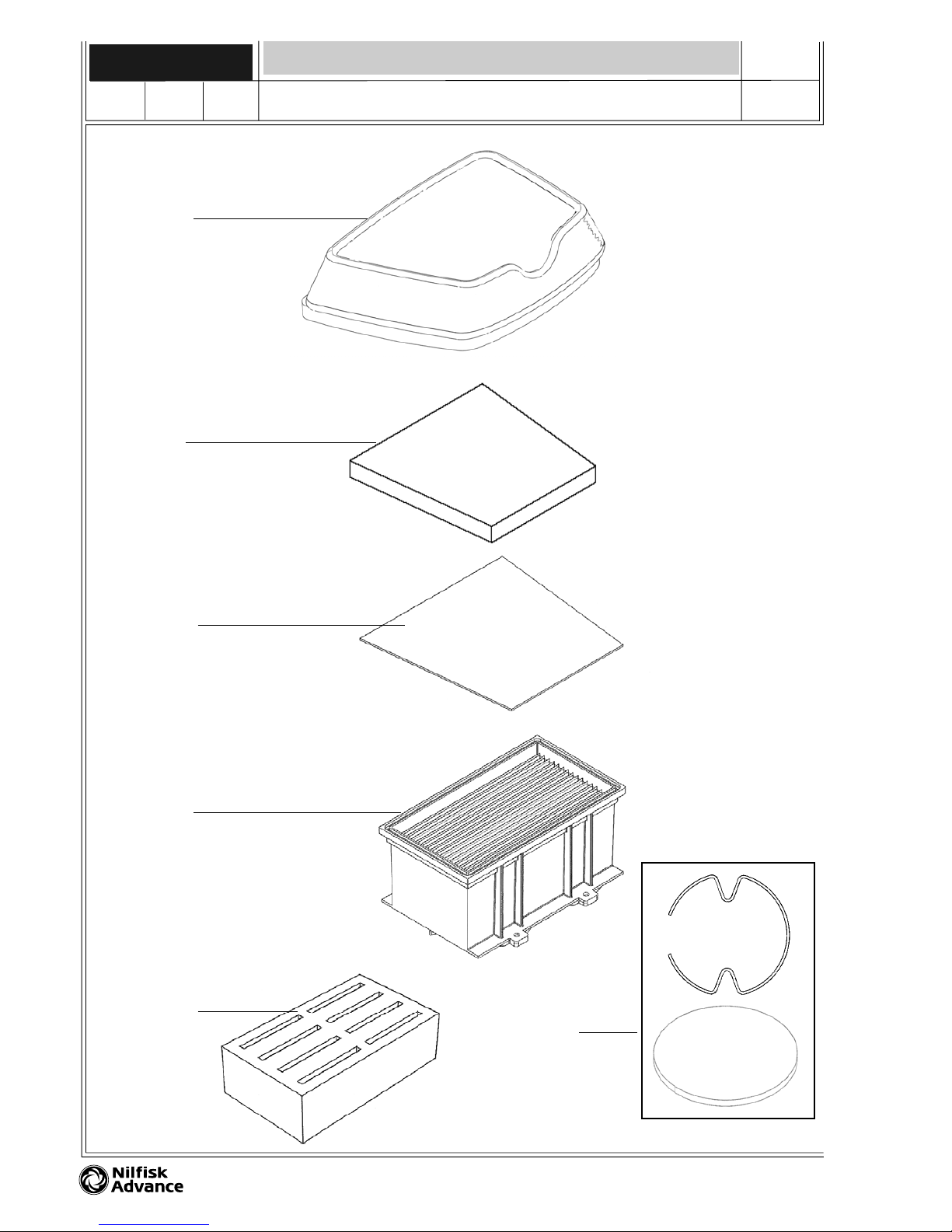

Item Ref.No. Qty. Description Note

1 140 8423 500 1 Sack filter unit

2 140 8435 500 1 Main filter

3 140 8436 500 5 Paper filter 5 pcs packed in plastic bag

4 140 8404 500 1 HEPA-filter, exhaust Packed in cardboard box

5 140 8561 500 1 Silencer, exhaust

6 140 8551 500 1 Motor filter Filter holder incl.

FILTER SERVICE KIT

FILTER, HEPA-FILTER AND SOUND SUPPRESSOR

03-05

BOOK B

B4.6.3

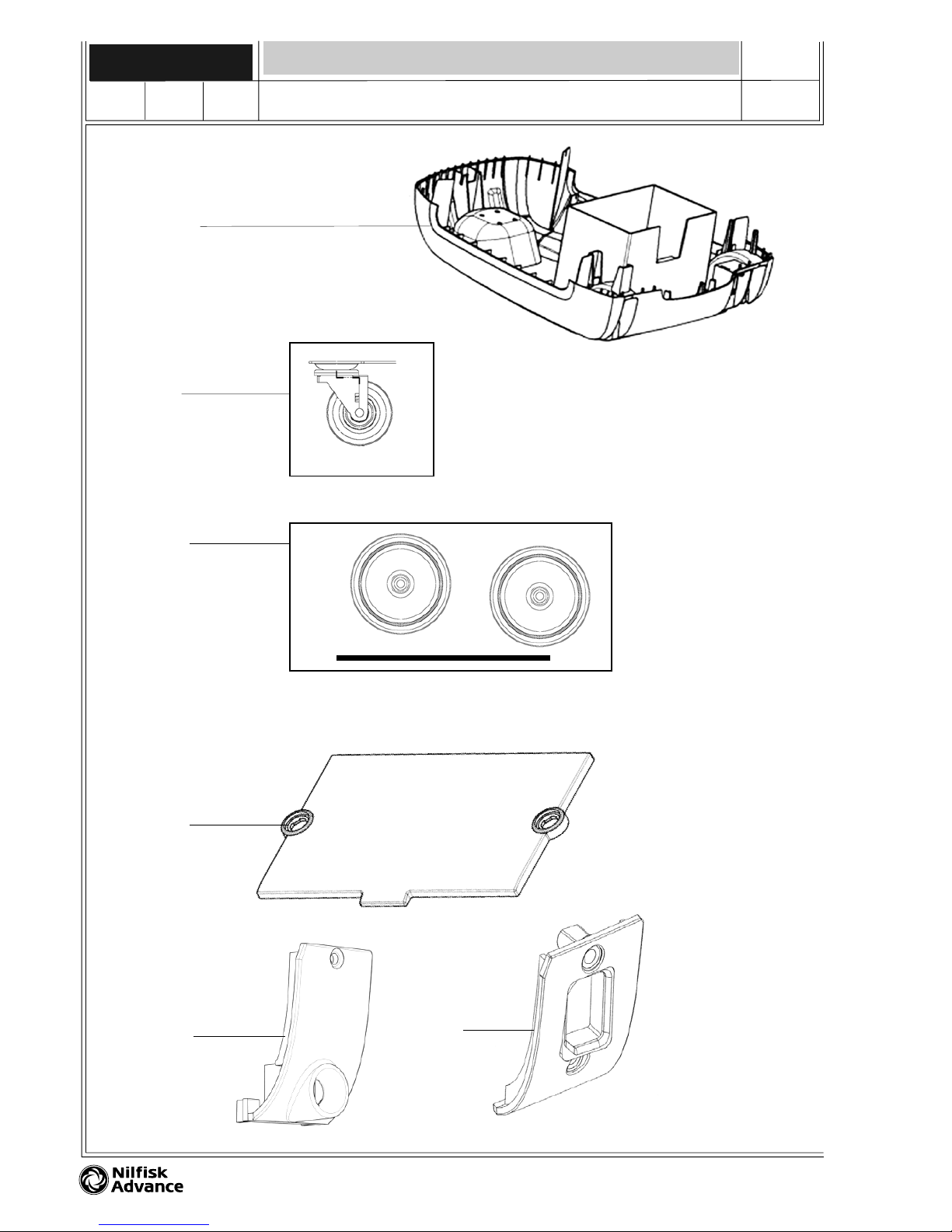

CONTAINER SERVICE KIT

CONTAINER BOTTOM PARTS

03-09

03-05
