EN
Instructions
Thank you very much for your purchase of this NITTO KOHKI product.
Before using your tool, please read this manual carefully so that you may use it properly to get the most out of it.
Please keep this manual handy - so you can use it whenever necessary.
The following safety notations are used throughout the manual to highlight safety precautions for the user and for the
tool.
WARNING: Indicates a potentially hazardous situation which, if not avoided by following the
instructions given, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided by following the
instructions given, could result in injury or material damage.
* Please note, however, that failure to observe safety precautions under the " CAUTION" category could result in a
serious occurrence depending on the situation.
Please observe all safety precautions in the manual.
CAUTION: Important precautions for tool setup, operation and maintenance.
About pictograms
WARNING: Failure to follow the instructions for handling could cause danger when using the tool.
Using this tool improperly could result in serious injury. Read this instruction manual before
using the tool.
Precautions
Please be noted that NITTO KOHKI shall not be responsible for any damages or loss of profit to the customer, or
claims received from a third party as a result of download or use of this application.
The company names and product names used in this manual are trademarks or registered trademarks of the
respective company.
NITTO KOHKI CO., LTD. owns all rights concerning this application.
Due to continuous product development/improvement, the specifications of this application and the contents of this
manual are subject to change without prior notice.
Contents
Instructions ........................................................... ii
Precautions........................................................... ii
1. Product Overview ............................................. 1
Application ............................................................1
Accessories...........................................................2
2. Preparation ....................................................... 4
Installing on the robot............................................4
Emergency stop....................................................6
Changeover switch ...............................................6
3. Using the Software ........................................... 7
URCaps ................................................................7
Installing the software ...........................................7
Channel setting...................................................10
Common settings................................................15
Creating the operation program..........................18
4. Appendix......................................................... 22
Product information.............................................22
TV08374-0URCapsen.indbiiTV08374-0URCapsen.indbii 2021/06/0117:34:292021/06/0117:34:29
1
EN
1. Product Overview
Application
This is a screw fastening automation system using a current control type electric screwdriver.
Target models
Electric screwdriver DLV45C12P-A/DLV45C12L-A
One uppercase letter (A to Z) fits in the .
Controller DCC0241X-AZ (Ver. 1.20 or later)
CAUTION
Make sure the controller version is 1.20 or later.
This system does not operate with an earlier version of the controller. To use a version earlier than 1.20, please
contact NITTO KOHKI.
For details on other usage conditions and product specifications, refer to the instruction manual for the electric
screwdriver.
Version checking method

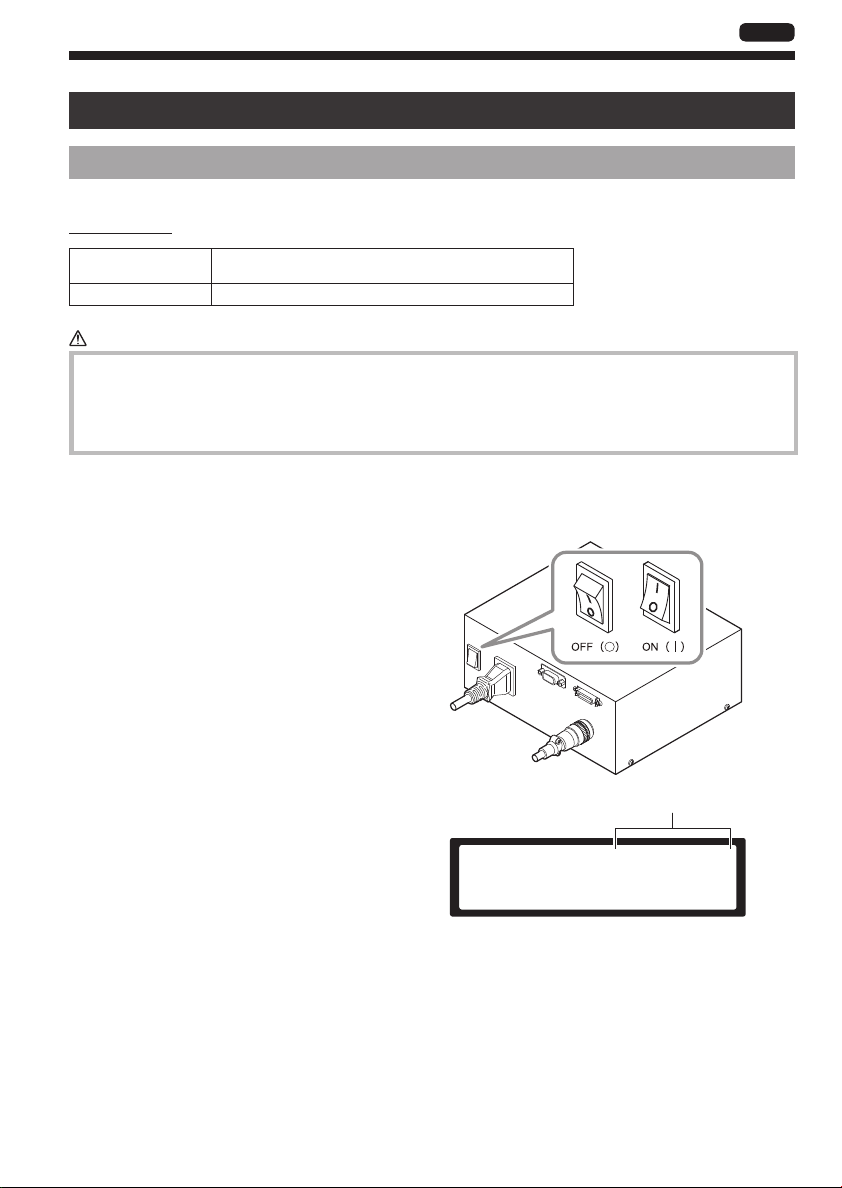

1 Connect the electric screwdriver to the
controller
2 Turn ON (I) the power switch of the controller
A buzzer sounds and the LED lights up.
The electric screwdriver and controller model and the
program version are displayed on the LCD screen.
The version of the electric screwdriver is not
specified.
'&&;9HU
'/9&9HU
Controller version
TV08374-0URCapsen.indb1TV08374-0URCapsen.indb1 2021/06/0117:34:302021/06/0117:34:30
2
EN
Accessories
The following accessories can be used.
CAUTION
Use either DLW9017 or DLW9019 as the coupling.

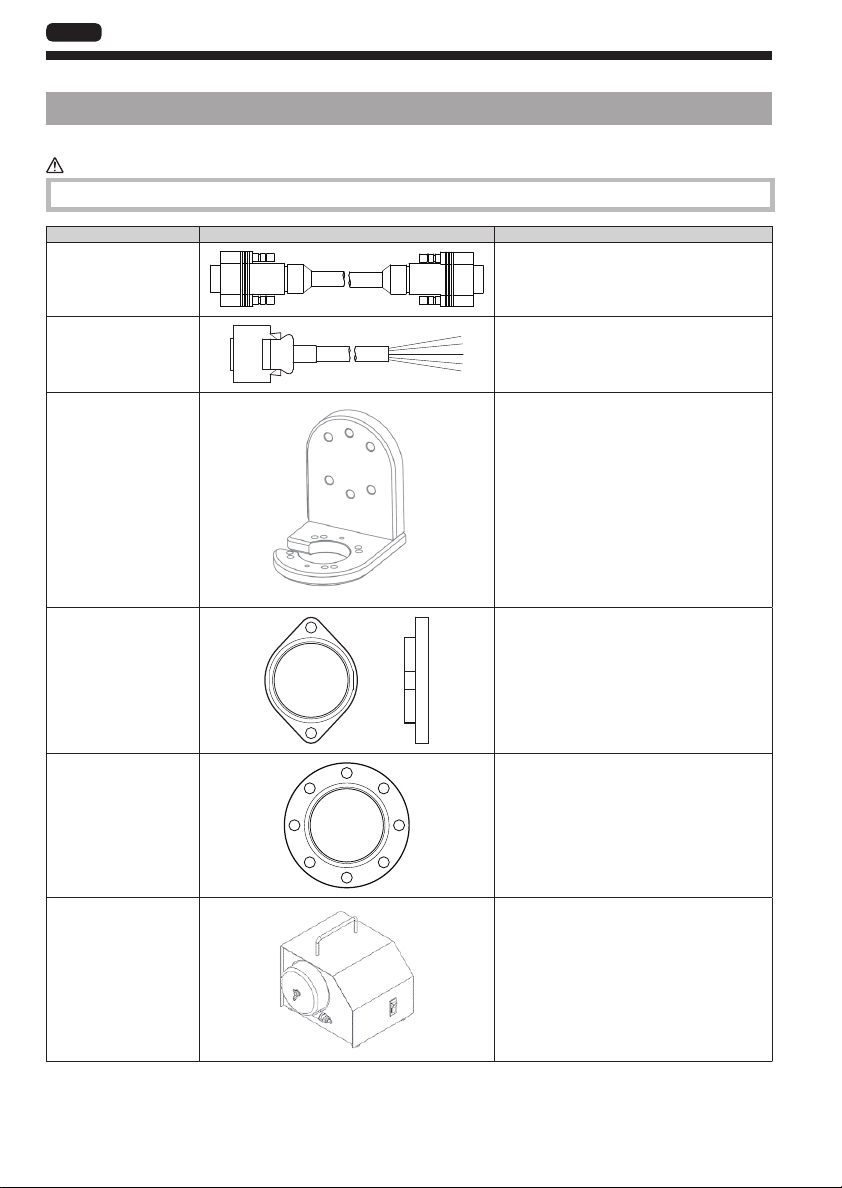

Product name (model) Appearance Specifications, etc.
Communication cable
(straight)
DLW9092
Connects the controller and the control box
External I/O cable
DLW9091
Connected to the controller when using
external signals
Flange attachment
DLW9520
An attachment for installing the electric
screwdriver on the universal robot
Used by mounting the diamond shape
flange coupling or flange coupling.
Diamond shape flange
coupling
DLW9017
For use by mounting in automatic screw
fastening machine
Required when using the flange
attachment.
Flange coupling
DLW9019
For use by mounting in automatic screw
fastening machine
Required when using the flange
attachment.
Screw vacuum pump
DLP2530
Connect the tube to the vacuum pickup, and
use vacuum pressure to adsorb the screw
Cannot be turned ON/OFF by an external
signal. If you wish to do so, please contact
NITTO KOHKI.
Product Overview
TV08374-0URCapsen.indb2TV08374-0URCapsen.indb2 2021/06/0117:34:302021/06/0117:34:30
3
EN
Product name (model) Appearance Specifications, etc.

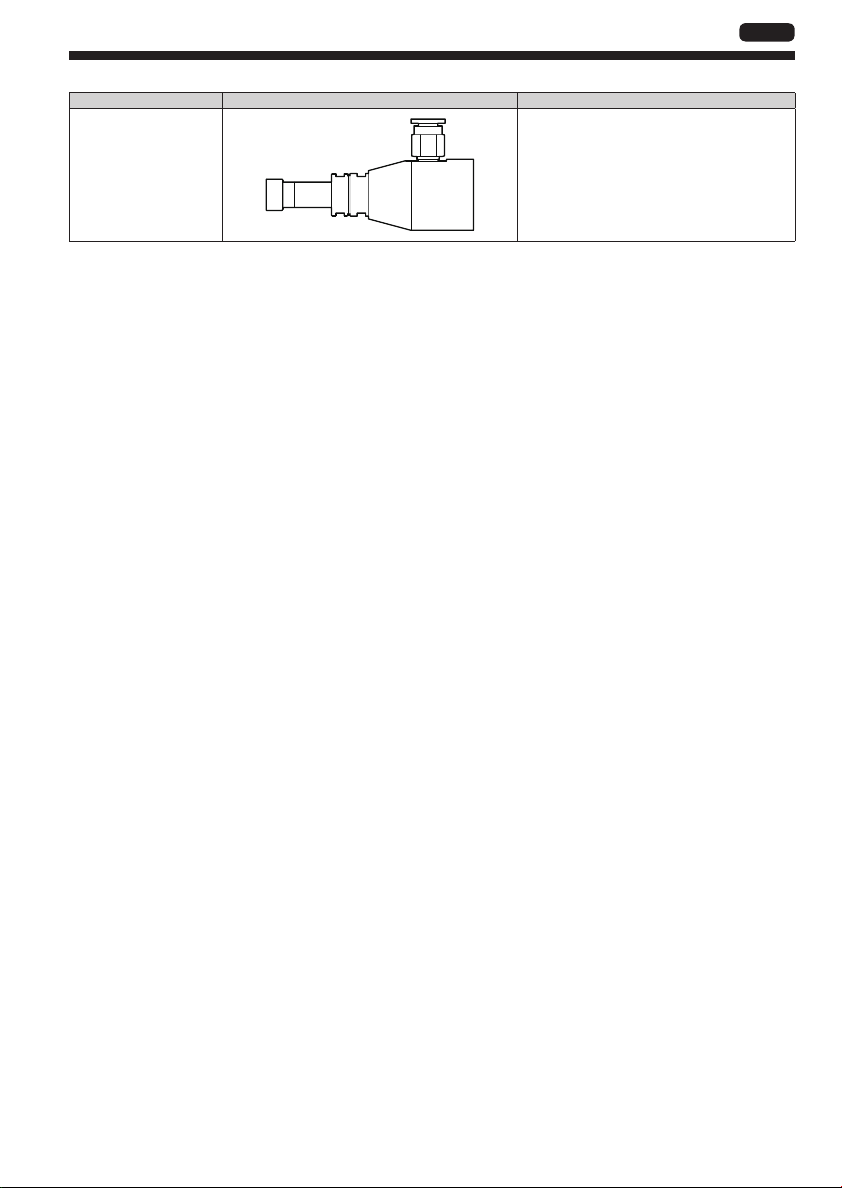

Vacuum pickup
DLP7401-K
An attachment used to vacuum screws
Attached vacuum sleeve: DLS4220/
DLS4221
Use DLP7401-J for the J-bit type electric
screwdriver.
For details on the installation method,
refer to the instruction manual for the
electric screwdriver.
TV08374-0URCapsen.indb3TV08374-0URCapsen.indb3 2021/06/0117:34:302021/06/0117:34:30
4
EN
2. Preparation
Installing on the robot
CAUTION
For safety reasons, install the electric screwdriver on the robot after the bit has been removed.

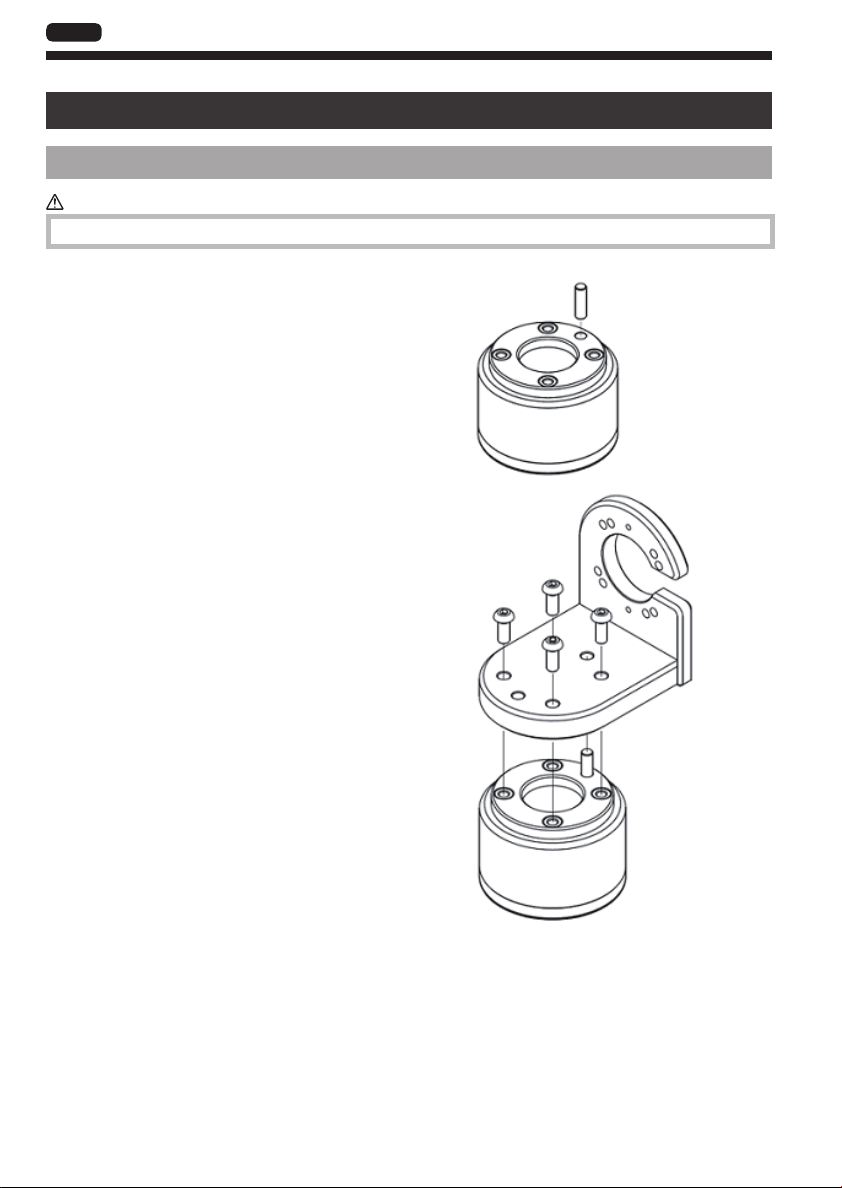

1 Attach the pin of 6 DIA provided with the flange
attachment (DLW9520) to the flange part of the robot
2 Mount the flange attachment (DLW9520) on the flange
part of the robot
Use four M6 screws of strength class 8.8 (recommended
length: 15 mm, recommended torque: 8 Nm, sold separately).
TV08374-0URCapsen.indb4TV08374-0URCapsen.indb4 2021/06/0117:34:302021/06/0117:34:30
5
EN
3 Remove the pin of 6 DIA from the flange and mount
the electric screwdriver on the flange attachment
Use four M5 screws of strength class 8.8 (recommended
length: 15 mm, recommended torque: 4.6 Nm, sold
separately).
For details on how to mount the diamond shape flange
coupling or the flange coupling, refer to the instruction manual
for the electric screwdriver.

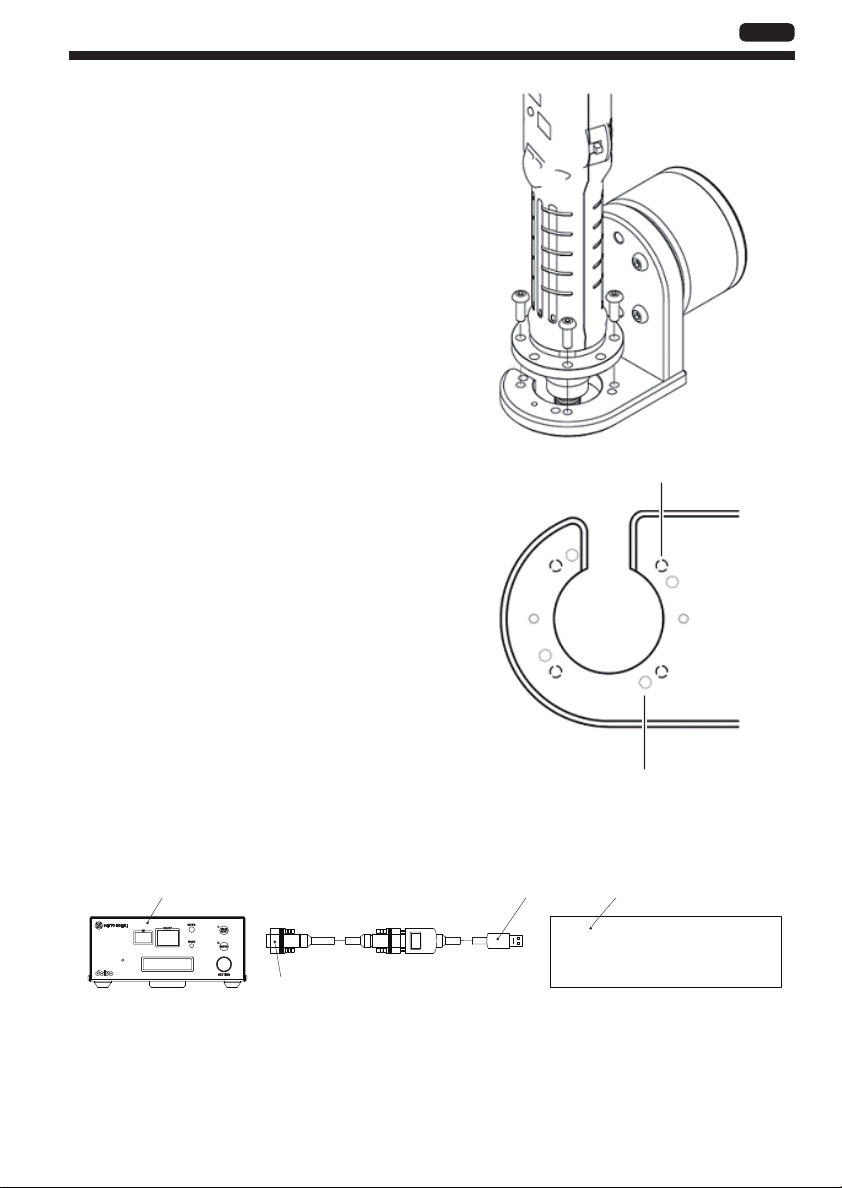

The flange attachment mounting holes are different on the
DLV45C and DLV04C/10C.
DLV45C (PCD52)
DLV04C/10C (PCD51)
4 Connect the cables
For details on how to connect the screwdriver cable and power cable, refer to the instruction manual for the
electric screwdriver.
1
2
34
1Controller (DCC0241X)
2Communication cable (straight) DLW9092 (sold separately)
3Cable for converting from RS-232C to USB (commercial item)
4Control box
TV08374-0URCapsen.indb5TV08374-0URCapsen.indb5 2021/06/0117:34:302021/06/0117:34:30
6
EN
Emergency stop
Wire so that force stop function of the controller stops the electric screwdriver in the event of an emergency stop of the
universal robot.
For details on the wiring method, refer to the user’s manual for the universal robot and the instruction manual for the
electric screwdriver.
CAUTION
Make sure the controller version is 1.20 or later.
There is no force stop function in versions earlier than 1.20. To use a version earlier than 1.20, please contact
NITTO KOHKI.
Changeover switch
To operate this system, set the changeover switch of the electric screwdriver to neutral.
CAUTION
If the changeover switch is in the forward or reverse mode, the electric screwdriver can suddenly start,
possibly causing an accident or injury.
Align the changeover switch to “○”
Preparation
TV08374-0URCapsen.indb6TV08374-0URCapsen.indb6 2021/06/0117:34:302021/06/0117:34:30
7
EN
3. Using the Software
URCaps
URCaps NittokohkiScrewdriver (hereinafter, “NittokohkiScrewdriver”) provides a program for linking the universal robot
and the DCC0241X-AZ controller (hereinafter, “the controller”) to operate the electric screwdriver, and a function for
changing the settings of the controller from a teaching pendant.
Installing the software
1 Download the software from the following URL on your PC, and save it in the USB memory
https://www.nitto-kohki.co.jp/e/prd/delvo/
2 Connect the USB memory to the teaching pendant

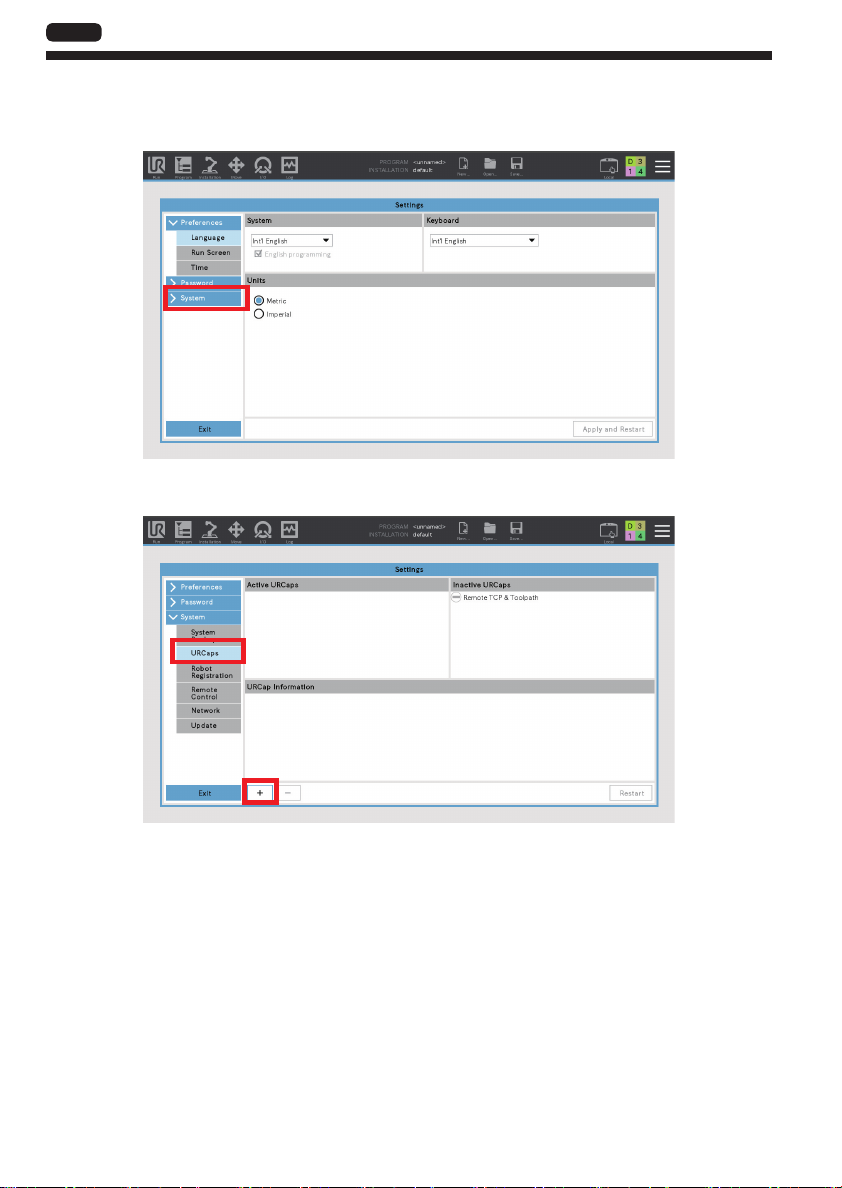

3 Click the menu icon (1) and then select [Settings] (2)
1
2
The [Settings] screen is displayed.
TV08374-0URCapsen.indb7TV08374-0URCapsen.indb7 2021/06/0117:34:302021/06/0117:34:30
8
EN
4 Click [System] (3)
3
5 Select [URCaps] (4) and then click + (5)
4
5
Using the Software
TV08374-0URCapsen.indb8TV08374-0URCapsen.indb8 2021/06/0117:34:312021/06/0117:34:31
