NLS ITerm2 Manuale utente

iTerm2 Quickstart Guide

06/01/06 Rev 1.0 Page 1 of 10

Proprietary Information of Neuro Logic Systems, Inc.

451-C Constitution Ave., Camarillo, CA 93012

805.389.5435 •805.389.5436 •www.NLSdisplays.com

1U Rack Mounted General Purpose Terminal

Quick Start Setup Guide

iTerm Rack Kit Installation Guide

06/01/06 Rev 1.0 Page 2 of 10

iTerm Rack Kit Installation Guide

06/01/06 Rev 1.0 Page 3 of 10

SECTION 1

Introduction

The 1U Terminal is a general purpose character terminal with a 15" colour LCD display and keyboard

mounted in a 1U high rack mountable tray.

The terminal connects to servers using either a serial RS232 console connection or an Ethernet

telnet RSC console connection (to the RSC Ethernet console port where available).

The terminal offers multiple personalities, and can connect to multiple servers when used with a

Console Server (for RS232 connections) or with an Ethernet Switch (for Ethernet connections).

This guide describes the basic installations and configuration procedure. For further details,

please see the Reference Manual which is available at

http://www.nlsdisplays.com/pdf/docs/iterm/iTerm_v6-manual.pdf

iTerm Rack Kit Installation Guide

06/01/06 Rev 1.0 Page 4 of 10

SECTION 2

Hardware Installation

Hardware installation consists of the following steps:

•Adjust and mount the removable slide rails in the rack.

The slide rails that the terminal tray is delivered with must first be detached from the terminal tray

by undoing the front thumb screws, extending the rails fully towards the rear (until they lock),

disengaging the exposed safety catches (located midway along each side of the tray), and then

completely removing the rails towards the rear. The rail length should then be adjusted to match

that of the rack by slackening the 3 bolts holding the extendible rear rail sections.

Bolt the rails into the rack using the 8 included bolts. Please select a height that ensures that the

terminal is easily visible, and where the keyboard can be used comfortably. Most racks will allow

the rails to be bolted from the front and rear of the rack. Very deep racks may require the back of

the rails to be bolted to an internal mid-rail within the rack, in which case the rear rail extensions

should be reversed so as to present the appropriate mounting holes to the rack mid-rails.

•Mount the terminal tray in the slide rails.

Ensure that the fitted rails are not extended (by centering the catches located on the inside edges

of the rails), and carefully slide the terminal tray into the fitted rails until it locks in to place. Please

note that forcing the terminal tray in to the mounted rails without making certain of a good fit may

cause permanent damage to the rail mechanisms. The terminal tray should slide easily when

fitted correctly.

When fully extended, the terminal tray will lock in to position. The rail locks must be disengaged by springing

the catches located mid way along the sides of the terminal tray before it can be slid home.

iTerm Rack Kit Installation Guide

06/01/06 Rev 1.0 Page 5 of 10

SECTION 3

Cable Connections

The terminal may be configured to communicate using either a serial RS232 connection or an

Ethernet telnet connection. Although it is possible to connect both RS232 and Ethernet cables, it is

only possible to use one type of connection at any time (depending on configuration defined in

terminal set up).

The Ethernet network connection may be used to connect to any 10Mb compatible Ethernet host

adapter. However the Ethernet connection is most suited for use with RSC (Remote System Control)

Ethernet ports since these provide the same functionality as serial (ttya) console ports.

If connecting a serial RS232 cable to the server, it is advisable to power down the server first.

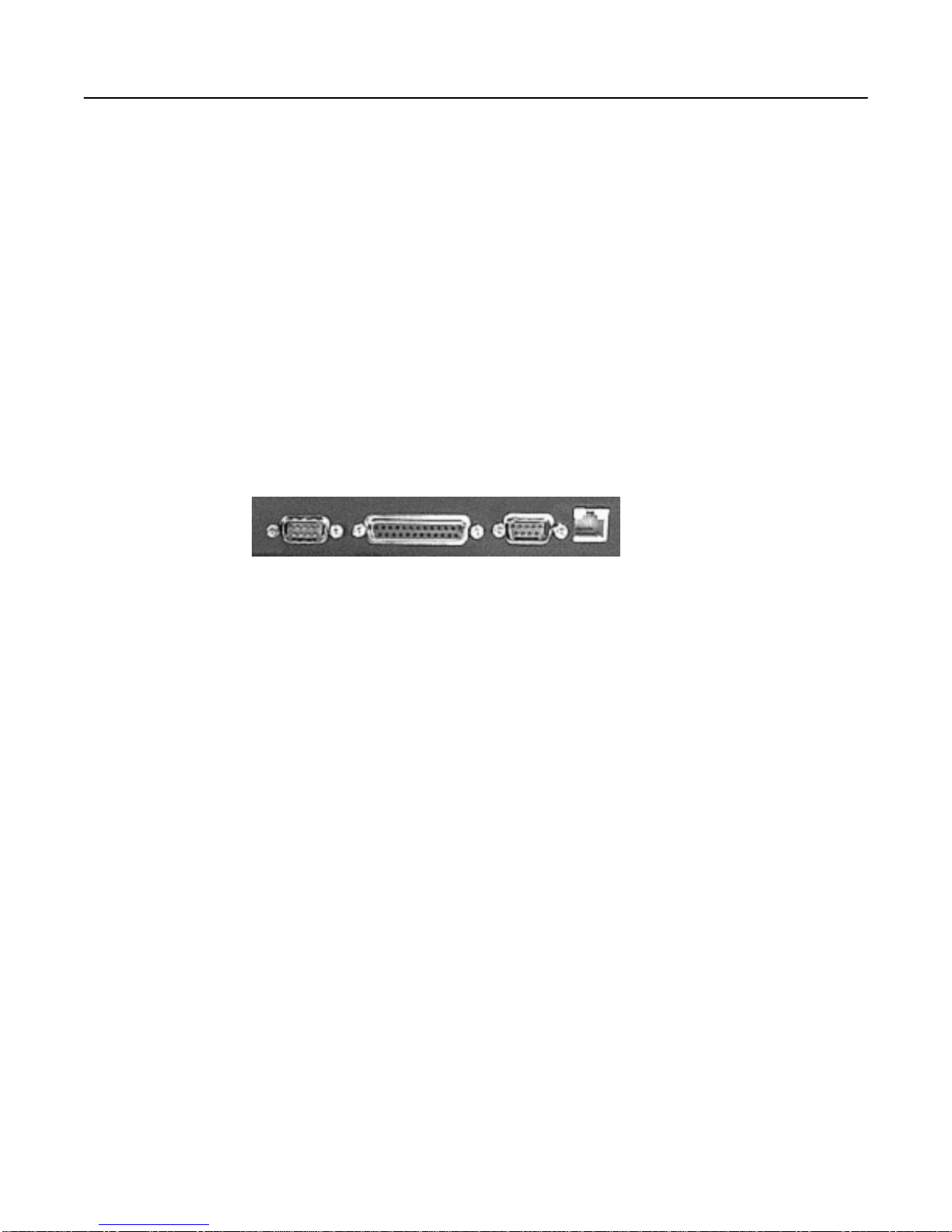

The rear of the terminal tray has the following connections.

SERIAL 2 PARALLEL SERIAL 1 10BASE T

•Serial 2 and Parallel

The terminal supports a local printer which can be connected to a serial (male 9-pin D connector)

or parallel (female 25-pin D connector) interface. Printer cables are not included with the terminal,

and specific printers have not been qualified for this connection.

•Serial 1

This is a male 9-pin D connector port which should be used for a serial RS232 console

connection. The included cable can be used to connect this port to a female 25-pin D connector

console port. The included 25-pin to 9-pin adapter should be used in conjunction with this cable

when connecting to a male 9-pin D connector console port.

If your server has an RJ45 serial (RS232) port, connect the included 9-pin to 25-pin adapter

directly to the SERIAL 1 port at the rear of the terminal. Then use the RJ45 cable and RJ45 to

DB25 adapter (part number 530-2889) which are included with the server to connect to the

terminal.

When the terminal looses power or is powered off, a ‘break’ may be generated on the RS232 (SERIAL 1) host port (as is common with

most general purpose terminals).

iTerm Rack Kit Installation Guide

06/01/06 Rev 1.0 Page 6 of 10

If connecting the terminal using the RS232 connection to a Console Server, use cabling recommended by the Console Server

manufacturer. In this case an alternate break sequence may not be required, since some console servers are “Break Safe”. Refer to the

Console Server documentation for details.

•10Base T

This is an RJ45 port that may be used for an Ethernet server connection.

This connection may be used with any 10Mb compatible Ethernet host adaptor. However the Ethernet connection is most suited for use

with the RSC (Remote System Control) Ethernet ports since these provide the same functionality as serial (ttya) console ports.

Connect a RJ45 to RJ45 UTP cable (not supplied) between this port and an Ethernet 10Mb compatible hub or switch. The network

hub/switch should in turn be connected to the server RSC Ethernet port(s). The terminal supports 12 concurrent telnet connections when

configured in Econ-80 screen column mode. The number of concurrent telnet connections reduces to 8 when using standard 80 column

mode.

It is advisable that this network remain a private network for security reasons. If only one server is to be connected to by the terminal, a

crossover (or cascade) UTP cable may be used.

When using an Ethernet console connection, the alternate break sequence need not be defined.

However, the RSC Ethernet port must be configured using the “rsc-config” command.

Finally, connect the power cable, which terminates in a male IEC320 connector, to a

standard IEC320 socket in the rack.

iTerm Rack Kit Installation Guide

06/01/06 Rev 1.0 Page 7 of 10

SECTION 4

Configuration

The terminal is delivered largely pre-configured. This section describes configuration for console serial or network connections.

Refer to the reference manual for details.

•Switch on the terminal using the power switch located at the rear of the unit.

•Raise the screen, and if the screen power LED is not lit, use the power button at the bottom of

the column of buttons located at the edge of the screen.

•Hold down the ALT key and then depress the Esc key to enter Setup Mode.

•Adjust the screen's brightness with the controls marked + and - located at the edge of the

screen.

•If the screen image is not centered correctly, activate LCD auto-setup by pressing the ‘Select’

button (located second from bottom) at the edge of the screen. This should only be done when

displaying the terminal setup screen.

To navigate the setup menus, use a function key to enter a setup menu, and then use the arrow keys

to highlight the field to be changed. Use the space key to change the value of a parameter. Use F12

to return to the top level menu, and F12 again to leave setup mode. You will be prompted at this

point if the setup parameters are to be saved for future sessions.

The terminal is delivered pre-configured with the following settings which are suitable for most

RS232 serial console connections at 9600 baud using VT-100 emulation.

Disp SETUP Menu

Columns = Econ-80

Cursor = Blink Block

Screen Saver = Off

Lines = 24

Background = Dark

Page Length = 1 x Lines

Auto Page = Off

Width change clear = Off

ANSI Reverse = Off

Display= LCD

F2 General SETUP Menu

Personality = VT 100

Enhance = On

Status Line = Standard

Scroll Speed = Jump

Auto Scroll = On

End of Line Wrap = On

Rcvd CR = CR

Monitor = Off

Attribute = Char

F3 Keybd SETUP Menu

Keyclick = Off

Key Repeat = 5

Xmt Limit = None

Margin Bell = Off

Language = US

Keycode = ASCII

NRC = Off

Bell Volume = 2

NUM Start = Off

DEL Keypad = Dot/Del

F4 Comm SETUP Menu

Baud rate = 9600

Data / Stop Bits = 8/1

Parity = None

Rcv Hndshake = Xon/Xoff

Xmt Hndshake = Xon/Xoff

Comm Mode = FDX

XPC Handshake = On

Printer Selection = Off

Multiple Sessions = Off

Ethernet Mode = Off

Auto Connect = Off

F5 Misc SETUP Menu

Wprt Intensity = Dim

Wprt Reverse = Off

Wprt Underline = Off

Block End = US/CR

Ptr Baud rate = 38400

Ptr Data/Stop Bits = 8/1

Ptr Parity = None

Ptr Rcv Hndshake = Xon/Xoff

Ptr Xmt Hndshake = Xon/Xoff

Ptr Rcv = Off

F9 Lan Setup Menu

Local IP Address = {blank}

Netmask = {blank}

Gateway = {blank}

Remote IP 0..B Address =

{blank}

Port 0...B = 23

Term Type = vt100

Ethernet Node ID = (default}

iTerm Rack Kit Installation Guide

06/01/06 Rev 1.0 Page 8 of 10

For use with an Ethernet connection the following parameters need to be configured:

•Display Setup (F1 in setup mode)

Page Length = 1*Lines (only required if ‘Multiple Sessions=On’)

•Communications Setup (F4 in setup menu)

Multiple Sessions = off or on

Ethernet Mode = on

Auto Connect = off or on

‘Multiple Sessions=on’ should be set if multiple telnet sessions are required.

‘Auto Connect=on’ is used to prevent the need to press return to establish a telnet connection.

•LAN Setup (F9 in setup mode)

Local IP Address = IP address of the terminal

Netmask = Netmask value for the network

Gateway = gateway address if required by the network

Remote IP 0 Address = IP address of first server Port = 23

Remote IP 1 Address = IP address of second server Port = 23

….

Remote IP B Address = IP address of twelfth server Port = 23

Term Type = Same as personality specified in General Setup menu

Ethernet Node ID = leave at default value

If only one host is being connected to, all twelve Remote IP addresses and ports should be set

the same value.

Note: Eight separate telnet sessions are allowed if any columns other than Econ-80 is selected in

Terminal Display set up. If Econ-80 is selected, the Multiple Sessions option allows twelve

concurrent telnet sessions to be used.

Once the terminal has been configured, press F12 to prompt if the setup is to be saved. Select Yes

by pressing space and then press F12 again to exit setup mode.

If any IP addresses or Ethernet settings have been defined or edited, the terminal must now be

power cycled by using the switch at the rear of the terminal (ensure that no serially connected host is

present prior to power cycling the terminal).

If the host server is connected and active, pressing return (if Auto Connect was set to off) should now

display a server login prompt.

Each of the defined servers may be selected by using ALT and a function key. For example to

connect to a server which has been defined as Remote IP Address 3, press ALT and Function Key 4

(since the IP addresses are defined from 0 to 11 and the function keys are labeled 1 through to 12).

When connecting to a server which is switched off or does not have telnet configured, a 10 second

timeout will occur when the server is selected (if Auto Connect is on), or after pressing return when

the server is selected (if Auto Connect is off). During this 10 second timeout, it is not possible to

select another server or enter setup.

Please ensure that the Page Length is set to ‘1*Lines’ in the Display Setup (F1 in setup) to prevent possible

problems when switching between different servers.

iTerm Rack Kit Installation Guide

06/01/06 Rev 1.0 Page 9 of 10

SECTION 5

Specifications

Physical

Dimensions 44mm x 483mm x 615mm HxWxD

Weight 13Kg

Temperature 0°~40°C operating, -20°~60°C storage

Humidity 5% to 95% non condensing

Power Supply Auto-ranging 90-262 VAC, 47-63Hz

Power Consumption 60W (max), <25W (standby)

Cables Included Power (IEC320), 3m RS232 terminating in DB25M,

DB25F-DB9F adapter

Rack mount kit Included for Sun & most EIA 19” racks

Standards CE, FCC

Installation User Installable

Warranty 12 months RTD (return to depot)

Maintenance Contact Sun Support for options

LCD Panel Specifications

Screen size 15.1” visible diagonal

Resolution 800x600

Controls contrast, brightness, auto-adjust, colour

LCD Power switch Automatic with manual override

Brightness 250cd/m(typical)

Contrast 300:1 (typical)

Viewing Angle L/R=75°/75°, U/D=55°/65°

Screen protection 2mm glass

LCD Approvals FCC-B, CE, VCCI-II, BSMI, CCIB, UL, CUL, TUV,

CB, TCO’99

Keyboard Specifications

Type 101 key

Layout US

Terminal Emulation

Emulations VT52, VT100, VT220, Console ANSI, PC TERM,

TVI910+/925, WY-50+, WY-60, WY-100, WY-120,

WY-325, PCG Alpha

Character matrix 7x12 dot matrix in 10x16 cell

Screen size 80x25

Page length 1, 2, or 4 screens (single-screen page length only

when using multiple telnet sessions)

Cursor Blink or steady, block or underline

Modes Full duplex, half duplex, block mode, half block

mode

Colour modes 16 foreground and 16 background colours

Communication Ports

Serial port for host connection One DB9M RS232 port

Network port One RJ45 10Base-T Ethernet port

Local printer ports DB25F Parallel and DB9M RS232 port

Serial baud rates 50 to 115,200 bps

Data format 7/8 data bits with/without parity, 1/2 stop bits

Serial handshake XON/XOFF, XPC, and hardware DTR

Communications options Single RS232 server connection, or up to 12

Ethernet telnet sessions to predefined IP

addresses. Both serial and Ethernet connections

can not be used concurrently.

iTerm Rack Kit Installation Guide

06/01/06 Rev 1.0 Page 10 of 10

Indice

Altri manuali NLS Cassetto LCD

NLS

NLS RFT2-17-CAT5 Manuale utente

Manuali Cassetto LCD popolari di altre marche

Acnodes

Acnodes KD 8228 Manuale utente

Ameriwood

Ameriwood 9524328PCOM Manuale utente

Kesseböhmer

Kesseböhmer TANDEM solo Manuale utente

Crystal Image Technologies

Crystal Image Technologies RMD-151-A Series Manuale utente

APW Wyott

APW Wyott Ease Extreme HDX-1-120 Manuale utente

NTI

NTI RACKMUX-V17-N Manuale utente

Austin Hughes

Austin Hughes CyberView L120 Manuale utente

Uplift Desk

Uplift Desk STR018 Manuale utente

Acnodes

Acnodes KDC 81932 Manuale utente

Acnodes

Acnodes RK1200T Manuale utente

StarTech.com

StarTech.com DuraView RACKCONS1501 Manuale utente

Mocka

Mocka Mischa Manuale utente

GRASS

GRASS DWD XP Manuale utente

StarTech.com

StarTech.com DuraView RACKCONS1701 Manuale utente

Fisher & Paykel

Fisher & Paykel IZONA CoolDrawer RB36S Manuale utente

Synergy Global Technology

Synergy Global Technology LCD1U17-44 Manuale utente

Fujitsu

Fujitsu RC25 Manuale utente

Acnodes

Acnodes RK 1000B Manuale utente

NLS iTerm2 Manuale utente

Manuali Cassetto LCD popolari di altre marche
