INSTRUCTIONS FOR USE
Noaton DF 4214 HEPA
Dehumidifier and air purifier
Read the instructions for use. Before any use, read
the corresponding section in this User Guide.
A service manual is available on request for certified workshops.
This product must not be disposed of with other household waste at
the end of its useful life, but must be taken to a collection point
designated for the recycling of electrical equipment.
NOTE: After shipping, allow the unit to stand upright for at least 6
hours before starting. This procedure will protect the compressor
and extend the life of this unit. Failure to follow this procedure
may result in reduced performance, damage to the refrigeration
circuit and void the warranty!
The product complies with applicable European and other directives.
The product uses flammable refrigerant for its function. If the
refrigerant escapes from the unit and comes into contact with an
open flame or other strong heat source, there is a risk of fire.
3
CONTENTS
1. Safety instructions ............................................................................................................................4
2. Warning in relation to R290 refrigerant .................................................................................5
3. Instrument features...........................................................................................................................6
4. Parameters............................................................................................................................7
5. Instrument description......................................................................................................................9
6. Before starting.....................................................................................................................11
6.1. Filter installation............................................................................................................11
6.2. Correct placement...................................................................................................................11
7. Continuous condensate drain .......................................................................................................12
8. Controls and functions ...................................................................................................................13
8.1. Switching the device on and off ............................................................................................13
8.2. Timer settings ..........................................................................................................................13
8.3. Fan speed setting....................................................................................................................14
8.4. Choice of modes .....................................................................................................................14
8.4.1. Laundry drying..................................................................................................................14
8.4.2. Air purification mode........................................................................................................15
8.4.3. Manual mode....................................................................................................................15
8.4.4. Night mode .......................................................................................................................16
8.5. Safety child lock ......................................................................................................................16
8.6. Low temperature defrost mode .............................................................................................17
8.7. Automatic shutdown when the tank is full............................................................................17
8.8. Memory functions....................................................................................................................18
9. Maintenance....................................................................................................................................18
9.1. Cleaning the water tank .........................................................................................................18
9.2. Cleaning the instrument and pre-filter ..................................................................................18
9.3. HEPA filter cleaning................................................................................................................19
10. Storage ..........................................................................................................................................19
11. Overview of error messages.......................................................................................................19
12. Troubleshooting ............................................................................................................................20
13. Disposal ............................................................................................................................21
4
1. Safety instructions
Before using the dehumidifier, read the instructions for use carefully,
especially the following safety instructions and warnings in relation to R290
refrigerant.
1. Install the unit on a level and solid floor to reduce vibration or noise.
NOTE: After shipping, allow the unit to stand upright for at least 6 hours before starting. This
procedure will protect the compressor and extend the life of this unit. Failure to follow this
procedure may result in reduced performance, damage to the refrigeration circuit and void the
warranty!
2. Never immerse the device in water or other liquids.
3 Never use the device if the cable or other connector is damaged or something unusual
occurs. In this case, please contact customer service.
4 Disconnect the unit from power when not in use, being moved or being cleaned.
5 Use the device according to the specified voltage.
6 The device is intended for indoor use only. Do not use it for other purposes.
7 Do not place heavy objects on the device.
8 Do not tilt the unit to either side, water may spill out of the unit and damage it.
9 Never insert any objects into the interior of the unit to prevent damage to the unit.
10 Do not place the device near heat-generating equipment or near flammable or hazardous
materials.
11 This appliance is not intended for use by persons (children) with reduced physical or sensory
abilities or lack of experience, unless they have been given safety instructions on how to
operate the appliance or are working under the supervision of a person responsible for their
safety. Children must be supervised by an adult and should not handle the apparatus.
12 If the power cord is damaged, it must be replaced by the manufacturer, its service
representative, or a similarly qualified person to avoid risk of shock.
13 The appliance must be positioned so that the plug is accessible.
14 The appliance must be installed in accordance with national wiring regulations.
15 The ambient temperature range for the device is 5 °C - 35 °C.
Do not attempt to repair, disassemble or make adjustments to the appliance, damage
or malfunction may occur. Even the actual replacement of the power cord should only
5
be carried out by a specially qualified person.
6
2. Warning in relation to R290 refrigerant
This equipment is designed to use only R290 (propane) refrigerant, which is hermetically
sealed under pressure in the refrigeration circuit. Repairs to this equipment may only be
carried out by a specially trained service technician in accordance with national
legislation relating to flammable substances! The service manual is available on request.
Do not interfere with, pierce or expose the cooling circuit to higher temperatures.
Do not release refrigerant into the atmosphere.
Do not try to speed up the defrosting process in any way (e.g. by heating).
The device must be placed in a room with a minimum surface area of 4 m2.
R290 is a flammable gas (propane) and is heavier than air. For this reason, its concentration
rises most near the ground during a leak, but it can be agitated (e.g. by drafts, fans, etc.) to
higher layers. The propane used in this equipment is an odourless gas.
Do not use the unit in a room with an open flame or other strong heat source (e.g.
cigarettes, candles, etc.) or electrical discharges. Place the appliance in a room that can be
ventilated if necessary and where gas accumulation is not possible.
If propane is detected or even suspected in the room, do not allow unauthorized persons
to search for the location of the leak. In this case, evacuate all persons from the room,
open the windows, exit the room, and notify the local fire station of the propane leak. Do
not allow any person to return to the room until the fire department commanding officer
or certified service technician has determined that the hazard has passed.
FAILURE TO FOLLOW THE ABOVE INSTRUCTIONS MAY RESULT IN FIRE, EXPLOSION,
PROPERTY DAMAGE, INJURY OR DEATH.
7
3. Instrument features
Powerful dehumidification
Using compressor technology, this dehumidifier removes excessive humidity in the room.
Compact and portable design
The simple design of the dehumidifier and its low weight guarantee very easy and effortless handling.
Two dehumidification modes
Two types of dehumidification mode are available for the user: manual, where the user can
choose the target humidity, and continuous dehumidification (drying of laundry).
Low noise and energy saving
This device uses special energy-saving technology, plus its low noise level provides users with a
comfortable home experience.
Air purification
This unit uses a HEPA filter or HEPA + carbon filter to clean the air in the room.
In terms of cleaning functions, it uses a double-start method that can dehumidify and clean at the
same time.
8
PARAMETER VALUE
4. Parameters
Power supply220 V - 240 V / 50 Hz
Energy
consumption
210 W (35℃,80 %RV)
155 W (27℃, 60 %RV)
Rated current 0.9 A (30℃, 80 %RV)
Dehumidification
capacity
14 l/day (35℃, 90%RV)
12 l /day (30℃,80 %RV)
7 l/day (27℃,60 %RV)
Noise
Max. ≤42 dB (A)
Min. ≤36 dB (A)
Air flow max. 95 m3/ hour
Tank capacity2 .3 l
Refrigerant type / quantityR290 / 0,045 kg
GWP coefficient 3
CO equivalent20,000135 t
Operating temperature5℃-35℃
Recommended room size 15 ~ 25 m² (height = 2.6 m)
Control typeTouch panel
Automatic defrost Yes
9
PARAMETER
VALUE
Automatic shutdown when the tank
is full
Yes
Automatic humidity maintenance
Yes
Memory during power failure
Yes
Timer
(delayed start, delayed shutdown)
0 - 24 hours
Instrument size
309 x 229 x 478 mm
Package size
350 x 270 x 505 mm
Instrument weight
11 kg
Weight including packaging
12,2 kg
Drain with hose (not included)
Yes (inner Ø 14 mm)
Minimum room size
4 m2
10

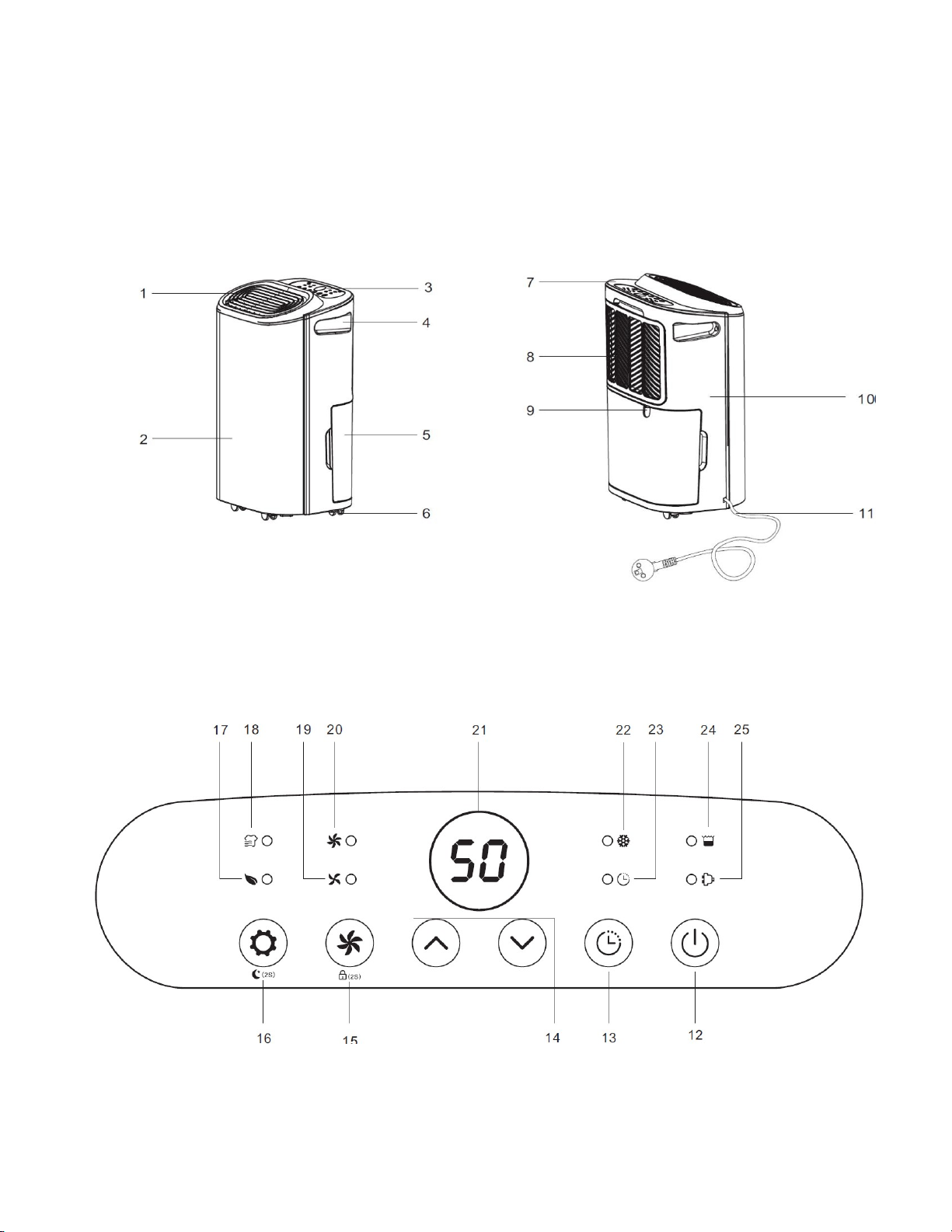

5. Instrument description
Components
Control panel
