Operating Instructions

Parts List

SPN10

Semi-Electric Stacker

Note:Owner and Operator MUST read and understand this operating

instructions before use this stacker.

Welcome to use our half-electric stacker SPN series. Your stacker is made of high

quality steel and SPED mast and was designed to give a durable, reliable and easy

to use product. For your safety and correct operation, please carefully read this

instruction book and warnings on the stacker before using it.

NOTE: All of the information reported herein is based on data available at the

moment of printing. We reserves the right to modify our own products at any

moment without notice and incurring in any sanction. So, it is suggested to

always verify possible updates.

1. STRUCTURAL DATA FORM

Model

SPN10

Capacity

1000

Lift Height

1600/2500/3000/3500

Fork Size

900x150x60 or 1100x160x60

Overall Height

2077/1827/2077/2327

Lift Speed with/without

Load

mm/sec

80/130

Lower Speed with/without

Load

mm/sec

0~420/0~190

Min. Fork Height

Battery

DC12V, 120AH

Motor of Hydraulic Pump

DC12V, 1.5KW

2. SAFETY GUIDANCE

2.1 Operator should read all warning signs and instructions here and on the

stacker before using it.

2.2 Do not operate a stacker unless you are familiar with it and have been trained

or authorized to do so.

2.3 Do not operate a stacker unless you have checked its condition. Give special

attention to the chain, the wheels, the handle, the guide frame, the pilot wheel,

the mast, battery, etc.

2.4 Do not use on a slopping ground or on a barbaric or explosive danger

environment.

2.5 Do not take up any people on the forks.

2.6 When forks lifting, forbid anyone to stand under the forks or pass through the

forks.

2.7 The operator had better take on gloves for labor protecting.

2.8 Do not move the stacker when the goods are lifted to the height more than

300mm.

2.9 When the goods have been transported or lifted, all people should be away

from the forks for 600mm.

2.10The weight of goods should be distributed on the two forks, do not use only one

fork. The center of gravity of goods should be in the center of two forks.

2.11 Do not load over maximum capacity.

2.12 Before using or charging it, check cell liquid, if not enough, full it with distilled

water.

2.13 Charging should be in dry and ventilated location, and far away from the fire.

2.14 Keeping the forks in the lowest position if not using.

2.15 At other special condition or place, the operator should be carefully to operate

the stacker.

3. MAINTENANCE

3.1 Hydraulic oil

Please check the oil level every six months. The oil can be hydraulic oil: ISO

VG32, its viscosity should be 32cSt at 40oC, total volume is about 4.0lt.

3.2 Daily check and maintenance

It is necessary to check the stacker daily. Special attention should be paid to the

wheels, the axles, as thread, rags, etc., it may block the wheels, the fork and the

mast, the chain, the battery should be checked, too. The forks should be unloaded

and lowered in the lowest position when the job is over.

3.3 Lubrication

Use motor oil or grease to lubricate all movable parts.

4. HOW TO CHARGE STORAGE BATTERY

4.1 Charge storage battery when its voltage is less than 10 Volt.

4.2 Please check the battery liquid before charging, if it is not enough, add some

distilled water.

4.3 The charging environment should be ventilated and far away from the fire.

4.4 If the stacker not use for long time, charge it for not less than two hours every

week.

4.5 The voltage on the indicator should not be over 15 Volt when charging.

4.6 Do not use the stacker when charging.

5. CONTROL PANEL

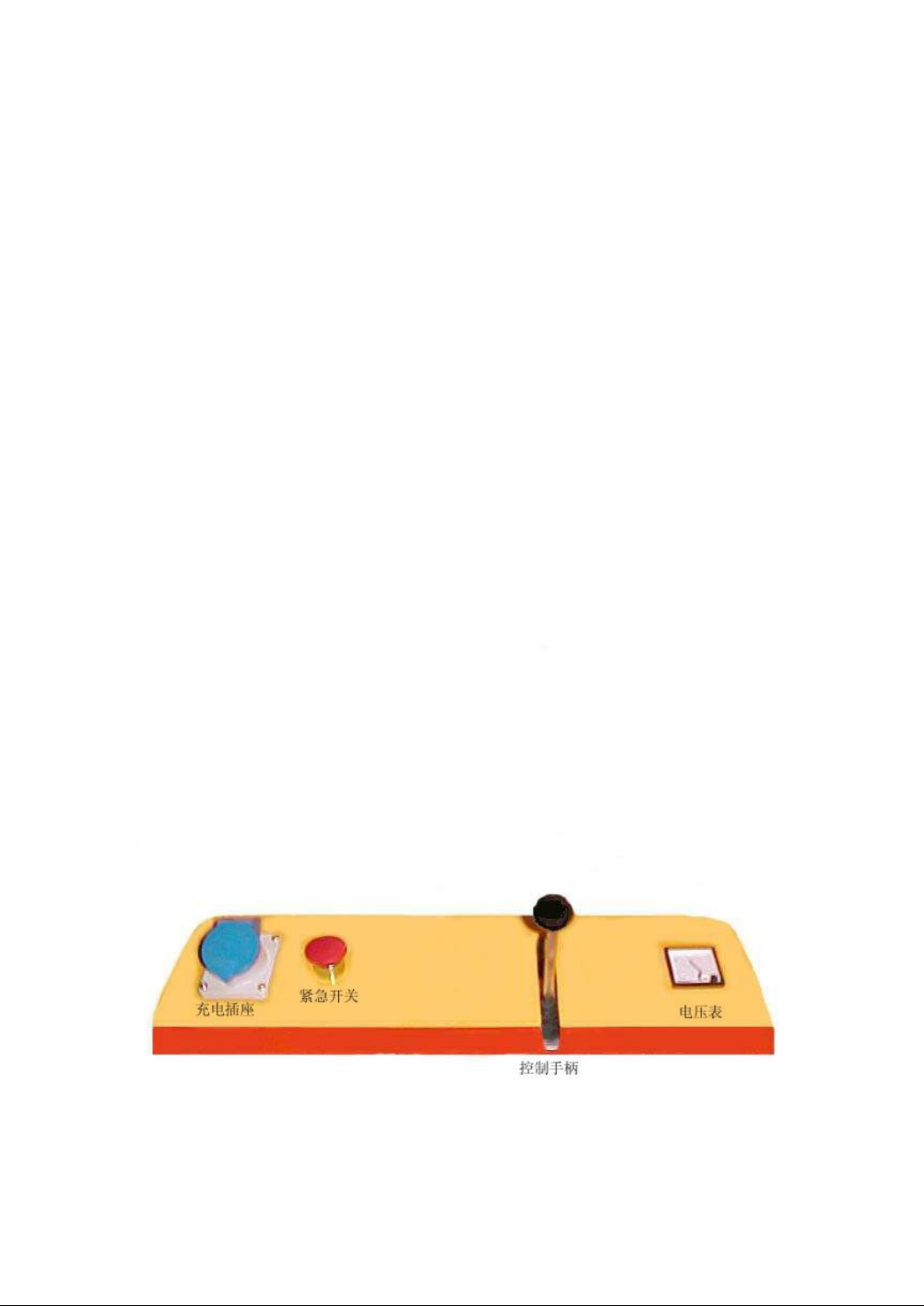

Fig. 1

5.1 Urgent switch

When you press down this switch, it will switch off the power, and then you turn it

clockwise, it will switch on the power.

5.2 Voltage meter

It indicates the voltage of battery. When its voltage is less than 10 Volt, you should

not use this stacker, you must charge it.

5.3 Control stick

This stick controls the forks to lower or lift.

5.4 Charger socket

6. TROUBLES SHOOTING

Trouble

Clause

Fixing Methods

The forks can not be up

the max. height.

-The hydraulic oil is not enough.

-Pour in the oil.

The forks can not be

lifted up.(Motor is rotary)

-Without hydraulic oil.

-The oil has impurities.

-Fill in the oil.

-Change the oil.

The motor cannot run.

-The urgent switch is pressed

down, cut off the power.

-The voltage is too lower.

-The connectors of electrical

wire is loose.

-The contactor of DC motor is

bad.

-Turn it clockwise, switch on

the power

-Charge it.

-Turn it firm.

-Replace with new one.

The forks cannot be

descended.

-The piston rod or mast is

deformed resulting from partial

loading slanting to one side or

over-loading.

-The fork was kept in the high

position for long time with

piston rod bared to arise in

rusting and jamming of the rod.

-The release valve of pump is

not opened.

- Replace with new one.

-Keeping the fork in the lowest

position if not using, and pay

more attention to lubricate

the rod.

-Check it, if damaged, replace

with new one.

Leaks

-Sealing parts worn or damaged.

-Some part cracked or worn into

small.

-Replace with the new one.

The fork descends

without the release

valve worked.

-The impurities in the oil cause

the release valve to be unable

to close tight.

-Sealing parts worn or damaged.

-The release valve is damaged.

-Replace with new oil.

-Replace with the new one.

Battery cannot be

charged

-Battery is bad.

-The charging plug is loose.

-Replace with the new one.

-Turn it firm.

NOTE: DO NOT ATTEMP TO REPAIR THE STACKER UNLESS YOU

ARE TRAINED AND AUTHORIZED TO DO SO.

7. Parts List

7.1 SPN1025/SPN1525 、SPN1030/SPN1530andSPN1035/SPN1535 part list

SPN1025/SPN1525 、SPN1030/SPN1530andSPN1035/SPN1535 part list

No.

Code

Description

Qty.

No.

Code

Description

Qty.

101

D13570012

Inner Mast (2.5)

155

503020012

Washer

D13570018

Inner Mast (3.0)

156

502040020

Nut

102

504040022

Locking Ring

157

D01640004

Foot Plate

103

349010201

Bearing

158

504030004

Locking Ring

104

422260011

Roller For Chain

159

301726012

Shaft

105

504030013

Locking Ring

160

D01640003

Brake

106

5010808010C0

Screw

161

302010116

Spring

107

504040025

Locking Ring

162

422680028

Bolt

108

349010119

Bearing

163A

349030011

Sprocket Wheel

109

422670037

Roller (φ88x36)

163

422680046

Sprocket Wheel

109A

422670035

Roller (φ106x36)

164

422670019

Seat of Turning

Wheel

110

504030018

Locking Ring

165

30301WH054

Big Wheel

111

5010410020C0

Bolt

166

349010113

Bearing

112

5010408040C0

Bolt

167

506060017

Oil holder

113

422670020

Crutch of Idler

Pulley

168

422680037

Washer

114

301726012

Shaft

169

502040012

Locking Nut

115

422680012

Idler Pulley

170

422660031A

Axle for wheel

116

504030004

Locking Ring

171

30301WH017

Loading Roller

117

D13570010

Mast (2.5)

172

349010113

Bearing

D13570016

Mast (3.0)

173

503010036

Washer

118

301727017

Hoop

174

301810037

Shaft

119

502030005

Nut

175

333050001

Linking Plate

120

50101010040

Bolt

176

505020088

Elastic Pin

121

502990006

Nut

177

D13570011

Fork Carriage

122

422670027

Protecting

Meshwork

178

504030021

Locking Ring

122A

422670028

Protecting

Meshwork

179

D06520013

Long Axle

123

506030109

Press Washer

180Y

422670015

Fork

124

503010058

Elastic Washer

181

502030011

Nut

125

5010506016C0

Bolt

182

422680024

Bolt

126

350230001

Handle

183

505020031

127

422680014

Cover

184

505040010

Cotter pin

128

30909400006

Charging Plug

185

349030136

Chain (1025)

129

30906200006

Urgent Switch

349030131

Chain (1030)

130

30916400394

Pump Station

186

504070041

O-Ring

131

30905100004

Voltage Meter

187

351420015

Body of Adjusting

Valve

132

502030005

Nut

188

G110203006

Safety Valve

133

5010506016C0

Bolt

192

503030008

Seal Washer

134

30901700002

Battery

193

422020186

Elbow Bend

135

5010610016C0

Bolt

194

30916400328

Vitta

136

422570030

Cap

195

422020187

Elbow Bend

137A

349010121

Bearing (6206)

196

G36020001

Earthen Pipe (2.5)

137

349010119

Bearing (6205)

G36020002

Earthen Pipe (3.0)

138A

622020032

Bearing (30206)

197

G07020003

Sleeve

138

349010145

Bearing (30205)

198

504080020

Dust Ring

139

422670019

Seat of Wheel

199

422680035

Cover

140

350230002

Draw-Bar for

Turning

200

351420021

Piston Rod (2.5)

351420023

Piston Rod (3.0)

141

302990030

Gas spring

201

351420016

Piston

142

504030003

Locking Ring

202

504070071

O-Ring

143

422670014

Washer

203

504070107

O-Ring

144

301726010

Shaft

204

504010041

Seal

145

504030004

Locking Ring

205

422680039

Supporting Loop

146

301726014

Shaft

207

502040024

Nut

147

504030003

Locking Ring

208

D06520012

Traverse

148

301726009

Shaft

209

422680026

Box

149

D01630001

Seat of Draw-Bar

210

301799039

Washer

150

211

422040575

Washer

151

G36040002

Washer

212

502030005

Nut

151A

G36040004

Washer

213

30911100010

Fuse

152

503010054

Washer

214

30910100034

Charger

153

349030033

Chain

154

503010068

Washer

7.2 SPN1025G/SPN1525G、SPN1030G /SPN1530 andSPN1035G/SPN1535

part list

SPN1025G/SPN1525G 、SPN1030G /SPN1530G andSPN1035/SPN1535part

list

No.

Code

Description

Qty.

No.

Code

Description

Qty.

101

D13570012

Inner Mast (2.5)

153

349030033

Chain

D13570018

Inner Mast (3.0)

154

503010068

Washer

102

504040022

Locking Ring

155

503020012

Washer

103

349010201

Bearing

156

502040020

Nut

104

422260011

Roller For Chain

157

D01640004

Foot Plate

105

504030013

Locking Ring

158

504030004

Locking Ring

106

5010808010C0

Screw

159

301726012

Shaft

107

504040025

Locking Ring

160

D01640003

Brake

108

349010119

Bearing

161

302010116

Spring

109

422670037

Roller (φ88x36)

162

422680028

Bolt

109A

422670035

Roller (φ106x36)

163A

349030011

Sprocket Wheel

110

504030018

Locking Ring

163

422680046

Sprocket Wheel

111

5010410020C0

Bolt

164

422670019

Seat of Turning

Wheel

112

5010408040C0

Bolt

165

30301WH054

Big Wheel

113

422670020

Crutch of Idler Pulley

166

349010113

Bearing

114

301726012

Shaft

167

506060017

Oil holder (

115

422680012

Idler Pulley

168

422680037

Washer

116

504030004

Locking Ring

169

502040012

Locking Nut

117A

D13570007

Mast (2.5)

170

422660031A

Axle for wheel

D13570013

Mast (3.0)

171

30301WH017

Loading Roller

118

301727017

Hoop

172

349010113

Bearing

119

502030005

Nut

173

503010036

Washer

120

50101010040

Bolt

174

301810037

Shaft

121

502990006

Nut

175

333050001

Linking Plate

122

422670027

Protecting Meshwork

176

505020088

Elastic Pin

122A

422670028

Protecting Meshwork

180

422670015

Mobile Forks

group

123

506030109

Press Washer

181

502030011

Nut

124

503010058

Elastic Washer

182

422680024

Bolt

125

5010506016C0

Bolt

183

505020031

126

350230001

Handle

184

505040010

Cotter pin

127

422680014

Cover

185

349030136

Chain (1025)

128

30909400006

Charging Plug

349030131

Chain (1030)

129

30906200006

Urgent Switch

186

504070041

O-Ring

130

30916400394

Pump Station

187

351420015

Body of Adjusting

Valve

131

30905100004

Voltage Meter

188

G110203006

Safety Valve

132

502030005

Bolt

192

503030008

Seal Washer

133

5010506016C0

Bolt

193

422020186

Elbow Bend

134

30901700002

Battery

194

30916400328

Vitta

135

5010610016C0

Bolt

195

422020187

Elbow Bend

136

422570030

Cap

196

G36020001

Earthen Pipe (2.5)

137A

349010121

Bearing (6206)

G36020002

Earthen Pipe (3.0)

137

349010119

Bearing (6205)

197

G07020003

Sleeve

138A

622020032

Bearing (30206)

198

504080020

Dust Ring

138

349010145

Bearing (30205)

199

422680035

Cover

139

422670019

Seat of Wheel

200

351420021

Piston Rod (2.5)

140

350230002

Draw-Bar for Turning

351420023

Piston Rod (3.0)

141

302990030

Gas spring

201

351420016

Piston

142

504030003

Locking Ring

202

504070071

O-Ring

143

422670014

Washer

203

504070107

O-Ring

144

301726010

Shaft

204

504010041

Seal

145

504030004

Locking Ring

205

422680039

Supporting Loop

146

301726014

Shaft

207

502040024

Nut

147

504030003

Locking Ring

208

D06520012

Traverse

148

301726009

Shaft

209

422680026

Box

149

D01630001

Seat of Draw-Bar

210

301799039

Washer

150

211

422040575

Washer

151

G36040002

Washer

212

502030005

Nut

151A

G36040004

Washer

213

30911100010

Fuse

152

503010054

Washer

214

30910100034

Charger

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Noblelift Carrello elevatore

Noblelift

Noblelift PSE12BD Manuale

Noblelift

Noblelift FE4P44-77 Manuale utente

Noblelift

Noblelift FE4P16-35N-SMS-001 Manuale utente

Noblelift

Noblelift N Series Manuale

Noblelift

Noblelift SPM1516 Manuale utente

Noblelift

Noblelift PT E30 Manuale

Noblelift

Noblelift PT 20I Manuale

Noblelift

Noblelift PS12/15CB-C Manuale

Noblelift

Noblelift PS 12 TSL Manuale utente

Noblelift

Noblelift FE4P44-77N Series Manuale utente

Noblelift

Noblelift FE4P16-35 N Series Manuale utente

Noblelift

Noblelift PS 30RP Manuale

Noblelift

Noblelift SPN22 Manuale

Noblelift

Noblelift PT 27R Manuale utente

Noblelift

Noblelift PSE15L-C 1600 Manuale utente

Noblelift

Noblelift SPM1030 Manuale di installazione e d'uso

Noblelift

Noblelift PS30RM Manuale

Noblelift

Noblelift FE4P50N Manuale utente

Noblelift

Noblelift PS35LSL Manuale

Noblelift

Noblelift FE4P16-20 Q Series Manuale utente

Noblelift

Noblelift PS10M Manuale utente

Noblelift

Noblelift PT 27R Manuale

Noblelift

Noblelift PS35/44 Manuale

Noblelift

Noblelift PSE15-C Manuale utente

Manuali Carrello elevatore popolari di altre marche

Hyster

Hyster G108 Istruzioni operative

ep ESL122 Manuale utente

Cascade

Cascade D Series Manuale

Daewoo

Daewoo D35S-2 Manuale

Konecranes

Konecranes SMV 10-600B Manuale utente

Cascade

Cascade G Series Manuale utente

Manitou

Manitou MC 40 Powershift Manuale utente

Hyundai

Hyundai 50DS-7E Manuale utente

Pegasolift

Pegasolift W12 Istruzioni per il montaggio

Multi-Mover

Multi-Mover XXL 10 TO Manuale utente

Lifter

Lifter QX 20 EVO Manuale utente

Still

Still CX-M 10 Manuale utente

U-Line

U-Line H-2651 Manuale utente

Clark

Clark PWXE 30 Manuale utente

Jungheinrich

Jungheinrich EJD K18 Manuale utente

EKKO

EKKO ES40E Manuale operativo

Clark

Clark WSTX 22 Manuale utente

Jungheinrich

Jungheinrich EJE 116 Manuale utente
