Noctua NH-U14S TR5-SP6 Manuale utente

Scan this code to display

multilingual manuals on

your phone.

NOCTUA NH-U14S TR5-SP6

INSTALLATION MANUAL

This manual will guide you through the installation process of

the SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility

centre on our website (ncc.noctua.at) and verify that the

cooler is fully compatible with your motherboard.

Please also make sure that your PC case offers sufficient

clearance for the cooler and that there are no compatibility

issues with any other components (e.g. tall RAM modules).

Double check that the heatsink and fan clips do not make

contact with the VGA card, other PCIe cards, motherboard

heatsinks or any other components.

Noctua cannot be held responsible for any damage or losses

caused by compatibility issues.

Should you encounter any difficulties, please check the FAQs

on our website (www.noctua.at/faqs) and don’t hesitate to

contact our support team at support@noctua.at.

Dear customer,

Thank you very much for choosing the Noctua NH-U14S

TR5-SP6. Our Threadripper and Epyc coolers have become

a standard choice when it comes to quiet, premium grade

air cooling solutions for AMD-based workstations and

servers, and we’re excited to continue this legacy with the

new TR5-SP6 models. I’m confident that you will be able

to sense some of the research, attention and care we’ve put

into making this product.

Enjoy your Noctua NH-U14S TR5-SP6!

Yours sincerely,

Roland Mossig, Noctua CEO

Take the fans off the cooler.

Removing the fans

Offsetting the cooler

The SecuFirm2™ mounting for TR5/SP6 makes it possible to

offset the cooler by 3 or 6mm. On motherboards with east-to-

west socket orientation, this can be used to offset the cooler(s)

towards the right, increasing clearance towards the I/O panel.

On boards that use a north-to-south orientation of the CPU

socket(s), this allows offsetting the cooler towards the upper

edge of the motherboard in order to increase PCIe clearance.

Required mounting parts:

NM-AFB11 fastening brackets

(pre-installed on the cooler)

NM-SMT4 mounting tool

In order to offset the cooler, please unscrew the NM-AFB11

fastening brackets and reinstall them in the +3 (3mm

offset) or +6 (6mm offset) position.

Caution: Gently tighten the screws until they stop, but don’t

use excessive force (max. torque 0.6 Nm).

+ 0mm offset

+ 3mm offset

+ 6mm offset

Scan this code to display

multilingual manuals on

your phone.

NOCTUA NH-U14S TR5-SP6

INSTALLATION MANUAL

Transporting your system

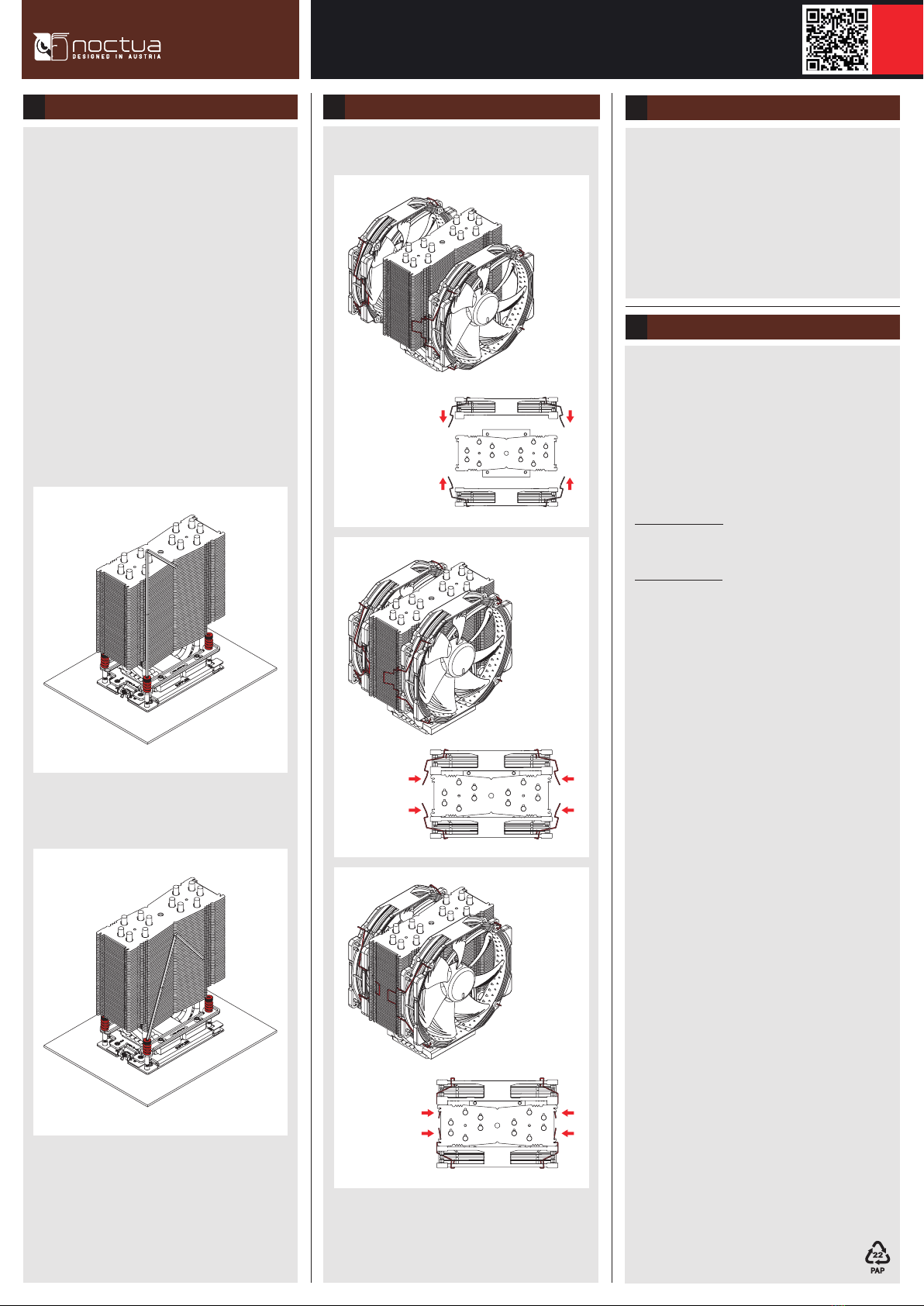

Fastening the heatsink to the CPU

Remove the plastic protection cover from the base of

the heatsink and be careful not to damage the layer of

pre-applied thermal compound.

Caution: If you are not using the heatsink for the first time

and it therefore doesn’t have a fresh layer of pre-applied

thermal compound anymore, you need to apply a thin layer

of thermal compound to the CPU yourself before clipping

it to the heatsink. If there are residual traces of previous

thermal paste or thermal pads on your CPU or on the

heatsink, please clean them off first.

Then put the heatsink onto the CPU so that the four

spring-loaded screws align with the threads of the CPU

socket. Use the supplied mounting tool to tighten the

screws. Perform 3 turns on each screw, then repeat until all

are fully tightened.

Caution: Gently tighten the screws until they stop, but don’t

use excessive force (max. torque 0.6 Nm).

Note that you can tilt the mounting tool for reaching the

screws in case they are blocked by the heatsink fins.

Installing the fans

Connect the fans to the motherboard’s CPU fan header(s).

If necessary, use the supplied NA-YC1 splitter cable to

connect both fans to one fan header.

Reattach the fans to the heatsink using the supplied fan

clips:

Transporting your system

As it is not possible to reliably calculate or control the forces

that act upon a system during transport (e.g. in shipping),

we generally recommend, for safety reasons, taking the

cooler off.

Noctua cannot be held responsible for any damage that

may arise due to excessive stress during transport if you

keep the heatsink installed.

Warranty, support and FAQs!

Even with high-grade products and strict quality control,

the possibility of defects cannot be eliminated entirely.

Therefore, we aim at providing the highest possible level

of reliability and convenience by offering a warranty period

of 6 years and direct, fast and straightforward RMA service.

Should you encounter any problems with your NH-U14S

TR5-SP6,pleasedon’thesitatetocontactoursupportteamat

[email protected].

Please also consult the FAQ section on our website:

www.noctua.at/faqs
