Nokia Car Kit CK-100

Nokia_CK100_APAC_UG_en.fm Page 1 Tuesday, December 8, 2009 2:45 PM

Nokia_CK100_APAC_UG_en.fm Page 2 Tuesday, December 8, 2009 2:45 PM

English

DECLARATION OF CONFORMITY

Hereby, NOKIA CORPORATION, declares

that this HF-22 product is in compliance

with the essential requirements and

other relevant provisions of Directive

1999/5/EC. The product is in conformity

with the limits defined in Directive

2004/104/EC (amending Directive 72/

245/EEC), Annex I, paragraph 6.5, 6.6,

6.8 and 6.9. A copy of the Declaration of

Conformity can be found at http://

www.nokia.com/phones/

declaration_of_conformity/.

Nokia, Nokia Connecting People, Navi

and the Nokia Original Accessories logo

are trademarks or registered trademarks

of Nokia Corporation.

Bluetooth is a registered trademark of

Bluetooth SIG, Inc.

Export controls

This device may contain commodities,

technology or software subject to export

laws and regulations from the US and

other countries. Diversion contrary to

law is prohibited.

Introduction

This quick installation guide

briefly describes how to connect

the car kit to a car radio system.

For details and information about

the parts and installation of the

car kit, see the user and

installation guide on the CD that is

supplied with the car kit.

0434

Nokia_CK100_APAC_UG_en.fm Page 3 Tuesday, December 8, 2009 2:45 PM

Safety information

Observe the following safety

guidelines when you connect the

car kit to a car radio system:

• Only a qualified service

technician should install or

service the car kit using the

approved original Nokia parts

supplied in the sales package.

Faulty installation or service

may be dangerous and may

invalidate any warranty which

may apply to the car kit.

• Do not wire the car kit

equipment to the high-voltage

lines of the ignition system.

• Do not smoke when working on

the car. Ensure that there is no

source of fire or flame nearby.

• Take care not to cause damage

to electrical cables, fuel or

brake lines, or safety

equipment during installation

work.

• Ensure that cables are placed

so that they will not be subject

to mechanical wear and tear

(for example, not laid under car

seats or over sharp edges).

Integration with a car radio system

To connect the hands-free unit

HF-22 of the car kit to a car radio

system with the ISO cable CA-135

or CA-152, see figure 1 or 2 at the

start of this guide.

Nokia_CK100_APAC_UG_en.fm Page 4 Tuesday, December 8, 2009 2:45 PM

English

You can select if the car kit

amplifier is used for calls and the

car radio amplifier is used for

music, or if the car kit amplifier is

used for both.

If you want to use the loudspeaker

SP-3 for calls, use the power cable

PCU-4 or CA-153P instead of the

ISO cable. For instructions, see the

user and installation guide on the

CD.

You can connect the car kit to a

loudspeaker with an impedance of

at least 2 ohms. The optimal

impedance is 4 ohms.

For the latest and detailed

installation instructions, go to

www.nokia.com/support or your

local Nokia website.

Use the car kit amplifier for

calls and music

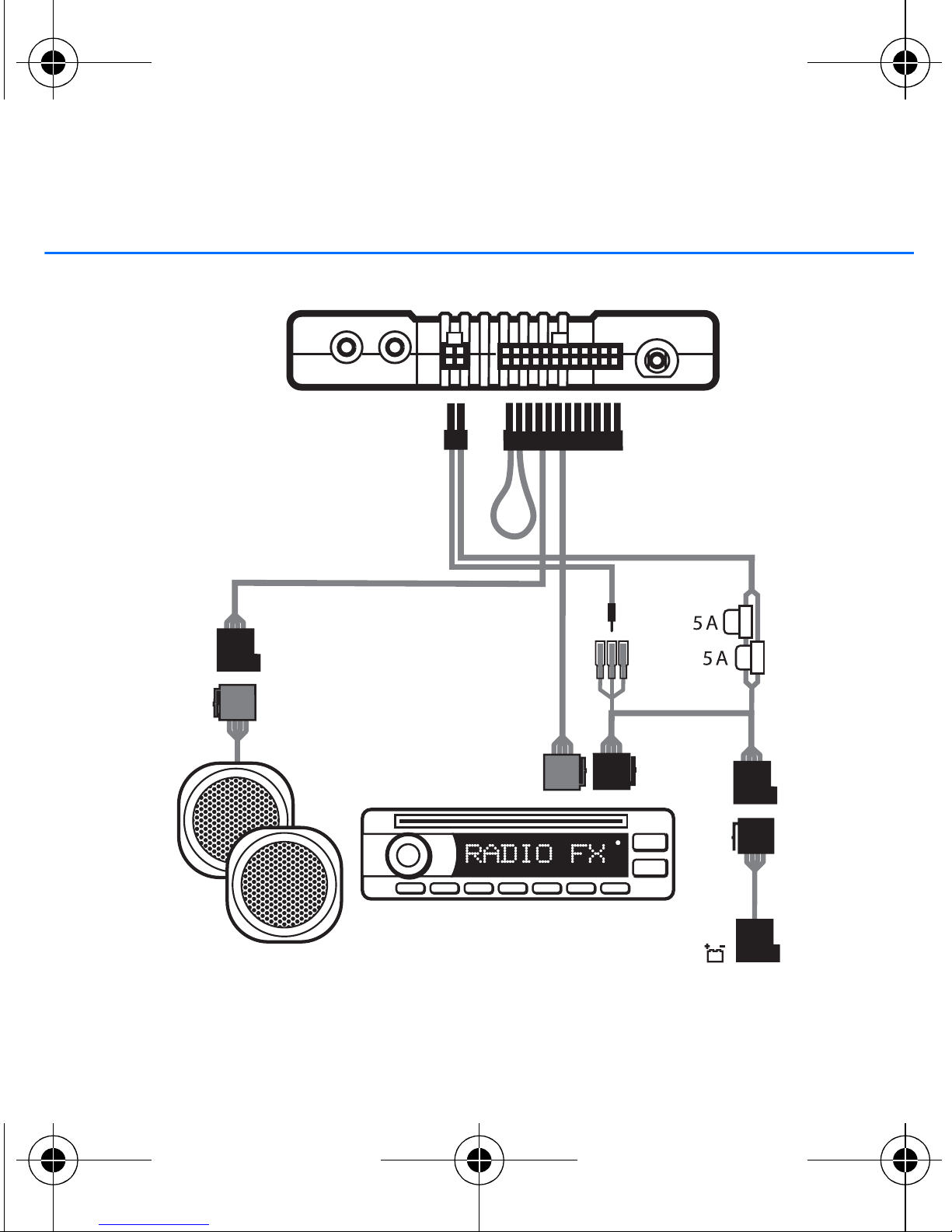

Make the connections as shown in

figure 1 to use the built-in

amplifier of the car kit for calls

and music played on a device that

supports the A2DP Bluetooth

profile.

After you have connected the ISO

cable, connect the input device

CU-11 and the microphone MP-2

to the hands-free unit.

Use the car kit amplifier for

calls and the car radio

amplifier for music

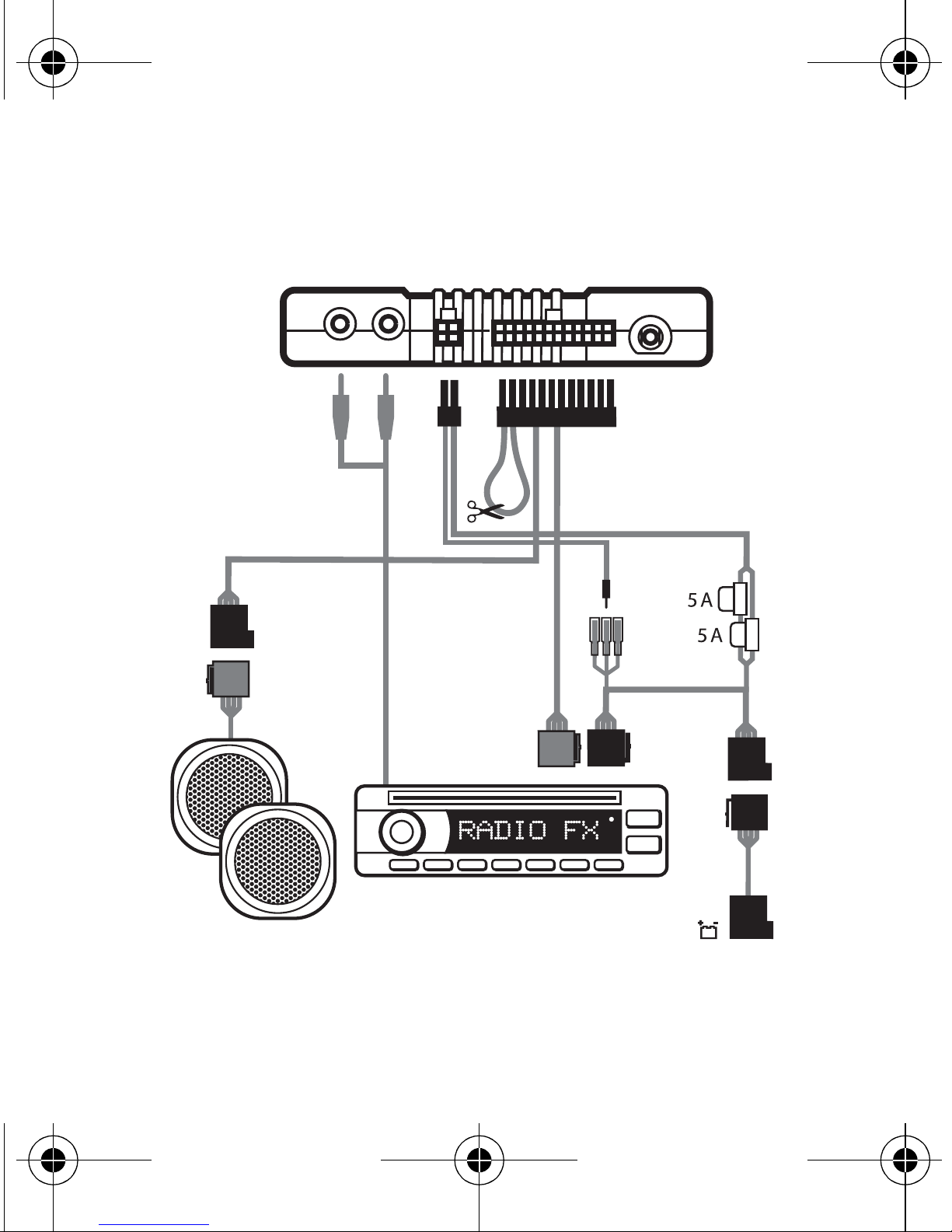

Make the connections as shown in

figure 2 to use the amplifier and

equaliser of your car radio for

music played on a device that

supports the A2DP Bluetooth

profile. The built-in amplifier of

the car kit is used for calls.

Nokia_CK100_APAC_UG_en.fm Page 5 Tuesday, December 8, 2009 2:45 PM

Music played on A2DP devices and

Nokia Maps navigation prompts

played on some Nokia device

models are directed to the AUX

input of the car radio. To hear the

music and prompts, select AUX

input on the car radio as the audio

source.

Cut the loop indicated with

scissors in the figure.

Connect the stereo outputs of the

hands-free unit to the AUX input

of the car radio. Use an

appropriate cable specific to your

car radio (this cable is not supplied

with the car kit).

After you have connected the ISO

cable and the stereo output cable,

connect the input device CU-11

and the microphone MP-2 to the

hands-free unit.
