1508i(RM-430)

Antenna Description and Troubleshooting

Nokia Customer Care

Issue 1

Nokia Customer Care

1508i (RM-430)

Mobile Terminal

Antenna Description and

Troubleshooting

1508i(RM-430)

Antenna Description and Troubleshooting

Nokia Customer Care

Issue 1

Contents

Antenna Troubleshooting

1508i(RM-430)

Antenna Description and Troubleshooting

Nokia Customer Care

Issue 1

Introduction

The mobile terminal includes an internal antenna. This antenna arrangement is used for

PCS frequency bands. The internal antenna assembly adopts Monopole Antenna

structure used for the PCS engine.

Visual Quality Requirements

Below are the minimum acceptable visual quality requirements of the internal antenna

assembly:

zWear gloves to assemble the antenna. Don’t touch the antenna radiator with bare

hands.

zNo visual cracks or mechanical defects.

zNo oil, dirt, or particles are present on the parts.

zRadiator must be aligned with the plastic housing.

zRadiator must be flat with no warping.

zThe length of all pins must be identical and the pins align.

Failures and Corrective Measures

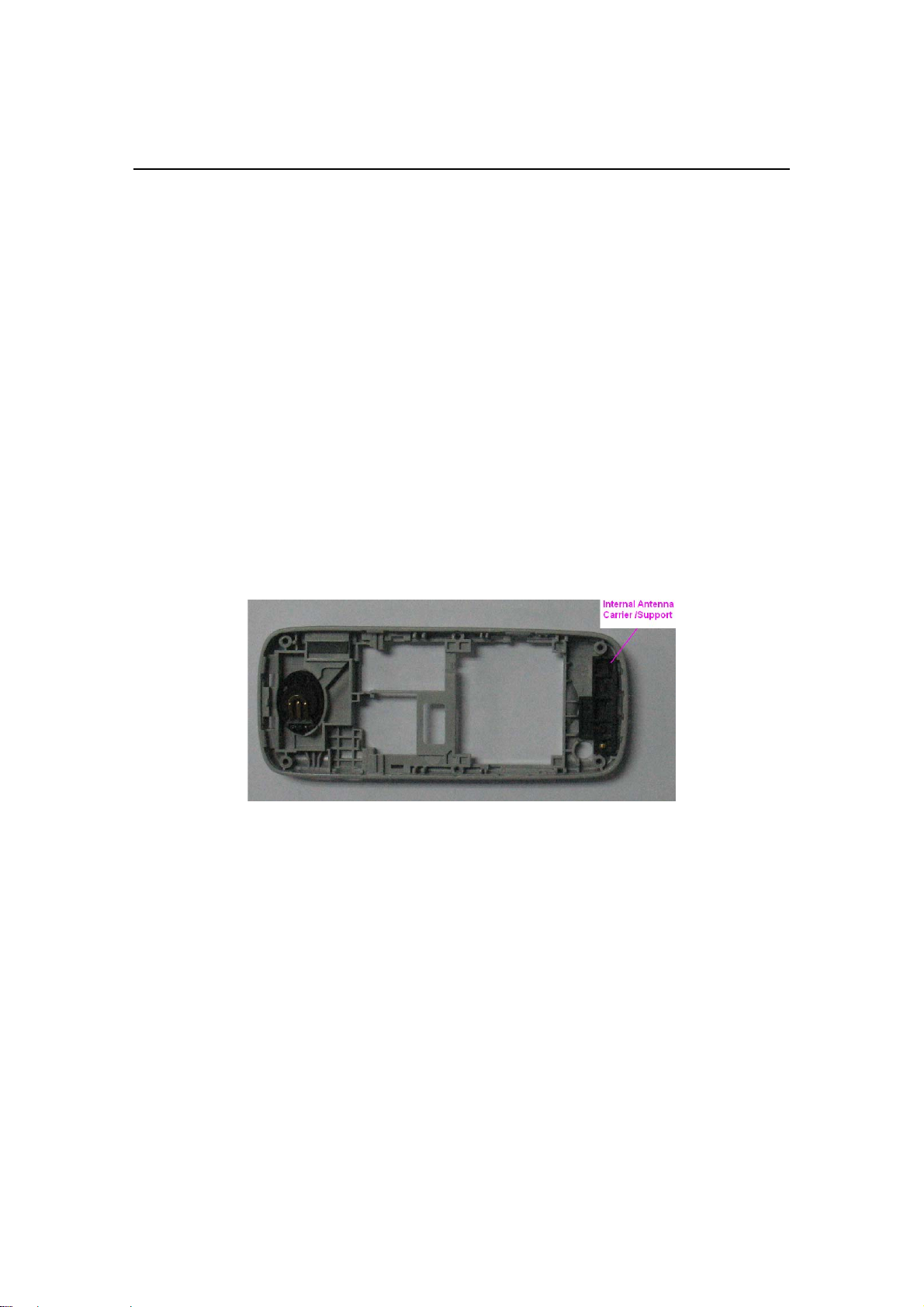

The internal antenna is assembled into the Back Cover Assembly as shown in Figure 1.

If no internal antenna is installed, the antenna gain is degraded by more than 20 dB.

zIf the internal antenna is missing, install antenna-asm Module.

zIf the radiator looks damaged, replace it with a new antenna–asm Module.

Figure 1: B Cover Assembly

1508i(RM-430)

Antenna Description and Troubleshooting

Nokia Customer Care

Issue 1

Monopole Antenna

The internal antenna has a monopole antenna radiator attached to the plastic support.

Figure 2: The top view of internal antenna

Damaged RF feed point Pin

The pin (spring clip) of the antenna must be properly connected to the PWB.

zIf the main antenna’s RF feed point pin does not touch the PWB, the antenna gain

degrades by more than 17 dB.

zIf the RF feed pin is broken or bent so that the pin does not touch the PWB, replace

the antenna-asm Module.

zIf the RF feed pin spring appears damaged, replace the antenna-asm Module.

Figure 3: back view of internal antenna

1508i(RM-430)

Antenna Description and Troubleshooting

Nokia Customer Care

Issue 1

Obstructed RF feed point pad

If RF feed point pad is obstructed, removed, or covered, the antenna pin does not touch

the PWB and the cellular antenna performance degrades.

zIf corrosion is present or the pad is missing, replace the PWB.

zIf a pad is obstructed or covered by something, clear and/or clean the pad.

zIf any component of antenna match circuit is missing ,replace the PWB

Figure 4: PWB layout of RF feed point and antenna match circuit

1508i(RM-430)

Antenna Description and Troubleshooting

Nokia Customer

Care

Issue 1

RF Connector Failure

The RF connector fails when it does not properly connect the RF input terminal to the

RF output terminal during the SMT. If this happens the antenna gain degrades by 25

dB. Check this by testing the resistance value between the RF input and RF output of

the RF connector and see if the value is close to zero. If the RF input is not

connected properly to the RF output, replace the RF connector.

Note: Perform the resistance value test without a RF cable attached to the RF

connector. Because the RF connector is also a switch, the RF output is

disconnected from the RF input when RF cable is inserted into the RF connector.

zRF input terminal – connect to duplexer.

zRF output terminal – connect to the antenna pad through antenna match

circuit.

zRF connector terminal – connect to RF coaxial cable.

Figure 6: RF input / output terminal
