Quick Guide to Using the Nokia 6250 with Lotus cc:Mail 8.2
1. Installation and setting up
Install the client as instructed in the Lotus cc:Mail 8.2 (later called cc:Mail in this document) User Guide. You must
also have the correct settings for your post office, etc. available when installing the client. Before using the Nokia
products you have to copy a script file to the location where all other *.MDM files are stored. (for example
C:\LOTUS\CCMAIL\MDM).
The Nokia files can be downloaded from our support web pages which can be found at http://www.forum.nokia.com
When the files are copied to the correct location, the cc:Mail has to be configured from Actions->Locations…
(Figure 1).
Figure1. Starting setup ..
Then choose one of the locations and choose Edit.. When Edit is selected the main window of the location is opened.

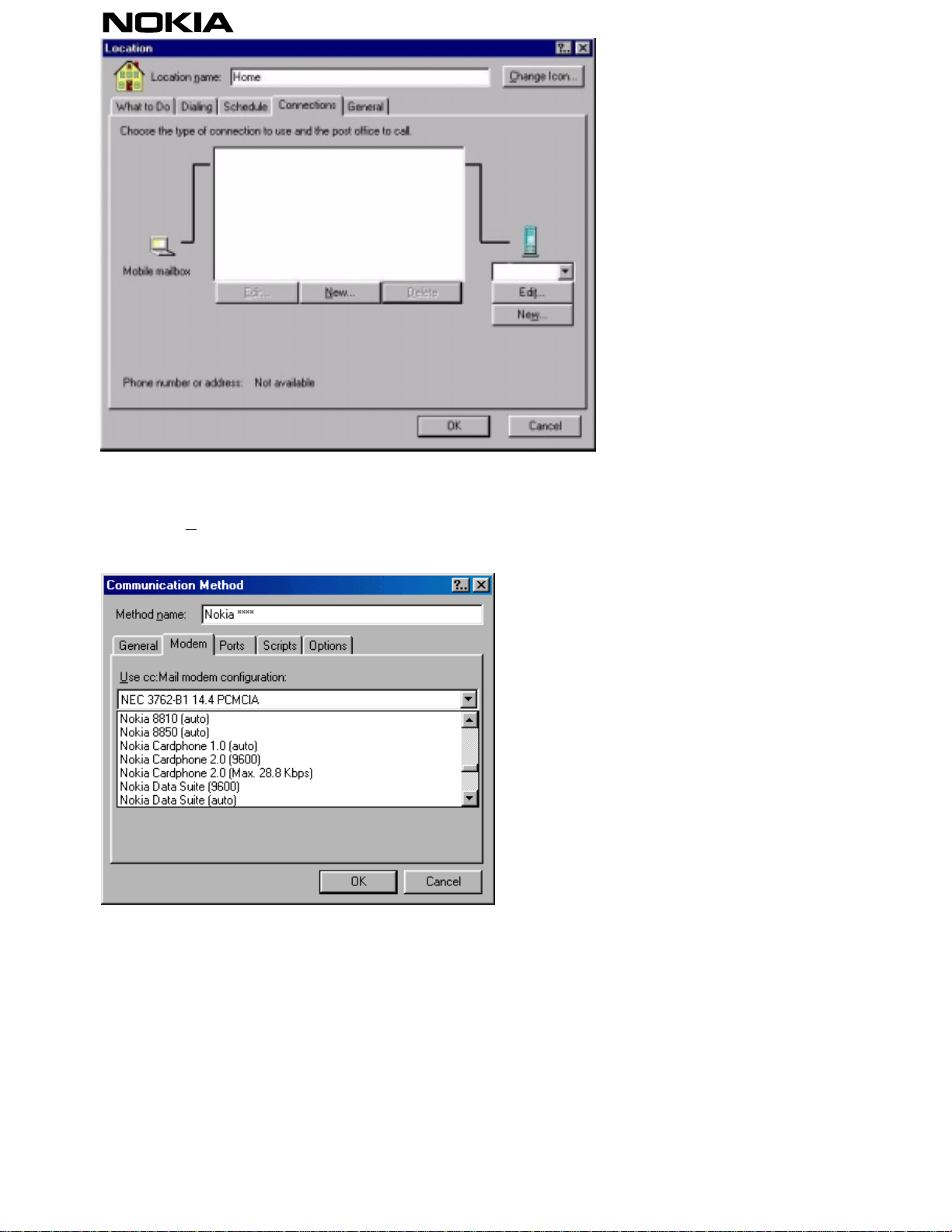

Choose the Connections tab (Figure 2).
Copyright ã2000. Nokia. All rights reserved. 2(6)
Figure2.Makinga newconnection.
By choosing New.. it is possible to choose the communications method and other communication settings. Firstly,
from the modem list the correct modem must be chosen for the Nokia CardPhone (Figure3) as the active modem.
Figure3. Choosing the right modem ...ScrollthelisttofindNokia6250.

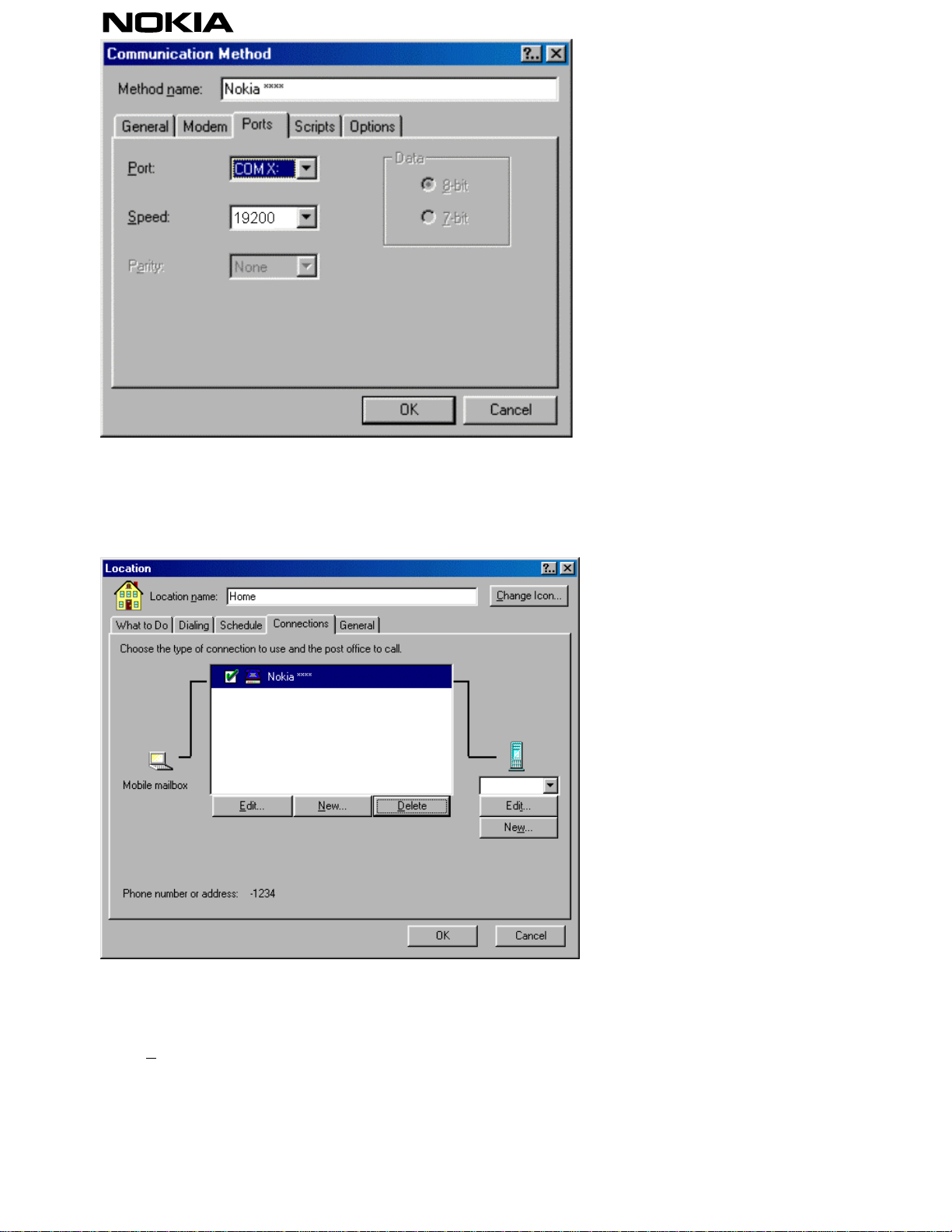

Then choose the port settings and change them to their correct status; it is only necessary to change port and speed
settings (Figure 4). NOTE:TofindoutwhichporttheNokia6250is using, open the Win95/98Modems(Start->Settings
->ControlPanel ->Modems)and look atthe ModementriesandselectNokia 6250 and propertiesandchecktheCOM
port. Specify the port inyourcommunication application. NOTE! If the Nokia 6250 is using COM port 5 or above
please try to change the COM port to 4 or lower (this may be the case if you wish to use IrDA).
Copyright ã2000. Nokia. All rights reserved. 3(6)
Figure4.Portsettings…
When the port and modem settings are changed accept all by clicking OK. It is shown as the named connection
(Figure 5).
Figure5. Acceptingtheconnections.
You also have to edit the post office settings. This can be done by choosing Edit…. (under the server icon) (Figure 6).
Select New.. and the post office settings can then be added.
Copyright ã2000. Nokia. All rights reserved. 4(6)
Figure6.Editthepostoffice settings.
By choosing Add/RemoveAddresses…. The post office settings can be set through New.. (Figure 7).
Figure7. Post officeaddresses.
Add the relevant country code (choose the correct country from the list), add the area code (without the first zero),
followed by the phone number without the area and country codes. After this, accept with the OK button. (Figure 8)
Copyright ã2000. Nokia. All rights reserved. 5(6)
Figure8.Post office addressescontinued…
1.1 Sending / Making a connection
Connection to the post office can be made by clicking Actions->Connect… The connection is confirmed by clicking
OK and after that the client will start to call the phone number which was defined earlier(Figure 9).
Figure 9. Connection confirmation.
1.2 Troubleshooting
Make sure that there are NO PARENTHESES in the phone number (NO SEPARATE AREA CODE AND PHONE NUMBER
=> SET ALL NUMBERS IN THE PHONE NUMBER FIELD)
Copyright ã2000. Nokia. All rights reserved. 6(6)
