Nokia 8210 Guida rapida

Nokia 88xx series and Nokia 8210

17.04.00

This Quick Guide is a generic guide for all Nokia 88xx series and 8210 phones. When you are asked to select the

modem you will see

Nokia ****

, please select one of the following:

Nokia 8810 Nokia 8810

Nokia 8850 Nokia 8850

Nokia 8890 Nokia 8890

Nokia 8210 Nokia 8210

QUICK GUIDE TO USING THE NOKIA PHONE WITH LOTUS NOTES 4.6

In this Quick Guide it is assumed that the Nokia phone is already installed.

Setting up

You must use the correct COM port in Lotus Notes. This COM port can be found as follows: Control Panel – Infrared

(Figure 1). In the case shown, COM4 is correct.

Figure1.CorrectCOMportfortheNokia phone.

Before using Nokia products you will need to have a script file copied to the same location in which other *.mdm files

are located (for example c:\Program files\Notes\data\modems).

Nokia script files can be downloaded from our support web pages which can be found at the address

http://www.forum.nokia.com.

Once the files have been copied to the correct location, Lotus Notes must be configured from File – Tools – User

Preferences…

In User Preferences check from CommunicationPortsthat the COM port your modem uses is enabled. (Figure 2).

Figure2.Checkingthatthe COM port is enabled.

Now click on the COM port that your modem uses and click COMXOptions… to enter AdditionalSetup (Figure 3).

Figure3.EnteringAdditionalSetup.

In Additional Setup select the Modem type from the list and you should then see the correct script for your phone

(Figure 4).

Figure4.Selectingthe correctModemtypeto use.

After that, you should have your modem configured in Lotus Notes. Now you may try to connect to the Lotus Notes

server. Go to File – Mobile – Call Server…Notes then asks for your password. After entering your Notes password a

window will appear where you should enter your Server number. Enter your server number and click on More

Options… From there select the correct port (Figure 5).

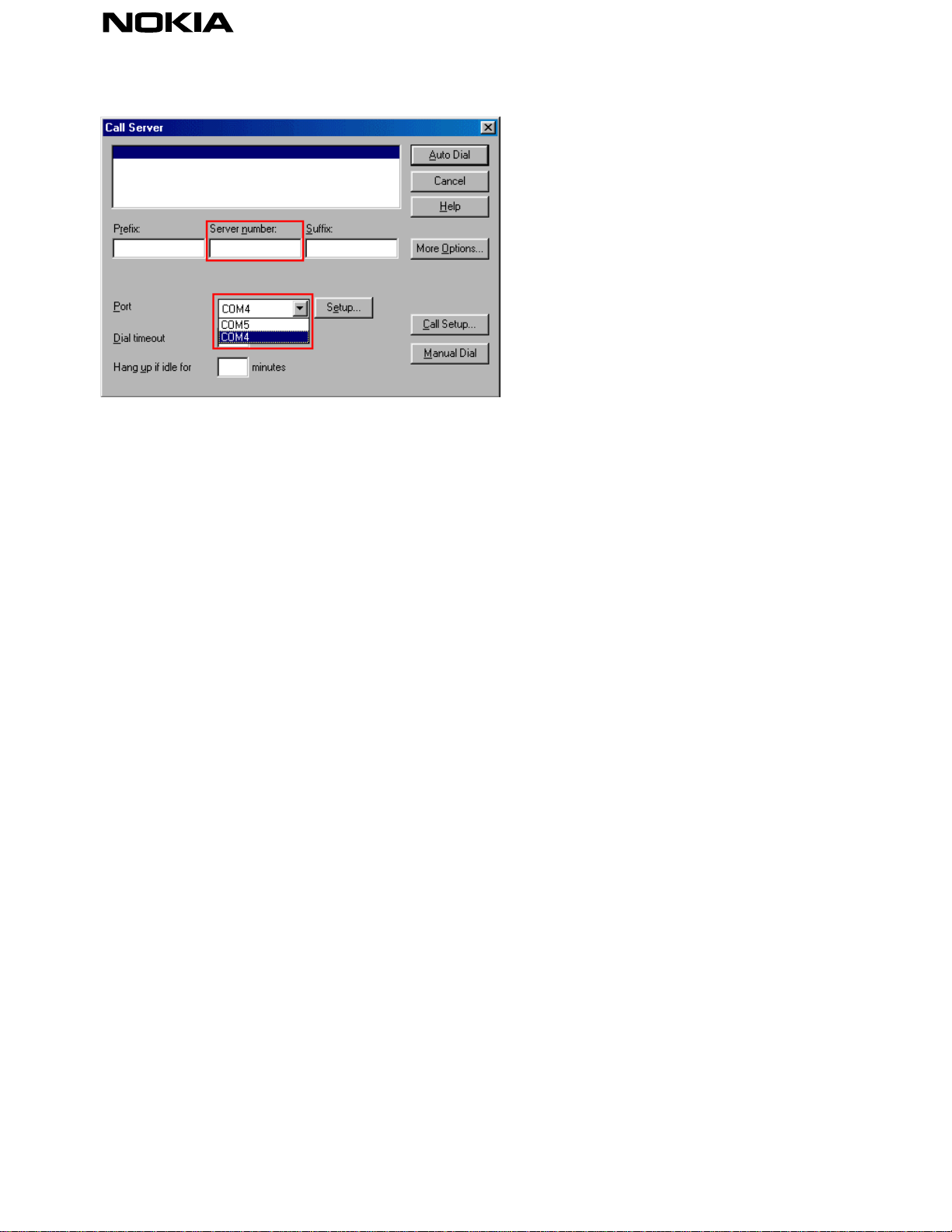

Figure5.Enteringthe Servernumber and checkingthat the correctCOMport is used.

Now click on Auto Dial and Lotus Notes will attempt to Dial to the Lotus Notes Server.
