Nokia 8210 Guida rapida
Nokia 88xx series and 8210
03.02.00
Copyright ã1995 - 2000. Nokia. All rights reserved. 1(4)
This Quick Guide is a generic guide for all Nokia 88xx series and 8210 phones. When you are asked to select the
modem you will see
Nokia ****
, please select one of the following:
Nokia 8810 Nokia 8810
Nokia 8850 Nokia 8850
Nokia 8210 Nokia 8210
Quick Guide to Using your Nokia Phone with Carbon Copy 5.0
SETTING UP YOUR NOKIA PHONE TO WORK WITH CARBON COPY 5.0 AS A FAXMODEM
If you haven't yet installed Carbon Copy 5.0 please do so before continuing and check also that you have the
Nokia Phone installed and that it works as a modem (I e in Dial-Up Networking).
1. Connect your Nokia Phone via infrared to your computer and start Carbon Copy 5.0
2. Now go to Options – Communications and select the appropriate modem as one of your connection types, so
that you are able to receive data calls from another computer using Carbon Copy (Figure 1).
Figure1.Accessingtheprogram'ssetupandselectingtheappropriatemodem.

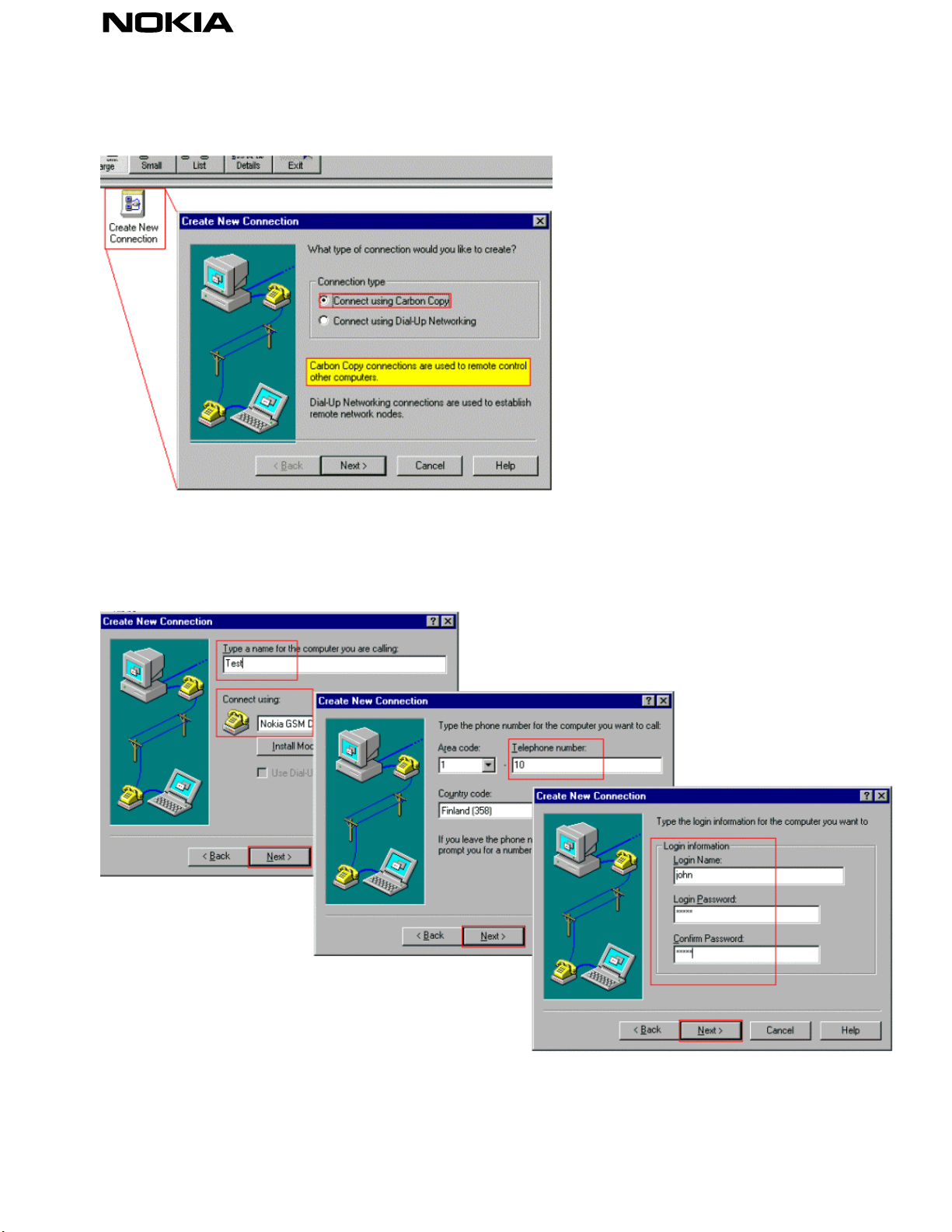

3. Double-click on Create New Connection, click to select the connection type that you will be using and after that
click on Next (Figure 2).
Copyright ã1995 - 2000. Nokia. All rights reserved. 2(4)
Figure2.Creatinganewconnection.
4. Carbon Copy will now configure your Nokia phone to work as a faxmodem. Just fill in the required fields and
remember to select the correct modem (Figure 3).
Figure3.Thefirstthreestepstowards creatinga newconnection.
7. The final two steps to completing your new connection are as follows: in the first dialog box you are asked to
select the utilities to start when a connection to a remote computer is established and in the last one just click
Finish (Figure 4).
Copyright ã1995 - 2000. Nokia. All rights reserved. 3(4)
Figure4.Goingthrough the twolaststepsto get a new connectionreadyfor use.
8. To test your new connection just double-click on its icon and check that the Login Information and the
Connection Information are correct. After you have checked these, you can click Connect and you should get a
dialogue box similar to that shown in the figure (Figure 5).
Figure5.Makingyour first data call using Carbon Copy 5.0andyourNokia phone.
Copyright ã1995 - 2000. Nokia. All rights reserved. 4(4)
LEGAL NOTICE
Copyright © Nokia Mobile Phones 2000. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents of this document in any form without the prior written permission of
Nokia is prohibited.
Nokia and Nokia Connecting People are registered trademarks of the Nokia Corporation. Other product and company names mentioned herein
may be trademarks or tradenames of their respective owners.
Nokia operates a policy of continuous development. Therefore we reserve the right to make changes and improvements to any of the products
described in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages
howsoever caused.
The contents of this document are provided "as is". Except as required by the applicable law, no warranties of any kind, either express or implied,
including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy,
reliability or contents of this document. Nokia reserves the right to revise this document or to withdraw it at any time without prior notice.
