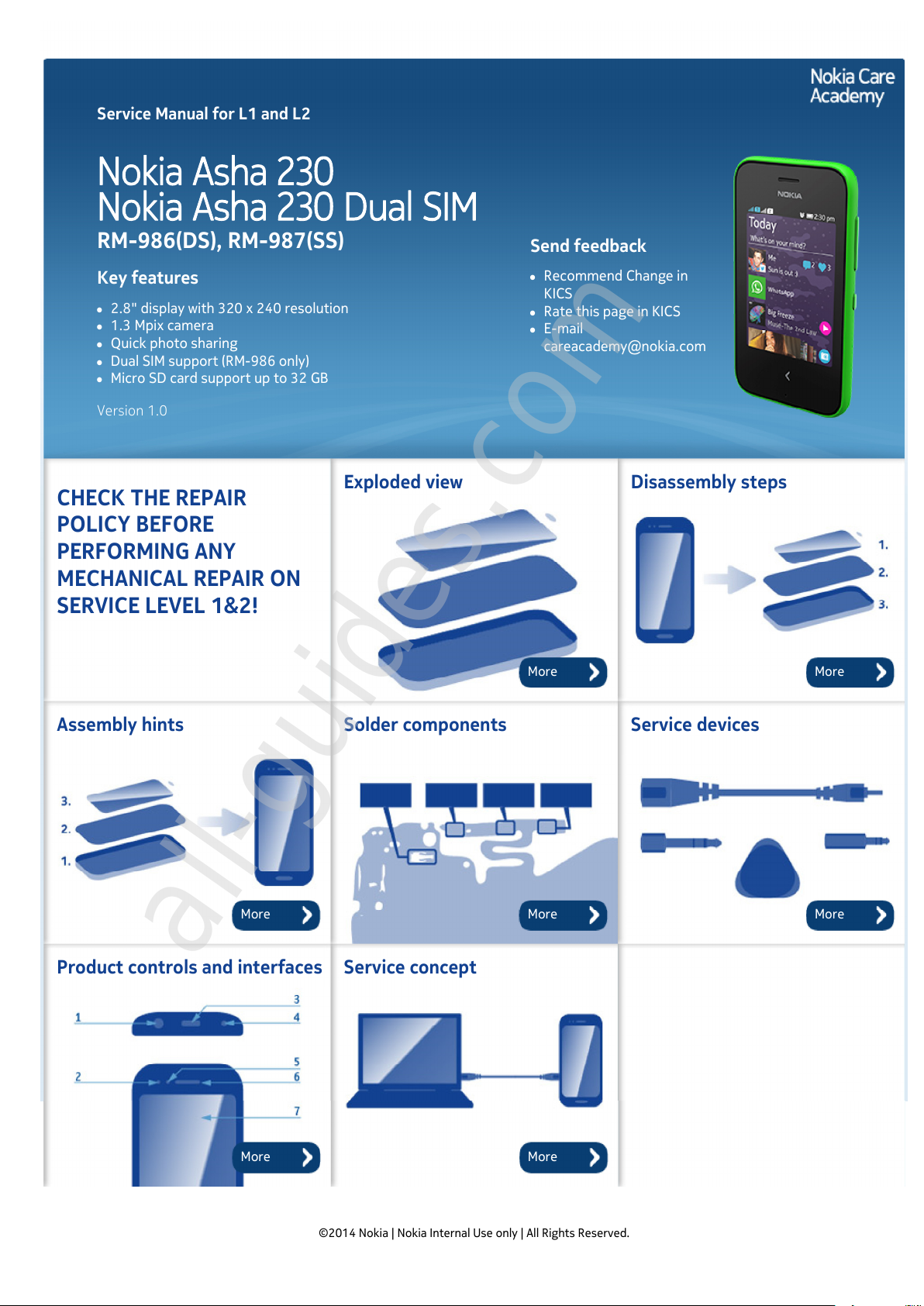

Service Manual for L1 and L2

Nokia Asha 230

Nokia Asha 230 Dual SIM

RM-986(DS), RM-987(SS

)

Key features



2.8" display with 320 x 240 resolution



1.3 Mpix camera



Quick photo sharing



Dual SIM support (RM-986 only)



Micro SD card support up to 32 GB

Version 1.0

CHECK THE REPAIR

POLICY BEFORE

PERFORMING ANY

MECHANICAL REPAIR ON

SERVICE LEVEL 1&2!

Exploded view Disassembly steps

Assembly hints Solder components Service devices

Product controls and interfaces Service concept

More More

More More More

More More

All manuals and user guides at all-guides.com

all-guides.com

Service Manual Level 1 an

Nokia Asha 230, Nokia Asha 230 Dual SI

RM-986(DS), RM-987(SS)

ersion 1.0

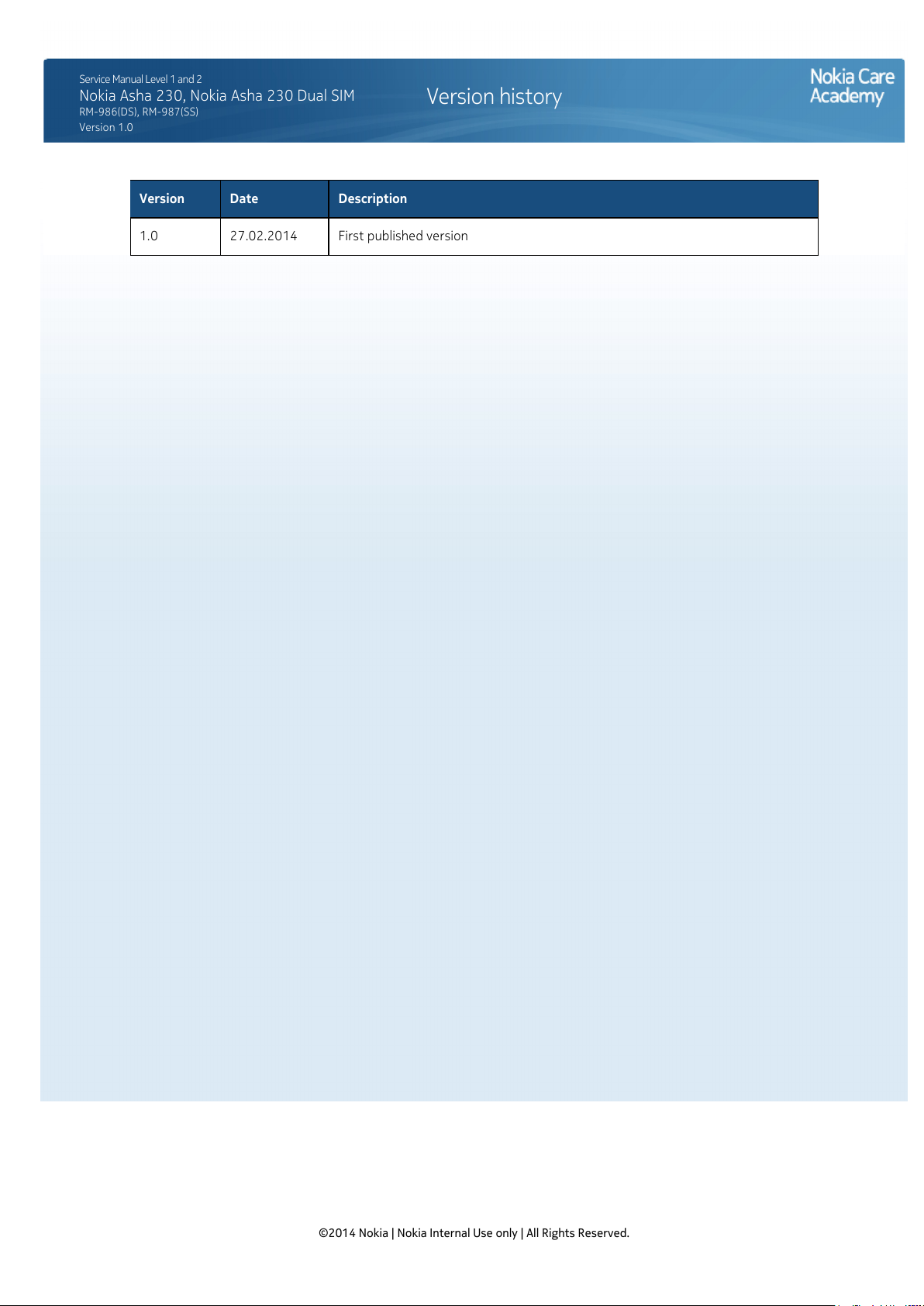

Version histor

Version Date Description

1.0 27.02.2014 First published version

All manuals and user guides at all-guides.com

Service Manual Level 1 and 2

Nokia Asha 230, Nokia Asha 230 Dual SIM

RM-986(DS), RM-987(SS)

Version 1.0

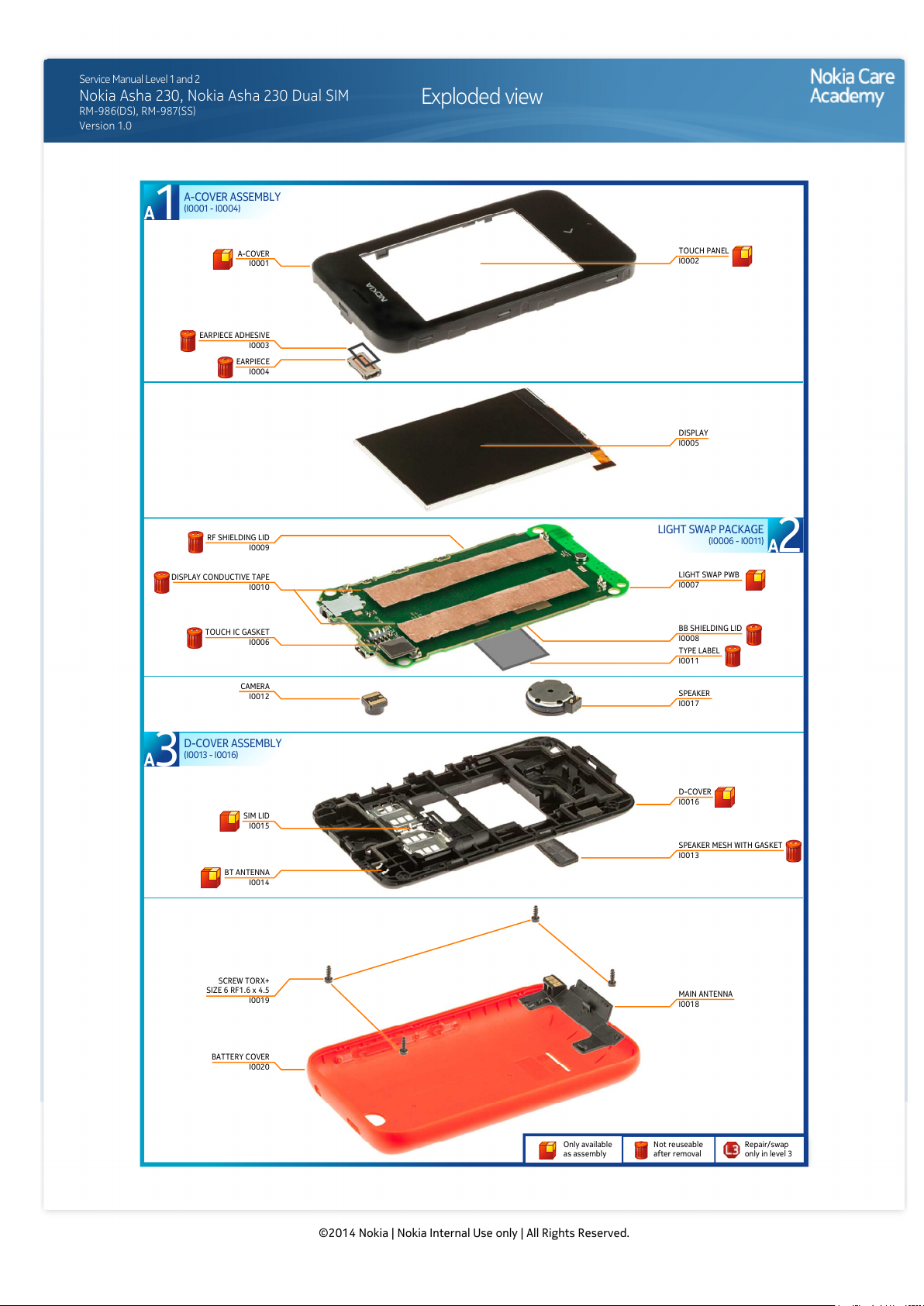

Exploded view

A-COVER

I0001

EARPIECE ADHESIVE

I0003

DISPLAY CONDUCTIVE TAPE

I0010

CAMERA

I0012

SIM LID

I0015

BATTERY COVER

I0020

BT ANTENNA

I0014

TOUCH IC GASKET

I0006

EARPIECE

I0004

RF SHIELDING LID

I0009

TOUCH PANEL

I0002

DISPLAY

I0005

TYPE LABEL

I0011

BB SHIELDING LID

I0008

LIGHT SWAP PWB

I0007

SPEAKER

I0017

D-COVER

I0016

SPEAKER MESH WITH GASKET

I0013

MAIN ANTENNA

I0018

SCREW TORX+

SIZE 6 RF1.6 x 4.5

I0019

D-COVER ASSEMBLY

(I0013 - I0016)

A-COVER ASSEMBLY

(I0001 - I0004)

LIGHT SWAP PACKAGE

(I0006 - I0011) 2

Only available

as assembly

Not reuseable

after removal

Repair/swap

only in level 3

All manuals and user guides at all-guides.com

Service Manual Level 1 and 2

Nokia Asha 230, Nokia Asha 230 Dual SIM

RM-986(DS), RM-987(SS)

Version 1.0

Disassembly steps

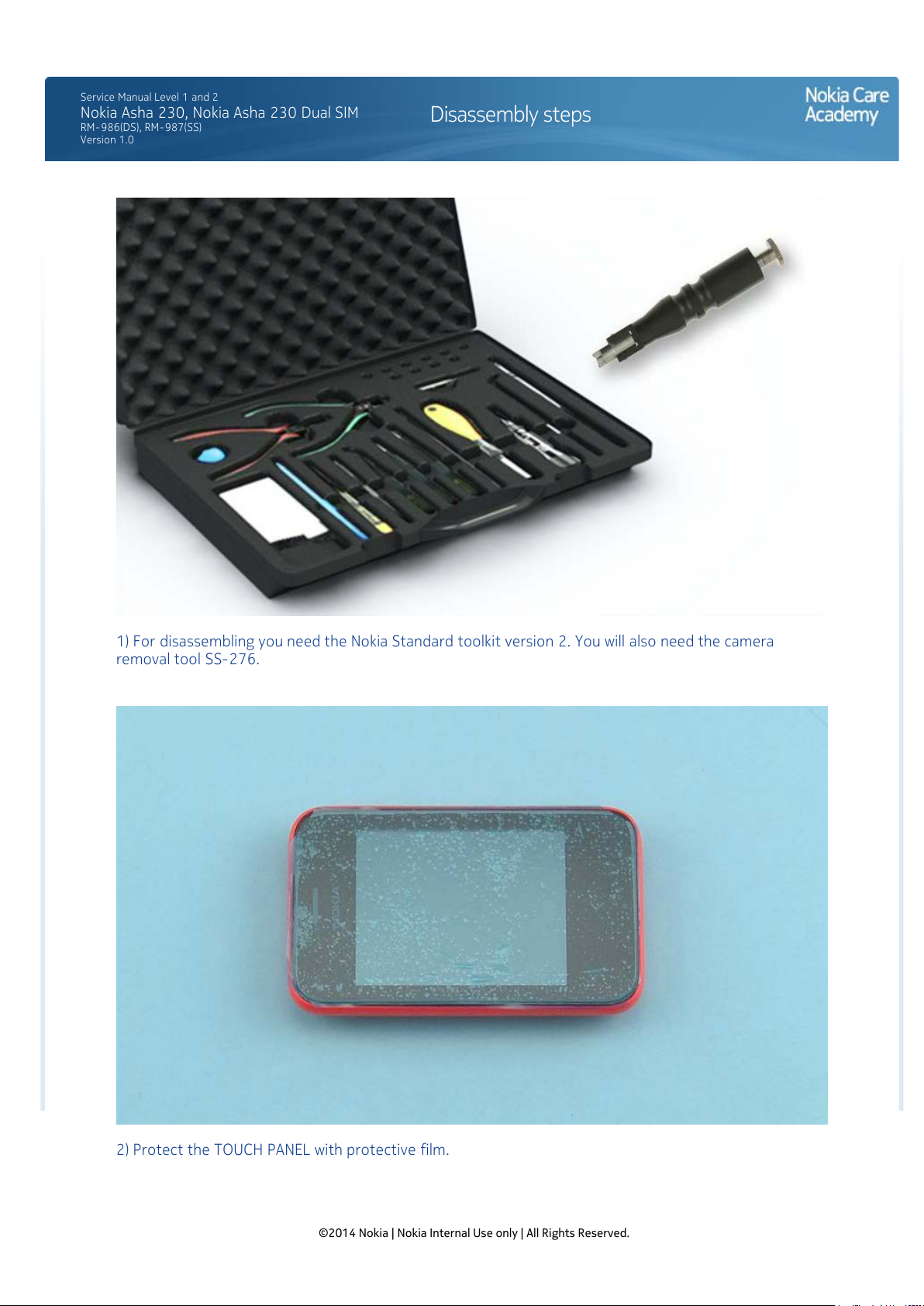

1) For disassembling you need the Nokia Standard toolkit version 2. You will also need the camera

removal tool SS-276.

2) Protect the TOUCH PANEL with protective film.

All manuals and user guides at all-guides.com

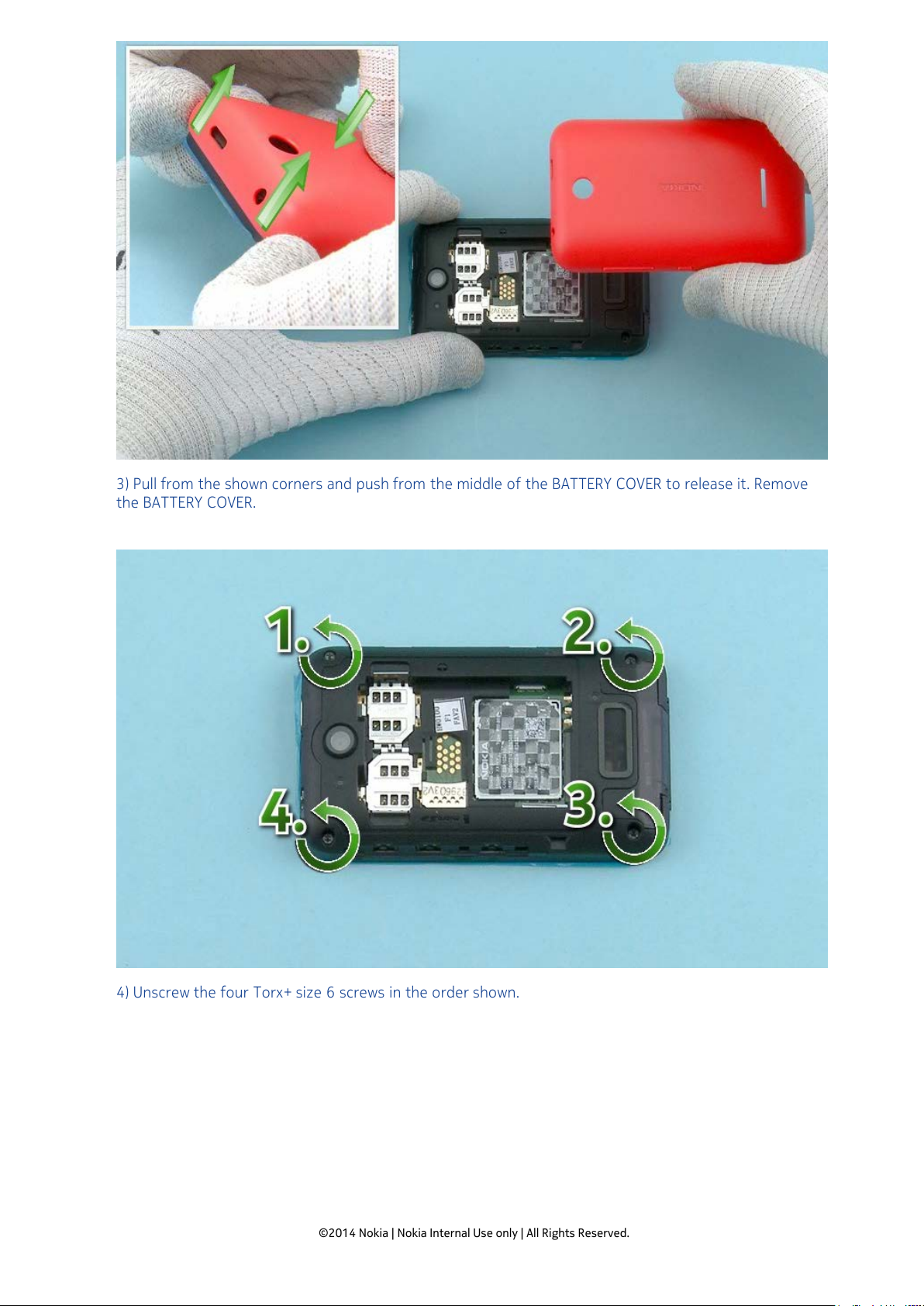

3) Pull from the shown corners and push from the middle of the BATTERY COVER to release it. Remove

the BATTERY COVER.

4) Unscrew the four Torx+ size 6 screws in the order shown.

All manuals and user guides at all-guides.com

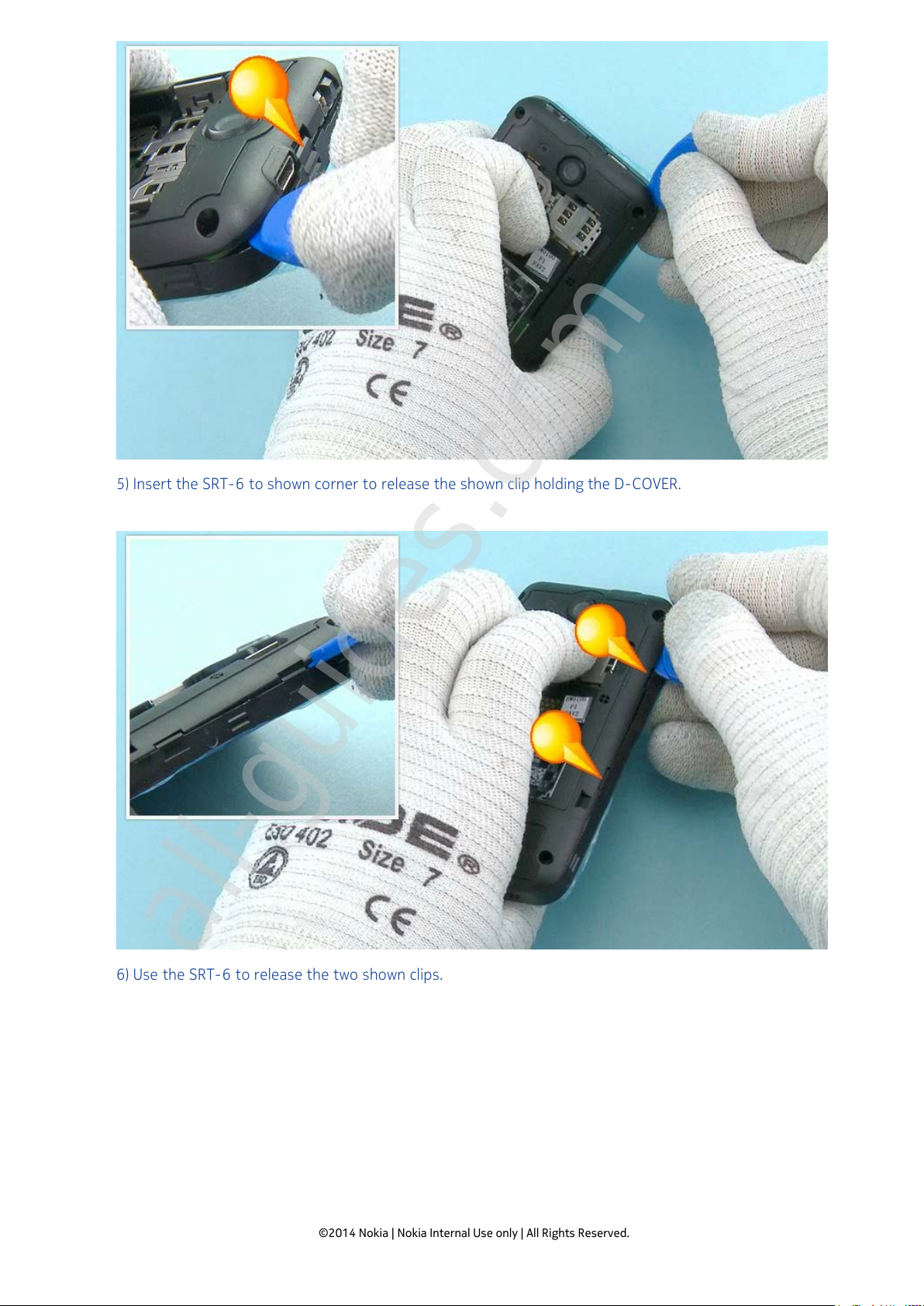

5) Insert the SRT-6 to shown corner to release the shown clip holding the D-COVER.

6) Use the SRT-6 to release the two shown clips.

All manuals and user guides at all-guides.com

all-guides.com

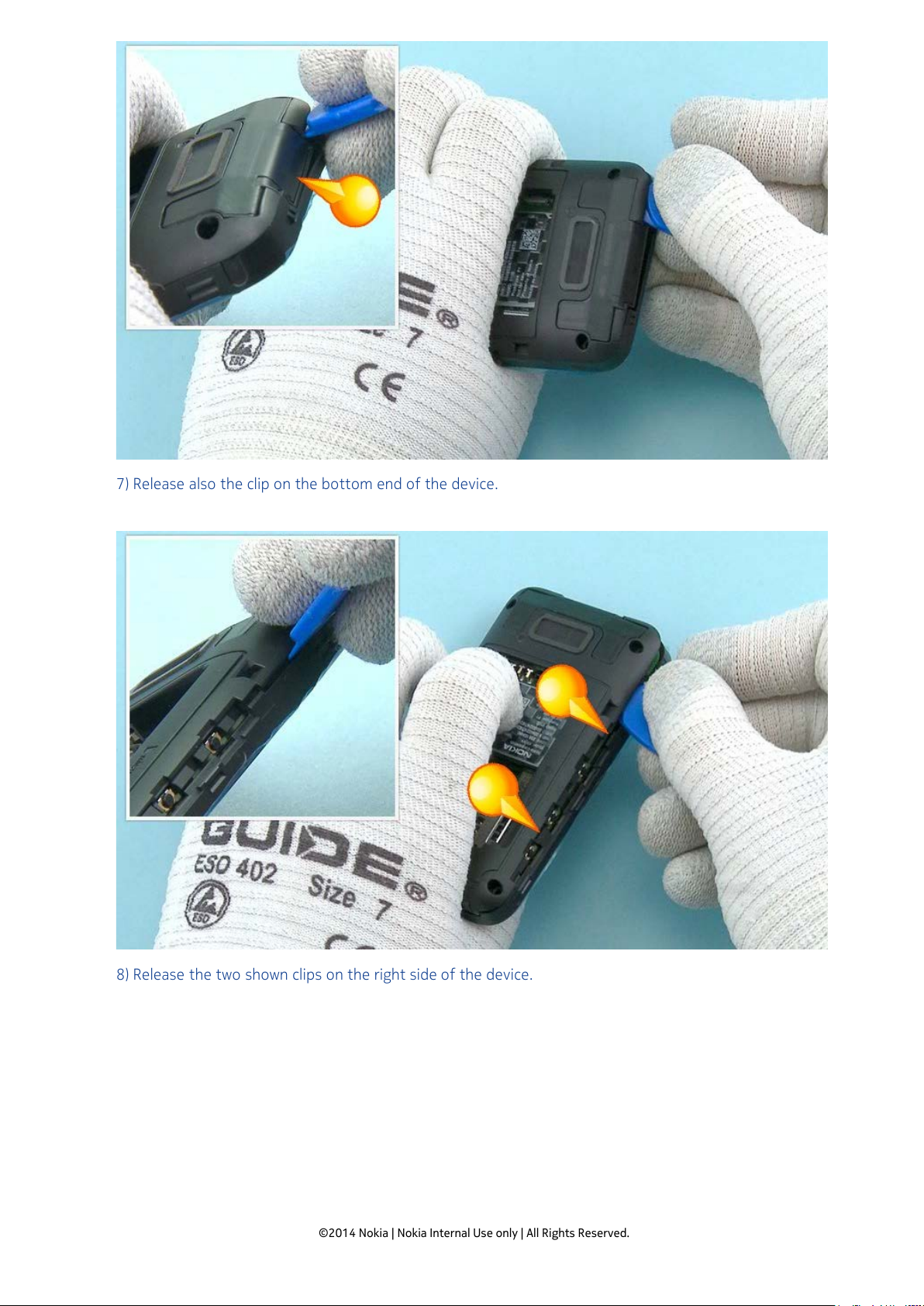

7) Release also the clip on the bottom end of the device.

8) Release the two shown clips on the right side of the device.

All manuals and user guides at all-guides.com

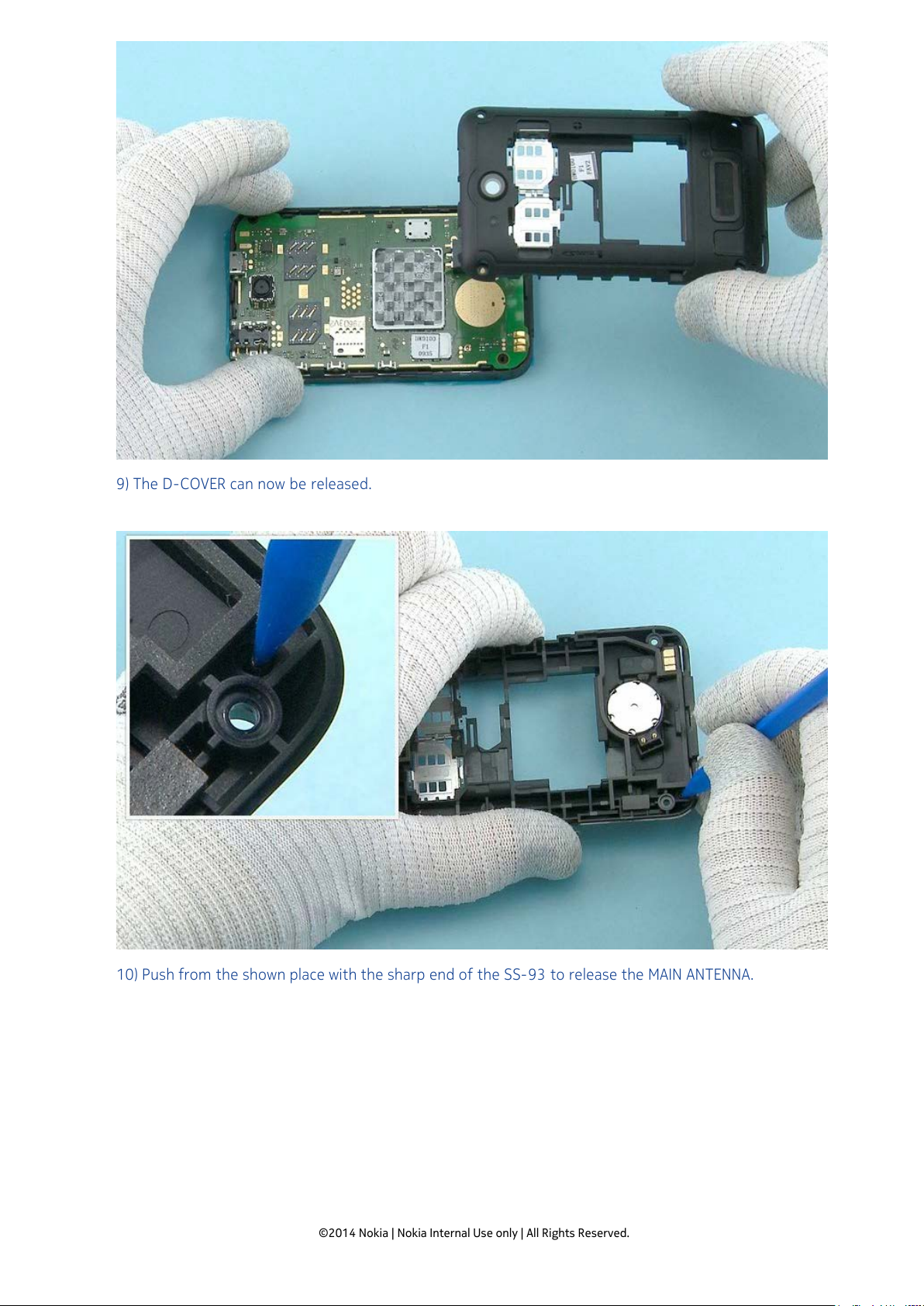

9) The D-COVER can now be released.

10) Push from the shown place with the sharp end of the SS-93 to release the MAIN ANTENNA.

All manuals and user guides at all-guides.com

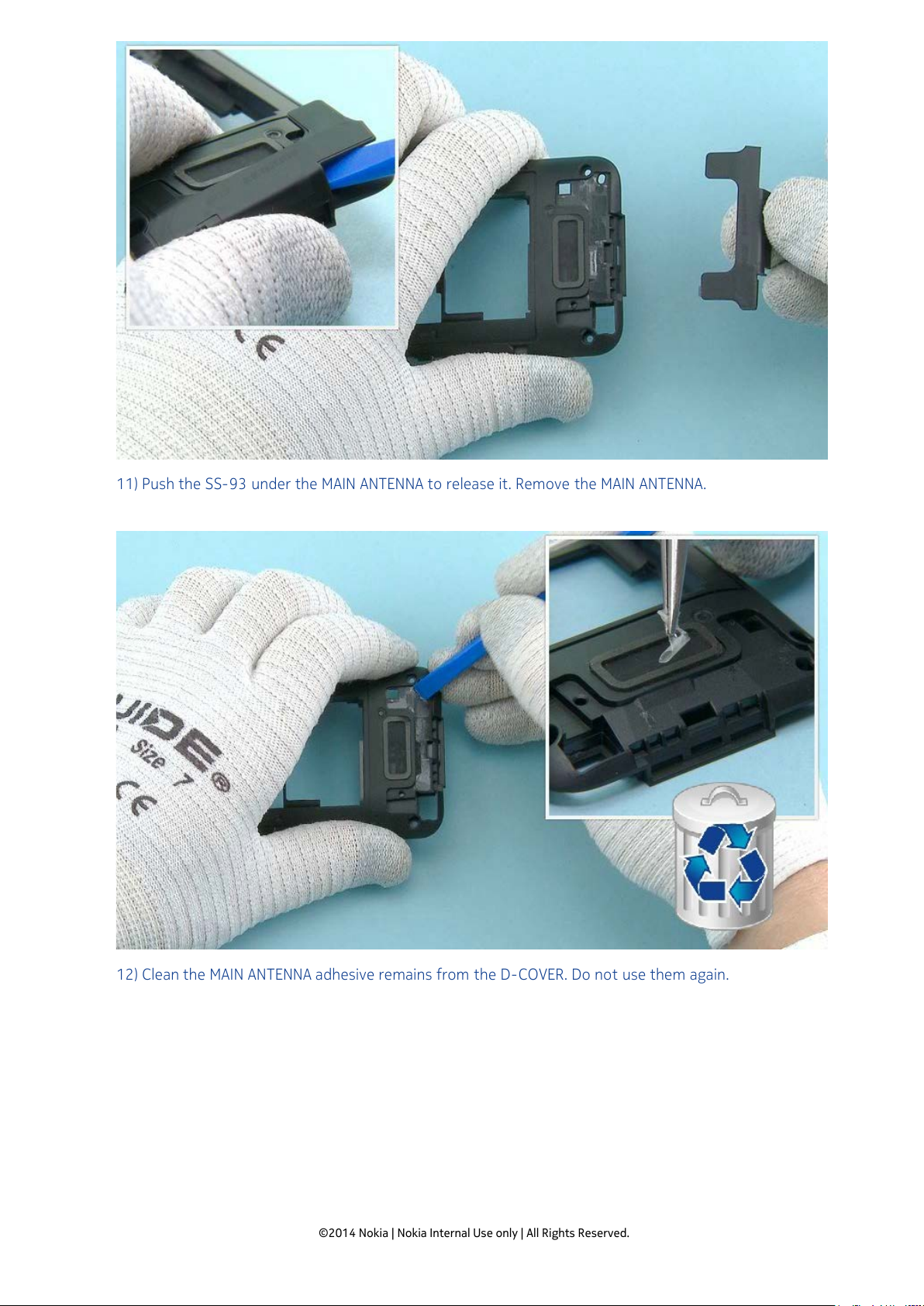

11) Push the SS-93 under the MAIN ANTENNA to release it. Remove the MAIN ANTENNA.

12) Clean the MAIN ANTENNA adhesive remains from the D-COVER. Do not use them again.

All manuals and user guides at all-guides.com

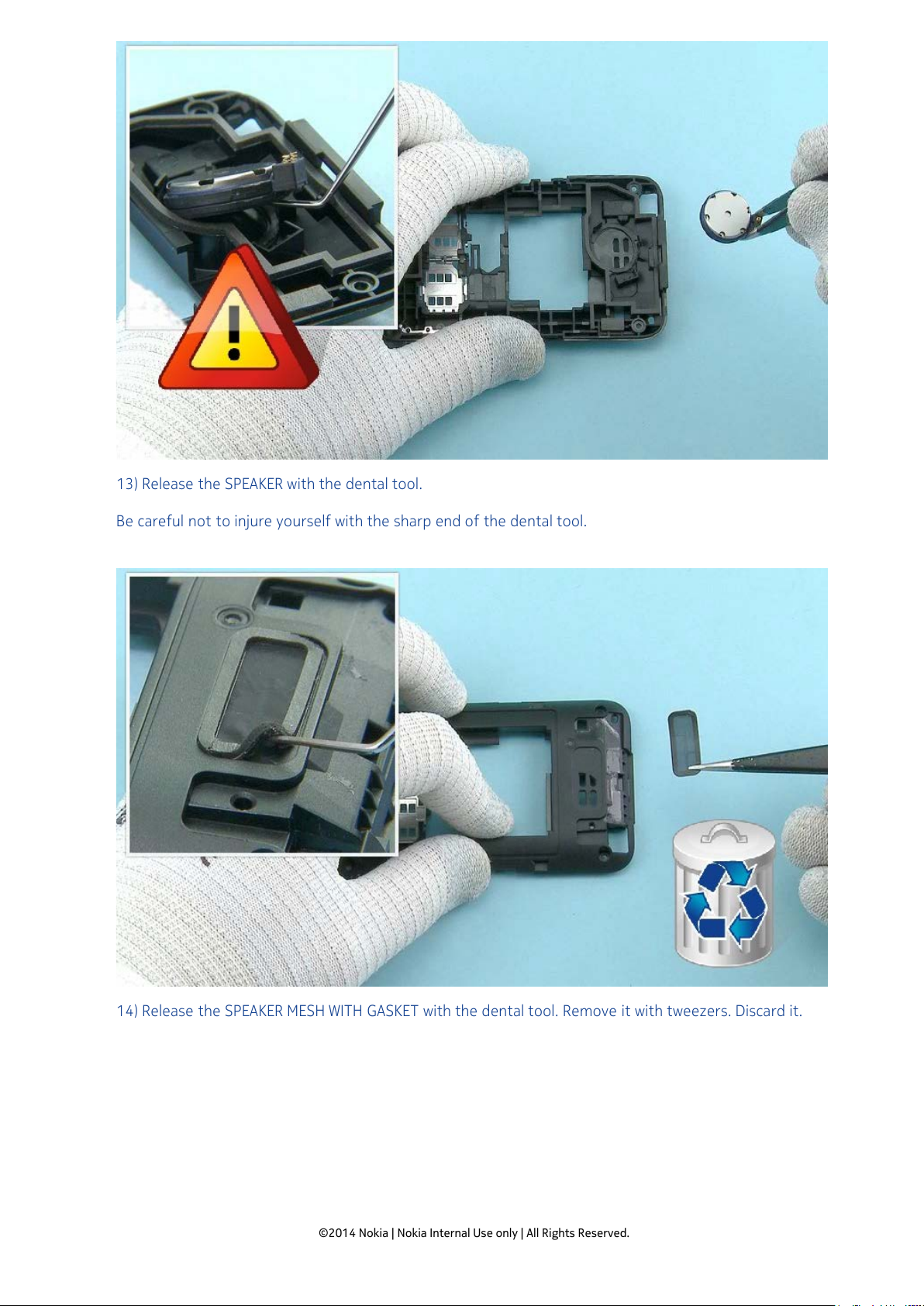

13) Release the SPEAKER with the dental tool.

Be careful not to injure yourself with the sharp end of the dental tool.

14) Release the SPEAKER MESH WITH GASKET with the dental tool. Remove it with tweezers. Discard it.
