Service Manual for L1 an

Nokia Lumia 1020

RM-877

Key features

1.5 GHz Qualcomm dual-core processor

2 GB RAM and 32 GB of internal storage

4.5" AMOLED Puremotion HD+ display

41 Mpix PureView camera with OIS

2G / 3G / 4G LTE connectivity

Version 2.0

Exploded view Disassembly steps Disassembly video

Assembly steps Assembly video Solder components

Service devices Product controls and interfaces Service concept

Phone reset

Mor

Service Manual Level 1 and 2

Nokia Lumia 1020

RM-877

Version 2.0

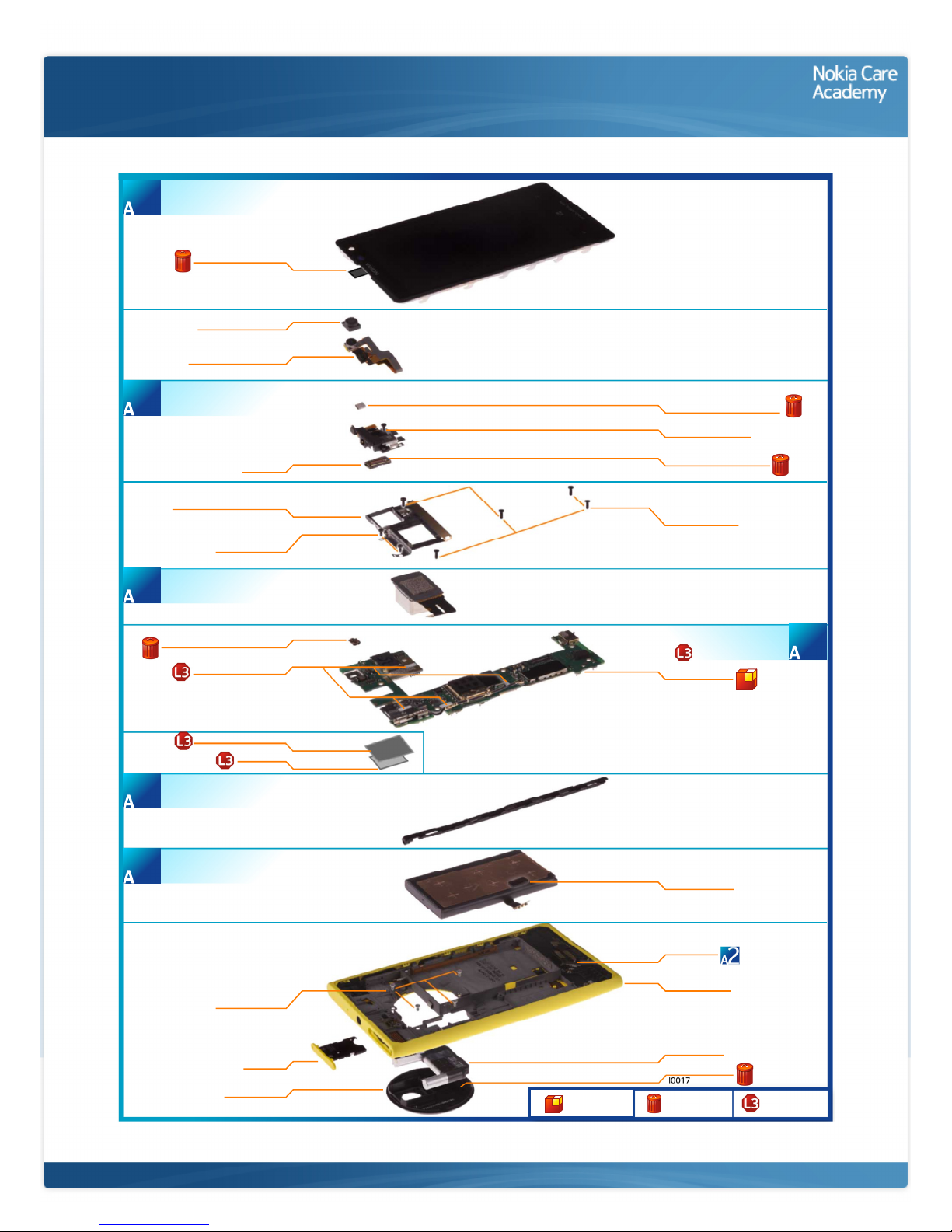

Exploded view

2ND CAMERA GASKET

I0013

EARPIECE

I0005

2ND CAMERA GROUNDING PAD

I0003

LIGHT SWAP PWB

I0002

CAMERA DECO

I0016

SIM TRAY

I0021

BATTERY HOLDER ASSEMBLY

I0009

2ND CAMERA ASSEMBLY

I0012

SENSOR SEALING TAPE

I0001

WATER INGRESS LABEL

LABEL TRAY ASSEMBLY

I0018

EARPIECE HOLDER GASKET

I0007

AV FRAME GROUNDING FOAM

I0006

USB GASKET

I0004

TYPE LABEL

I0019

BATTERY GASKET

I0008

XENON FLASH

I0015

FLASH ADHESIVE

BODY ASSEMBLY

I0020

SCREW TORX+

SIZE 6 M1.6 X 3.5

I0010

SCREW TORX+ SIZE 5

SCREW TORX+

SIZE 5 M1.4 x 3.0

I0011

SCREW TORX+

SIZE 4 M1.4 x 2.5

I0014

CAMERA ASSEMBLY

WINDOW ASSEMBLY

(I0001)

AV ASSEMBLY

(I0005 - I0007)

LOCKING RAIL ASSEMBLY

BATTERY ASSEMBLY

(I0008)

LIGHT SWAP PACKAGE

(I0002 - I0004) 2

Only available

as assembly

Not reuseable

after removal

Repair/swap

only in level 3

Service Manual Level 1 and 2

Nokia Lumia 1020

RM-877

Version 2.0

Disassembly steps

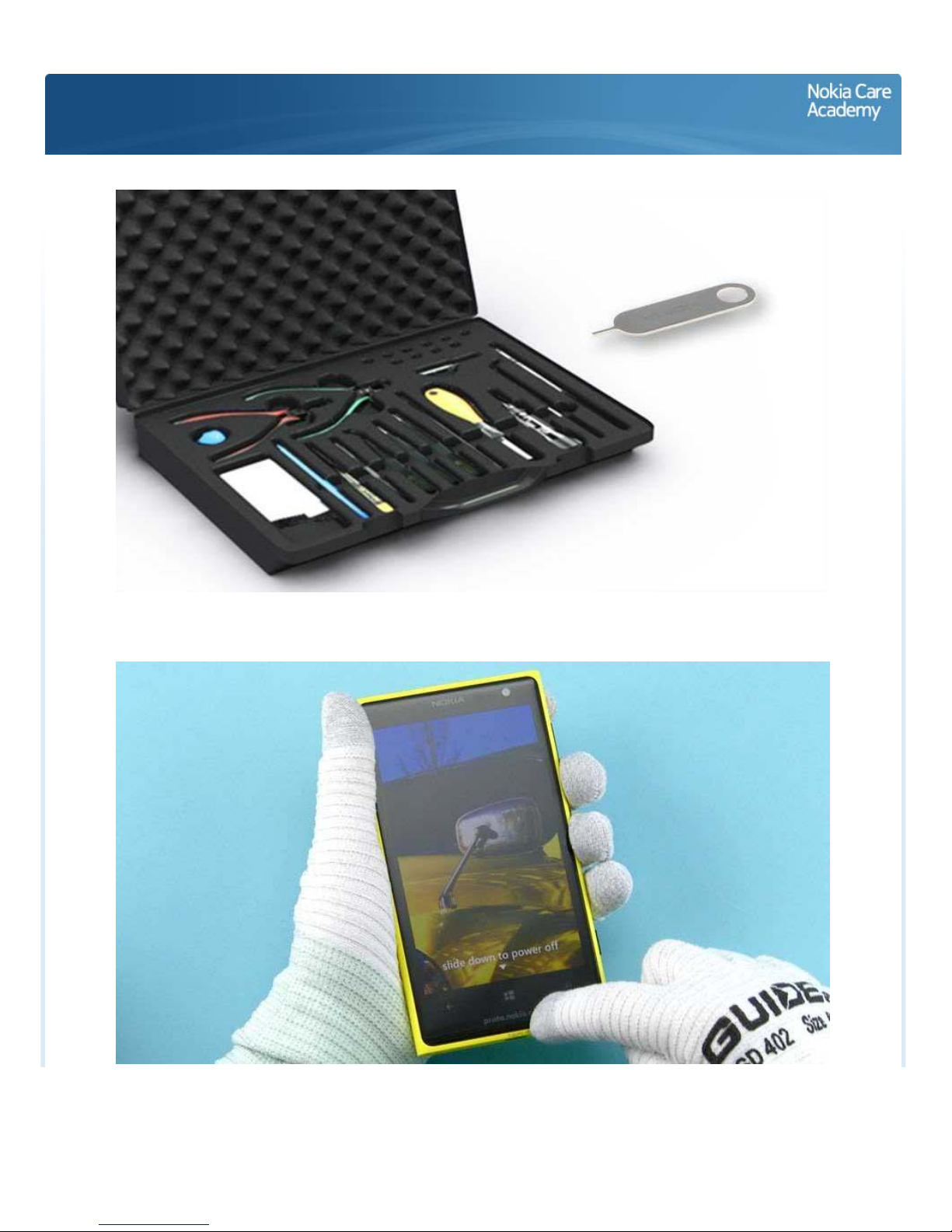

1) For disassembling you need the Nokia Standard toolkit version 2. You will also need the SIM door key.

2) The power must be off during the disassembly procedure.

3) Protect the DISPLAY with protective film.

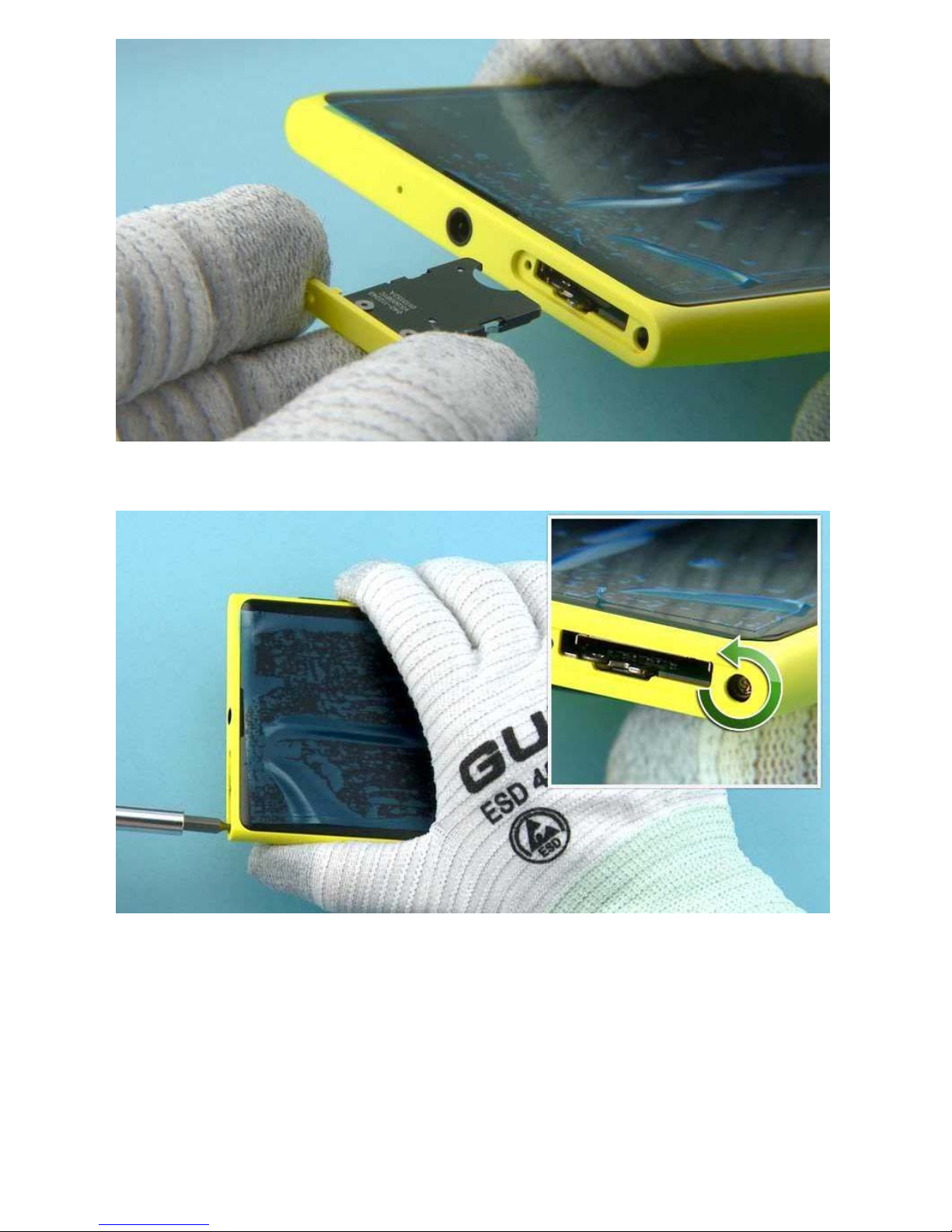

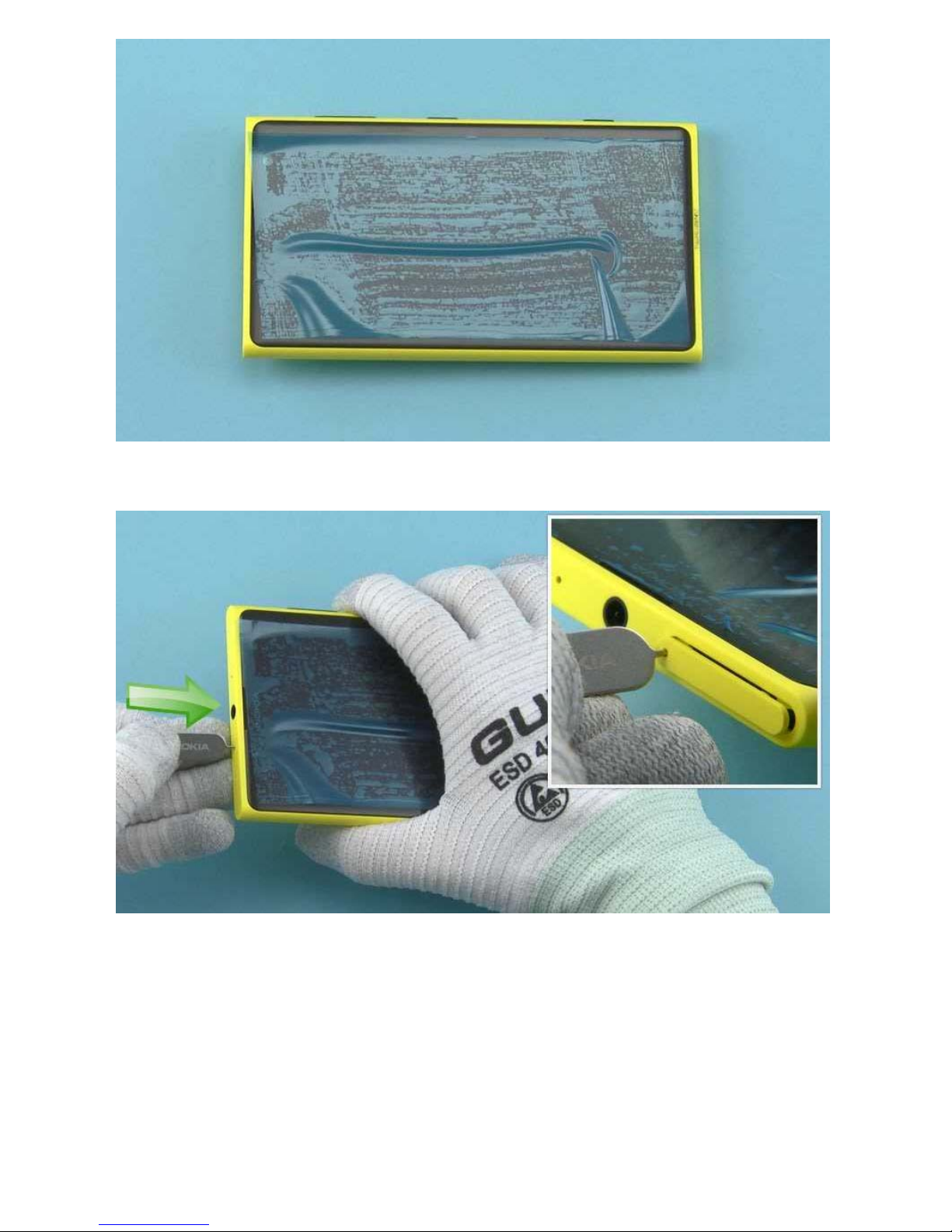

4) Release the SIM TRAY with the SIM door key.

5) Pull the SIM TRAY out.

6) Unscrew the TORX+ size 4 LOCKING RAIL SCREW. Open the screw 8 full turns.

Loosen the screw very slowly and be careful not to break the LOCKING RAIL ASSEMBLY.

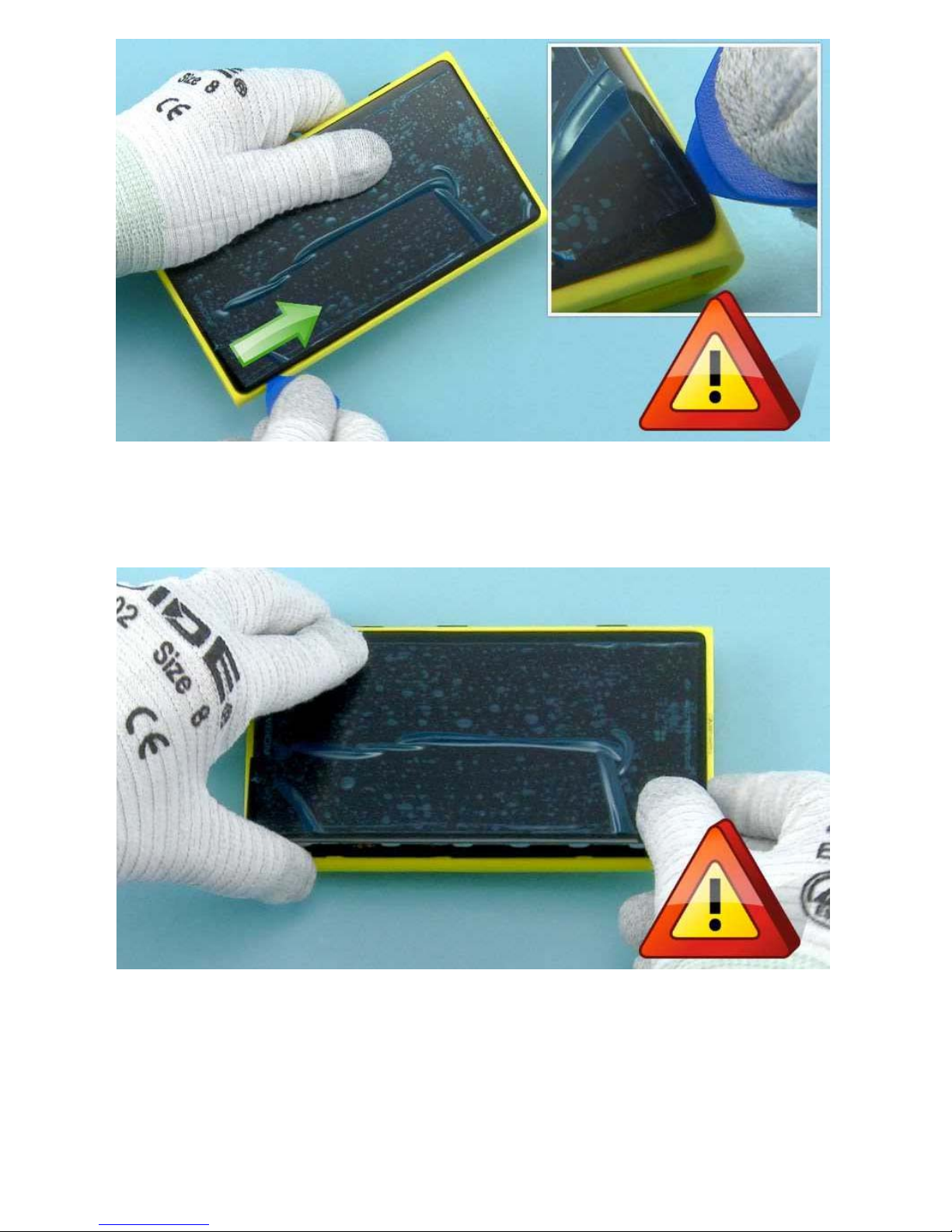

7) Use the SRT-6 to detach the DISPLAY. Release the left side of the device by sliding the SRT-6 as

shown.

Be careful not to damage any components or the flexes underneath the DISPLAY.

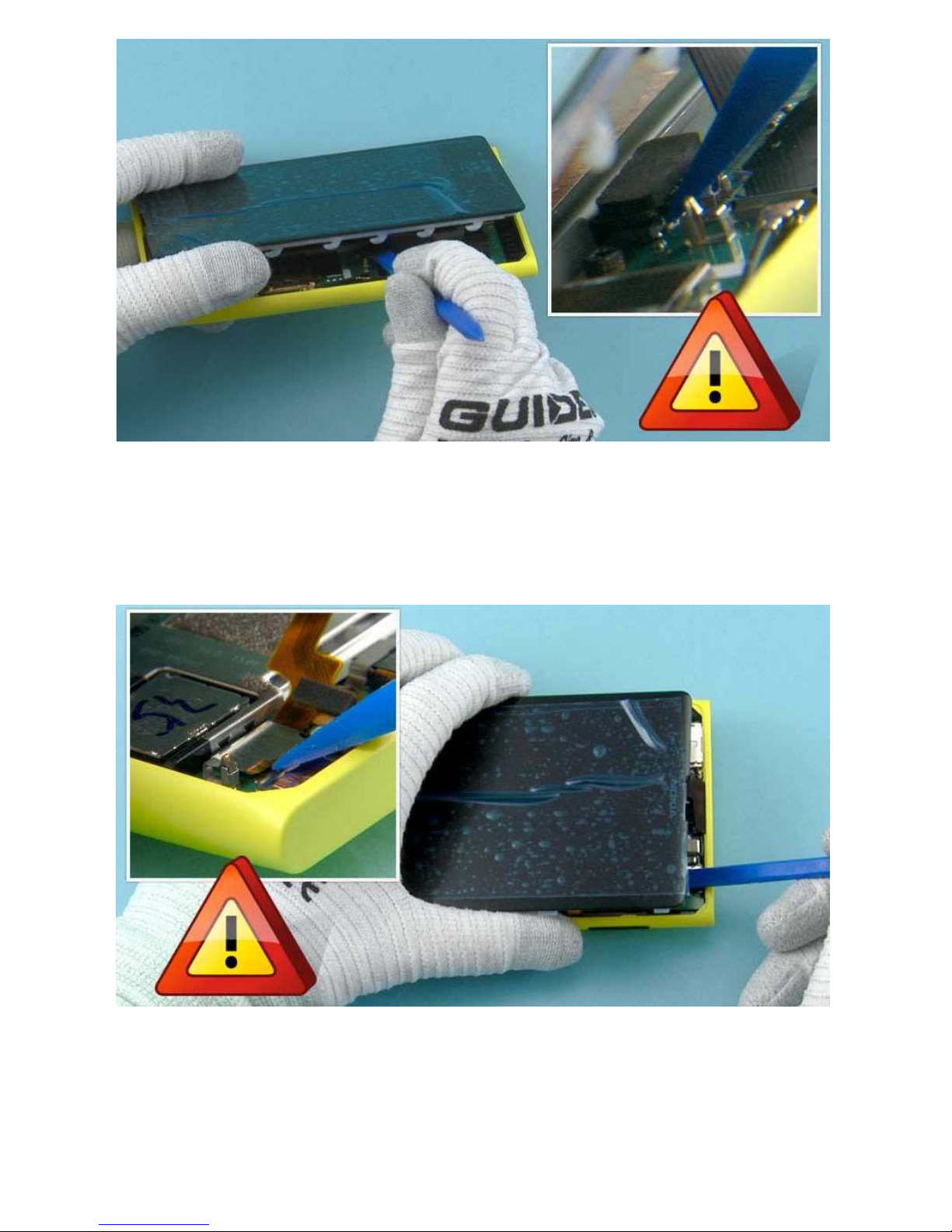

8) Carefully lift the left side of the DISPLAY to gain access to the connectors.

9) Use the SS-93 to open the BATTERY CONNECTOR.

Be careful not to damage the connector or any nearby components.

NOTE: The opening order of the connectors is mandatory to minimize the risk of battery current short

circuits.

10) Use the SS-93 to open the 2nd CAMERA FLEX CONNECTOR.

Be careful not to damage the connector or any nearby components.

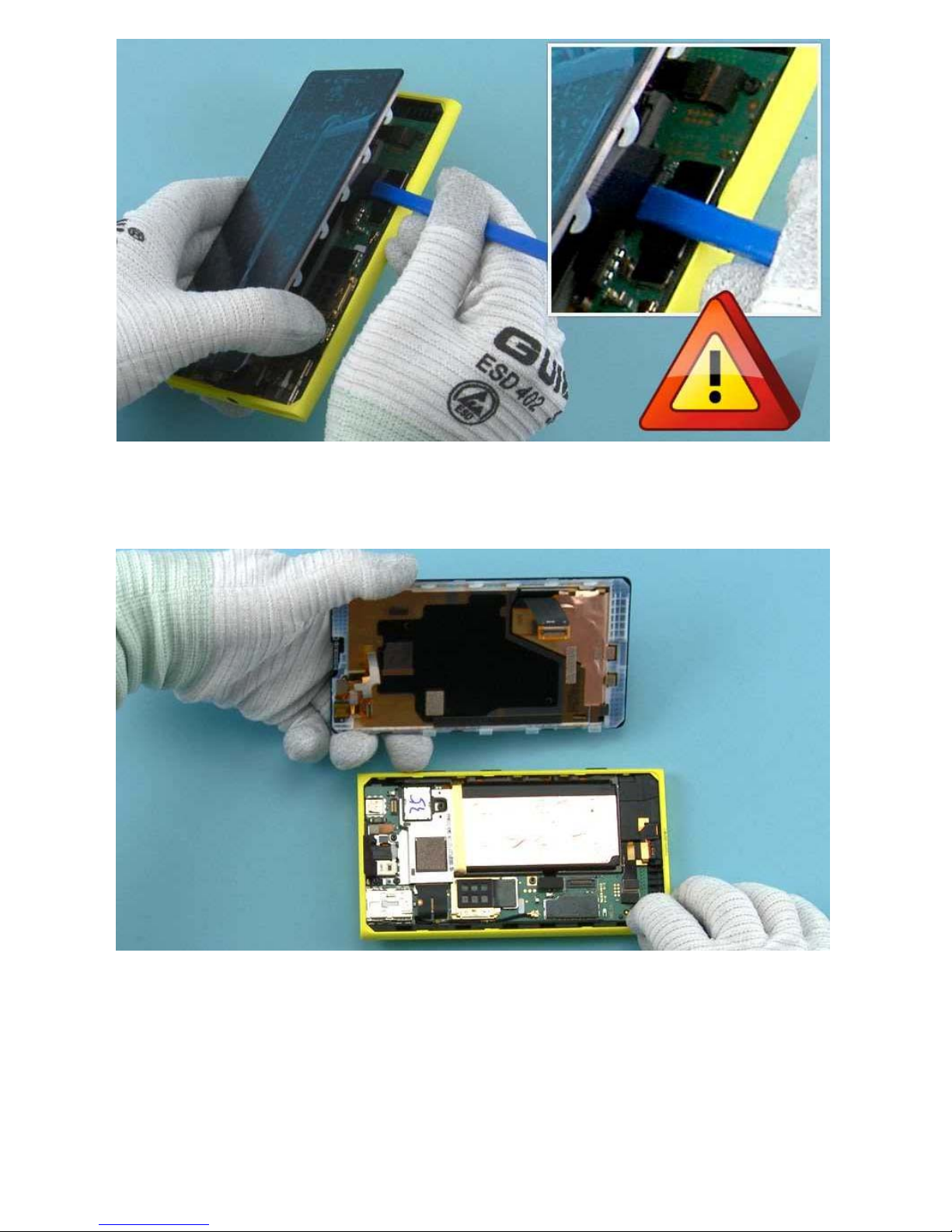

11) Use the SS-93 to open the DISPLAY CONNECTOR.

Be careful not to damage the connector or any nearby components.

12) The DISPLAY can now be separated.

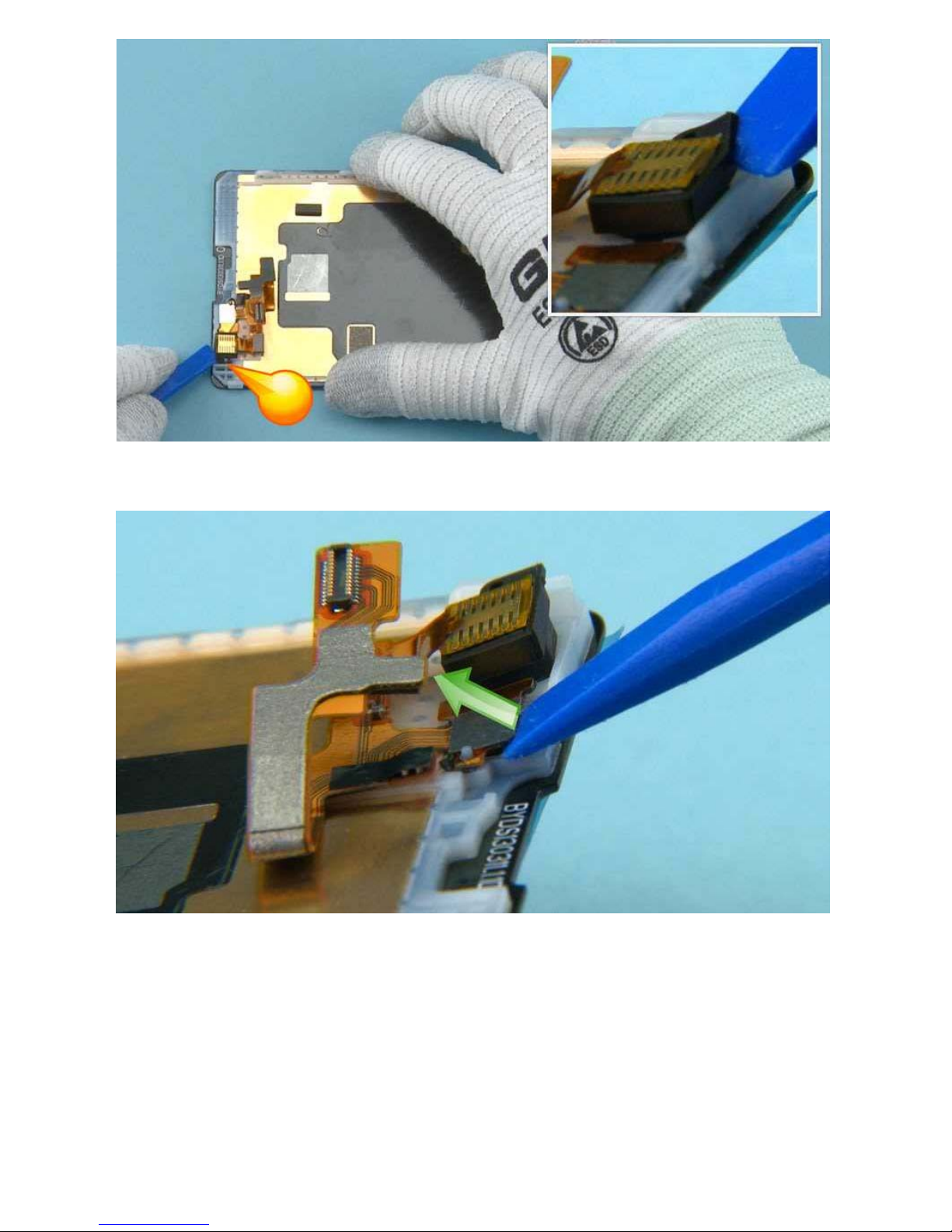

13) Start releasing the 2nd CAMERA ASSEMBLY with the SS-93 from the shown place.

14) Detach the SENSOR by lifting it with the SS-93 as shown.

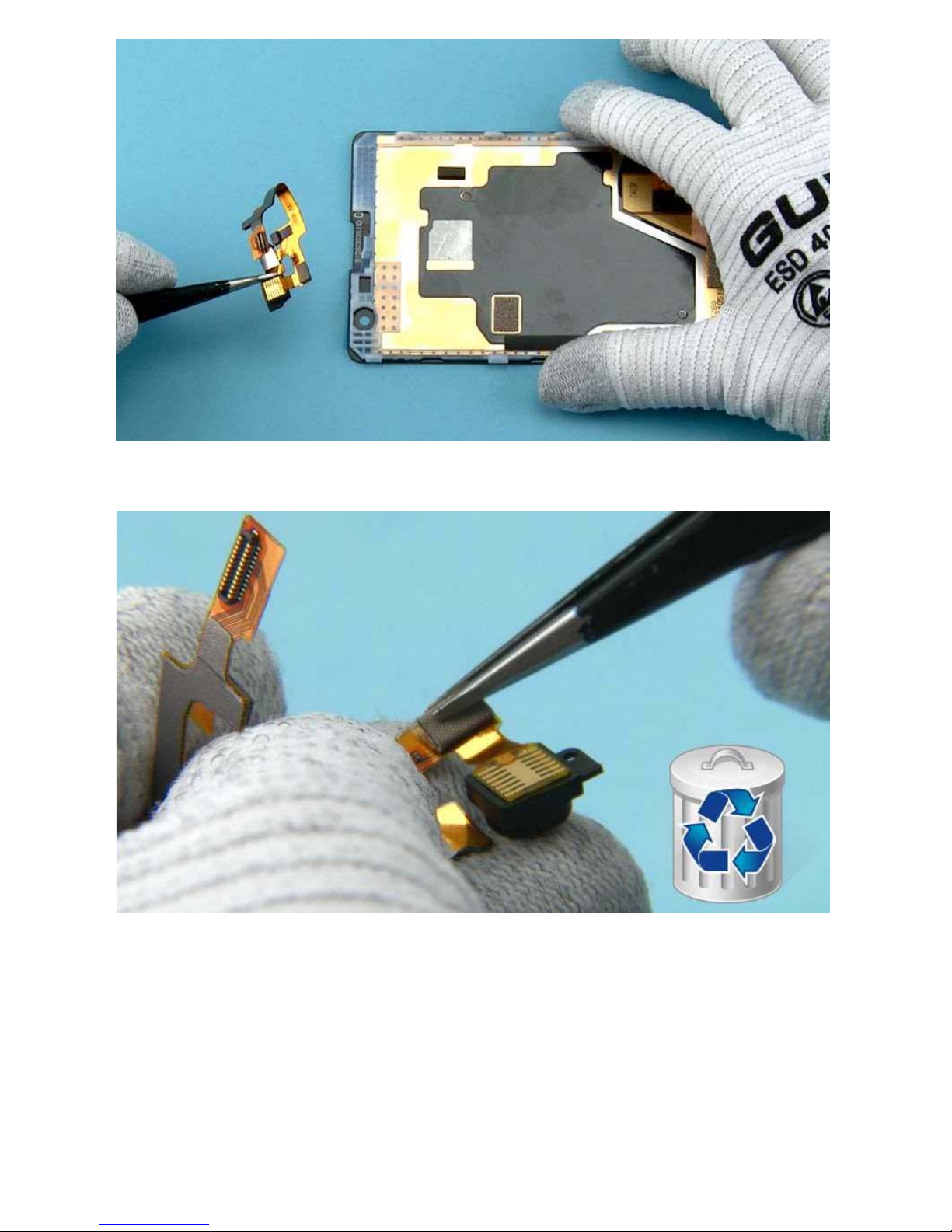

15) Remove the 2nd CAMERA ASSEMBLY with tweezers.

16) Use tweezers to remove the 2nd CAMERA GROUNDING FOAM. Do not use it again. Discard it.
