Service Manual for L1 and L2

Nokia Lumia 710

RM-803, RM-809

Key features

Windows Phone Mango operating system

Large 3.7" LCD TFT ClearBlack screen (not OLED)

Sync, store and share media files

Best instant social experience

Fast browsing with IE9

ersion 1.

Exploded view Disassembly steps Disassembly video

Assembly hints Assembly hints video Service devices

Solder components Product controls and interfaces Service concept

Phone reset

Mor

Service Manual Level 1 and 2

Nokia Lumia 710

RM-803, RM-809

Version 1.0

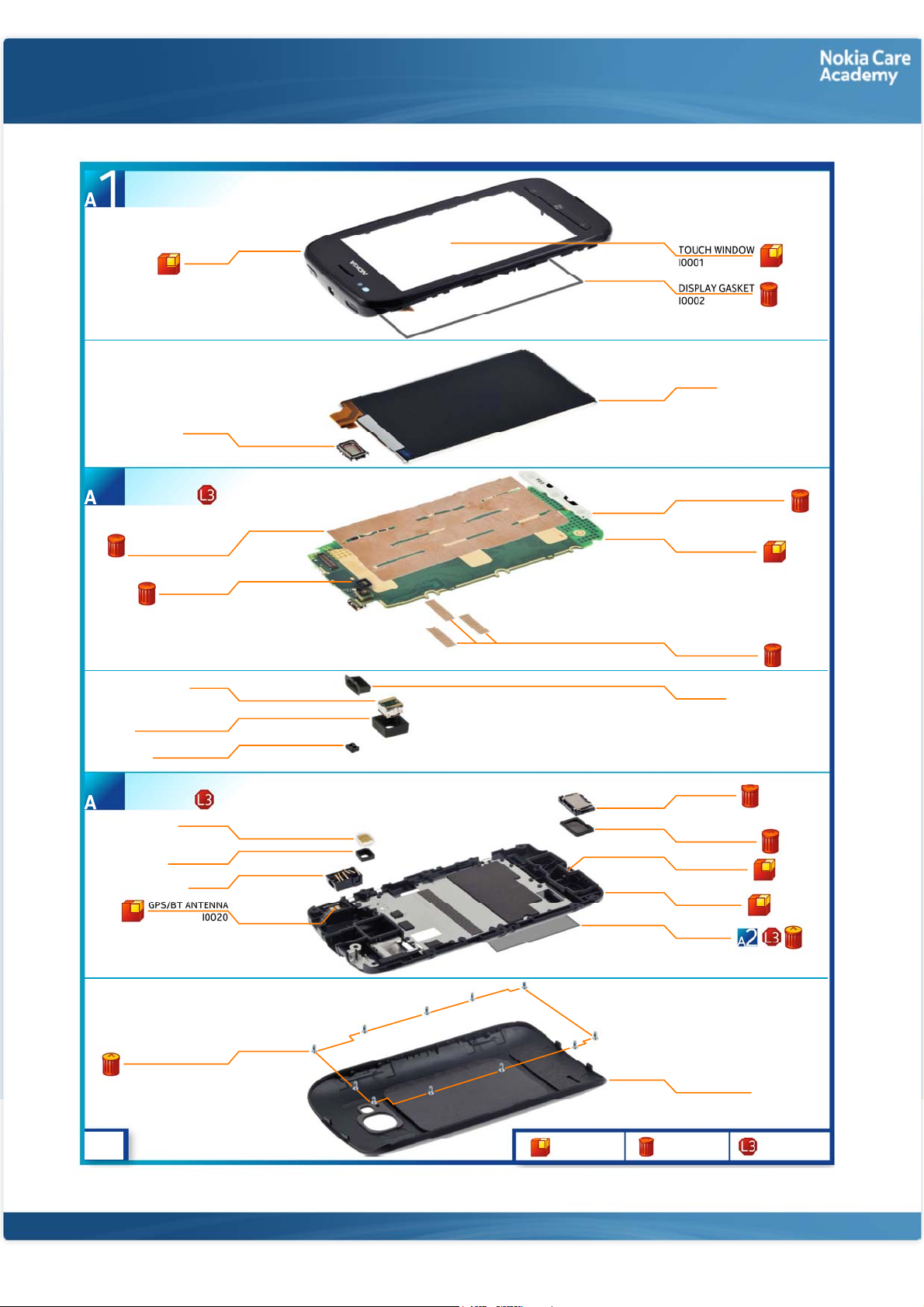

Exploded view

CAMERA

I0013

AV JACK

I0017

EARPIECE

I0003

A-COVER

I0004

DISPLAY CONDUCTIVE

TAPE

I0006

DIPRO GASKET

I0010

CAMERA LENS BOOT

I0014

LED FLASH

I0018

FLASH SUPPORT

I0025

FLASH BOOT

I0019

DISPLAY

I0005

UI KEYMAT DOMESHEET

I0007

IHF SPEAKER

I0015

SHIELD ADHESIVE

I0011

LIGHT SWAP PWB

I0008

SPEAKER GASKET

I0016

USB BOOT

I0012

MAIN ANTENNA

I0021

BATTERY COVER

I0024

MAIN CHASSIS

I0022

TYPE LABEL

I0009

CAMERA CROSS SCREW

I0023

A-COVER ASSEMBLY

(I0001, I0002, I0004)

LIGHT SWAP PACKAGE

(I0006 - I0011)

MAIN CHASSIS ASSEMBLY

(I0015 - I0022)

v1.0 Only available

as assembly

Not reuseable

after removal

Repair/swap

only in level 3

Service Manual Level 1 and 2

Nokia Lumia 710

RM-803, RM-809

Version 1.0

Disassembly steps

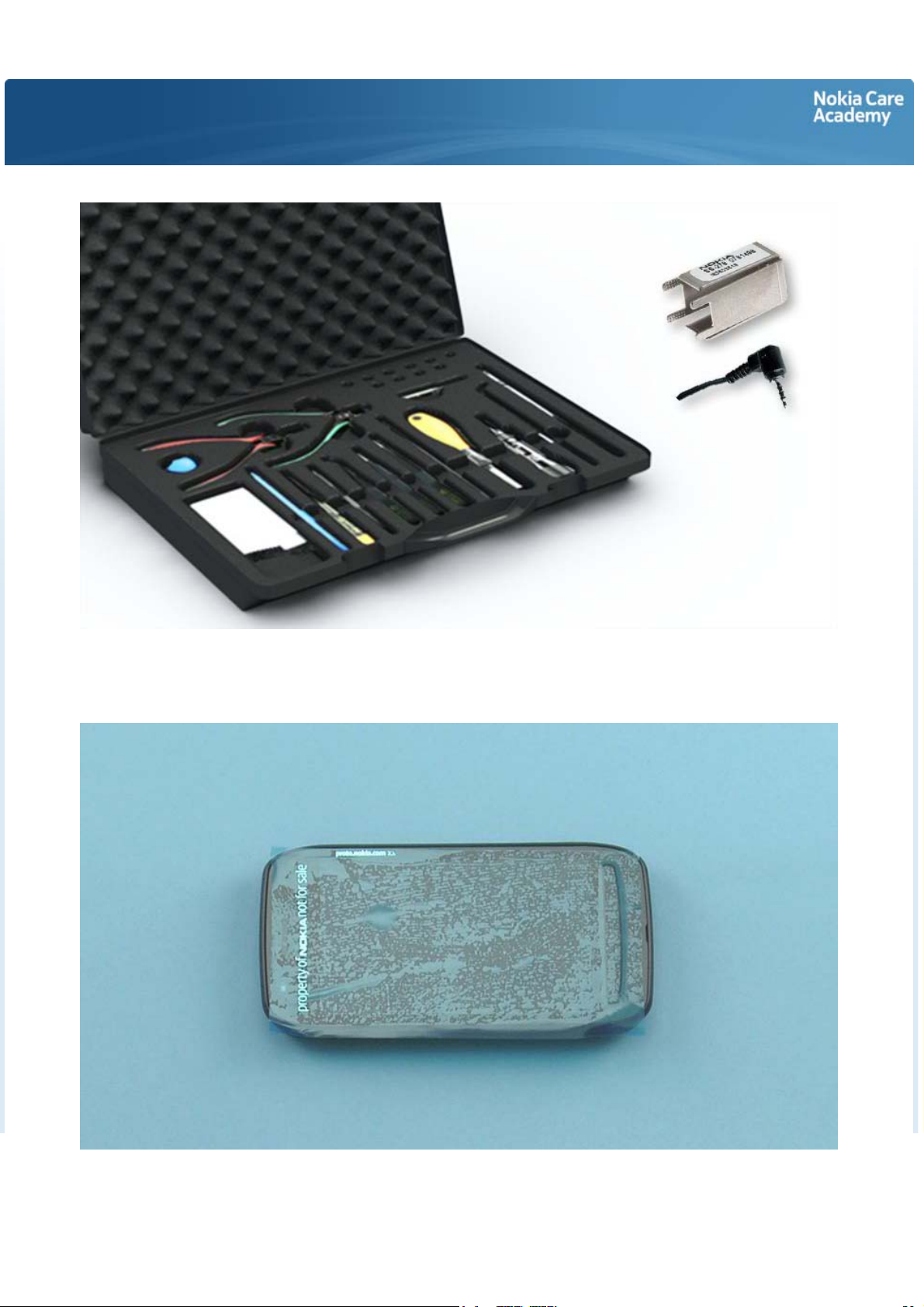

For disassembling you need the Nokia Standard Toolkit version 2. You will also need the camera removal

tool SS-278 and an AV plug.

Protect the A-COVER with protective film.

Use the opening notch on the left side of the device to release the BATTERY COVER.

Remove the BATTERY COVER.

Unscrew the eleven camera cross screws in the order shown. Do not use them again. Discard them.

Push the MAIN CHASSIS slightly forward and lift up the bottom end. Remove the MAIN CHASSIS.

Remove the CAMERA LENS BOOT with tweezers. Use plastic tweezers if available.

Remove the FLASH SUPPORT with tweezers.

Open the TOUCH WINDOW connector with the SS-93. Be careful not to damage the connector.

Use the SS-93 to lift up and push forward the ENGINE BOARD from the shown place. Be careful not to

damage the shown springs!

Then carefully turn over the engine board as shown. While turning the ENGINE BOARD, be careful not to

damage the two shown connectors.

Open the DISPLAY connector with the SS-93. Be careful not to damage the connector or components

nearby.

The ENGINE BOARD can now be separated.

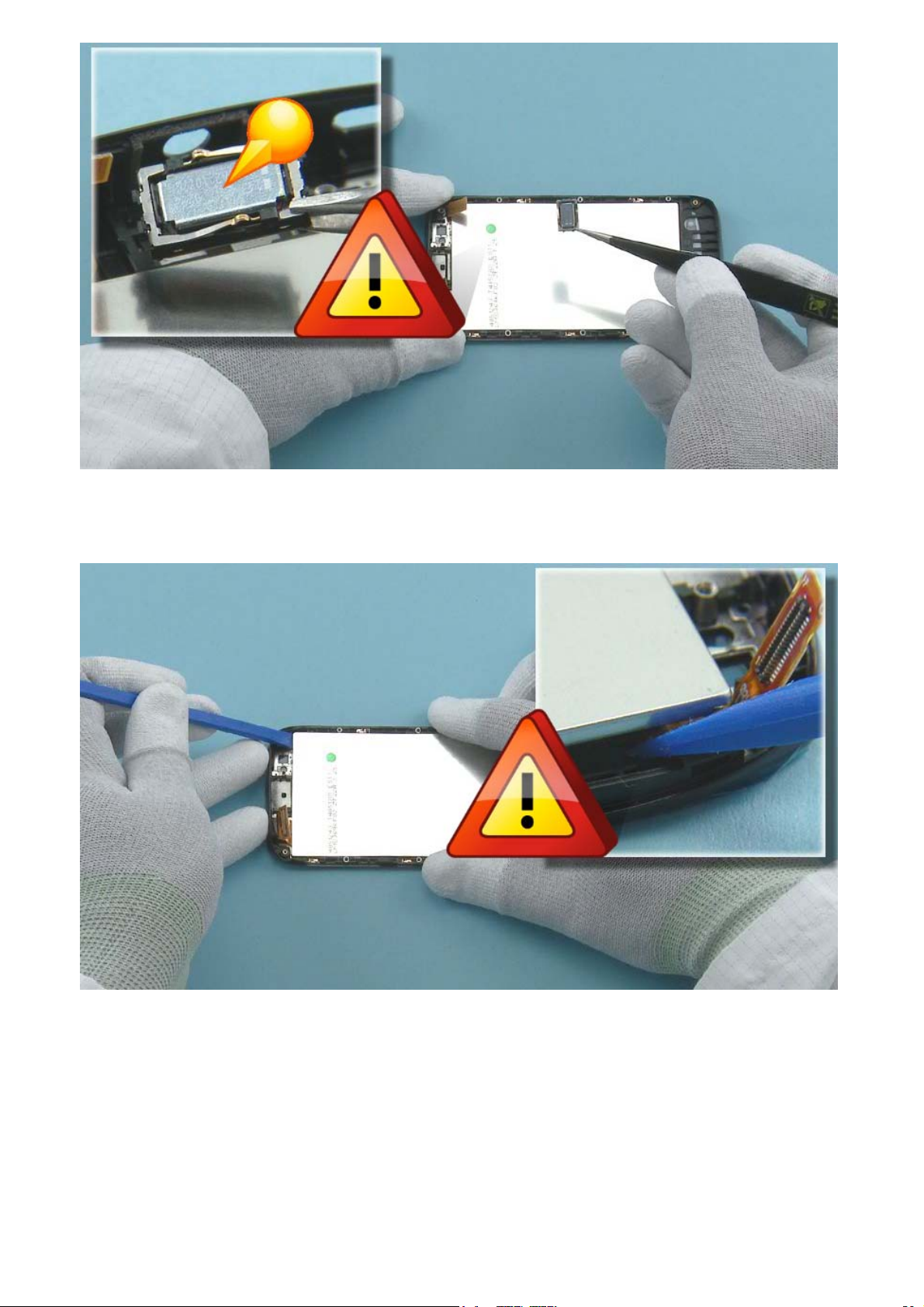

Lift up the EARPIECE with the dental tool. Be careful not to injure yourself with the sharp end of the

dental tool.

Remove the EARPIECE with tweezers. When removing the EARPIECE, make sure not to touch the shown

part of it.

Use the SS-93 to release the DISPLAY. Start from the shown corner. Lift the corner and hold it up for a

while. The adhesive on the DISPLAY GASKET will slowly loosen up making it easier to remove the DISPLAY.

Be careful not to bend the DISPLAY or damage the TOUCH WINDOW connector.
