Nokia N85 Get started

Nokia, Nokia Connecting People, Nseries, N85, Navi, and Nokia Care are trademarks or registered trademarks of Nokia Corporation. Other product and

company names mentioned herein may be trademarks or tradenames of their respective owners.

Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without the prior written permission of Nokia

is prohibited.

9208550/Issue 1

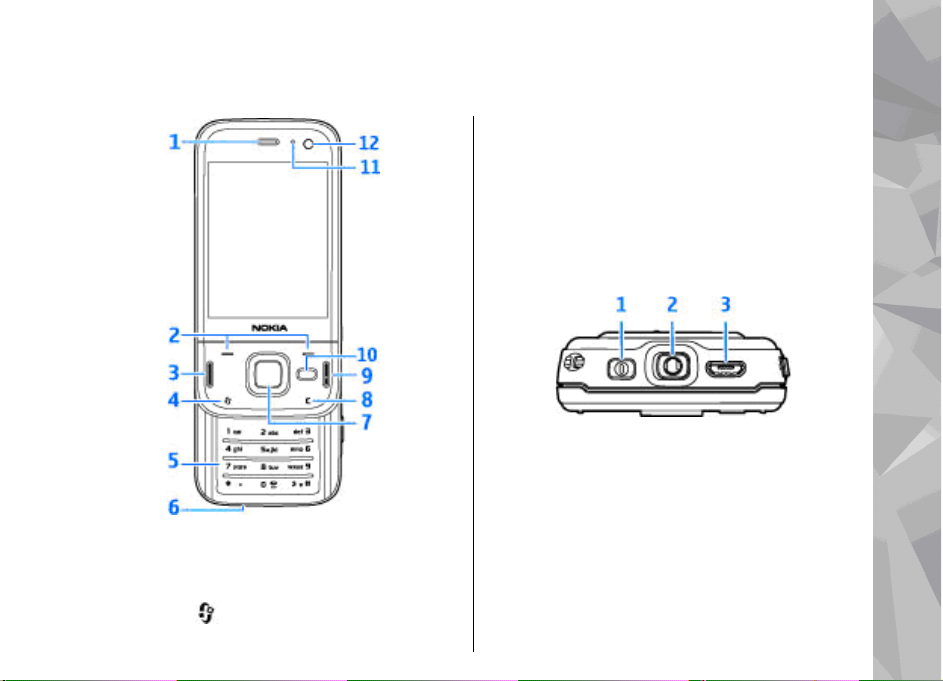

Keys and parts (front and top)

1— Earpiece

2— Selection keys

3— Call key

4— Menu key

5— Numeric keypad

6— Microphone

7— Navi™ wheel; hereafter referred to as scroll key

8— Clear key C

9— End key

10 — Multimedia key

11 — Light sensor

12 — Secondary camera

1— Power key

2— Nokia AV Connector for compatible headsets,

headphones, and TV-out connectors

3— Micro USB connector for charger and to connect

to a compatible PC

Keys and parts (back and sides)

1 and 9 — Stereo speaker with 3-D sound effect

2— Volume/Zoom key

3— Key lock switch for locking and unlocking the

keys

4— 2-stage capture key for auto-focus, still image

capture, and video recording

5— Main camera for high resolution image capture

and video recording

6— Flash and video light

7— Hole for a wrist strap

8— Memory card slot for a compatible microSD card

Short Slide keys

Short slide keys enable multitasking. For example,

if you are viewing images, with the Music player on

the background, and you want to skip to the next

or the previous track, press the Play/Pause key to

make the forward and rewind keys available.

1— Forward

2— Play/Pause

3— Stop

4— Rewind

5 and 8 — Zoom keys (available when they are lit)

6 and 7 — Game keys (available in the landscape

mode)

Insert SIM card and battery

Always switch the device off and disconnect the

charger before removing the battery.

1. With the back of the

device facing you,

press and hold the

release button and

lift up the cover.

2. Insert the SIM card

into the card

holder. Ensure that

the bevelled corner

on the card is facing

right, and that the

contact area on the

card is facing down.

3. Insert the battery.

4. To replace the cover,

direct the top locking

catch toward its slot

first and then press

down until the cover

locks into place.

Switch the device on

1. Press and hold the power key.

2. If the device asks for a PIN

code or lock code, enter it,

and press the left

selection key. The factory

setting for the lock code is

12345. If you forget the

code and your device is

locked, your device will

require service and

additional charges may

apply. For more

information, contact a Nokia Care point or your

device dealer.

Antenna locations

Your device may have internal and external

antennas. As with any radio transmitting device,

avoid touching the antenna area unnecessarily

while the antenna is transmitting or receiving.

Contact with such an antenna affects the

communication quality and may cause the device to

operate at a higher power level than otherwise

needed and may reduce the battery life.

1— Bluetooth and wireless LAN antenna, and GPS

receiver

2— FM transmitter antenna

3— Cellular antenna

Note that the Bluetooth, WLAN, GPS, and FM

transmitter antennas are located in the back cover

of your device. If you change the back cover, check

that the new cover includes these antennas,

otherwise these connections stop working.

Memory card

Use only compatible microSD cards approved by

Nokia for use with this device. Nokia uses approved

industry standards for memory cards, but some

brands may not be fully compatible with this device.

Incompatible cards may damage the card and the

device and corrupt data stored on the card.

Insert the memory card

A memory card may be already inserted in the

device. If not, do the following:

1. Place your finger in the recess beside the cover

of the memory card slot, and lift the cover. Pull

the cover to the left to reveal the hinge, and

swing the cover to the side.

2. Insert a compatible memory card

in the slot. Ensure that the

contact area on the card is facing

down and towards the slot.

3. Push the card in.

You can hear a

click when the

card locks into

place.

4. Push the hinge

back in, and

close the cover. Ensure that the cover is properly

closed.

Remove the memory card

Important: Do not remove the memory card

in the middle of an operation when the card is being

accessed. Removing the card in the middle of an

operation may damage the memory card as well as

the device, and data stored on the card may be

corrupted.

1. Before you remove the card, press the power

key, and select Remove memory card. All

applications are closed.

2. When Removing memory card will close all

open applications. Remove anyway? is

displayed, select Yes.

3. When Remove

memory card and

press 'OK' is displayed,

open the cover of the

memory card slot.

4. Press the memory card

to release it from the

slot.

5. Pull out the memory

card. If the device is switched on, select OK.
