Nokia NOKIA C3-00 Manuale utente

Nokia C3–00 User Guide

Issue 1.0

Cyan

Magenta

Yellow

Black

9221346

Contents

Safety 4

Support 5

Nokia C3 in brief 5

Key features 5

Keys and parts 6

Get started 7

Insert SIM card and battery 7

Switch on or off 7

Antennas 7

Charge the battery 8

Headset 8

Insert a microSD card 9

Remove the microSD card 9

Connect a USB data cable 9

Attach the wrist strap 10

Magnets and magnetic fields 10

Access codes 10

Home screen 10

Keypad lock 11

Use your device without a SIM

card 12

Applications running in

background 12

Calls 12

Make and answer a call 12

Loudspeaker 12

Dialing shortcuts 12

Write text 13

Write text using the keyboard 13

Predictive text input 14

Navigate the menus 15

Messaging 15

Text and multimedia messages 15

Flash messages 16

Nokia Xpress audio messages 17

Nokia Messaging Service 17

Voice messages 17

Message settings 17

Contacts 18

Music 19

Media player 19

FM radio 19

Photos 20

Capture images and record

videos 20

View your images and videos 20

Applications 21

Alarm clock 21

Gallery 21

Extras 21

Voice recorder 21

To-do list 22

Calendar 22

Settings 23

Profiles 23

Tones 23

Display 23

Date and time 23

Shortcuts 23

Synchronization and backup 23

Connectivity 24

Call and phone 26

Accessories 27

Configuration 27

Restore factory settings 27

2Contents

English www.nokia.com/support

Cyan

Magenta

Yellow

Black

Web or Internet 28

Connect to a web service 28

Operator menu 28

SIM services 29

Green tips 29

Save energy 29

Recycle 29

Product and safety

information 30

Index 37

Contents 3

www.nokia.com/support English

Cyan

Magenta

Yellow

Black

Safety

Read these simple guidelines. Not

following them may be dangerous or

illegal. Read the complete user guide

for further information.

SWITCH ON SAFELY

Do not switch the device on

when wireless phone use is

prohibited or when it may

cause interference or

danger.

ROAD SAFETY COMES FIRST

Obey all local laws. Always

keep your hands free to

operate the vehicle while

driving. Your first

consideration while driving

should be road safety.

INTERFERENCE

All wireless devices may be

susceptible to interference,

which could affect

performance.

SWITCH OFF IN RESTRICTED AREAS

Follow any restrictions.

Switch the device off in

aircraft, near medical

equipment, fuel, chemicals,

or blasting areas.

QUALIFIED SERVICE

Only qualified personnel

may install or repair this

product.

ACCESSORIES AND BATTERIES

Use only approved

accessories and batteries.

Do not connect

incompatible products.

WATER-RESISTANCE

Your device is not water-

resistant. Keep it dry.

4Safety

English www.nokia.com/support

Cyan

Magenta

Yellow

Black

Support

When you want to learn more about

how to use your product or you are

unsure how your device should

function, go to www.nokia.com/

support, or using a cellular phone,

www.nokia.mobi/support.

If this does not resolve your issue, do

one of the following:

•Restore the original factory

settings.

•Update your device software.

If your issue remains unsolved, contact

Nokia for repair options. Go to

www.nokia.com/repair, or in Latin

America, www.nokia-

latinoamerica.com/centrosdeservicio.

Before sending your device for repair,

always back up the data in your device.

Nokia C3 in brief

Model number: Nokia C3-00

Key features

•Enjoy the messaging features with

the full QWERTY keyboard.

•Manage your social networking

profiles while on the move.

•Read and reply to your mail when

out and about.

•Access the internet easily through

a Wi-Fi network.

•View your correspondence with

someone in the conversational

messaging view.

Support 5

www.nokia.com/support English

Cyan

Magenta

Yellow

Black

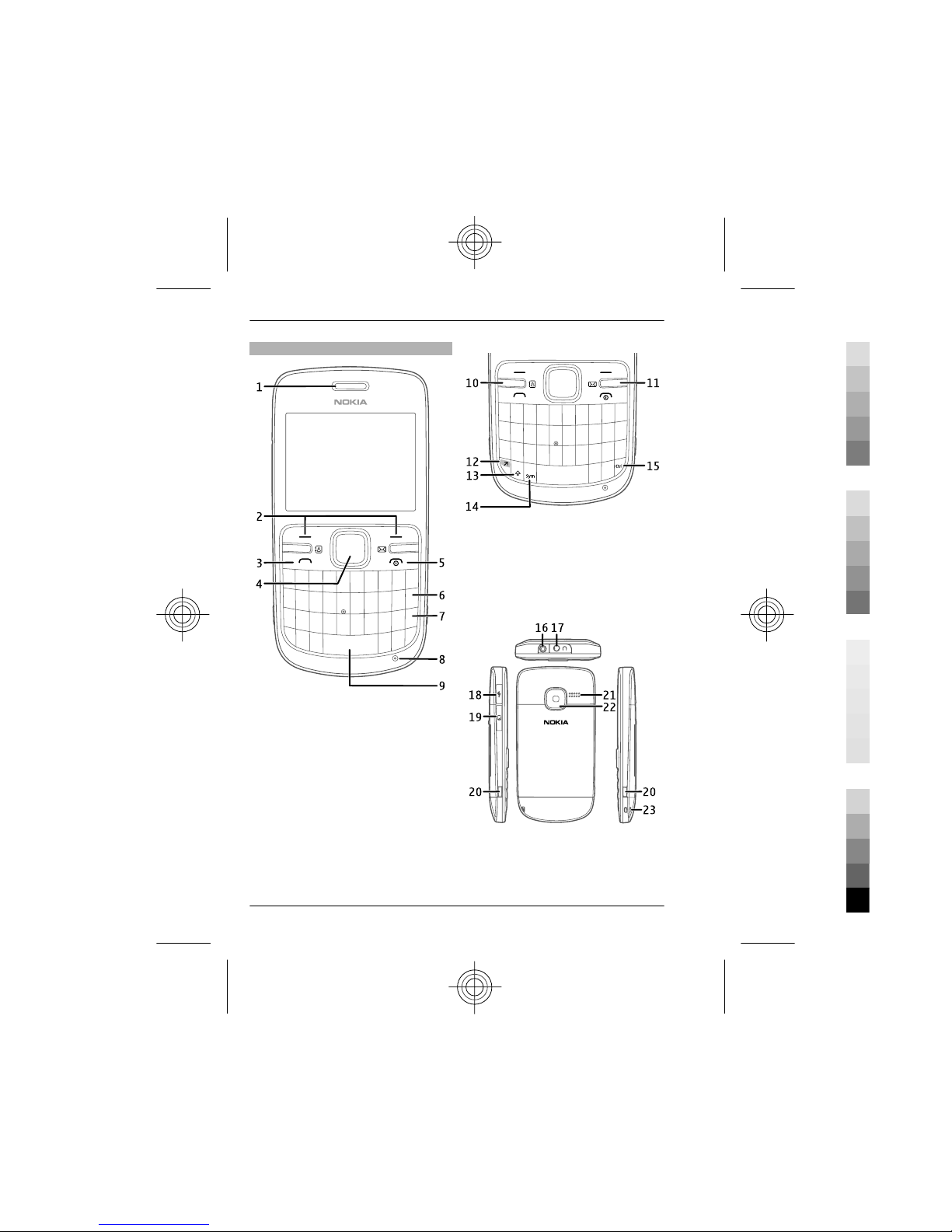

Keys and parts

1Earpiece

2Selection keys

3Call key

4Navi™ key (scroll key)

5End/Power key

6Backspace key

7Enter key

8Microphone

9Space key

10 Contacts key

11 Messaging key

12 Function key

13 Shift key

14 Symbol key

15 Ctrl key

16 Charger connector

17 Headset connector/Nokia AV

connector (3.5 mm)

18 Micro USB connector

6 Nokia C3 in brief

English www.nokia.com/support

Cyan

Magenta

Yellow

Black

19 Memory card slot

20 Release button

21 Loudspeaker

22 Camera lens

23 Wrist strap eyelet

Special key functions

•Contacts key and messaging key.

To access some messaging or

contacts features, press the

contacts or messaging key. You

can assign different functions to

the keys.

•Function key. To change the

writing language, press the

function key, then the ctrl key.

•Shift key. To switch between the

character cases, press the shift key.

To copy or cut text, press and hold

the shift key, and scroll to

highlight the word, phrase, or line

of text you want to copy or cut.

Press and hold the ctrl key, and

then press C (copy) or X (cut).

•Symbol key. To insert a special

symbol, press the symbol key, and

select the desired symbol.

Get started

Insert SIM card and battery

Safe removal. Always switch the device

off and disconnect the charger before

removing the battery.

The SIM card and its contacts can be

easily damaged by scratches or

bending, so be careful when handling,

inserting, or removing the card.

1 Press the release buttons, and

remove the back cover (1, 2).

2 Remove the battery (3).

3 Insert the SIM card. Ensure the

contact surface area is facing

down and the beveled corner of

the SIM card is facing the bottom

of the device (4, 5, 6).

4 Replace the battery and the back

cover (7, 8, 9).

Switch on or off

Press and hold the power key.

Antennas

Your device may have internal and

external antennas. Avoid touching the

antenna area unnecessarily while the

antenna is transmitting or receiving.

Contact with antennas affects the

Get started 7

www.nokia.com/support English

Cyan

Magenta

Yellow

Black

communication quality and may cause

a higher power level during operation

and may reduce the battery life.

Charge the battery

Your battery has been partially

charged at the factory. If the device

indicates a low charge, do the

following:

1 Connect the charger to a wall

outlet.

2 Connect the charger to the device.

3 When the device indicates a full

charge, disconnect the charger

from the device, then from the

wall outlet.

You do not need to charge the battery

for a specific length of time, and you

can use the device while it charges. If

the battery is completely without

charge, it may take several minutes

before the charging indicator appears

on the display or before any calls can

be made.

Headset

Warning:

When you use the headset, your ability

to hear outside sounds may be

affected. Do not use the headset where

it can endanger your safety.

When connecting any external device

or any headset, other than those

approved by Nokia for use with this

device, to the Nokia AV Connector, pay

special attention to volume levels.

Do not connect products that create an

output signal as this may cause

damage to the device. Do not connect

any voltage source to the Nokia AV

Connector.

8Getstarted

English www.nokia.com/support

Cyan

Magenta

Yellow

Black

Insert a microSD card

Use only compatible microSD cards

approved by Nokia for use with this

device. Nokia uses approved industry

standards for memory cards, but some

brands may not be fully compatible

with this device. Incompatible cards

may damage the card and the device

and corrupt data stored on the card.

Your phone supports microSD cards

with a capacity of up to 8 GB.

A compatible memory card may be

supplied with the device, and may

already be inserted in the device. If

not, do the following:

1 Open the cover ofthe memory card

slot.

2 Insert the card into the memory

card slot with the contact surface

facing up, and press until it locks

into place.

3 Close the cover of the memory card

slot.

Remove the microSD card

Important: Do not remove the

memory card during an operation

when the card is being accessed. Doing

so may damage the memory card and

the device, and corrupt data stored on

the card.

You can remove or replace the memory

card during phone operation without

switching the device off, but you need

to ensure that no application is

currently accessing the memory card.

Connect a USB data cable

Connect a compatible USB data cable to

the USB connector. You may need to

purchase a USB data cable separately.

To modify the USB settings, select

Menu > Settings > Connectivity >

USB data cable and the desired mode.

Get started 9

www.nokia.com/support English

Cyan

Magenta

Yellow

Black

Attach the wrist strap

Thread the wrist strap as shown, and

tighten it.

Magnets and magnetic fields

Keep your device away from magnets

or magnetic fields.

Access codes

The security code helps to protect your

device against unauthorized use. You

can create and change the code, and

set the device to request the code.

Keep the code secret and in a safe place

separate from your device. If you

forget the code and your device is

locked, your device will require service.

Additional charges may apply, and all

the personal data in your device may

be deleted. For more information,

contact a Nokia Care point or your

device dealer.

The PIN code supplied with the SIM

card protects the card against

unauthorised use. The PIN2 code

supplied with some SIM cards is

required to access certain services. If

you enter the PIN or PIN2 code

incorrectly three times in succession,

you are asked for the PUK orPUK2 code.

If you do not have them, contact your

service provider.

The module PIN is required to access

the information in the security module

of your SIM card. The signing PIN may

be required for the digital signature.

The restriction password is required

when using the call restriction service.

To set how your device uses the access

codes and security settings, select

Menu > Settings > Security.

Home screen

When the device is ready for use, and

you have not entered any characters,

the device is in the home screen.

Display

1Network signal strength

2Battery charge status

3Indicators

4Network name or the operator

logo

5Profile

6Clock

7Date (if the enhanced home screen

is deactivated)

8Widget

9Display

10 Function of the selection key

10 Get started

English www.nokia.com/support

Cyan

Magenta

Yellow

Black

Altri manuali per NOKIA C3-00

Indice

Lingue:

Altri manuali Nokia Telefono cellulare

Nokia

Nokia NOKIA N97 mini Manuale utente

Nokia

Nokia XpressMusic 5130 Manuale utente

Nokia

Nokia 7510 Supernova Manuale utente

Nokia

Nokia N97 Manuale utente

Nokia

Nokia 5710 XpressAudio Manuale utente

Nokia

Nokia 6555 - Cell Phone 30 MB Manuale utente

Nokia

Nokia Exx-1 series Manuale utente

Nokia

Nokia X10 Manuale utente

Nokia

Nokia N97 Manuale utente

Nokia

Nokia 3230 - Smartphone 6 MB Manuale utente

Nokia

Nokia 2720 fold Manuale utente

Nokia

Nokia 8600 - Luna Cell Phone 128 MB Manuale utente

Nokia

Nokia E5 Manuale utente

Nokia

Nokia 6235 Guida rapida

Nokia

Nokia 225 Manuale utente

Nokia

Nokia N 80 Manuale utente

Nokia

Nokia 2610 - Cell Phone 3 MB Manuale utente

Nokia

Nokia 8810 Manuale utente

Nokia

Nokia TA-1178 Scheda tecnica

Nokia

Nokia RH-17 Series Manuale utente

Nokia

Nokia 5300 - XpressMusic Cell Phone 5 MB Manuale utente

Nokia

Nokia N86 8MP Manuale utente

Nokia

Nokia 26086 Manuale utente

Nokia

Nokia 6085 - Cell Phone 4 MB Manuale utente

Manuali Telefono cellulare popolari di altre marche

Zte

Zte BLADE A520 Manuale utente

Blackbe;rry

Blackbe;rry KEYone Manuale utente

Bea-fon

Bea-fon X5 Premium Manuale utente

Blackbe;rry

Blackbe;rry 8707 Series Manuale utente

Blackbe;rry

Blackbe;rry Storm Istruzioni operative

LG LM-X420QN Manuale utente

LifeWatch

LifeWatch V Manuale utente

Bea-fon

Bea-fon SILVER LINE SL860 Manuale utente

IKI Mobile

IKI Mobile KF4.5i Manuale utente

Hitech

Hitech HT-850 Manuale utente

Yezz

Yezz Fashion F10 Manuale utente

Point Mobile

Point Mobile PM60 Manuale utente

Blackbe;rry

Blackbe;rry Q10 Manuale utente

Blackbe;rry

Blackbe;rry Bold 9900 Manuale utente

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuale utente

LG LM-K420EMW Manuale utente

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuale utente

LG Thrive Manuale utente
