Nokia CC500 - VPN - Gateway Manuale di istruzioni

VPNConnection

toNokiaCryptoCluster500

VPNGateway

11 December 2002

This document explains how to conﬁgure a virtual private network

connection over an open network from a remote host running SSH

Sentinel to a private network protected by a Nokia CryptoCluster

500 VPN gateway.



2000-2002 SSH Communications Security Corp

No part of this publication may be reproduced, published, stored in an

electronic database, or transmitted, in any form or by any means, elec-

tronic, mechanical, recording, or otherwise, for any purpose, without the

prior written permission of SSH Communications Security Corp.

This software is protected by international copyright laws. All rights re-

served. ssh R



is a registered trademarkof SSH CommunicationsSecurity

Corp in the United States and in certain other jurisdictions. SSH2,

the SSH logo, IPSEC Express, SSH Certiﬁer, SSH Sentinel, SSH NAT

Traversal, IPSEC on silicon, Hypermode, SSH Accession, SSH Token

Master, SSH Secure Shell and Making the Internet Secure are trademarks

of SSH Communications Security Corp and may be registered in certain

jurisdictions. All other names and marks are property of their respective

owners.

THERE IS NO WARRANTY OF ANY KIND FOR THE ACCU-

RACY OR USEFULNESS OF THIS INFORMATION EXCEPT AS

REQUIRED BY APPLICABLE LAW OR EXPRESSLY AGREED IN

WRITING.

SSH Communications Security Corp.

Fredrikinkatu 42

FIN-00100 Helsinki

FINLAND

SSH Communications Security Inc.

1076 East Meadow Circle

Palo Alto, CA 94303

USA

SSH Communications Security K.K.

House Hamamatsu-cho Bldg. 5F

2-7-1 Hamamatsu-cho, Minato-ku

Tokyo 105-0013, JAPAN

http://www.ssh.com/

e-mail: [email protected] (sales), [email protected] (technical support)

Tel: +358 20 500 7030 (Finland), +1 650 251 2700 (USA), +81 3 3459 6830 (Japan)

Fax: +358 20 500 7031 (Finland), +1 650 251 2701 (USA), +81 3 3459 6825 (Japan)



2002 SSH Communications Security Corp. VPN with SSH Sentinel and Nokia CryptoCluster

CONTENTS 3

Contents

1 VPN Connection to Nokia CryptoCluster 500 VPN Gateway 5

1.1 Introduction........................................... 5

1.1.1 Further Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.1.2 Platform Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.2 Conﬁguring Nokia CryptoCluster 500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.2.1 Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.2.2 Enabling Client Access in CryptoCluster . . . . . . . . . . . . . . . . . . . . . . . 6

1.3 Conﬁguring SSH Sentinel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.3.1 Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.3.2 Creating the VPN Rule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.4 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

VPN with SSH Sentinel and Nokia CryptoCluster c



2002 SSH Communications Security Corp.

4CONTENTS



2002 SSH Communications Security Corp. VPN with SSH Sentinel and Nokia CryptoCluster

Chapter 1

VPN Connection to Nokia

CryptoCluster 500 VPN Gateway

1.1 Introduction

This document contains all the required information for setting up a Nokia CryptoCluster 500 (CC500)

VPN gateway to accept connections from SSH Sentinel VPN clients. Certiﬁcates granted by an external

certiﬁcation authority are used for authentication.

Note: For documentation on how to conﬁgure other features of CC500, please refer to the Nokia

CryptoCluster 500 (CC500) VPN Gateway documentation.

1.1.1 Further Information



SSH Sentinel User Manual



SSH Sentinel support: http://www.ipsec.com.

1.1.2 Platform Requirements

The interoperability between SSH Sentinel and Nokia CryptoCluster 500 has been tested using the following

components:



SSH Sentinel VPN client v1.4



Nokia CryptoCluster 500 (CC500) VPN gateway, kernel version 4.0(102)



Nokia VPN Policy Manager software version 4.0(164).

VPN with SSH Sentinel and Nokia CryptoCluster c



2002 SSH Communications Security Corp.

6Chapter 1. VPN Connection to Nokia CryptoCluster 500 VPN Gateway

1.2 Conﬁguring Nokia CryptoCluster 500

1.2.1 Prerequisites

It is assumed that the initial gateway installation has been performed and that an external certiﬁcation

authority (CA) has been created.

To create a new external CA, open VPN Global Properties, select Policy Conﬁguration -



Certiﬁcation

Authorities on the left pane, right-click it, and select New from the opening menu. Next, select Import

External and import the external CA certiﬁcate into the system.

You can conﬁgure the CRL and SCEP settings in the Settings page. A request for a gateway certiﬁcate can

be created under Gateway Properties -



Certiﬁcates -



Device Certiﬁcates.

Note: The client certiﬁcate used by SSH Sentinel needs to contain an e-mail address in the

SubjectAltName ﬁeld. Otherwise the CryptoCluster gateway will not accept the connection.

1.2.2 Enabling Client Access in CryptoCluster

To enable client access, open the Gateway Properties window and select Client Access -



IPSec Clients



Client Policy on the left pane.

On the IKE & IPSec page, make the following settings (see Figure 1.1 (CryptoCluster Client Policy

settings)):

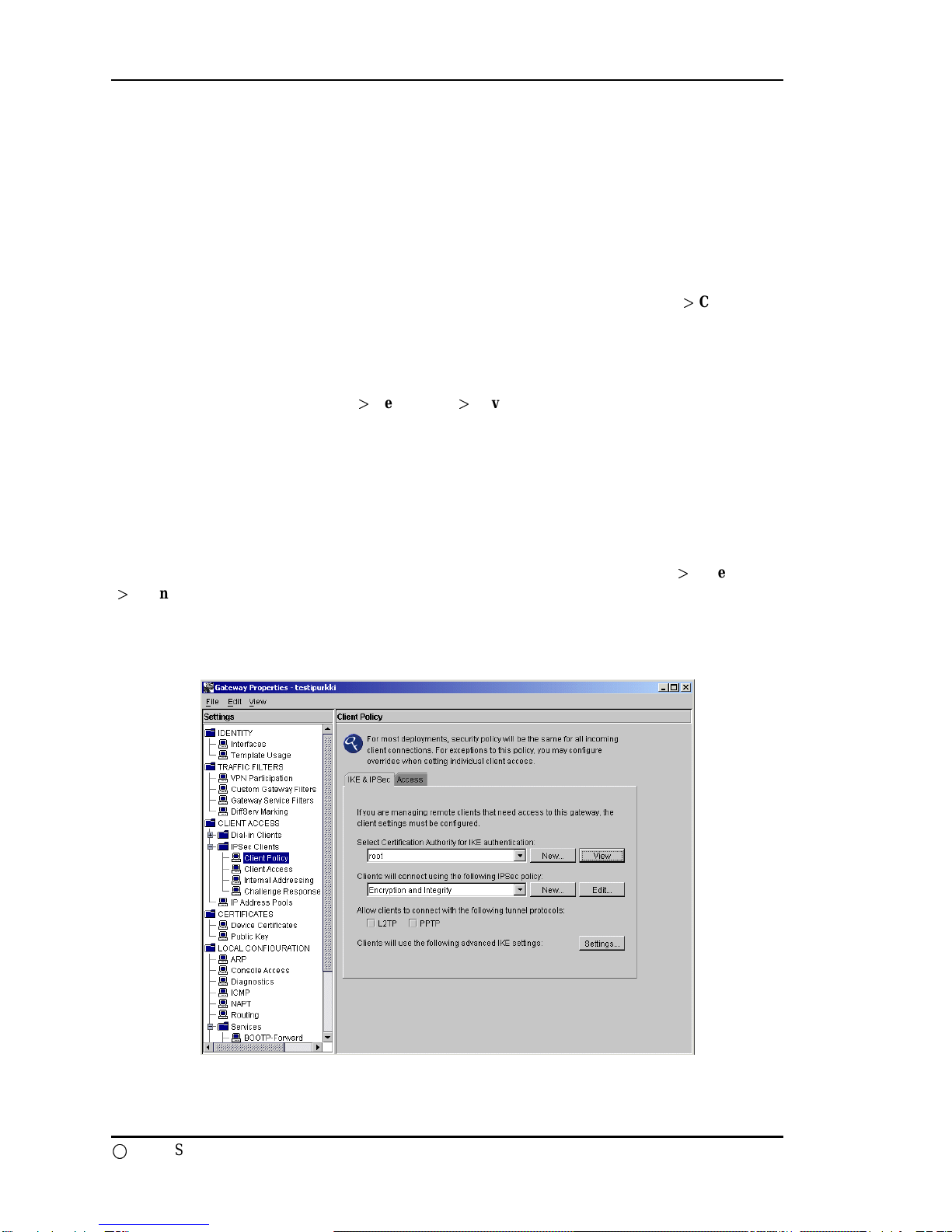

Figure 1.1: CryptoCluster Client Policy settings



2002 SSH Communications Security Corp. VPN with SSH Sentinel and Nokia CryptoCluster

1.2. Conﬁguring Nokia CryptoCluster 500 7

1. Select the certiﬁcation authority for IKE authentication (in this example, root).

2. Select Encryption and Integrity as the IPSec policy.

3. Click Edit to conﬁgure the IPSec policy and make the settings shown in Figure 1.2 (CryptoCluster

Encryption and Integrity settings)):

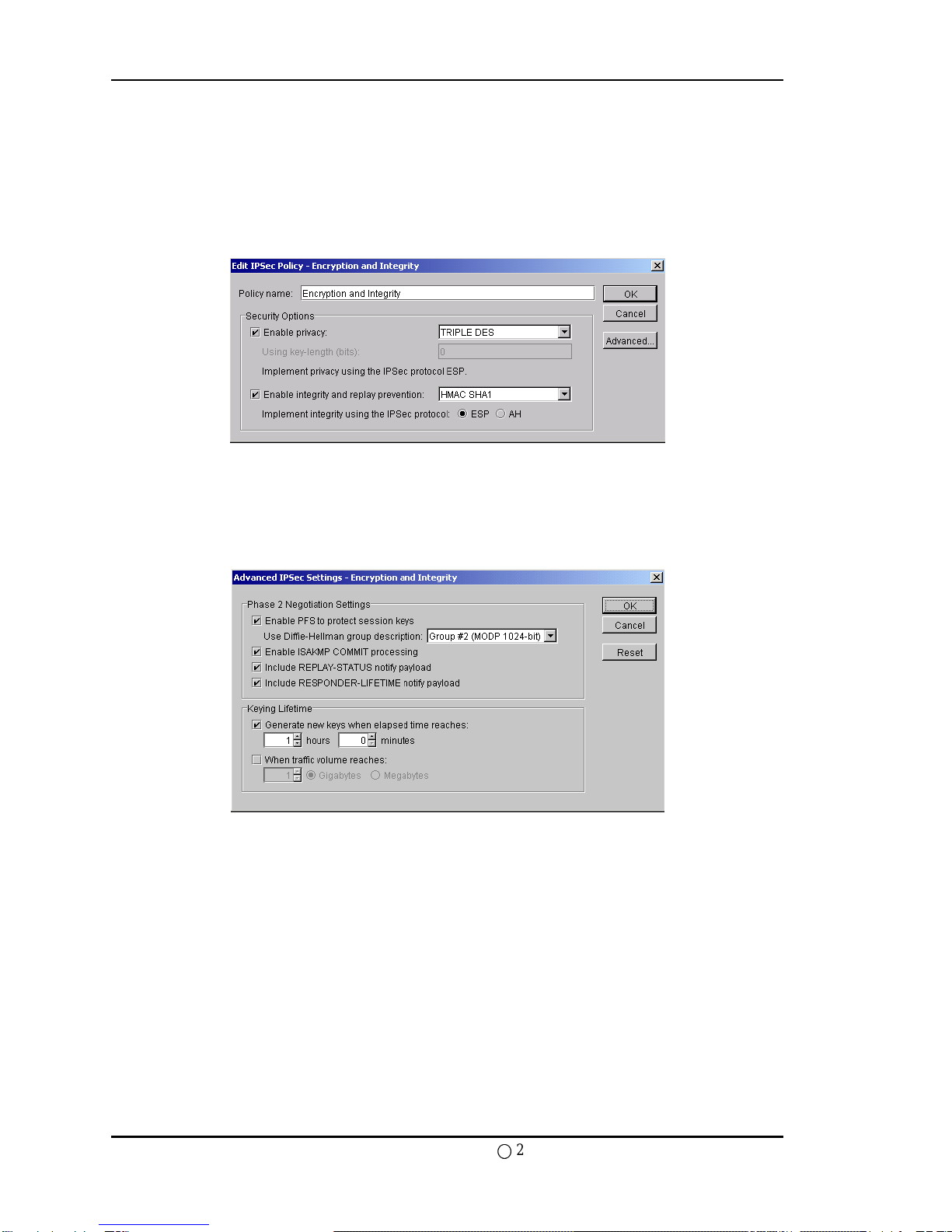

Figure 1.2: CryptoCluster Encryption and Integrity settings

4. Click Advanced... and make the settings shown in Figure 1.3 (CryptoCluster Advanced IPSec

settings):

Figure 1.3: CryptoCluster Advanced IPSec settings

5. In the Client Policy view, click Settings... to conﬁgure the Client IKE Policy.

6. Select Edit to modify an existing IKE policy, or Add to create a new one.

Make the settings shown in Figure 1.4 (CryptoCluster IKE Policy settings) and click OK twice to close

the dialogs.

7. Click the Access tab in the Client Policy view and select the access policy that suits your needs.

This is likely to be The gateway’s protected host groups. Please note that the host group must match

the remote network you deﬁne later in SSH Sentinel settings.

8. On the left pane of the of the Gateway Properties window, select Client Access.

VPN with SSH Sentinel and Nokia CryptoCluster c



2002 SSH Communications Security Corp.

8Chapter 1. VPN Connection to Nokia CryptoCluster 500 VPN Gateway

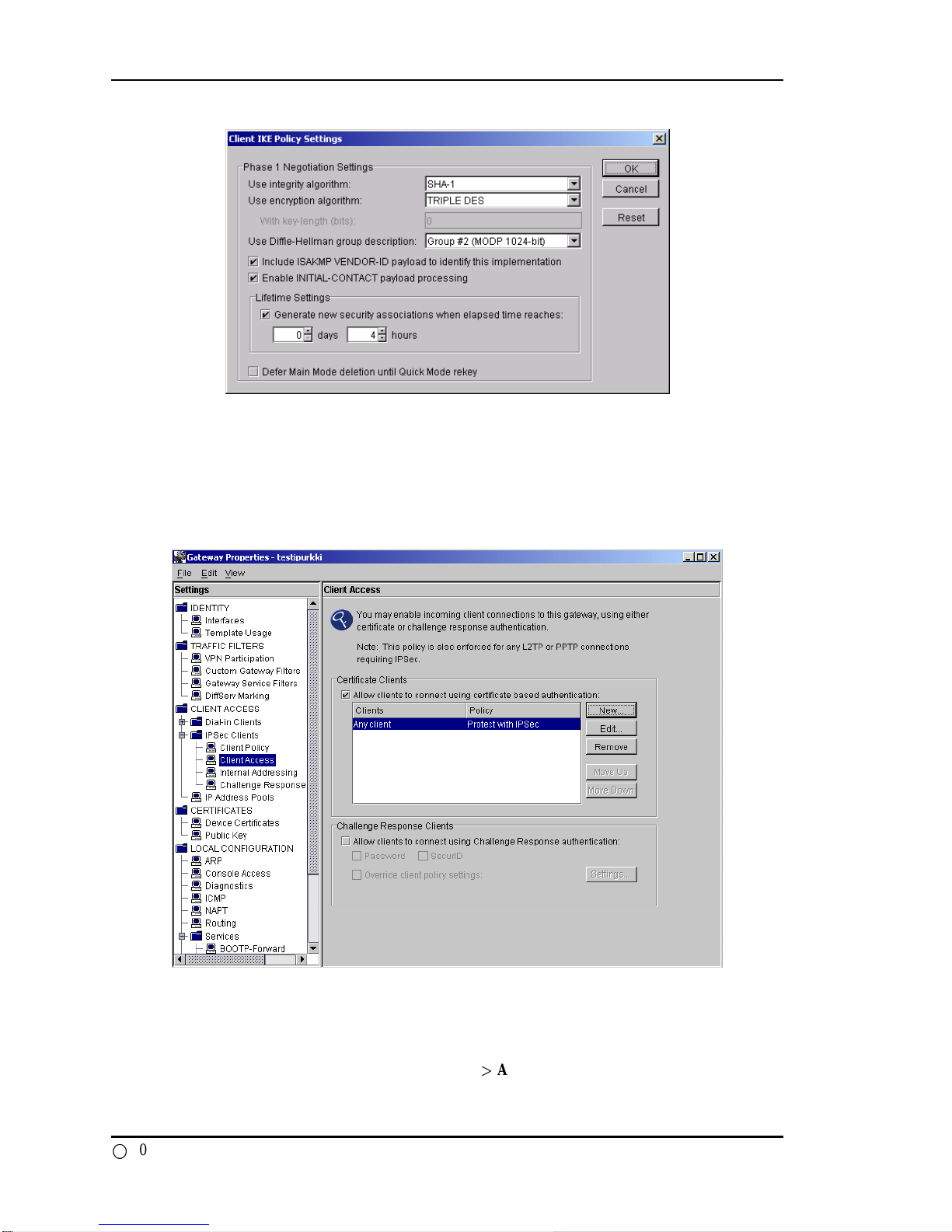

Figure 1.4: CryptoCluster IKE Policy settings

9. Enable Allow clients to connect using certiﬁcate based authentication, and add a new Certiﬁcate

Clients entry as shown in Figure 1.5 (CryptoCluster Client Access settings):

Figure 1.5: CryptoCluster Client Access settings

10. Take the new settings into use by selecting Actions -



Apply Changes in the Policy Manager main

menu.



2002 SSH Communications Security Corp. VPN with SSH Sentinel and Nokia CryptoCluster

1.3. Conﬁguring SSH Sentinel 9

1.3 Conﬁguring SSH Sentinel

1.3.1 Prerequisites

It is assumed that a client certiﬁcate is already present in SSH Sentinel and that it contains an e-mail address

in the SubjectAltName ﬁeld. In addition, you need to add the CA certiﬁcate under Trusted Certiﬁcates



Certiﬁcation Authorities on the Key Management page. For detailed instructions, see the SSH Sentinel

User Manual.

The CA certiﬁcate properties should be as shown in Figure 1.6 (Certiﬁcate properties of the CA certiﬁcate)

since CRLs are not used in this example conﬁguration:

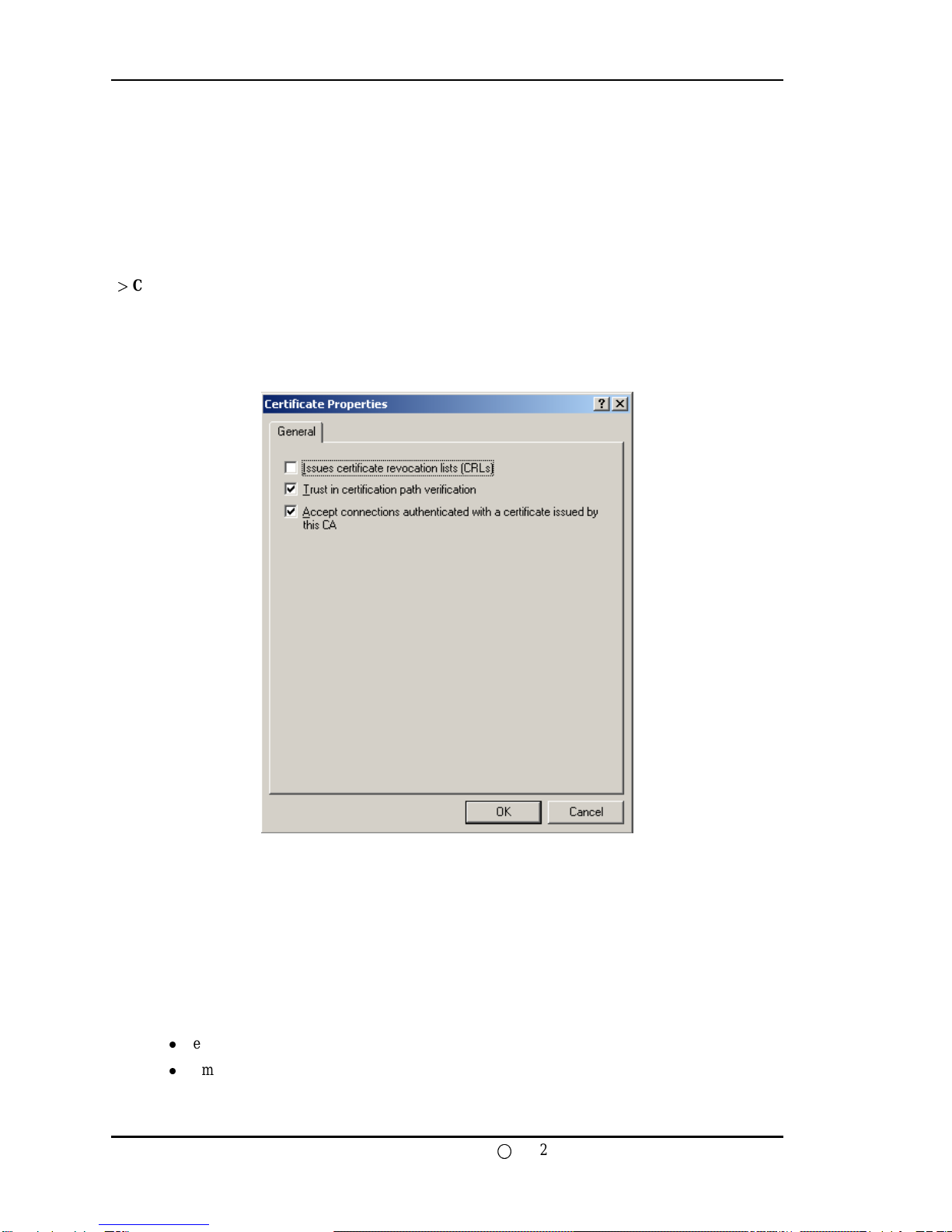

Figure 1.6: Certiﬁcate properties of the CA certiﬁcate

1.3.2 Creating the VPN Rule

1. On the Security Policy page of the Policy Editor, select VPN Connections and click Add to create a

new VPN connection rule. For detailed instructions, see the SSH Sentinel User Manual. Specify the

following values (see Figure 1.7 (The general properties of the VPN connection)):



Security gateway: the IP address of the gateway



Remote network: a network that matches the host group that is protcted by the CryptoCluster

gateway. For example, if the network behind the gateway is 192.168.1.0./255.255.255.0, create

VPN with SSH Sentinel and Nokia CryptoCluster c



2002 SSH Communications Security Corp.

10 Chapter 1. VPN Connection to Nokia CryptoCluster 500 VPN Gateway

this network entry in the Network Editor (click the ... button to open the editor), and select it as

the remote network here.



Authentication key: select the certiﬁcate you wish to use for authentication.



Proposal template: legacy.

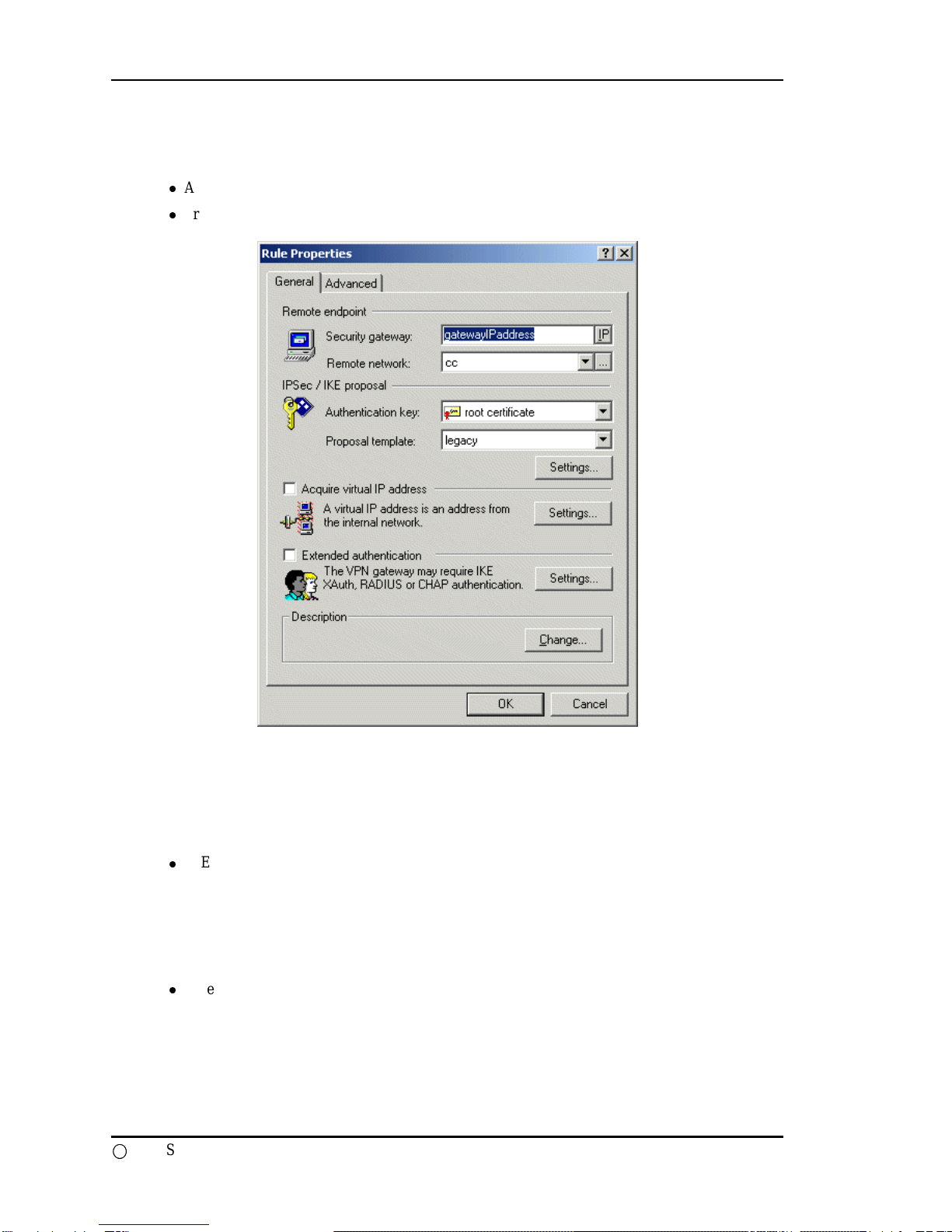

Figure 1.7: The general properties of the VPN connection

2. On the Rule properties dialog box, under IPSec/IKE proposal, click Settings to specify the

following:



IKE proposal

–Encryption algorithm: 3DES

–Integrity function: SHA-1

–IKE mode: main mode

–IKE group: MODP 1024 (group 2)



IPSec proposal

–Encryption algorithm: 3DES

–Integrity function: HMAC-SHA-1

–IPSec mode: tunnel

–PFS group: MODP 1024 (group 2).



2002 SSH Communications Security Corp. VPN with SSH Sentinel and Nokia CryptoCluster
