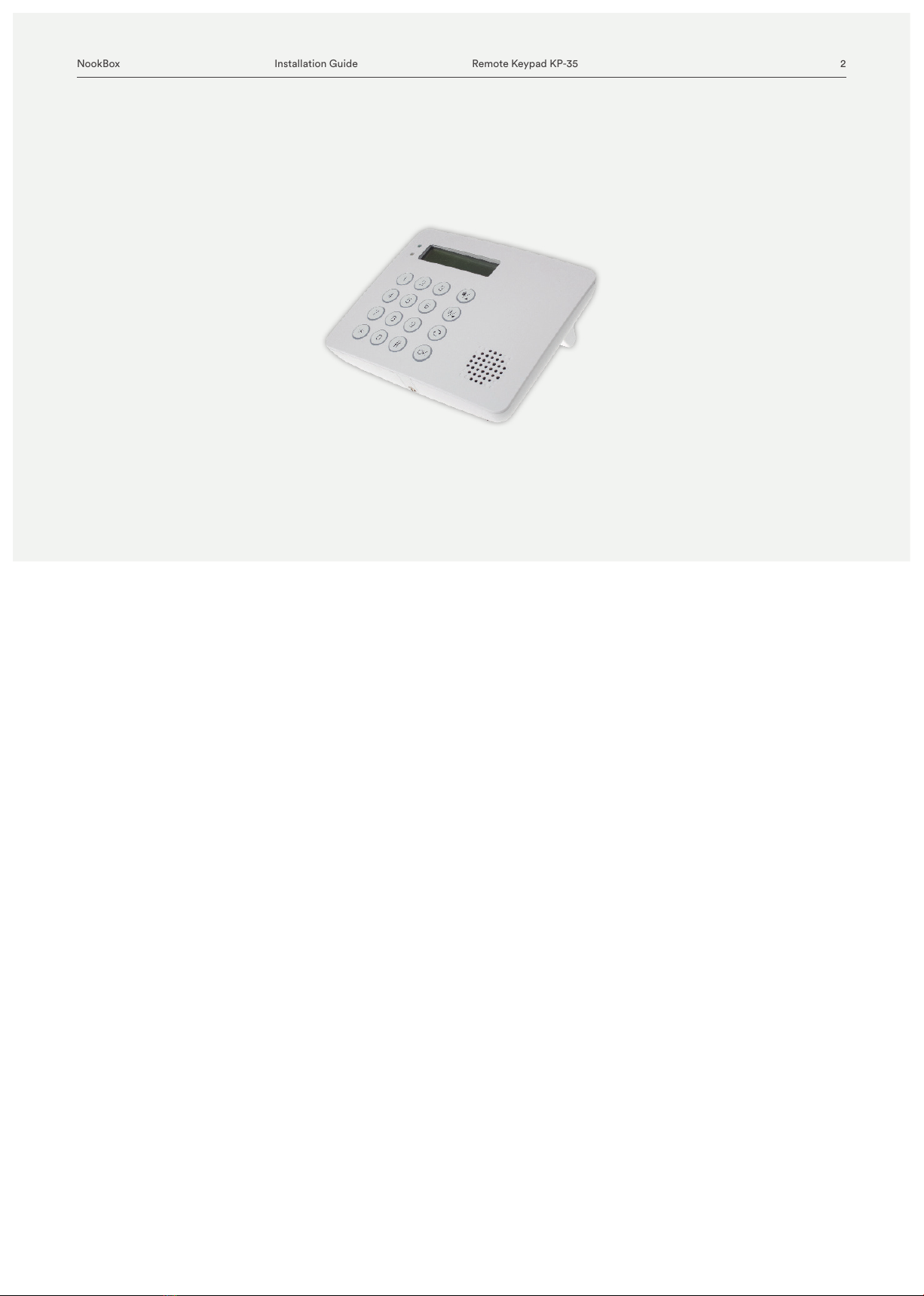

4NookBox Installation Guide Remote Keypad KP-35
Features
Battery and Low Battery Detection
• The Remote keypad uses three CR123 3V Lithium batteries as its power source.
• The Keypad will detect battery status. If the battery voltage is low, a Low Battery signal will be sent to the ZigBee
network coordinator or system control panel.
• When changing batteries, after removing the old batteries, press the Tamper Switch twice to fully discharge
before inserting new battery
Power Saving Feature
• When idle, Remote Keypad is in Stand-by mode and uses no power. It will activate and wake-up when any key is pressed.
• User Menu: After 5 seconds without pressing either Arm key or Home Arm key, the power goes o and it returns to Stand-by
mode.
• Enter PIN Code: After 5 seconds of key inactivity, the power goes o and it returns to Stand-by mode.
• Mode Change: After 30 seconds without receiving any signal from the Control Panel, the power goes o and it returns to
Stand-by mode.
• Upon completion of a command input, the power goes o and Remote keypad returns to Stand-by mode.
• If the Control Panel has not received the signal from the Remote Keypad for a preset period of time, the Control Panel will
consider the Remote Keypad out of order and react according to panel setting.
Tamper Protection
• The device is protected against attempts to open the back cover with a tamper switch. When the back cover is opened, it will be
triggered and the Keypad will transmit a tamper open signal to the ZigBee network coordinator or system control panel.
• After replacing the back cover. The Keypad will transmit a signal to the ZigBee network coordinator or system control panel.
• When the Keypad is properly mounted with back cover screwed onto the wall, removing the keypad forcefully will break o the
back cover from the hollowed section around the screw location and activate tamper switch.
ZigBee Network Setup
ZigBee Device Guideline
ZigBee is a wireless communication protocol that is reliable, has low power consumption and has high transmission eciency. Based on the
IEEE802.15.4 standard, ZigBee allows a large amount of devices to be included in a network and coordinated for data exchange and signal
transmission.
Due to the fundamental structure of ZigBee network, the device will actively seek and join network after powering on. Since performing a task
in connecting network may consume some power, it is required to follow the instructions to avoid draining battery of a ZigBee device.
- Ensure your ZigBee network router or coordinator is powered on before inserting battery into the ZigBee device.
- Ensure the ZigBee network router or coordinator is powered on and within range while a ZigBee device is in use.
- Do not remove a ZigBee device from the ZigBee network router or coordinator without removing the battery from a ZigBee device.
Joining the ZigBee Network
As a ZigBee device, the Keypad needs to join a ZigBee network to transmit and receive signal. Please follow the steps below to join the device
into the ZigBee network.
1. Insert the batteries.
2. Activate the Keypad by pressing the # Key, then press and hold the OK key for 10 seconds, release the button when the Keypad emits
1 beep and the LCD display shows a “Keypad will reset in 2 seconds” message. The Keypad will reset and scan for an existing ZigBee
network. Please make sure to enable the permit-join feature on the router or coordinator of your ZigBee network.
3. After joining the ZigBee network, the Keypad will emit 2 beeps and it will be registered in the security system in the network automa
tically. Please check the ZigBee network coordinator, system control panel, or CIE (Control and Indicating Equipment) to conrm if
joining and registration is successful.
4. The Keypad will not emit any sounds if it did not join the ZigBee network. Please check your ZigBee network coordinator, control
panel or CIE setting to ensure the permit-join function is available, and then use the Factory Reset function below to join the ZigBee
network.
