Nor-tec SE 50 Manuale utente

Designed to deliver

reliable humidity from

facility steam boilers.

Pressure

Steam

Humidifiers

Live

Steam®

Humidifiers designed to deliver

reliable humidity from facility

steam boilers.

hospitals

educational facilities

government buildings

institutional buildings

printing plants

museums and galleries

commercial offices

People spend 90% of their lives indoors, therefore the

importance of correct temperature and humidity levels

are critical to personal health and comfort. Too much

humidity can be as destructive as too little.

Manufacturing and industrial processes are

also directly affected by the indoor environment.

Like people, machines work better in favorable

surroundings. All equipment and processes respond in

various ways to temperature and humidity fluctuations.

For maximum performance, reliable temperature and

humidity are essential.

NORTEC LiveSteam (LS Series) steam injection

humidifiers and NORTEC SE Series steam exchange

humidifiers deliver reliable humidity from the facility

steam boiler. Constructed of premium quality 304

and 316 stainless steel, NORTEC LS and SE Series

equipment are designed for long operating life with

minimal maintenance.

In hospitals, universities, museums, galleries, and

other facilities, steam injection humidification is

a tried and true way to achieve a critical balance

between temperature and humidity control.

Steam Injection

NORTEC LiveSteam delivers precise humidity

control. Utilizing tried and true components and

304 stainless steel tubing, LiveSteam is the

dependable steam injection system for your

facility.

LiveSteam distributors are available in a wide

variety of lengths ranging from 12" to 144" to

suit your exact duct size for the best possible

steam dispersion. Multi-tube units are also

available.

Steam Exchange

On NORTEC SE Series Steam Exchange

humidifiers, the boiler steam passes through

the SE internal heat exchanger(s) bringing the

surrounding water in the tank to atmospheric clean

steam vapor. The chemical treatment from the

boiler does not enter the air steam.

The SE Series heat exchanger utilizes 316

stainless steel and is designed to give maximum

output while taking up minimal space. It is easy to

remove for cleaning and the flat smooth surfaces

help reduce maintenance time.

Precise Control

In facilities with existing steam boilers LS and SE

Series offer a cost effective way to add precise

humidity control. With a wide variety of control

options and unit capacities NORTEC LS and SE

Series are ideal for job engineered systems.

operating advantages

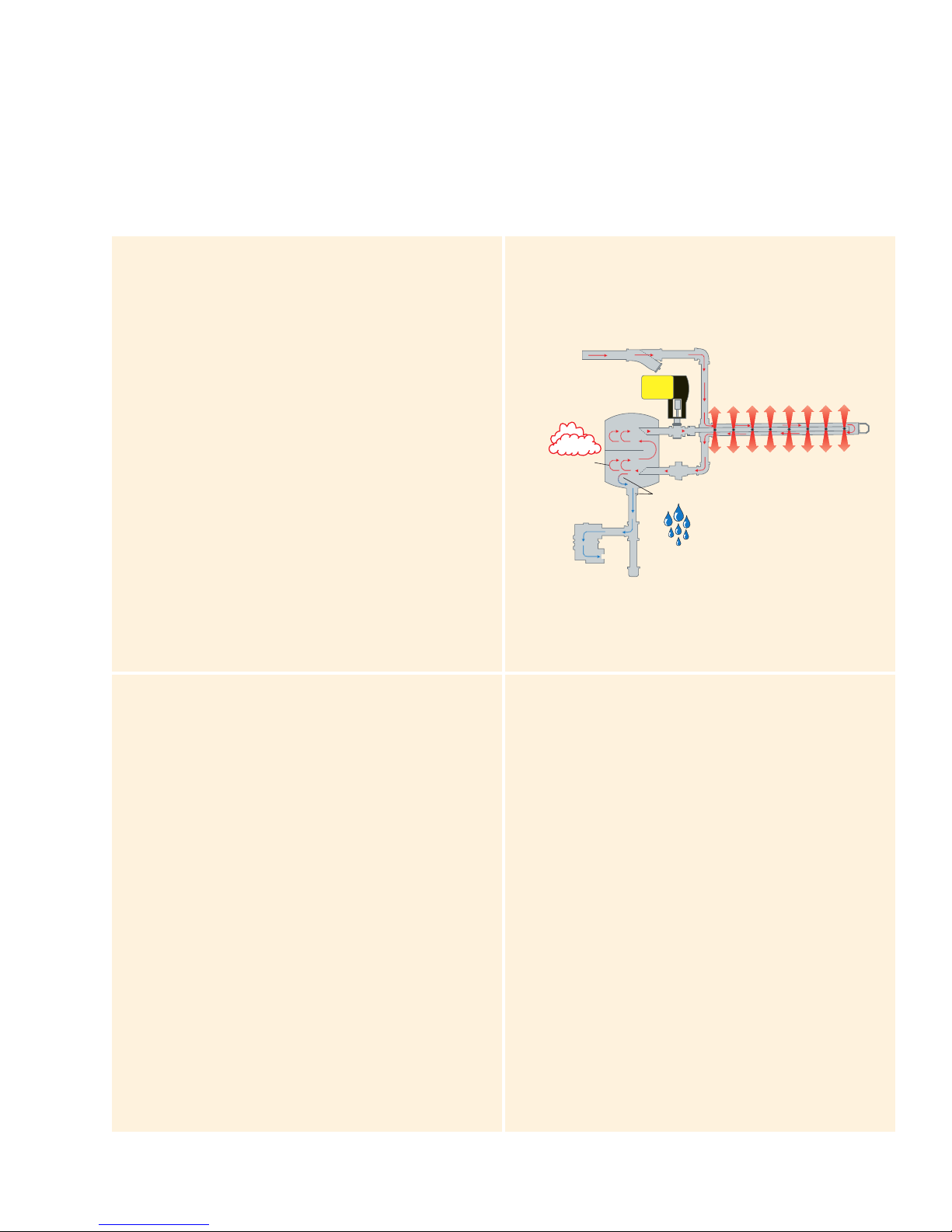

STEAM

CONDENSATE

DISPERSED STEAM

technology

1 Steam inlet, strainer upstream to

remove impurities.

2 Steam jacketed dispersion tube.

3 Tube support bracket, ensures

proper unit installation.

4 Interconnecting pipes between

dispersion tube and separator.

5 Steam separator ensures only

condensate-free steam is

discharged into the air stream.

6 Condensate outlet to steam trap

for recirculation to boiler for

energy efficient operation.

7 Steam control valve meters

steam entering dispersion tube.

8 Electric on/off and electric

modulating actuators standard.

Pneumatic valve actuator optional.

9 Tube adaptor connecting valve to

dispersion tube. Factory installed

silencers are available.

10 Steam outlet orifices sized for

exact humidity output.

LiveSteam mounted

with a SAM-e manifold

for short absorption

distance applications

Available for single or

multiple tube applications

Pressure ranges from

2-50 PSIG

High capacity system

(up 3209 lbs/hr)

Economical and cost effective

system to meet high humidity

requirements

Delivers precise humidity

control

Steam jacketed dispersion

tubes to prevent wetting

Support brackets on tubes

over 2 feet in length

Available for regular or purified

boiler steam

Available for pneumatic or

electric controls

▶

Live

Steam®

Steam

Injection

Humidifiers

Series™

Steam

Exchange

Humidifiers

Capacity up to 1050 lbs/hr

NORTEC Total Controller

Intuitive scale management

based on steam production

All components suitable for

RO or DI water

Internal water tempering for

drain water cooling

Fully modulating

Built-in float and

thermostatic steam trap(s)

▶

Built-in P-trap

Fully insulated tank for

efficient operation

Pre-cleaning sequence

ensures shorter

maintenance time

Building management

system compatible

Network up to 10 units

Small SE 50 lbs/hr for easy

ceiling mounting

▶

SETC 100

SE Series Features Comparison

SETC

SEP

Steam capacity adjustment •

Full size alphanumeric display and keypad •

Configurable date and time indication •

Transducer signal acceptance •

Individual component diagnostic capability •

Keypad set-point adjustment (humidity) •

Display of relative humidity •

Low and high relative humidity alarms •

Keep warm feature •

Networking capability up to 10 units •

Pre-cleaning sequence •

Troubleshooting Guide •

Self diagnostic capabilities •

Fault history •

Smart drain water cooling •

Single or Dual modulation signal acceptance •

Time to next maintenance alarm •

System demand indication •

Backlit display •

Built-in Float & Thermostatic steam trap(s) • •

3-day drain with no call for humidity • •

Full tank blow down capability via time of

day, timer, or signal from BMS

• •

Remote fault indication • •

Industry standard modulation signal acceptance • •

Internal Drain water cooler • •

Blow down based on steam production • •

Precise five level water level indication • •

Status indicator lamps • •

Single or multiple steam outlet options • •

Large Side tank cleaning port • •

Top access cleaning • •

Single water connection • •

Fully modulating down to 25% of total capacity • •

Options

Interaction with BMS system (Contact Factory) •

Freeze protection •

Floor stand • •

Distribution Systems

SAM-e • •

Steam distributor • •

Blower pack • •

options

Steam Distributor

Systems

Nortec offers flexible steam distribution choices

to satisfy a wide range of requirements:

Stainless Steel Steam Distributors to

distribute atmospheric steam into ducts.

Independant Blower Packs for in space

applications (remote mounted).

SAM-e Short Absorption Manifold for use

in air handlers or ducts where short steam

absorption distance is critical.

•

NORTEC OnLine

NORTEC OnLine is a remote interactive

communication package that allows satellite

contacts to monitor, maintain and control

a humidification center from any location

worldwide using standard internet connections.

This advanced software shows graphic

representations of the humidifier and its key

parameters (up to 75 functions).

NORTEC LINKS

NORTEC Links offers monitoring and control

allowing humidifier(s) to communicate to your

Building Management System (BMS). The

controller is factory installed and is located

internally to the humidifier. Simply specify at time

of order what operating protocol you are using –

BACnet IP, BACnet MSTP, LonWorks, Modbus or

Jonhson N2.

www.nortecOnLine.com

NORTEC Humidifier

Customer

NORTEC Technical Services

Communication through the internet or email.

Atmospheric steam distributor

SAM-e Short Absorption Manifold

Blower pack

SPECIFICATION

MODEL 200

MODEL LS1

MODEL 300

MODEL LS2

MODEL 450

MODEL LS3

MODEL 600

MODEL LS3

MODEL 800

MODEL LS3

SAM-e

mini SAM-e

Pressure range - psig (kPa) 2-50 (14-345) 2-50 (14-345) 2-50 (14-345) 2-50 (14-345) 2-50 (14-345) 2-50 (14-345)

Max. capacity single tube - lbs/hr (kg/hr) 284 (129) 571 (259) 916 (417) 1258 (572) N/A N/A

Max. capacity multi-tube - lbs/hr (kg/hr) 374 (170) 653 (297) 1030 (468) 1664 (757) 3209 (1456) 3200 (1451.5)

Separator physical data -

Height x Diameter

7.7" x 6"

195mm x 152mm

8.8" x 6"

223mm x 152mm

10.5" x 6"

268mm x 152mm

11.2" x 9"

284mm x 229mm

12.6" x 9"

322mm x 229mm Custom

Standard actuator Electric Modulating 0-10 VDC, 24 VAC

Standard steam trap Float & Thermostatic

Separator and dispersion tube material Stainless Steel 304

OPTIONS:

Pneumatic actuator yes yes yes yes yes yes

Electric on/off actuator yes yes yes yes yes yes

Tube insulation yes yes yes yes yes no

DI water installation yes yes no no no yes

technical data

SPECIFICATION SE 50 SE 100 SE 175 SE 250 SE 375 SE 475 SE 675 SE 950 SE 1050

Pressure range - psig (kPa) 5-15 (35-105)

Max. capacity single tube - lbs/hr (kg/hr) 17-50

(8-23)

5-100

(2-45)

7-175

(3-79)

11-250

(5-114)

15-375

(7-170)

24-475

(11-215)

30-675

(14-306)

58-950

(26-430)

67-1050

(30-476)

Physical data -

Width x Height x Depth

25.6" x 20.6"

x 18.4"

65.1cm x 52.4cm

x 46.7cm

46.4" x 32.0"x 20.0"

117.8cm x 81.4cm x 50.8cm

46.4" x 32.0"x 26.4"

117.8cm x 81.4cm x 67.1cm

46.4" x 32.0"x 42.0"

117.8cm x 81.4cm x 106.7cm

46.4" x 32.0"x 58.0"

117.8cm x 81.4cm x 147.3cm

Standard actuator Electric Modulating 0-10 VDC, 24 VAC

Built-in steam trap

Float & Thermostatic

Insulation & Cabinetry Standard

Voltage/Phase 110-120/1

Full load amps 2.1

Internal Smart Drain Water Cooler Standard

Steam Outlets (s) - OD 1 x 1.75" (1 x 4.44cm) 1 x 3" (1 x 7.62cm) 1 x 4" (1 x 10.16cm) 2 x 4" (2 x 10.16cm)

OPTIONS:

NORTEC Links BMS BACnet, LonWorks, Johnson Control N2 Bus or Modbus (SETC model only)

NORTEC OnLine

SETC model only

Keep Warm Feature no yes yes yes yes yes yes yes yes

Freeze Protection no yes yes yes yes yes yes yes yes

Outdoor Model no yes yes yes yes yes yes yes yes

Floor Stand yes yes yes yes yes yes yes yes yes

LiveSteam

SE Series

Printed in Canada Printed on Recycled Paper

U.S.A.

AxAir Nortec Inc.

826 Proctor Avenue

Ogdensburg, NY 13669

CANADA

AxAir Nortec Ltd.

2740 Fenton Road

Ottawa, Ontario K1T 3T7

TEL: 1.866.NORTEC1

FAX: 613.822.7964

EMAIL: nortec@humidity.com

WEBSITE: www.humidity.com

www.norteconline.com

www.nortecparts.com

Certificate No. 002419

electricsteam—atomizingnozzles—highpressurenozzles—steaminjection—steamexchange—gassteam

Form 07-224

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali nor-tec Umidificatore

nor-tec

nor-tec RH Series Manuale utente

nor-tec

nor-tec GH Series Istruzioni operative

nor-tec

nor-tec ES MK II Series Manuale

nor-tec

nor-tec EL SERIES Manuale utente

nor-tec

nor-tec MHB Manuale utente

nor-tec

nor-tec Electric Steam Humidifiers Manuale utente

nor-tec

nor-tec MH Series Manuale utente

nor-tec

nor-tec NH Series Manuale utente

nor-tec

nor-tec Electric Steam Humidifiers Guida alla risoluzione dei problemi

nor-tec

nor-tec MES Series Manuale utente

nor-tec

nor-tec NH Series Manuale utente

nor-tec

nor-tec Se Series Manuale utente

nor-tec

nor-tec livesteam Manuale utente

nor-tec

nor-tec MH Series Manuale di installazione e funzionamento

nor-tec

nor-tec GH Series Istruzioni operative

nor-tec

nor-tec RH2 Manuale di istruzioni

nor-tec

nor-tec 132-3091 Documento tecnico

nor-tec

nor-tec NHRS Series Manuale di installazione e funzionamento

nor-tec

nor-tec NH Series Manuale utente

nor-tec

nor-tec GS Manuale utente

nor-tec

nor-tec AIRFOG Guida

nor-tec

nor-tec MES Electrode Istruzioni operative

nor-tec

nor-tec RH Manuale utente

nor-tec

nor-tec GS 600 Istruzioni operative

Manuali Umidificatore popolari di altre marche

Boneco

Boneco H300 Manuale utente

Bionaire

Bionaire CM1 Manuale

Air-O-Swiss

Air-O-Swiss AOS 7131 Manuale

KING

KING K 5002 Rainbow Manuale utente

Crane

Crane EE-6902 Manuale utente

Glaziar

Glaziar Ness Manuale utente

Philips

Philips DreamStation Go Dimensioni

Honeywell

Honeywell MISTMATE HUL520BC Manuale utente

Stadler Form

Stadler Form Hera Manuale utente

Hunter

Hunter 31206 Manuale utente

TaoTronics

TaoTronics TT-AH004 Manuale utente

adorini

adorini Cigar Heaven Manuale utente

Lanaform

Lanaform Aroma Manuale utente

Aprilaire

Aprilaire 800 Series Manuale utente

Pyle

Pyle SereneLife PHUMDIF8 Manuale utente

Trotec

Trotec B 200 Manuale utente

Pure Humidifier

Pure Humidifier EC Series Manuale utente

Crane

Crane EE-864 Manuale utente

nor-tec SE 50 Manuale utente

Manuali Umidificatore popolari di altre marche
