Norden EYENOR Manuale utente

Please read the manual carefully before install and use the camera

Network

Video Recorder

User Manual

www.nordencommunication.com/eyenor

A BRAND

Purpose

This document describes the features, hardware installation, network access, network configuration, routine maintenance,

fault analysis, and troubleshooting of the Network Video Recorder(NVR).

Symbol Conventions

* The symbols that may be found in this document are defined as follows.

DANGER

Important Statement

Users are required to enable and maintain the lawful interception (LI) interfaces of video surveillance products in

strict compliance with relevant laws and regulations. Installation of surveillance devices in an office area by an enterprise or

individual to monitor employee behavior and working efficiency outside the permitted scope of the local law and use of video

surveillance devices for eavesdropping of illegal purposes constitute behaviors of unlawful interception.

Alerts you to a high risk hazard that could, if not avoided, result in

serious injury or death.

Alerts you to a medium or low risk hazard that could, if not avoided,

result in moderate or minor injury.

Alerts you to a potentially hazardous situation that could, if not avoided,

result in equipment damage, data loss, performance deterioration, or

unanticipated results.

NOTE

TIP

Provides additional information to emphasize or supplement important

points in the main text.

Provides a tip that may help you solve a problem or save time.

Network Video Recorder User Manual

Local Operations.....................................................................................................................................1

1. Before You Begin.................................................................................................................................1

Login................................................................................................................................................1

Local Operations................................................................................................................................1

2. Initial Configuration.............................................................................................................................5

Preparation.......................................................................................................................................5

Wizard..............................................................................................................................................5

3. Live View............................................................................................................................................7

Live View Status ...............................................................................................................................7

Window Toolbar ................................................................................................................................8

Screen Toolbar...................................................................................................................................9

Shortcut Menu ................................................................................................................................10

Sequence Operation.........................................................................................................................11

Zoom..............................................................................................................................................12

Image Configuration........................................................................................................................12

Preview Configuration......................................................................................................................13

4. Channel Configuration ......................................................................................................................14

Channel Management .....................................................................................................................14

OSD Configuration ..........................................................................................................................17

Image Configuration .......................................................................................................................17

Privacy Mask Configuration ..............................................................................................................20

5. PTZ Control ......................................................................................................................................21

PTZ Control Window and PTZ Management Window...........................................................................21

Setting and Calling a Preset .............................................................................................................22

Setting a Preset Patrol .....................................................................................................................23

Setting a Recorded Patrol.................................................................................................................24

6. Recording and Snapshot ...................................................................................................................25

Encoding Settings ...........................................................................................................................25

Scheduled Recording and Snapshot...................................................................................................27

Motion Detection Recording and Snapshot ........................................................................................27

Alarm Triggered Recording and Snapshot .........................................................................................29

Manual Recording and Snapshot ......................................................................................................30

Holiday Recording and Snapshot ......................................................................................................30

Other Recording and Snapshot Types ...............................................................................................31

Disk Management ...........................................................................................................................31

Disk Group .....................................................................................................................................32

Space Allocation .............................................................................................................................32

Advanced Configuration ..................................................................................................................33

7. Playback ...........................................................................................................................................33

Instant Playback..............................................................................................................................33

Preface...................................................................................................................................................1

Playback Toolbar..............................................................................................................................34

Index

Network Video Recorder User Manual

Playback by Camera and Date ..........................................................................................................35

Playback in Corridor Mode ...............................................................................................................35

Playback by Tag ..............................................................................................................................35

Playback by Event ...........................................................................................................................36

Playback by Smart Search ...............................................................................................................36

Playback by External File .................................................................................................................36

Playback by Image ..........................................................................................................................36

File Management ............................................................................................................................37

8. Backup ............................................................................................................................................37

Recording Backup ...........................................................................................................................37

Image Backup ................................................................................................................................38

Alarm Input and Output ..................................................................................................................38

Motion Detection ............................................................................................................................40

Tampering Detection .......................................................................................................................40

Video Loss ......................................................................................................................................41

VCA ...............................................................................................................................................41

9. Alarm ..............................................................................................................................................38

Alert ..............................................................................................................................................44

Buzzer.............................................................................................................................................45

Alarm-Triggered Actions ...................................................................................................................45

Manual Alarm .................................................................................................................................46

Behavior Search ..............................................................................................................................46

Face Search ...................................................................................................................................47

People Counting .............................................................................................................................47

10. VCA Search .....................................................................................................................................46

Basic Configuration..........................................................................................................................48

PPPoE.............................................................................................................................................49

Eyenor Cloud...................................................................................................................................49

DDNS ............................................................................................................................................50

3G/4G ............................................................................................................................................50

11. Network Configuration......................................................................................................................48

Port ...............................................................................................................................................50

Port Mapping ..................................................................................................................................51

Email .............................................................................................................................................52

FTP ................................................................................................................................................53

Creating an Array ...........................................................................................................................54

Rebuilding an Array ........................................................................................................................54

Deleting an Array ...........................................................................................................................54

12. Array Configuration .........................................................................................................................54

Basic Configuration .........................................................................................................................55

Time Configuration .........................................................................................................................55

13. System Configuration.......................................................................................................................55

Index

Serial Port Configuration ..................................................................................................................56

User Configuration .........................................................................................................................56

Security Configuration .....................................................................................................................57

Hot Spare Configuration ..................................................................................................................58

System Information ........................................................................................................................ 59

Network Information .......................................................................................................................60

Log Query ......................................................................................................................................61

Import/Export..................................................................................................................................62

System Restoration .........................................................................................................................62

Automatic Maintenance ...................................................................................................................62

Hard Disk Detection ........................................................................................................................63

Part II Web-Based Operations ...............................................................................................................65

1 Before You Begin ...............................................................................................................................65

2 Login ................................................................................................................................................65

System Upgrade .............................................................................................................................63

3 Live View ..........................................................................................................................................66

4 Playback ...........................................................................................................................................67

5 Configuration ....................................................................................................................................68

Typical Application 2 .......................................................................................................................69

Typical Application 3 .......................................................................................................................69

Appendix A Typical Applications .............................................................................................................68

14. System Maintenance .......................................................................................................................59

15. Shutdown........................................................................................................................................65

Typical Application 1 .......................................................................................................................68

Network Video Recorder User Manual

Index

Preface

This manual describes how to use your NVR locally or on the Web interface.

In this manual, the terms IP camera and IPC refer to the same thing: network camera, which requires a connection to the

network. And the IP device mentioned in this manual refers to an IP camera (also known as network camera) or a Digital Video

Server (DVS).

Network Video Recorder User Manual

www.nordencommunication.com/eyenor 1

Local Operations

An NVR supports two types of operations: local operations and web-based remote operations. With local operations

you connect a monitor and a mouse to the NVR and use the mouse to operate. If your NVR has buttons on the front panel or is

delivered with a remote control, you may also control your NVR by pressing the front panel buttons or using the remote control.

The NVR has an embedded web server and allows web-based operations. To do this, you need a PC that has a network

connection to the NVR and is installed with a web browser. You just need to navigate to the NVR's IP address and log in to the Web

interface like you log in to the system locally.

This section describes local operations.

Before You Begin

Please be aware that the parameters that are grayed out on the system user interface (UI) cannot be modified. The

parameters and values displayed may vary with device model, and the figures in this manual are for illustration purpose only.

Use the default username admin and password admin for your first login.

The default password is intended only for the first login and should be changed to a strong one containing at least eight characters

including uppercase and lowercase letters, digits and symbols after your first login to ensure security.

1. Right-click anywhere in the window and then choose . The login dialog box is displayed. Menu

2. Select the username from the drop-down list, enter your password, and then click Login.

Local Operations

You can refer to Initial Configuration and complete a quick configuration.

Unless otherwise specified, all operations described in this manual are performed with a mouse by the right hand.

See Mouse Operations for details.

Network Video Recorder User Manual

2www.nordencommunication.com/eyenor

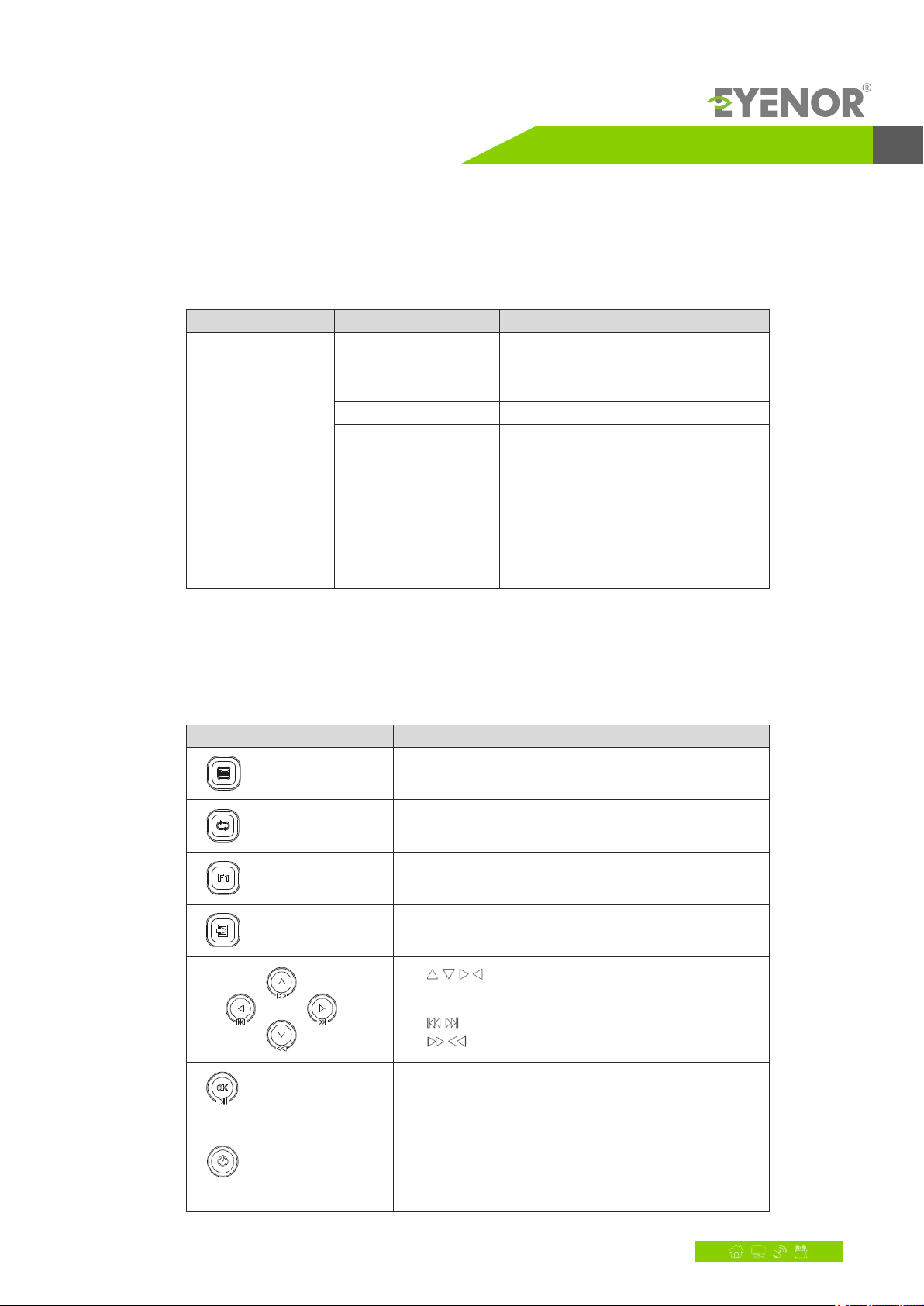

Mouse Operations

Table 1-1 Mouse Operations

Name Action

Left button

Click

Double-click

Description

lSelect or confirm an item.

Select to edit digits, symbols,l

upper-case or lower-case letters

in a field.

Enter or exit full screen mode in live view.

Drag Draw or move a rectangle on the screen,

for example, a motion detection area.

Right button Click lShow the shortcut menu.

Exit zoom.l

Exit the current window whenl

Cancel or Exit is displayed.

Wheel Scroll up or down Scroll up or down a list or a window; or

zoom in or out on a playback progress bar.

Front Panel Buttons

The front panel buttons may vary with NVR model.

Table 1-2 Front Panel Buttons 1

Button

Description

Display the main menu.

Switch to the next tab on the screen or switch the input method.

Auxiliary function button.

Exit the current window.

l , , , : Switch windows or menu items; or control

rotation directions of a PTZ camera when the PTZ toolbar

is closed. PTZ stands for pan, tilt, and zoom.

, : Rewind or forward 30 seconds in full screen.l

, : Variable-speed forward or rewind in full screen. l

Confirm an operation, or start/pause the playback.

Press this button to start up or shut down the NVR.

To shut down, press this button and hold for at least 3

seconds till a message appears on your monitor. Click Yes.

Note:

This shutdown operation can be performed only when you

have logged in to the system.

Network Video Recorder User Manual

www.nordencommunication.com/eyenor 3

Table 1-3 Front Panel Buttons 2

Button

Description

Enter 1; or display the main menu.

Enter 2, A, B, or C; or start instant playback.

Enter 3, D, E, or F; or start manual recording.

Enter 6, M, N, or O; or enable or disable arming.

Press this button to start up or shut down the NVR.

To shut down, press this button and hold for at least 3 seconds

till a message appears on your monitor. Click Yes.

Note:

This shutdown operation can be performed only when you

have logged in to the system.

Enter 4, G, H, or I; or enter the PTZ control interface.

Enter 5, J, K, or L; or switch the screen layout in live view

or playback mode.

Enter 7, P, Q, R, or S; or take a snapshot.

Enter 8, T, U, or V.

Enter 9, W, X, Y, or Z.

Enter 0 or a space.

Delete

Switch the input method.

Auxiliary function button.

Exit the current window.

Switch to the next tab.

Network Video Recorder User Manual

4www.nordencommunication.com/eyenor

Button Description

l , , , : Switch windows or menu items; or control

rotation directions of a PTZ camera when the PTZ toolbar

is closed

, : Rewind or forward 30 seconds in full screen.l

, : Variable-speed forward or rewind in full screen.l

: Confirm an operation; or start or pause playback. l

Front Panel Buttons

Table 1-4 Functions of the Buttons on the Remote Control

Button Function

Power

Press this button to start up or shut down the NVR.

To shut down, press this button and hold for at least 3 seconds

till a message appears on your monitor. Click Yes.

Note:

This shutdown operation can be performed only when you

have logged in to the system.

DEV This button is for reserved functions.

lIn live view mode, press this button to show the toolbar for the

currently selected window.

lIn playback mode, press this button to display windows

according to the configured screen layout.

Toolbar

Menu Press this button to display the main menu.

Iris+/Iris-

Focus+/Focus- Adjust the iris, focus and zoom of the PTZ camera in

PTZ control mode.

Zoom+/Zoom-

UP, DOWN, LEFT, RIGHT,

ENTER

lPress UP, DOWN, LEFT and RIGHT to navigate between menu

items or shift focus.

lIn PTZ control mode, press UP, DOWN, LEFT, and RIGHT

buttons to select the corresponding buttons on the screen, and

then press ENTER to activate the selection.

lIn live view mode, press UP to start sequence in full screen.

Pressing UP again starts sequence with three windows on the

screen. Press DOWN to open the playback window.

lPress ENTER to confirm an operation or to display a selected

drop-down list. In playback mode, press ENTER to play or

pause in full screen mode.

lUP and DOWN: Variable speed forward or rewind in full screen.

lLEFT and RIGHT: Rewind or forward 30 seconds in full screen.

Network Video Recorder User Manual

www.nordencommunication.com/eyenor 5

Button Function

Esc Exit.

lSwitch to the corresponding channel in live view mode.

lInput numbers and characters in edit mode.

Press to navigate to the next window when multiple windows

are displayed.

Alphanumeric buttons

Shift Switch menu items.

Del Remove characters or spaces on the left of the cursor.

2. Initial Configuration

Preparation

lMake sure that at least one monitor is correctly connected to the VGA or HDMI interface on the rear panel of the NVR.

lVerify that the hard disk(s) are correctly installed. For detailed steps to install a hard disk, please refer to the quick guide

shipped with your NVR.

Wizard

The wizard can guide you to complete the most basic setup. The wizard may vary with device model and other factors. The

following shows an example

1. Enable or disable the wizard as needed and then click Next.

lYou may change the setting under System > Basic.

lIf a QR code is displayed, you may scan the code to download an app and use the app to control your NVR.

2. Enter the default admin password and then click admin Next.

The default password is intended only for the first login and should be changed to a strong one containing at least eight characters

including uppercase and lowercase letters, digits and symbols after your first login for account security.

Indice

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
