Nordic Eye TEMPUS HD Manuale utente
NORDIC EYE - TEMPUS HD
English..........................................2
Swedish........................................7
German........................................12
1
Congratulation to your chooice of magnifying aid.
We hope that Tempus will enrich your every day life.
Gratulerar till ditt val av förstoringshjälpmedel.
Vi hoppas att det kommer att hjälpa dig i din
vardag.
Wir gratulieren Ihnen zur Entscheidung für dieses elektronische
Hilfsmittel und hoffen, dass Ihnen das TEMPUS bei den täglichen
Aufgaben erheblich helfen wird .
Congratulation to your chooice of magnifying aid.
We hope that Tempus will enrich your every day life.
Contents
Get started.........................................................................Page 3
Functions and settings..................................................Page 4
Technical facts and maintenance..............................Page 6
2

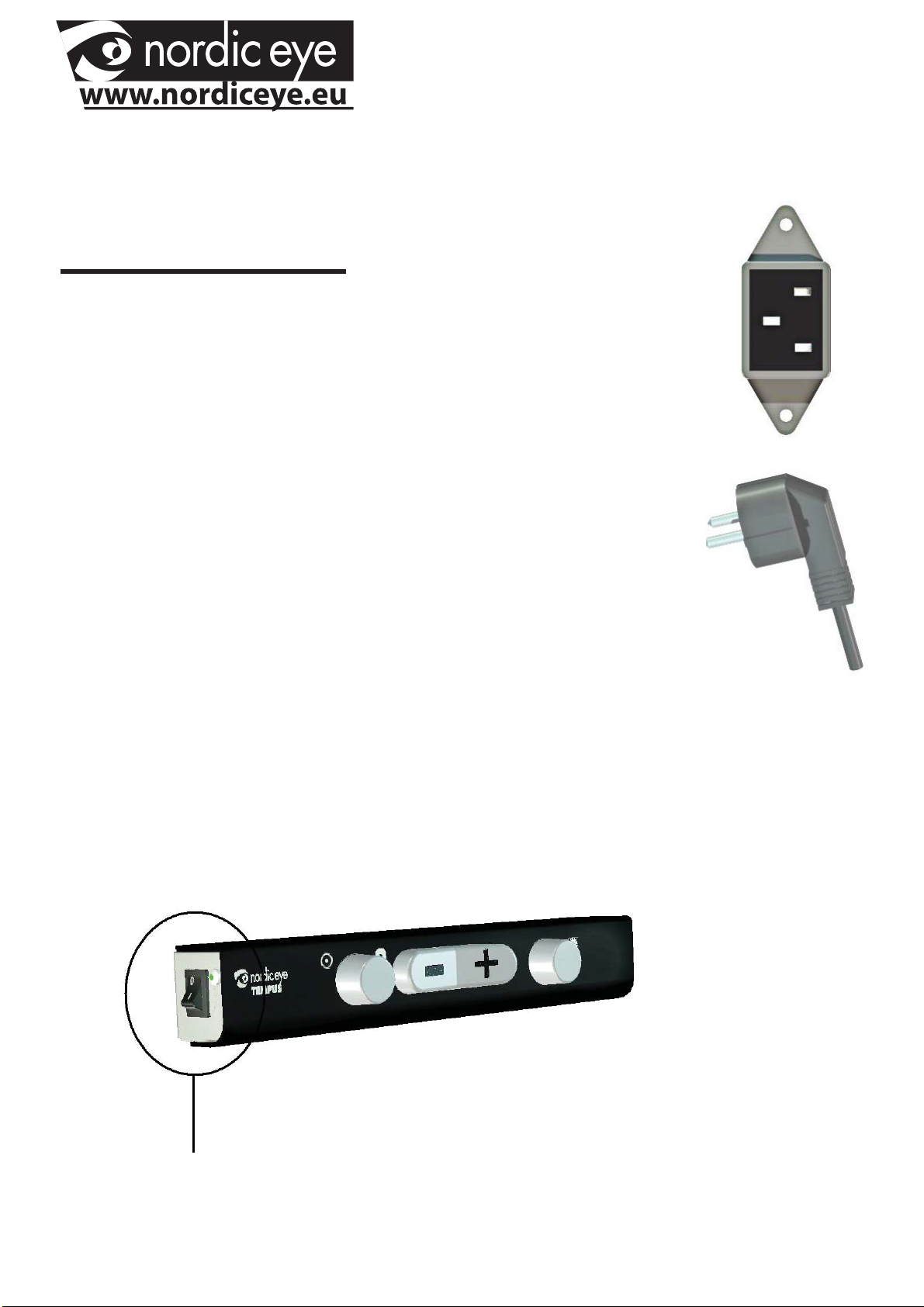

1. Locate the AC inlet at the back of Tempus
and connect the power cord to Tempus
and to a 100-230 V AC grounded wall socket.
Tempus is now ready to be started. Press the On/Off
switch that is located on the left side on the control panel.
A green light near the swicth will indicate it’s power on.
After a few seconds a signals beeps twice to
indicate the start-up procedure.
Get started
3
1. On/Off 2. Mode 3. Zoom 4. Brightness 5. Ref line
1. On / Off
2. Colour, Positiv, Negativ, Artifcal colour - Mode
3. Zoom (-) Wide decrease magnification
(+) Tele Zoom in increase magnification
4. Contrast and Brightness adjustment
1st press, 3/4 of the screen.
2nd press, center of the screen.
3rd press, 1/4 of the screen.
4st press, reference line off.
Reference line will change colour depending of what
colour mode is used.
5. Reference line.When pressing the button at the right side
of the controlpanel a reference reading line will appear at the
following positions.
4
To adjust the monitor height , there is a
peg back on the monitor bracket. Hold
one hand under the monitor and pull the
peg out, then smooth slide the monitor up
and down to your desired position.
Monitor adjustment
Lever to the left, XY table is locked in both X and Y direction.
Lever centered XY table is locked in X direction.
Lever to the right, free movement.
XY table
X
Y
5
Technical data and maintenence
Magnification 20” wide monitor....................................2-70x
Focus...........................................................................Autofocus
Focus Area..................................................................120 mm
Free space under camera...........................................300 mm
Resulution...................................................................1280x720(720p)
Updating......................................................................60 Hz
Output..........................................................................DVI
Power consumption.....................................................69 W
Power..........................................................................100-240VAC
Lightning......................................................................LED bar
Weight with 20” wide monitor......................................16,5 Kg
EMC :
Product is tested according to EMC immunity and emission.By
EN 60601-1-2(2001) Class B, group 1.
Cleaning. Don’t use any cleaning methods that can moisture the
electronic. Threat it like other home electronic equipment. Be carful
when cleaning the lens that no scratches appears.
Tempus should be handled as electronic parts and
not be placed in garbage. Contact your reseller or your
community to have the product recycled in a
non pollotion way.
Contact us
Nordic eye AB Phone : + 46 470 72 98 88
Illervägen 15 Fax : +46 470 74 95 80
Sweden www.nordiceye.eu
6
Gratulerar till ditt val av förstoringshjälpmedel.
Vi hoppas att det kommer att hjälpa dig i din
vardag.
Innehåll
Kom igång...................................................................................Sida 8
Funktioner och inställningar.................................................Sida 9
Tekniska data och underhåll.................................................Sida 11
7
2. Sätt i nätkabeln till ett 100-240 jordat vägguttag
1.Leta upp AC uttaget som är på baksidan till vänster
på Tempus.
Tempus är nu klar att startas.Tryck på Av/På knappen
som sitter på vänster sida på kontrollpanelen.
En grön diod indikerar att systemet är igång
En ljudsignal indikerar att start processen är igång.
Kom igång
8
Av/På
