Serial Number

Decal (under frame)

USER’S MANUAL

Model No. 29826.3

Serial No.

Write the serial number in the space

above for reference.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

www.nordictrack.com

To register your product and

activate your warranty today,

contact Customer Service.

Call toll-free 1-888-936-4266

Mon.–Fri. 7:30 a.m.–4:30 p.m. ET

(excluding holidays)

or email us at

[email protected]

Please do not contact the store.

ACTIVATE YOUR

WARRANTY

CUSTOMER SERVICE

NORDICTRACK is a registered trademark of ICON IP, Inc.

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, see the

front cover of this manual and request a free

replacement decal. Apply the decal in the loca-

tion shown. Note: The decal(s) may not be shown

at actual size.

166909 218557

218556

250085

• Not for therapeutic

use.

• Nicht für thera-

peutisch Gebrauch.

151249

259345

25886

25886 25886 25887 25887 25887

255569 258724 203572

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

HOW TO USE THE ELLIPTICAL ..............................................................19

MAINTENANCE AND TROUBLESHOOTING ....................................................28

EXERCISE GUIDELINES ....................................................................30

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

ORDERING REPLACEMENT PARTS .................................................. Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

TABLE OF CONTENTS

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read

all important precautions and instructions in this manual and all warnings on your elliptical before

using your elliptical. ICON assumes no responsibility for personal injury or property damage sus-

tained by or through the use of this product.

1. It is the responsibility of the owner to ensure

that all users of the elliptical are adequately

informed of all precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

3. Use the elliptical only as described in this

manual.

4. The elliptical is intended for home use only.

Do not use the elliptical in a commercial,

rental, or institutional setting.

5. Keep the elliptical indoors, away from mois-

ture and dust. Do not put the elliptical in a

garage or covered patio, or near water.

6. Place the elliptical on a level surface, with at

least 3 ft. (0.9 m) of clearance in the front and

rear of the elliptical and 2 ft. (0.6 m) on each

side. To protect the floor or carpet from dam-

age, place a mat under the elliptical.

7. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

8. Keep children under age 12 and pets away

from the elliptical at all times.

9. When connecting the power cord, plug the

power cord into a grounded circuit. To avoid

overloading the circuit, do not plug other

electrical devices, except for low-power

devices such as cell phone chargers, into an

outlet on the same circuit.

10. Do not modify the power cord or use an

adapter to connect the power cord to an

improper receptacle. Keep the power cord

away from heated surfaces. Do not use an

extension cord.

11. Do not operate the elliptical if the power cord

or plug is damaged, or if the elliptical is not

working properly.

12. Always unplug the power cord and switch

the power switch to the off position when the

elliptical is not in use.

13. DANGER: Always unplug the power

cord when the elliptical is not in use and

before cleaning the elliptical. Servicing other

than the procedures in this manual should

be performed by an authorized service repre-

sentative only.

14. The elliptical should not be used by persons

weighing more than 300 lbs. (136 kg).

15. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the elliptical. Always wear athletic

shoes for foot protection while exercising.

16. Hold the handlebars or the upper body arms

when mounting, dismounting, or using the

elliptical.

17. The heart rate monitor is not a medical

device. Various factors may affect the accu-

racy of heart rate readings. The heart rate

monitor is intended only as an exercise aid

in determining heart rate trends in general.

IMPORTANT PRECAUTIONS

SAVE THESE INSTRUCTIONS

18. The elliptical does not have a freewheel; the

pedals will continue to move until the fly-

wheel stops. Reduce your pedaling speed in

a controlled way.

19. Keep your back straight while using the ellip-

tical; do not arch your back.

20. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

21. This Class [B] digital apparatus complies

with Canadian ICES-003.

Your new tness equipment represents a signicant investment

in your health. Protect your investment now from unexpected

mechanical or electrical failures for up to ve years.

PLAN FEATURES

•Protection for one to ve years

•Over 100 authorized repair centers

•Highly trained repair technicians

•A national toll-free repair hotline

•Simple repair claim procedure

•No claim forms

•Easy enrollment

•Fast, ecient repair anywhere in Canada

•In-home repairs covered

•Parts and labour covered

•Mechanical and electrical failures covered

To protect your tness equipment today, please

call Customer Care at 1-888-936-4266

Or, email us at customerser[email protected]

™

BEFORE YOU BEGIN

Thank you for selecting the revolutionary

NORDICTRACK®E 7.1 elliptical. The E 7.1 elliptical

provides an impressive selection of features designed

to make your workouts at home more effective and

enjoyable.

For your benefit, read this manual carefully before

you use the elliptical. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

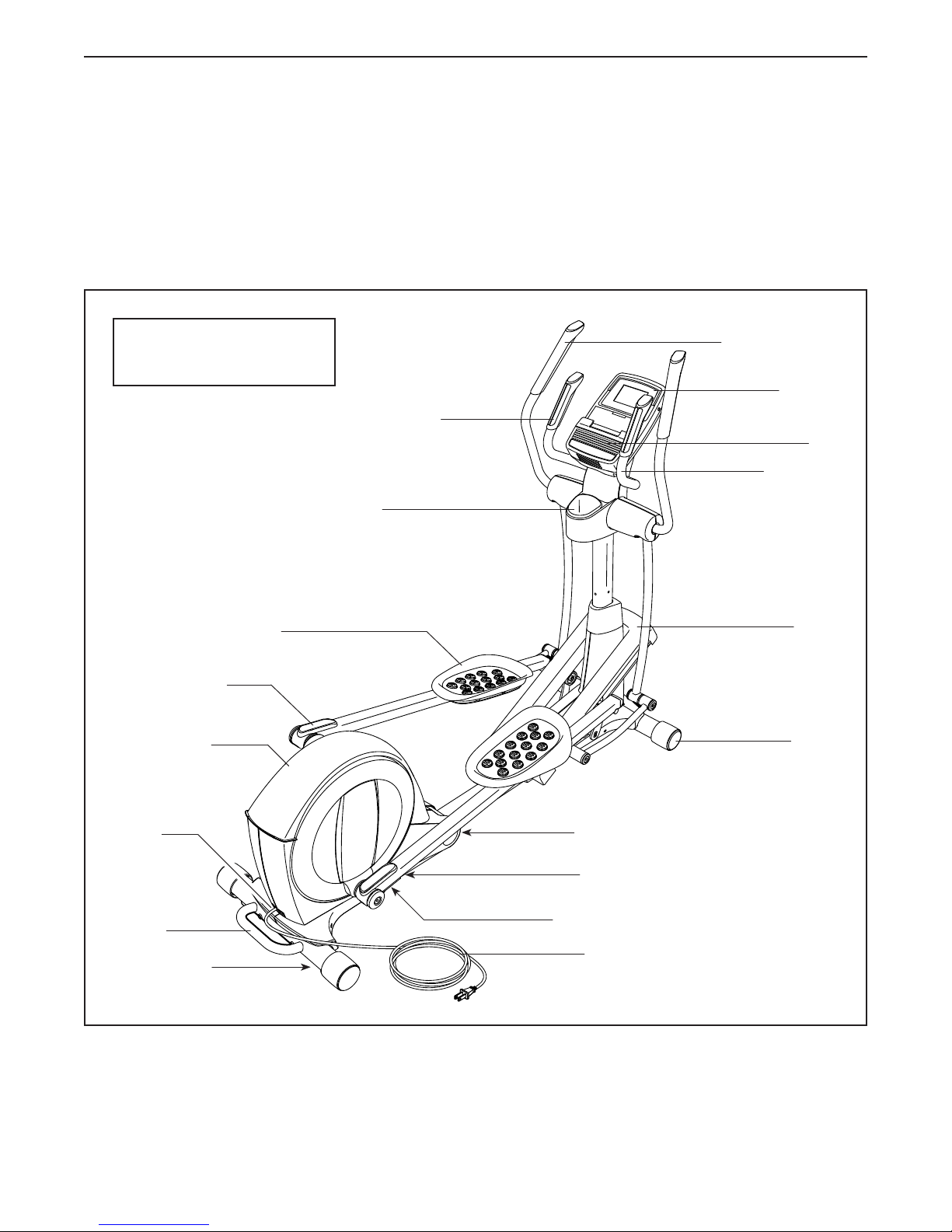

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Handgrip Heart Rate Monitor

Upper Body Arm

Access Cover Wheel

Pedal

Water Bottle Holder*

Console

Leveling Foot

Handle

Power

Switch

Latch Button

Ramp

Storage Magnet

Fan

Handlebar

Pedal Arm Latch

*Water bottle is not included

Leveling Foot Power Cord

Length: 6 ft. 9 in. (206 cm)

Width: 2 ft. 3 in. (69 cm)

M10 x 95mm

Screw (100)–4

M8 Split Washer

(103)–14

M8 Washer

(95)–6

M8 x 16mm

Screw (102)–16

Wave Washer

(118)–2

M6 Washer

(112)–8

M8 x 25mm

Screw (121)–2

M6 x 50mm

Screw (62)–4

M8 x 35mm

Screw (92)–2

M4 x 19mm

Screw (80)–8

M6 x 12mm

Screw (111)–4

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the

key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it

has been preassembled. Extra parts may be included.

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materialsuntilyounishallassemblysteps.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• To identify small parts, see page 8.

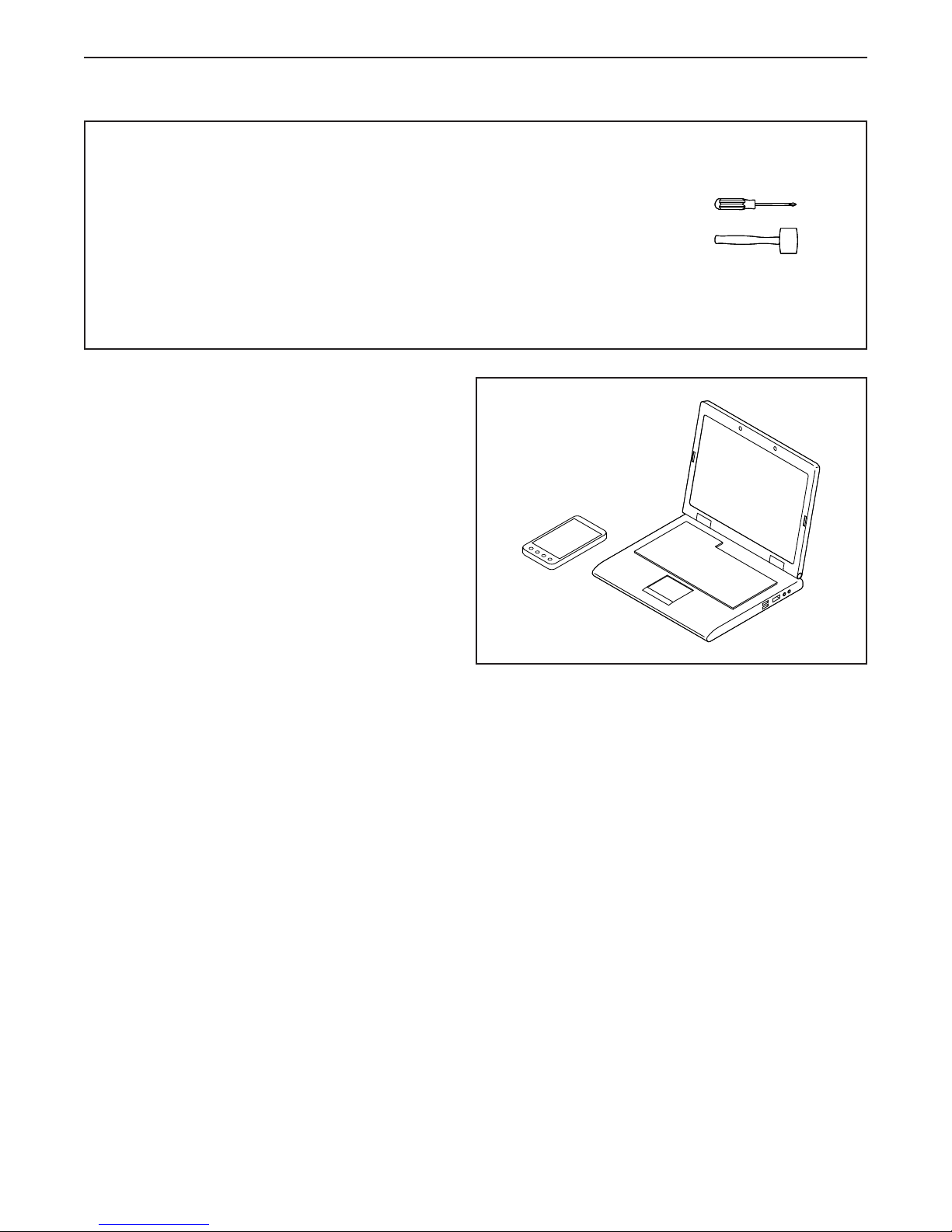

• In addition to the included tool(s), assembly

requires the following tool(s):

one Phillips screwdriver

one rubber mallet

Assembly may be easier if you have a set of

wrenches. To avoid damaging parts, do not use

power tools.

ASSEMBLY

1. Call or email Customer Service (see the front

cover of this manual) today to register your

product.

 • activatesyourwarranty

 • savesyoutimeifyoueverneedtocontact

Customer Service

 • allowsustonotifyyouofupgradesandoffers

2. Orient the Rear Stabilizer (4) as shown.

Attach the Rear Stabilizer (4) to the Folding

Frame (2) with two M10 x 95mm Screws (100).

Next, hold the handle on the Rear Stabilizer (4),

press the Latch Button (67), and lower the Rear

Stabilizer and the Folding Frame (2) to the floor.

2100

Handle

3. Orient the Front Stabilizer (3) so that the

indicated hole is facing the pin on the Main

Frame (1).

While a second person lifts the front of the Main

Frame (1), attach the Front Stabilizer (3) with

two M10 x 95mm Screws (100).

100

Hole
