Nortel IP Phone 2004 Manuale utente
Part No. N0027284 01
March 11, 2005
BCM
Nortel Networks IP Phone 2004
User Guide
Return
to Menu
3
IP Phone 2004 User Guide
Getting started
The BCM Nortel Networks IP Phone 2004 brings voice and data to your desktop.
Introduction
This guide contains information about:
• telephone buttons and lights
• telephone display
• telephone setup
• how to make and answer calls
• how to use the navigation buttons
• how to program memory buttons
• how to offset the time on your telephone display

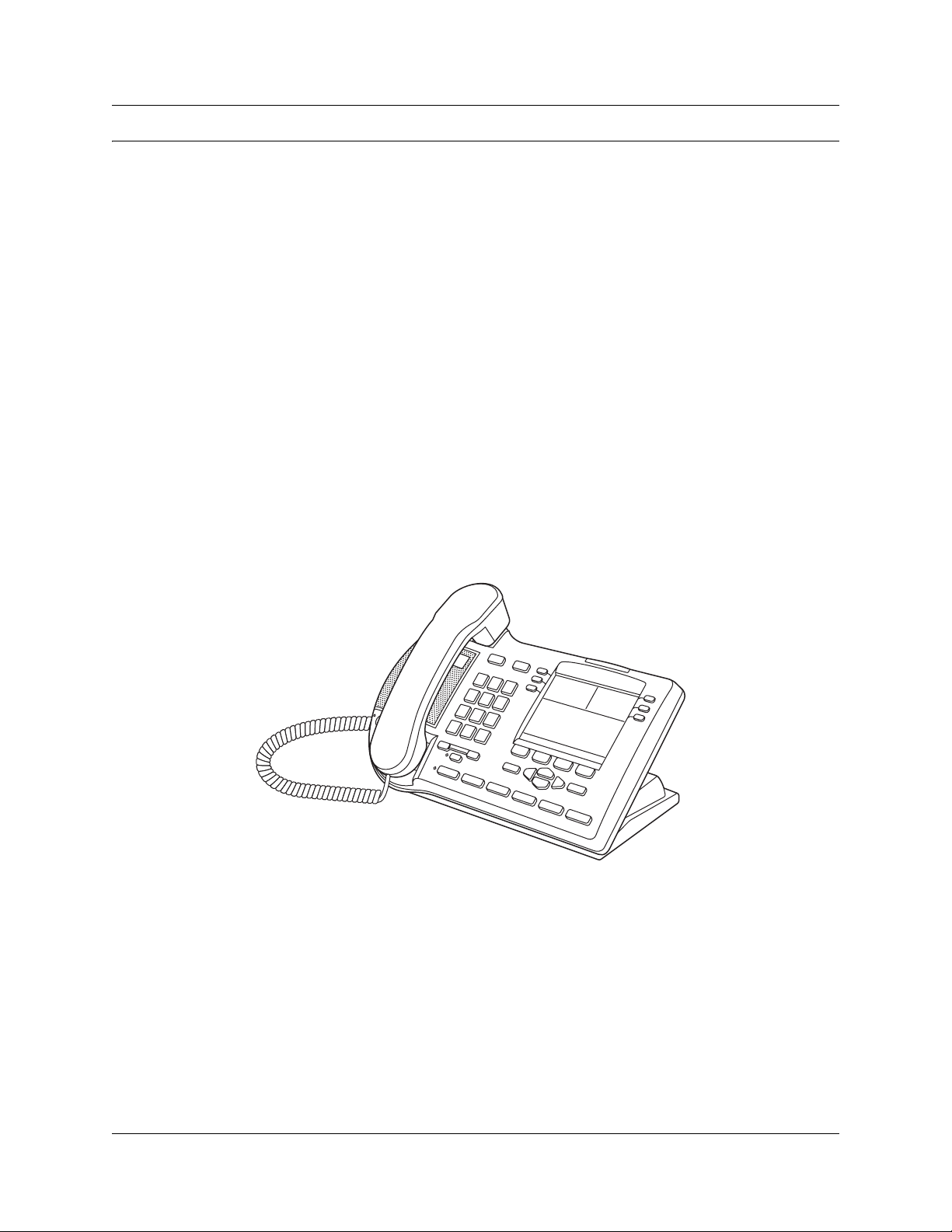

Figure 1 shows the IP Phone 2004.
Figure 1 The IP Phone 2004
4Getting started
N0027284 01
IP Phone 2004 button and light descriptions

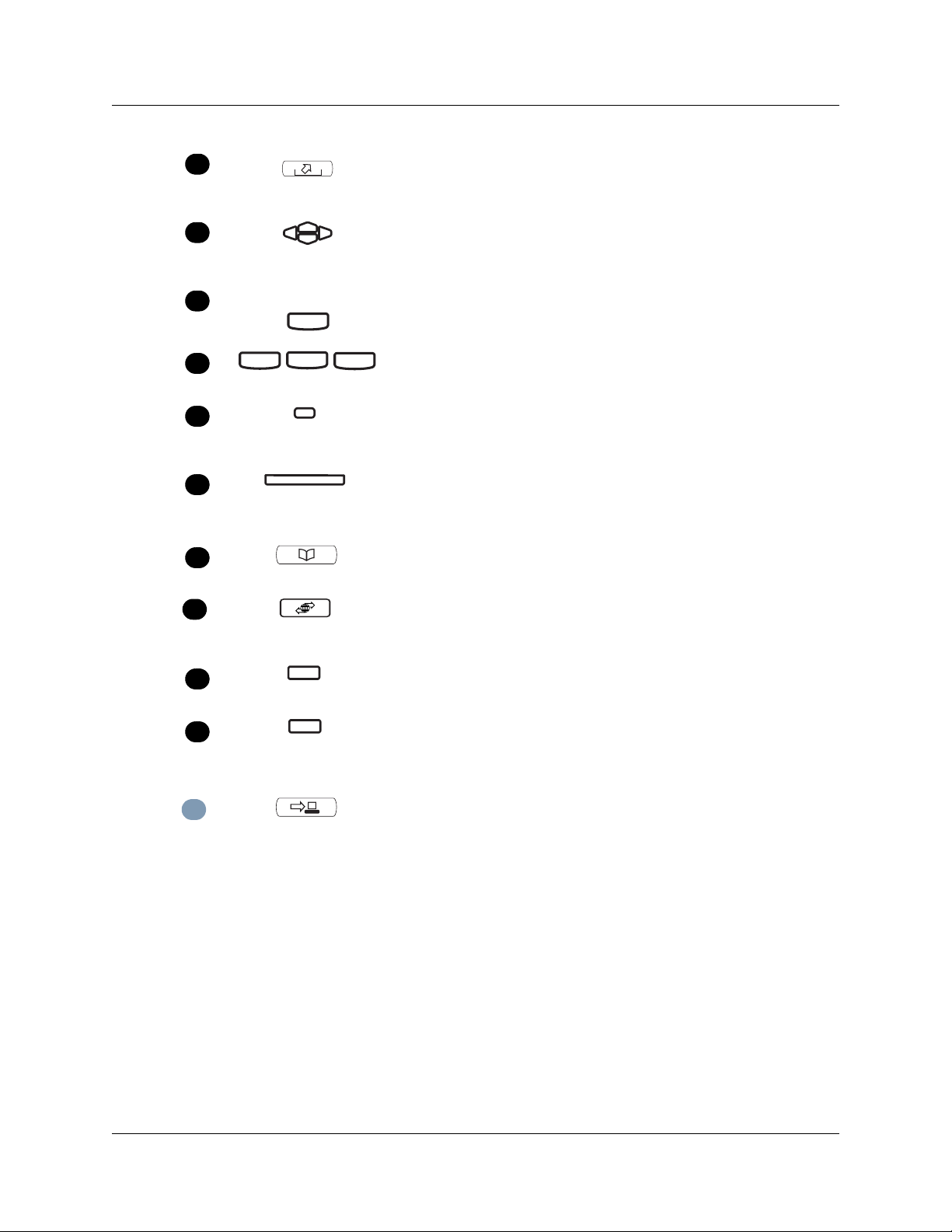

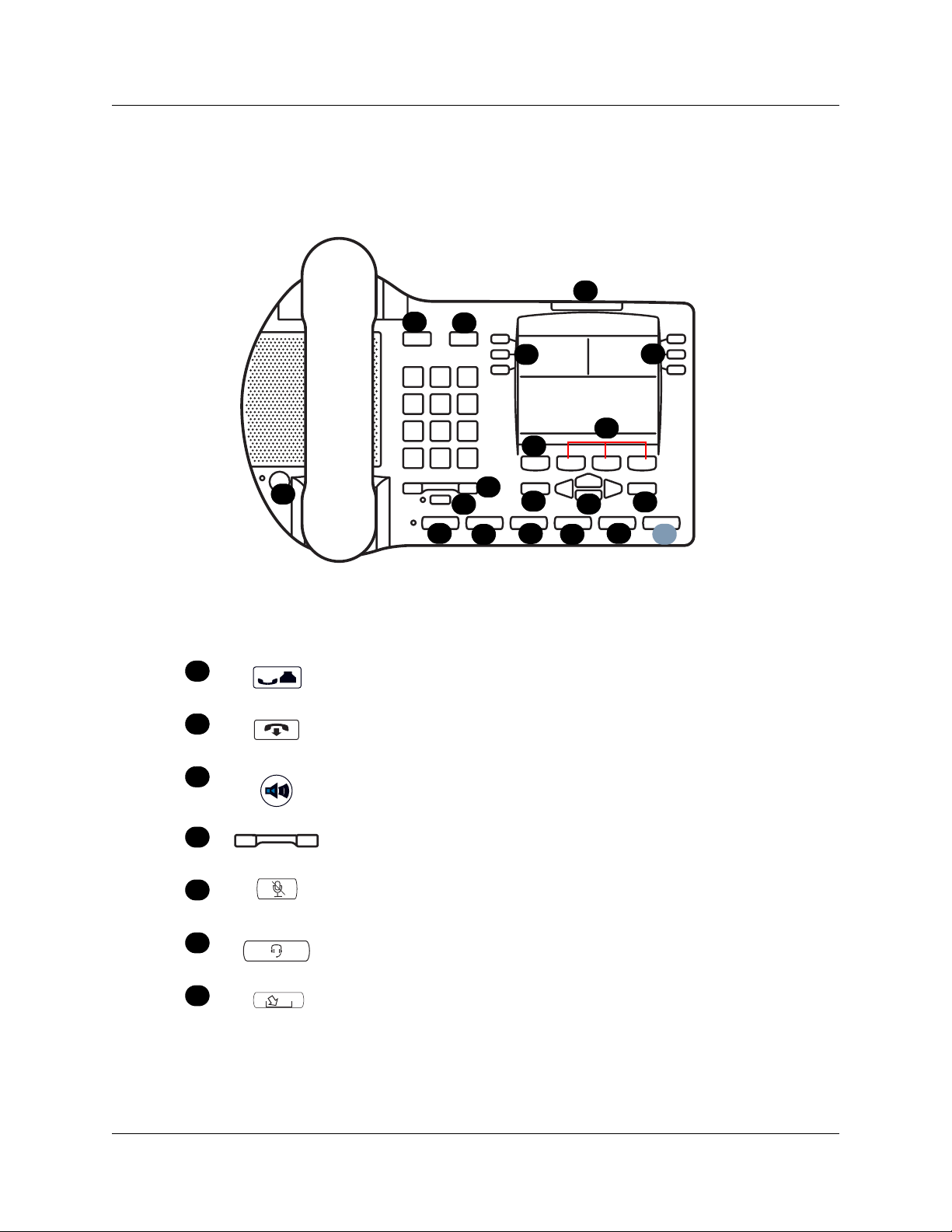

Figure 2 shows the IP Phone 2004 lights and buttons.
Figure 2 IP Phone 2004 buttons
Table 1 shows a description of the lights and buttons.
Table 1 IP Phone 2004 buttons and descriptions
Hold button
Places an active call on hold.
Goodbye button
Ends an active call.
Handsfree button with LED
Turns the Handsfree mode on.
Volume control bar
Adjusts the handset, Handsfree, headset and ringer volume.
Mute button with LED
Turns the microphone off and on when you are on a call.
Headset button with LED
Turns the headset mode on.
Mailbox in button (programmable memory button #08
Opens your CallPilot mailbox. For more information about mailbox
options, refer to your CallPilot Quick Reference Card.
A
B
C D
E
FNGHOP
I
QR
J
LL
K
M
A
B
C
D
E
F
G
Getting started 5
IP Phone 2004 User Guide
Leave Message button (programmable memory button #09)
Allows you to send voice mail messages. For more information on voice
mail messaging, refer to your CallPilot Quick Reference Card.
Navigation cluster buttons
Allows you to view items stored in your Call Log. For more information on
the Call Log feature, refer to “Navigation buttons” on page 11.
Feature
Feature button
Starts or ends a feature.
Display buttons
Shows feature options.
Line and Memory buttons
For more information on line and memory buttons, refer to “Program
memory buttons” on page 12.
Telephone light
Flashes when a call rings at the telephone.
Lights up when Message for you appears on the display.
Programmable memory button #07
(Default: Blank)
Default Services button (programmable memory button #10)
Default access to scrollable feature display menu, including the hot
desking feature.
Programmable memory button #11
(Default: Blank)
Programmable memory button #12
(Default: Blank)
The following buttons are reserved for future development, and are therefore not yet implemented.
PC Expansion button
H
I
J
K
L
M
N
O
Q
R
P
6Getting started
N0027284 01
IP Phone 2004 display
There are three areas to the IP Phone 2004 display:
• Button label area
• Information area
• Feature options area

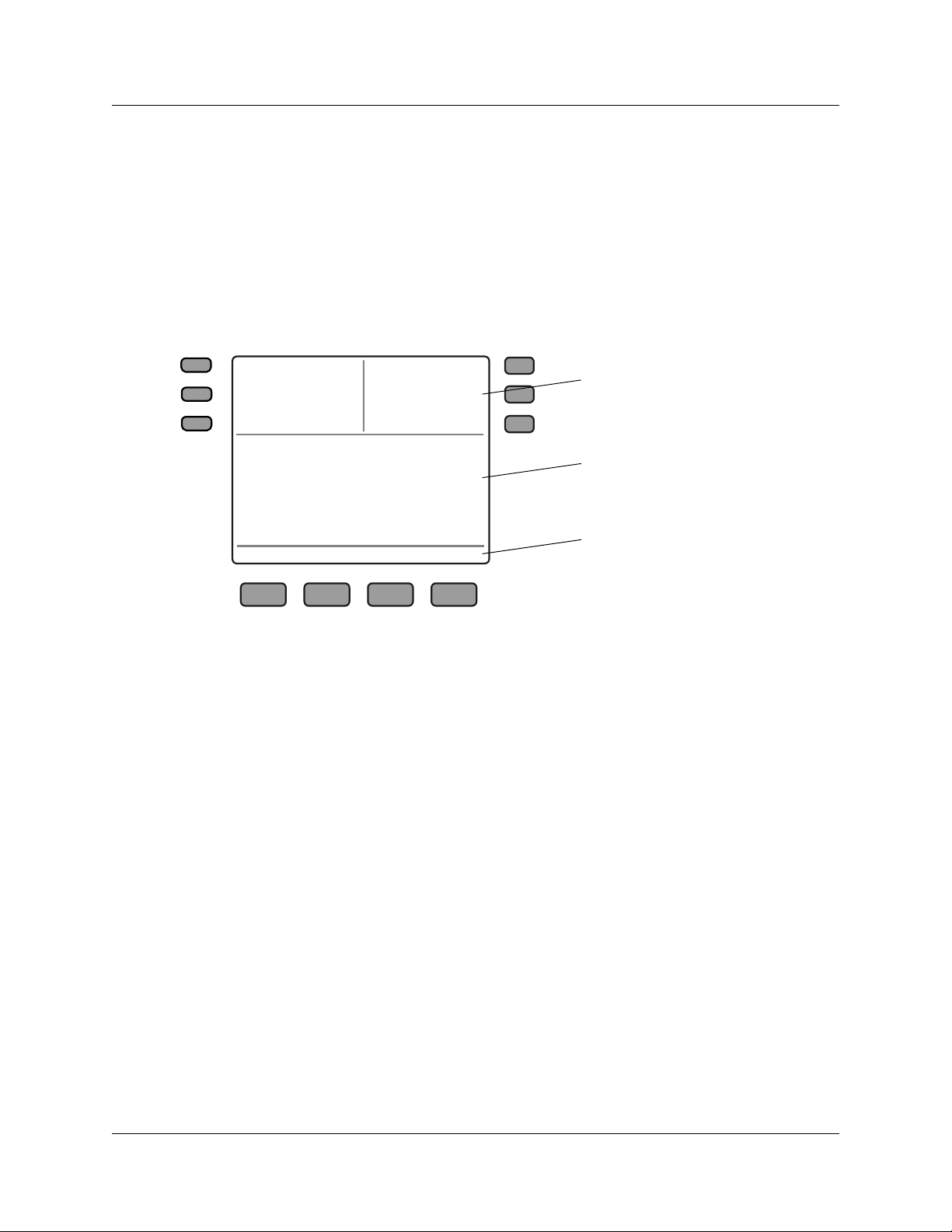

Figure 3 shows an example of the display and describes each area.
Figure 3 Display area
Button label area
The button label area shows the label and status of the six programmable memory buttons. For
more information about these buttons, refer to “Program memory buttons” on page 12.
Note: Dial pad buttons N, G, H, O and Q can also be programmed as memory buttons.
Information area
The Information area shows:
• the extension number of the telephone (DN: 340)
• a line for general information (Nortel Networks)
• the date and time when the telephone is not in use, and changes to show features and call
information when the telephone is in use
Button label area
Information area
Feature options area
Call fwd
Conference
Last num
Page gen
Intercom
Intercom
DN: 340
Nortel Networks
April 25 10:51 am
Feature
Getting started 7
IP Phone 2004 User Guide
Feature options area
When a feature is activated, or when you are on an active call, the display command line shows
you the action you must take to proceed.
For example: Pswd. This means you must enter your mailbox password.
The Feature options area shows the label for the FEATURE button and for the three display buttons.
These button labels appear in capital letters directly above the Feature and display buttons, and to
the right of the FEATURE label on the display. These button labels vary depending on the feature in
use.
About your programmable buttons
Your System Administrator assigns the six programmable buttons as line, intercom or memory
buttons. The label for each button appears on the display next to the button. For more information,
see your System Administrator.
Telephone setup
This section describes the IP Phone 2004 display features:
• Display contrast
• Language choice
• Ring type
Note: For more information about the features available to your telephone and how to use them,
refer to the Telephone Feature Card.
Display contrast level
Adjust the contrast for the telephone display.
1Press Feature *7.
2Press DOWN and UP to view the levels.
3Press OK to select a level.
Language choice
Select the Primary Language for the telephone display.
1Press Feature *501. Select the Alternate Language for the telephone display.
1Press Feature *502. Select the Alternate Language 2 for the telephone display.
1Press Feature *503. Select the Alternate Language 3 for the telephone display.
1Press Feature *504. Select the Alternate Language 4 for the telephone display.
8Getting started
N0027284 01
Ring type
Select a different ring type for your telephone.
1Press Feature *6.
2Press 1, 2, 3, 4, or NEXT or to hear the different ring types.
3Press OK to store the ring type.
9
IP Phone 2004 User Guide
Features and buttons
This section describes some of the IP Phone 2004 buttons and call features:
• Basic call features
• Navigation buttons
• Memory buttons
Note: For more information about the features available to your telephone and how to use them,
refer to the Telephone Feature Card.
Basic call features
You can make external and internal calls using the following features:
• make a call
•answeracall
•holdacall
• Handsfree
•headset
•Mute
• Time Offset
Make a call
There are many ways to make a call depending on your telephone programming and the type of
call.
External calls using line buttons
1Lift the handset.
2Press a line button.
3Dial the external telephone number.
External calls using intercom buttons
1Lift the handset.
2Press an intercom button and enter a line pool access code.
3When you hear an external dial tone, dial the external telephone number.
Note: Contact your System Administrator for a list of line pool codes. When entering a line pool
access code on PRI lines you will not hear dial tone.
10 Features and buttons
N0027284 01
Internal calls using intercom buttons
1Lift the handset.
2Press an intercom button.
3Dial the extension number.
Note: Contact your System Administrator for a list of extension numbers.
Answer calls
When your telephone rings and the light flashes or an intercom or line button “indicator flashes:
• lift the handset.
OR
• press the line or intercom button with the flashing indictor before you lift the handset.
Hold
• Calls are put on hold automatically when you switch from one line to another.
• While on a call, press . The indicator for the line on hold flashes.
• To retrieve a held call, press the line button with the flashing indicator.
Handsfree
Your System Administrator must program the Handsfree feature to your telephone.
• Press to make or answer a call.
• To switch to Handsfree when you are on a handset call, press and replace the handset. Lift
the handset to switch back.
• To switch to Handsfree when you are on a headset call, press . Press to switch back.
Headset
You must have a headset installed on your telephone to use this feature.
• Press to activate the headset mode. When the light is on, press a line or
intercom button to make a call.
• To switch to your headset when you are on a handset call, press and replace the
handset. Lift the handset to switch back.
• To switch to your headset when you are on a Handsfree call, press . Press to switch
back.
