6000i

NETWORKED NAVIGATION SYSTEM

INSTALLATION MANUAL

Northstar

a unit of Brunswick New Technologies Marine Electronics

30 Sudbury Road

Acton, Massachusetts 01720

www.NorthstarNav.com

Service: 978/897-6600

Sales: 800/628-4487

Revision G

Part Number GM6KIM

Contents

SECTION ONE: Introducing the 6000i - - - - - - - - - - - - - - - - 1

Checking the 6000i package - - - - - - - - - - - - - - - - - - 1

SECTION TWO: Installing and wiring the 6000i - - - - - - - - - - - - 5

Bench-testing the 6000i - - - - - - - - - - - - - - - - - - - - 5

Mounting the 6000i - - - - - - - - - - - - - - - - - - - - - - 5

Wiring the 6000i - - - - - - - - - - - - - - - - - - - - - - - - 8

SECTION THREE: Installing and wiring the antenna - - - - - - - - - 13

Choosing the best mounting location - - - - - - - - - - - - - 13

Mounting and wiring the AN150-P antenna - - - - - - - - - - 15

SECTION FOUR: Networking the Northstar 6000i - - - - - - - - - - 17

Restrictions on networking - - - - - - - - - - - - - - - - - - 18

Connecting a network of two devices - - - - - - - - - - - - - 19

Connecting a network of more than devices - - - - - - - - - - 19

Networking setup - - - - - - - - - - - - - - - - - - - - - - 17

SECTION FIVE: Checking out the system - - - - - - - - - - - - - - 27

Turning the 6000i on and off - - - - - - - - - - - - - - - - - 27

Checking satellite status - - - - - - - - - - - - - - - - - - - 27

Checking DGPS status - - - - - - - - - - - - - - - - - - - - 28

Installation-test checklist - - - - - - - - - - - - - - - - - - - 28

SECTION SIX: Interfacing the 6000i system - - - - - - - - - - - - - 31

The NMEA connector - - - - - - - - - - - - - - - - - - - - 32

Configuring the RS-232 port - - - - - - - - - - - - - - - - - 38

Using the Aux Port - - - - - - - - - - - - - - - - - - - - - - 39

Connecting the 6000i to a remote display - - - - - - - - - - - 43

Connecting the 6000i to a video camera - - - - - - - - - - - - 43

SECTION SEVEN: Troubleshooting and servicing the 6000i system - - 45

Troubleshooting installation problems - - - - - - - - - - - - - 45

Getting technical support - - - - - - - - - - - - - - - - - - - 47

APPENDIX A: 6000i system technical specifications - - - - - - - - - 51

6000i Installation Manual, Rev. G Page 1

SECTION ONE: Introducing the

6000i

Checking the 6000i package

The Northstar 6000i is a networked color GPS navigation family that you can

connect to a wide variety of optional equipment, including the Northstar 491

echo sounder, Northstar radar, and VGA displays. Other optional interfaces include any NTSC- or

PAL-compatible video sources, such as a video camera, TV, DVD, or VCR. For installation instructions

for the Northstar 491 or Northstar radar, see the Northstar 491 Installation Manual (P/N GM495) or

the Northstar Radar Installation Manual (P/N GMKRadIM or GMRad2KIM).

Table 1: 6000i parts list

Qty Part name Part number

6.4” unit 8.4” unit 10.4” unit 12” Unit 15” unit

16000i unit 6K6 6K8 6K10 6K12 6K15

1 Flush-mount hardware kit 6K6FM-A 6K8FM-A 6K10FM-A 6K12FM-A

6K15FM-A

1 Flush-mount gasket — — — HG420 HG412

1 Flush-Mounting Template GT6K6 GT6K8 GT6K10 GT6K12 GT15

1 Yoke-mount kit 6K6YM-A 6K8YM-A 6K10YM-A — —

1 Sunshield XP793 XP784 XP789 XP821 XP817

1 WAAS/GPS antenna and cable AN150-P (AN-156-P Optional)

1 TNC connector for antenna cable — — — — KC285

1 10-foot power cable with 7-amp fuse WA535-B

1 10-foot NMEA interface cable WA215

1 Connector dust cover KC398

1Northstar6000i Installation Manual GM6KIM

1Northstar6000i Operator’s Manual GM6KUM

1 Quick Pocket Reference — — —

GM6K12QR

—

1 Owner registration card GD671

1 Limited Warranty Statement GD683

1 Navionics slip sheet GM988

1 Parts kit (see next page) 6K-PK 15-PK

SECTION ONE: Introducing the 6000i

Page 2 6000i Installation Manual, Rev. G

To connect multiple units using Northstar’s N2 technology, Ethernet cables must be purchased

separately (see ”SECTION FOUR: Networking the Northstar 6000i” starting on page 17).

Table 2: Parts Kit contents for 6.4”, 8.4”, and 10.4” 6000i (P/N 6K-PK)

Qty Part name Part number

1 Spare fuse (7A fast-blow 5 x 20mm) FF211

4 Hex nut, 6-32, for flush-mounting HN300

4 Threaded stud, 6-32, for flush mounting HS610

4 Lockwasher, # 6, for flush mounting HW300

4 Flat washer, #6, for flush mounting HW405

1 TNC connector for antenna cable KC285

Table 3: Parts Kit contents for 12-inch 6000i (P/N 6K12-PK)

Qty Part name Part number

1 Spare fuse (7A fast-blow 5 x 20mm) FF211

12 Hex nut, 8-32, for flush-mounting HN421

12 Threaded stud, 8-32 x 2 1/4, for flush

mounting

HS605

12 Lockwasher, #8, for flush mounting HW400

12 Flat washer, #8, for flush mounting HW405

1 TNC connector for antenna cable KC285

Table 4: Parts Kit contents for 15-inch 6000i (P/N 15-PK)

Qty Part name Part number

1 Spare fuse (7A fast-blow 5 x 20mm) FF211

12 Hex nut, 8-32, for flush-mounting HN421

12 Threaded stud, 8-32 x 2 1/4, for flush

mounting

HS605

12 Lockwasher, #8, for flush mounting HW400

12 Flat washer, #8, for flush mounting HW405

1 TNC connector for antenna cable KC285

SECTION ONE: Introducing the 6000i

6000i Installation Manual, Rev. G Page 3

Table 5: 6000i Optional equipment

Part name Part number

Ethernet cables See Section 4

Remote control and batteries 6KRMC-A

Spare batteries for remote control BL134

Additional antenna cable WC255 or WC263

Northstar Echosounder

Northstar Radar

SECTION ONE: Introducing the 6000i

Page 4 6000i Installation Manual, Rev. G

6000i Installation Manual, Rev. G Page 5

SECTION TWO: Installing and

wiring the 6000i

Bench-testing the 6000i

Northstar recommends bench-testing the 6000i with a GPS antenna before installing it onto the

vessel. Bench testing ensures that the equipment is fully operational, and lets the unit collect the

current almanac and ephemeris data and a local position fix, which results in less on-board

installation time.

Mounting the 6000i

Choosing the best mounting location

Choose the mounting location carefully before you drill or cut. The 6000i should be installed in an

accessible, dry location where the operator can easily use the controls and clearly see the display

screen. Be sure to leave a direct path for all of the cables. The display screen is high-contrast and

anti-reflective, and is viewable in direct sunlight, but for best results, install the 6000i out of direct

sunlight. The chosen location should have minimal glare from windows or bright objects. If the

6000i is yoke-mounted low, tilt the unit back for best viewing contrast.

WARNING! Before starting the installation, be sure to turn electrical power

off. If power is left on or turned on during the installation, fire,

electrical shock, or other serious injury may occur.

Be sure that the voltage of the power supply is compatible with

the 6000i’s voltage rating of 10 to 36 volts DC. Connecting to the

wrong power supply can cause fire or damage to the equipment.

Be sure to ground the equipment to prevent electrical shock and

mutual interference.

Be sure to use a 7-amp fast-blow fuse in the supplied power

cable. Using the wrong fuse can cause fire or damage to the

6000i.

CAUTION! Proper installation of the Northstar 6000i is critical to accurately receive

and effectively use GPS/WAAS signals under a wide variety of weather

conditions.

Keep the following safe compass distance from the 6000i: 1.0m

standard, 0.8m steering.

SECTION TWO: Installing and wiring the 6000i

Page 6 6000i Installation Manual, Rev. G

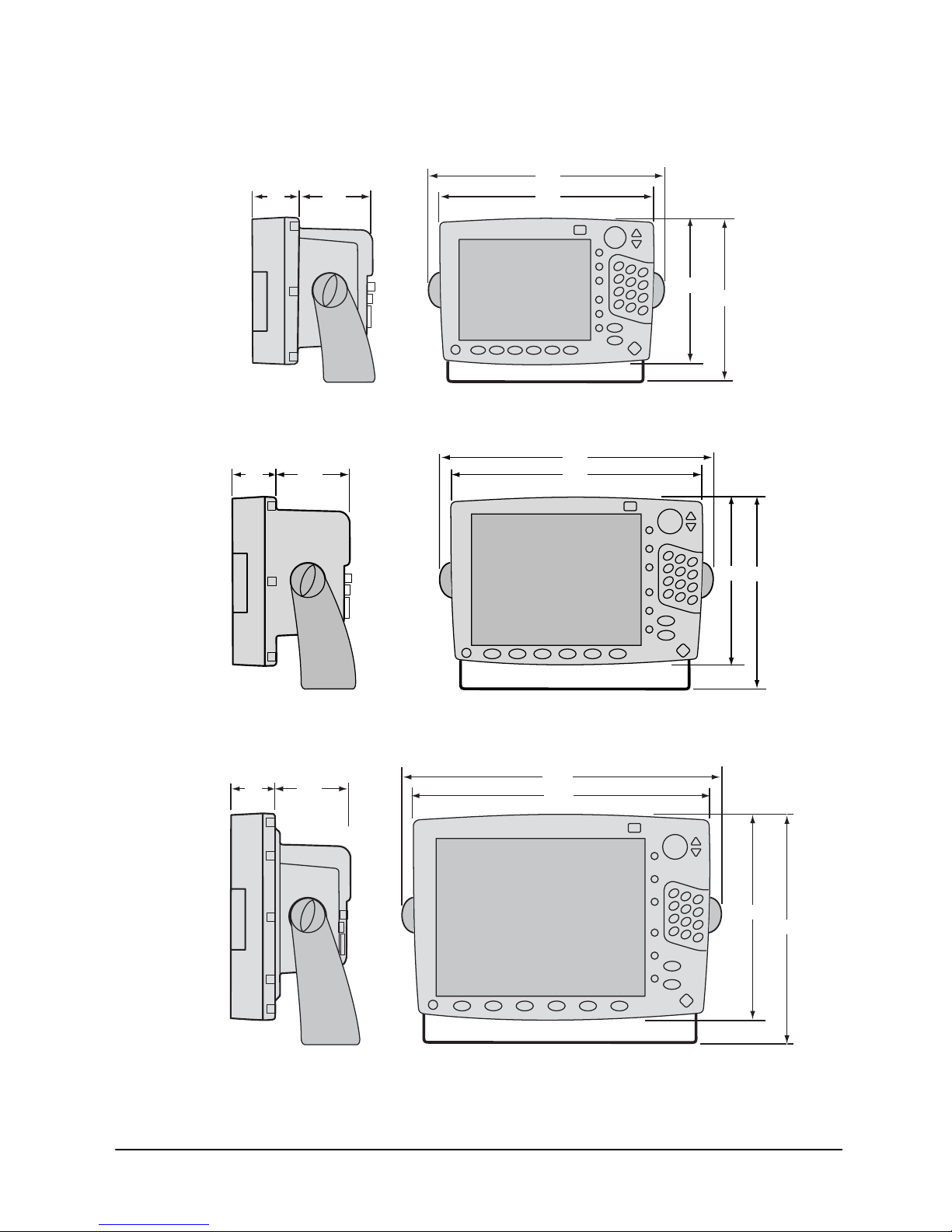

Mounting dimensions

Figures 1 – 5 show the overall unit dimensions.

9.1

6.25

1.8

3.12

7.5

10.1

6.4"

Figure 1: Dimensions (6.4” unit)

Dimensions in inches

7.6

1.8 3.12

8.4"

Figure 2: Dimensions (8.4” unit)

Dimensions in inches

13.5

12.5

8.75

1.8 3.12

9.75

10.4"

Figure 3: Dimensions (10.4” unit)

Dimensions in inches
