OWNERS

MANUAL

MEDIUM CONCRETE SAWS

MODEL:

C1320P

FORM C1320P rev 9-2010

WARRANTY

Norton warrants all products manufactured by it against defects in

workmanship or materials for a period of one (1) year from the date of

shipment to the customer.

The responsibility of Norton under this warranty is limited to

replacement or repair of defective parts at Norton's Gainesville,

Georgia factory, or at a point designated by it, of such part as shall

appear to us upon inspection at such point, to have been defective in

material or workmanship, with expense for transportation borne by

the customer.

In no event shall Norton be liable for consequential or incidental

damages arising out of the failure of any product to operate properly.

Integral units such as gasoline engines, electric motors,batteries,

tires, transmissions, etc., are excluded from this warranty and are

subject to the prime manufacturer's warranty.

This warranty is in lieu of all other warranties, expressed or implied,

and all such other warranties are hereby disclaimed.

Important: Before placing equipment in operation, record the following

information.

MODEL:_________ SERIAL NO.___________

PURCHASE FROM: _____________________

ADDRESS: ____________________________

CITY_______ STATE ______ ZIP ________

TELEPHONE NO. ______________________

Before using this equipment, make sure that any person using it

reads and understands the instructions in this owner’s manual.

Table of Contents

CONTENTS PAGE

Warranty Information 2

I. Preparation

A. Safety Precautions 4-6

B. Assembly 7

C. Concrete Saw Specifications 8

II. Operation

A. Blade Installation 9-11

B. Changing the Blade Side 12-14-

C. Engine Operation 12-14

D. Starting The Engine 14-16

E. Water Supply 16

F. Controls 17-18

G. Operating The Saw 18-19

H. Cutting Technique 19-20

I. Lead-Off Adjustment 20

III. Maintenance

A. Engine 21-22

Engine Warranty 23

B. Bearings 24

C. V-Belts 25-26

D. Depth Control 26-27

G. Electrical Diagram 13HP Manual Start 28

IV. Parts List Section

A. Ordering Information 29

Common Replacement Parts 29

B. Assembly Drawings/Service Parts Listing 30-43

Frame Common Group 30-31

Raise Axle Group 32-33

Blade Shaft and Engine Group 34-35

Blade Guard and Water System Group 36-37

Controls and Console Group 38-39

Depth Adjustment Group 40-41

Optional Water Tank Group 42-43

Contact Information 44

Read Owners Manual Before Use

Safety Alert Symbol: Information Following This Symbol Is Very

Important.

I. PREPARATION

A. Safety Precautions

Important! The following safety precautions must always be observed.

Hazard Symbols

Fuel (gasoline) is extremely flammable and its vapors can

explode if ignited. Store gasoline only in approved containers,

in well-ventilated, unoccupied approved areas, and away from

sparks or flames. Do not fill the fuel tank while the engine is hot

or running. Do not start the engine near spilled fuel. Never use

the fuel as a cleaning agent

Engine components can get extremely hot from operation. To

prevent burns, do not touch the engine or related parts while the

engine is running or immediately after it is turned off. Never

operate the engine with any heat shields or guards removed.

Keep all guards in place when operating any piece of equipment

Keep hands, feet, hair, and clothing away from all rotating parts

Lethal Exhaust Gas: use only in well ventilated areas. Engine

exhaust gases contain poisonous carbon monoxide, which is

odorless, colorless, and can cause death if inhaled. Avoid

inhaling exhaust fumes, and never run the engine in a closed

building or confined area.

Never tamper with the governor components of settings to

increase the maximum speed. Severe personal injury and

damage to the engine or equipment can result if operated at

speed above maximum. Always obey the maximum speed

rating of blade.

DO NOT LIFT THE SAW BY THE HANDLE

BARS

Dust and Silica Warning

Grinding/cutting/drilling of masonry, concrete, metal and other materials can

generate dust, mists and fumes containing chemicals known to cause serious or

fatal injury or illness, such as respiratory disease, cancer, birth defects or other

reproductive harm. If you are unfamiliar with the risks associated with the

particular process and/or material being cut or the composition of the tool being

used, review the material safety data sheet and/or consult your employer, the

material manufacturer/supplier, governmental agencies such as OSHA and

NIOSH and other sources on hazardous materials and make certain to comply

with all product warnings and instructions for the safe and effective use of the

material being cut. California and some other authorities, for instance, have

published lists of substances known to cause cancer, reproductive toxicity, or

other harmful effects.

Control dust, mist and fumes at the source where possible. In this regard use

good work practices and follow the recommendations of the

manufacturer/supplier, OSHA/NIOSH, and occupational and trade associations.

Water should be used for dust suppression when wet cutting is feasible. When

the hazards from inhalation of dust, mists and fumes cannot be eliminated

through engineering controls such as vacuum and/or water mist, the operator

and any bystanders should always wear a respirator approved by NIOSH/MSHA

for the material being cut.

Use Approved:

Eye Protection Hearing

Protection

Respiratory

Protection

Head Protection

1. Before mounting any blade on the saw, the blade should be

inspected for any damage which might have occurred during

shipment, handling or previous use.

2. The blade collars and arbors should be cleaned and examined for

damage before mounting the blade.

3. The blade must be properly fitted over the arbor with the drive pin on

the outside collar projecting through the drive pin hole on the blade

and inside collar.

4. The blade shaft nut, which is a left hand thread nut, must be

tightened securely against the outside blade shaft collar.

5. The blade must be operated within the specified maximum operating

speed listed on the blade.

6. Turn water control valve to full to provide adequate coolant (5 to 8

gallons per minute) for diamond blades and wet cutting abrasive

blades. Insufficient coolant could result in severe blade breakage or

diamond segment separation.

7. The blade guard must be in place with the nose guard down and

locked when the saw is running.

8. The operator should wear safety glasses and any other appropriate

safety equipment.

9. When starting the saw, the operator should stand away and to the

side of the blade.

10.If for any reason the saw should stall in the cut, raise the blade out of

the cut. Check the outside blade shaft collar and nut for tightness.

Inspect the blade for damage before restarting the saw. User caution

when resuming a cut. Be certain that the blade is in alignment with

the previous cut.

11.During cutting operations, do not exert excess side pressure on the

handles as a method of steering. Do not force the blade into the cut

by lowering the blade too fast or by pushing the saw too fast.

You Are Responsible For Your Safety!!!

I. PREPARATION

B. Assembly

The C1320P push concrete saws are shipped completely assembled and

ready for use except for diamond blade, gasoline, oil, and handle bar. Inspect

the saw for shipping damage. If any damage is found, contact the shipper

immediately and file a freight claim. Norton Clipper is not responsible for any

freight-related damages. Remove the saw from the pallet. Reverse the

position of the handlebars so that the handle bar sticks out towards the

operator. Adjust the handlebars to the desired height. Attach the handlebars

to the saw with the supplied hardware. For electric start models fill and check

the electrolyte level and charge the battery. Read and understand the

remaining sections of this Owners Manual. NOTE: Do not install the blade

until it is time to use the saw. ANSI regulations prohibit the transportation of

any concrete saw with the blade installed.

DO NOT LIFT THE SAW BY THE HANDLE BARS

C. C1320P Concrete Saw Specifications

Dimensions/Weight C1320P

Length (Transport) 56 inch (1142 mm)

Width 26 inch (660 mm)

Height 40 inch (1016 mm)

Weights 310 (141kg)

Engine

Engine Mfg. Honda

Model GX390

Spec No. GX390K1QXC9

Engine Type Single Cylinder 4 Cycle

Horse Power* 13 hp (9.5kW) @ 3,600 rpm

Max Torque* 19.5 ft-lbs (26.5 Nm, 2.7 kgf-m) @ 2,500 rpm

Cooling System Air

Oil Capacity 1.1 liter (1.16 US qt)

Fuel Capacity 6.5 liter (1.79 US gal)

Fuel Type Unleaded Gasoline (86 pump octane)

Low Oil Sensor Yes

Air Filtration Four Stage Honda Cyclone

Start Type Manual

Characteristics

Max Blade 20” (356 mm)

Depth of Cut

20” (356 mm) 7-1/2 inch (191 mm)

16” (305 mm) 5.50” (140 mm)

Arbor Bore 1 inch (25.4 mm)

Blade Shaft Locking Device Machined Into Flats Of Tight Collar

Blade Shaft Speed 2600 rpm,

Depth Control Hand Wheel With Screw Feed

Depth Lock Standard

Number Of V-Belts 4

Blade Guard Type Pivoting All Steel Construction

Right or Left Side Cutting Standard

Lifting Bale Built In

Handle Bars Adjustable

Recessed Rear Wheels Standard

Front Wheel Wheel 5 x 2 x ¾ With Roller Bearing

Rear Wheel Wheel 6 x 2 x ¾ With Roller Bearing

Water Hose Connector Standard Garden Hose With Flow Control Valve

Sound pressure188 db(A)

Sound power1105 db(A)

* = Horse power and Torque ratings are Gross Horse power and are supplied by the engine manufacturer. Actual output of the engine will vary due to

many factors including operational speed of engine, environmental conditions, maintenance, fuel, and other variables. Saint-Gobain Abrasives, Inc.

makes NO claim to actual or gross horse power and torque ratings. 1) The sound measures have been made following pr EN 12638, Annex A;

2)“Floor sawing, grooving and milling machines – Safety “

II. OPERATION

Read and understand this manual before

running or using the machine!

A. Installing the Blade

1. Insure that the Ignition Power Key Switch is in the OFF position and

then disconnect the spark plug.

2. Remove the blade shaft nut, (NOTE: Operator’s Right side is a left

hand thread and the Operator’s Left side is right hand thread), and

remove the outside collar. Rotate the Blade Guard to gain better

access to the Blade Shaft Nut, Loose Collar, Blade, and Tight Collar.

To Rotate the Blade Guard pull the Blade Guard Retaining Pin out

away from the Blade Guard Frame Bayonet and the rotate the Blade

Guard up and out of the way.

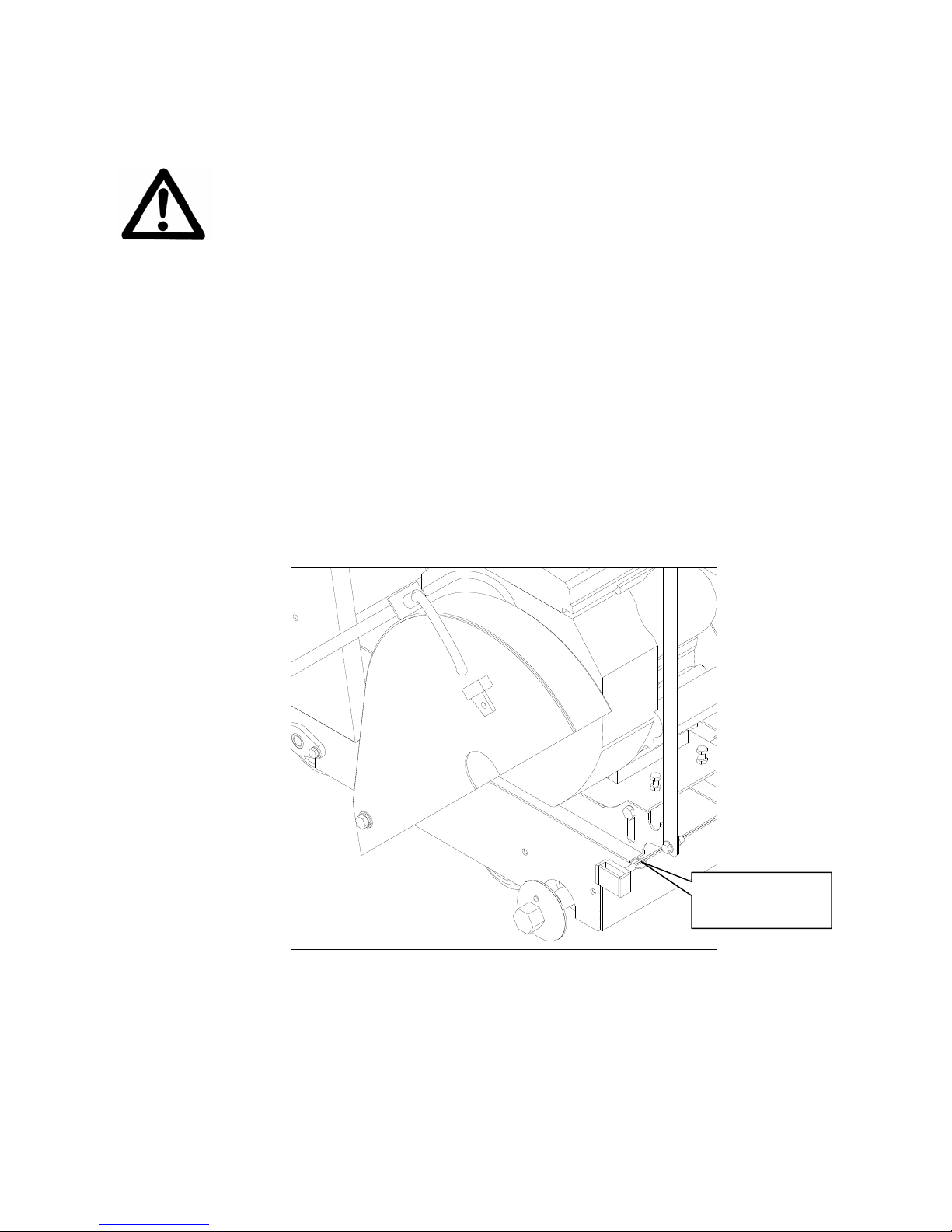

Blade Guard Retaining Pin with Guard Rotated for Access to Blade Shaft

Nut and Collars

3. Clean off any foreign particles on the clamping surfaces of both collars

and on the mounting surface of the blade and also inspect the drive pin

for damage. Replace any damage collars or pins before using the

machine.

Blade Guard

Retaining Pin

4. Inspect the blade for any damage, cracks, burnt or blue areas, missing

segments, and roundness of blade. Also inspect the arbor hole and

drive pin hole to insure both are round. If any problems are found do

not use the blade. In addition check that the blade is the correct

specification for the application.

For Best Performance Use Only Norton Diamond Blades

Specified For the Material Being Cut.

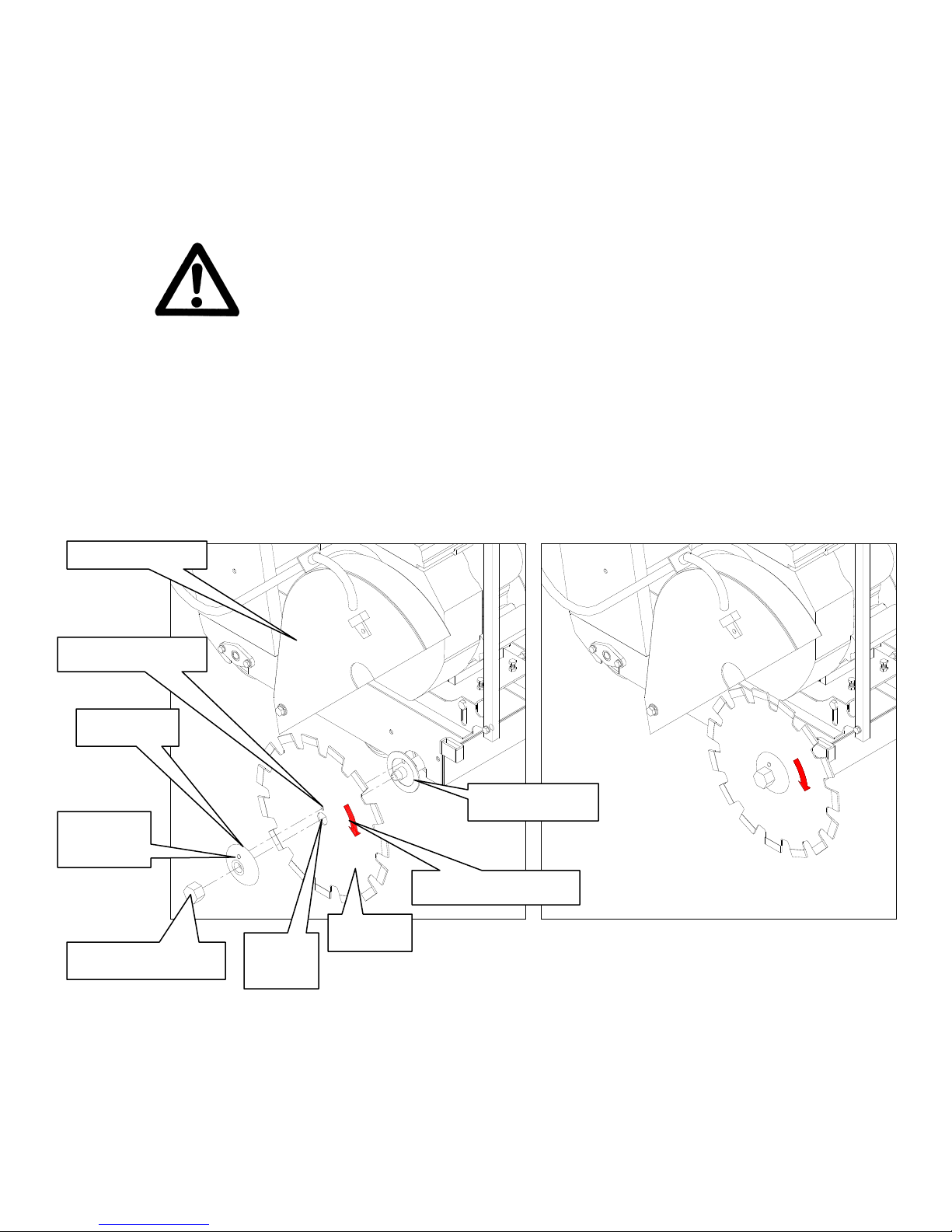

5. Place the blade on the blade shaft, lining up the drive pin hole in the

blade with the drive pinhole in the inside collar. NOTE: Diamond

blades are direction dependent so verify the direction of rotation of the

blade. The machine will rotate the blade into the work surface (down

cut). Place the blade guard in position and insert the blade guard

retainer pin. Never operate the saw without the blade guard or blade

guard retainer pin in position See the following diagram Blade

Installation.

Blade Installation

6. Slide the outside blade shaft collar onto the blade shaft. The drive pin

on the outside collar must project through the drive pin hole in the

blade and into the inside collar.

Blade Shaft Nut

Outside

Collar

Drive Pin

Drive Pin Hole

Blade Guard

Inside Collar

Directional Arrow

Blade Installed

NOTE: Blade Guard is shown

open for clarity. Do not operate

with the Blade Guard O

en.

Arbor

Hole

Blade

Indice

Altri manuali Norton Sega

Norton

Norton clipper CS 352 Manuale utente

Norton

Norton Clipper CP512-300i Manuale di programmazione

Norton

Norton Clipper CTC1020XL Manuale utente

Norton

Norton Clipper TR 202 Manuale utente

Norton

Norton Clipper CMV 1000 Verto Manuale utente

Norton

Norton CGW 1.30.1 230V Manuale utente

Norton

Norton Blockbuster BBL727 Manuale utente

Norton

Norton TT 250 G Manuale utente

Norton

Norton Clipper CB 311 Manuale utente

Norton

Norton clipper CGW EVO D400 Manuale utente

Norton

Norton BBC157 Manuale utente

Norton

Norton clipper CS 502LV P13 Manuale utente

Norton

Norton clipper CMR 351 Manuale utente

Norton

Norton CST 65 Modulo Manuale utente

Norton

Norton C3120 Manuale utente

Norton

Norton Clipper C1318P Manuale utente

Norton

Norton Clipper C13PE Manuale utente

Norton

Norton clipper CM 352 Manuale utente

Norton

Norton Clipper Blockbuster BBC347 Manuale utente

Norton

Norton clipper CHW Series Manuale utente

Norton

Norton CTC701 Manuale utente

Norton

Norton clipper TR 231 GL Manuale utente

Norton

Norton Clipper TR 232 S Manuale utente

Norton

Norton BBL547 Manuale utente

Manuali Sega popolari di altre marche

RIDGID

RIDGID BS1400 Manuale utente

ATIKA

ATIKA BWS 400-2 Manuale utente

RGC

RGC FS20 Manuale utente

Makita

Makita M2300 Manuale utente

IMET Spa

IMET Spa BASIC 300 PLUS SHI Manuale utente

IMET Spa

IMET Spa SIRIO 370 AF-E Manuale utente

Optimum

Optimum OPTisaw CS 275 Manuale utente

Makita

Makita BPB180 Manuale utente

Stihl

Stihl MS 462 C-M Manuale utente

AEG

AEG TS 250 K Manuale utente

Meec tools

Meec tools 004665 Manuale utente

Makita

Makita LS1018L Manuale utente

Ryobi

Ryobi RCS1400 Manuale utente

DeWalt

DeWalt DCS391 Manuale utente

Sealey

Sealey SA72 Manuale utente

skilsaw

skilsaw SPT88 Istruzioni per il montaggio

Urrea

Urrea SI810 Dimensioni e guida di installazione

EINHELL

EINHELL BKG 210/1 Manuale utente
