B610LP PLUG-IN DETECTOR BASE

INSTALLATION INSTRUCTIONS

FOR USE WITH THE FOLLOWING SMOKE DETECTOR MODELS:

IN US: CP-651, SD-651

IN EUROPE: CP-651E, SD-651E

Before installing detectors, please thoroughly read manual I56-407, Guide for Proper Use of System Smoke Detectors,

which provides detailed information on detector spacing, placement, zoning, wiring, and special applications. Copies of

this manual are available from Notier or a Notier distributor.

NOTICE: This manual should be left with the owner/user of this equipment.

IMPORTANT: The detector used with this base must be tested and maintained regularly following NFPA 72 requirements.

The detector used with this base should be cleaned at least once a year.

GENERAL DESCRIPTION

The Model B610LP detector base is designed for use with Notier model SD-651 and SD-651E photoelectronic detector

heads and CP-651 and CP-651E ionization detector heads. This two-wire base is equipped with screw terminals for the

connection of power, ground, and an optional remote annunciator.

SPECIFICATIONS

Base Diameter: 6.1 inches (155 mm)

Base Height: 0.95 inches (24 mm)

Weight: 0.3 lb. (137 g)

Mounting: 4-inch square box with or without plaster ring. Min. depth–1.5 inches

3-1/2-inch octagon box.Min. depth–1.5 inches

Operating Temperature Range: 0° to 49°C (32° to 120°F)

Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing

ELECTRICAL RATINGS - includes base and detector

System Voltage: 12/24 VDC

Maximum Ripple Voltage: 4 Volts peak-to-peak

Start-up Capacitance: 0.02 µF Maximum

Standby Ratings: 8.5 VDC Minimum

35 VDC Maximum

120 µA Maximum

Alarm Ratings: 4.2 VDC Minimum at 10 mA

6.6 VDC Maximum at 100 mA

(Alarm current must be limited to 100 mA by the control panel.

If it is used, the RA400Z Remote Annunciator operates within the

specied detector alarm currents.)

Reset Voltage: 2.5 VDC Minimum

Reset Time: 0.3 Seconds Minimum

Start-up Time: 34.0 Seconds Maximum

N550-01-00 1 I56-646-02R

Notier, 12 Clintonville Rd., Northeld , CT 06472-1652 (203) 484-7161

N550-01-00 4 I56-646-02R

Please refer to insert for the Limitations of Fire Alarm Systems

www.PDF-Zoo.com

SNAP ON

DECORATIVE

RING

SCREWS (NOT

SUPPLIED)

DETECTOR

BASE

BOX (NOT

SUPPLIED)

SHORTING

SPRING

A78-1175-01

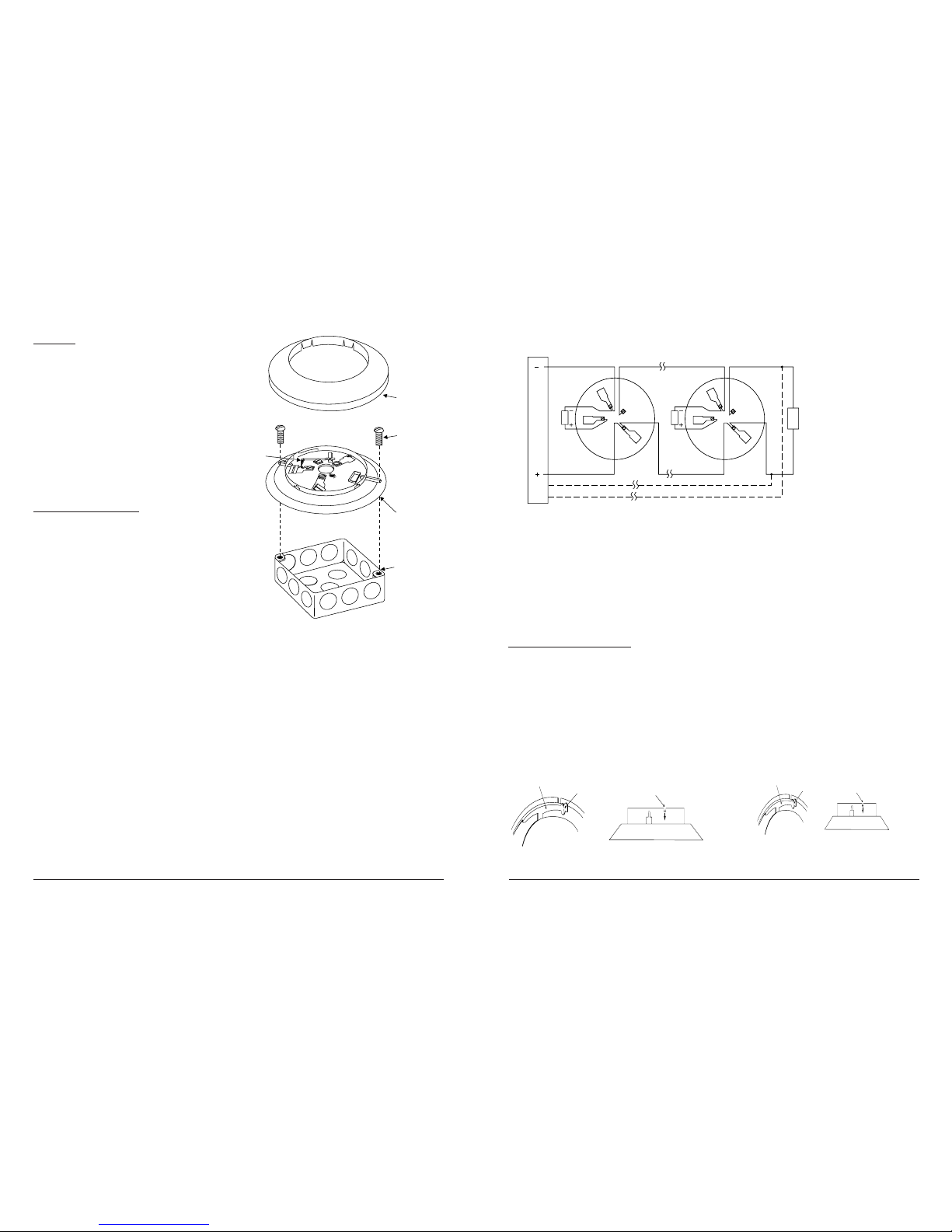

Figure 1. Mounting Base to Box

MOUNTING

The detector base mounts directly to 3-1/2 inch and

4-inch octagon boxes and 4-inch square boxes, with

or without plaster rings. To mount the base, remove

the decorative ring by rotating it in either direction to

unhook the snaps before separating the ring from the

base. Use the screws supplied with the junction box

to attach the base to the box through the appropriate

slots in the base.

See Figure 1. Position the decorative ring around

the base and rotate it in either direction until the ring

snaps into place.

INSTALLATION GUIDELINES

Allowable loop resistance is an important specication

for control panels as well as for smoke detectors and

their bases. The alarm system cannot be expected

to operate correctly if system components have in-

compatible allowable loop resistances. Therefore,

before beginning installation, refer to the control panel

manufacturer’s loop resistance specication to ensure

that it is listed as compatible with the Notier base and

smoke detector being installed.

All wiring must be installed in compliance with the

National Electrical Code and all applicable local codes

and any special requirements of the authority hav-

ing jurisdiction, using the proper wire size. The con-

ductors used to connect smoke detectors to control

panels and accessory devices should be color-coded

to reduce the likelihood of wiring errors. Improper

connections can prevent a system from responding

properly in the event of a re.

N550-01-00 2 I56-646-02R N550-01-00 3 I56-646-02R

NOTE: IF A REMOTE ANNUNCIATOR

IS NOT USED, POLARITY OF

THESE TERMINALS MAY BE

REVERSED.

A78-1175-03

Figure 3A. Activating Tamper-resistance Feature Figure 3B. Removing Detector Head from Base

PLASTIC LEVER

BREAK TAB AT

DOTTED LINE BY

TWISTING TOWARD

CENTER OF BASE.

USE SMALL-BLADED

SCREWDRIVER TO

PUSH PLASTIC LEVER

IN DIRECTION OF

ARROW.

PLASTIC LEVER

BREAK TAB AT

DOTTED LINE BY

TWISTING TOWARD

CENTER OF BASE.

USE SMALL-BLADED

SCREWDRIVER TO

PUSH PLASTIC LEVER

IN DIRECTION OF

ARROW.

REMOTE

ANNUNCIATOR

REMOTE

ANNUNCIATOR

2-WIRE CONTROL PANEL

CLASS A OPTIONAL WIRING

Figure 2. Wiring Diagram for a Typical 2-Wire Detector System.

this. After the detector base is wired and attached to the electrical box, position the shorting spring against terminal 3.

Use the slot in the retaining clip to hold the spring against the terminal, as shown in Figure 1. This shorts the negative-in

and negative-out leads so that loop wiring can be tested for continuity.

The shorting spring in the base will disengage automatically when the detector head is removed from the base. DO NOT

remove the shorting spring since it reengages as the detector head is turned into the base, completing the circuit.

TAMPER-RESISTANCE FEATURE

NOTE: DO NOT use the tamper-resistance feature if the XR2 Removal Tool will be used to remove detectors from the

base.

This detector base can be made tamper resistant so that the detector cannot be detached without the use of a tool. To

make the base tamper-resistant, break off the smaller tab at the scribed line on the tamper resistant tab located on the

detector mounting bracket (see Figure 3A), before installing the detector.

To remove the detector from the base after it has been made tamper resistant, remove the decorative ring by rotating it in

either direction and pulling it away from the base. Then, insert a small screwdriver into the notch, as indicated in Figure

3B, and press the plastic lever toward the mounting surface before rotating the detector counterclockwise for removal.

A78-1175-04

For signal wiring (the wiring between interconnected detectors), it is recommended that the wire be no smaller than AWG

18. However, the screws and clamping plate in the base can accommodate wire sizes up to AWG 12. The use of twisted

pair wiring for the power (+ and -) loop is recommended to minimize the effects of electrical interference.

NOTE: To ensure that electrical connections are supervised, do NOT loop wires under terminals 2, 3, and 5 - break the

wire at each terminal.

To make electrical connections, strip approximately 3/8" (1 cm) insulation from the end of each wire. Slide the wires under

the clamp plate and tighten the terminal screw.

Check the zone wiring before installing the smoke detector head. The built-in shorting spring makes it convenient to do

www.PDF-Zoo.com
