NovaStar MCTRL300 Manuale utente

MCTRL300

Independent Controller

Specifications

Product Version:

V2.3.1

Document No.

NS110100858

XI'AN NOVASTAR TECH CO.,LTD.

www.novastar.tech

No part of this document may be copied, reproduced, extracted or transmitted in any form or by any

means without the prior written consent of Xi'an NovaStar Tech Co., Ltd.

Trademark

is a trademark of Xi'an NovaStar Tech Co., Ltd.

Statement

You are welcome to use the product of Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as

NovaStar). This document is intended to help you understand and use the product. For accuracy and

reliability, NovaStar may make improvements and/or changes to this document at any time and without

notice. If you experience any problems in use or have any suggestions, please contact us via contact

info given in document. We will do our best to solve any issues, as well as evaluate and implement any

suggestions.

XI'AN NOVASTAR TECH CO.,LTD.

MCTRL300 Independent Controller

Specifications

Change History

www.novastar.tech

Change History

Version

Release Date

Description

V2.3.1

2019-10-31

Updated the dimensions diagram.

V2.3.0

2019-05-15

Updated document style.

Optimized document content.

XI'AN NOVASTAR TECH CO.,LTD.

MCTRL300 Independent Controller

Specifications

Contents

www.novastar.tech

iii

Contents

Change History ..................................................................................................................ii

Contents............................................................................................................................iii

1 Overview..........................................................................................................................1

2 Features...........................................................................................................................1

2.1 Features....................................................................................................................................................... 1

2.2 Video Formats ............................................................................................................................................. 1

3 Appearance .....................................................................................................................2

3.1 Front Panel.................................................................................................................................................. 2

3.2 Rear Panel................................................................................................................................................... 2

4 Dimensions .....................................................................................................................4

5 Specifications .................................................................................................................5

6 FCC Caution....................................................................................................................6

XI'AN NOVASTAR TECH CO.,LTD.

MCTRL300 Independent Controller

Specifications

1 Overview

www.novastar.tech

1 Overview

The MCTRL300, one of the M3 series independent controllers of NovaStar, supports

video and audio input. After decoding and data processing, videos and audios can be

sent to the screen via Ethernet port. A single controller supports resolutions up to

2048×668@60Hz. It communicates with the computer via USB port, which is

convenient to use.

The MCTRL300 can be mainly used for the rental and fixed fields, such as live events,

security monitoring centers and various sports centers.

XI'AN NOVASTAR TECH CO.,LTD.

MCTRL300 Independent Controller

Specifications

2 Features

www.novastar.tech

2 Features

2.1 Features

1 ×DVI input

1 ×audio input

1 ×type-B USB control port

UART control ports to cascade devices for uniform control

Dual Ethernet outputs

Supports the new generation of NovaStar calibration technology, which is fast

and efficient.

1 ×light sensor connector

Supports resolutions up to 2048×668@60Hz and downward compatibility.

Supports a variety of video formats, as described in Figure 2-1.

2.2 Video Formats

Figure 2-1 Video formats

Input Connector

Bit Depth

Sampling Format

Maximum Input Resolution

DVI

8-bit

RGB 4:4:4

1920×1200@60Hz

XI'AN NOVASTAR TECH CO.,LTD.

MCTRL300 Independent Controller

Specifications

3 Appearance

www.novastar.tech

3 Appearance

3.1 Front Panel

3.2 Rear Panel

Connector

Name

Description

Input

DVI IN

Single-link DVI connector

Resolution up to 1920×1200@60Hz and downward

compatible

Custom resolutions supported:

Resolution with maximum width: 3840×600@60Hz

Resolution with maximum height: 800×2560@60Hz

AUDIO

Audio input connector

Output

RJ45 ×2

2 Gigabit Ethernet outputs

Maximum loading capacity of a single Ethernet port:

650,000 pixels

Support redundancy between Ethernet ports.

Function

LIGHT

SENSOR

Connect to light sensor to monitor ambient brightness to

realize automatic screen brightness adjustment.

XI'AN NOVASTAR TECH CO.,LTD.

MCTRL300 Independent Controller

Specifications

3 Appearance

www.novastar.tech

Connector

Name

Description

Control

UART

IN/OUT

Input and output ports for cascading devices

USB

Type-B USB control port for connecting to PC

Power

AC 100V-240V~50/60Hz

Indicators

RUN

Device operating indicator. Working status:

Flashing slowly: Video input unavailable

Flashing normally: Video input available

Flashing rapidly: The screen is displaying startup image.

Breathing: Ethernet port redundancy has taken effect.

STATUS

Device power indicator. Working status:

On: The power supply is normal.

Off: The power is not supplied, or the power supply is abnormal.

XI'AN NOVASTAR TECH CO.,LTD.

MCTRL300 Independent Controller

Specifications

4 Dimensions

www.novastar.tech

4 Dimensions

Unit: mm

XI'AN NOVASTAR TECH CO.,LTD.

MCTRL300 Independent Controller

Specifications

5 Specifications

www.novastar.tech

5 Specifications

Electrical

Parameters

Input voltage

AC 100 V–240 V, 50/60 Hz

Rated power

consumption

10 W

Operating

Environment

Temperature

-20°C–60°C

Humidity

0% RH–90% RH, non-condensing

Physical

Specifications

Dimensions

204 mm ×160 mm ×48 mm

Net weight

1.04 kg

Space

Requirement

Packing

Information

Packing box

280 mm ×210 mm ×120 mm, craft paper box

printed with NOVASTAR

1 ×power cord

1 ×cascading cable (1 meter)

1 ×USB cable

1 ×DVI cable

Certifications

EAC, RoHS, EMC, FCC, IC, LVD, PFOS

XI'AN NOVASTAR TECH CO.,LTD.

Indice

Altri manuali NovaStar Controllori

NovaStar

NovaStar NovaPro HD Manuale utente

NovaStar

NovaStar MCTRL R5 Manuale utente

NovaStar

NovaStar NovaPro UHD Manuale utente

NovaStar

NovaStar nova3D HD Manuale utente

NovaStar

NovaStar NovaPro HD Manuale utente

NovaStar

NovaStar MX6000 Pro Manuale utente

NovaStar

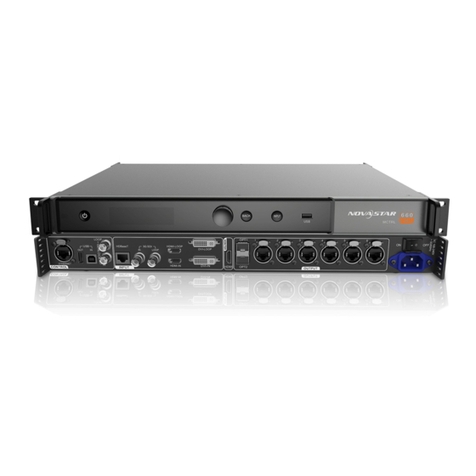

NovaStar MCTRL660 PRO Manuale utente
