Novatel Ovation U727 Manuale utente

Getting started guide

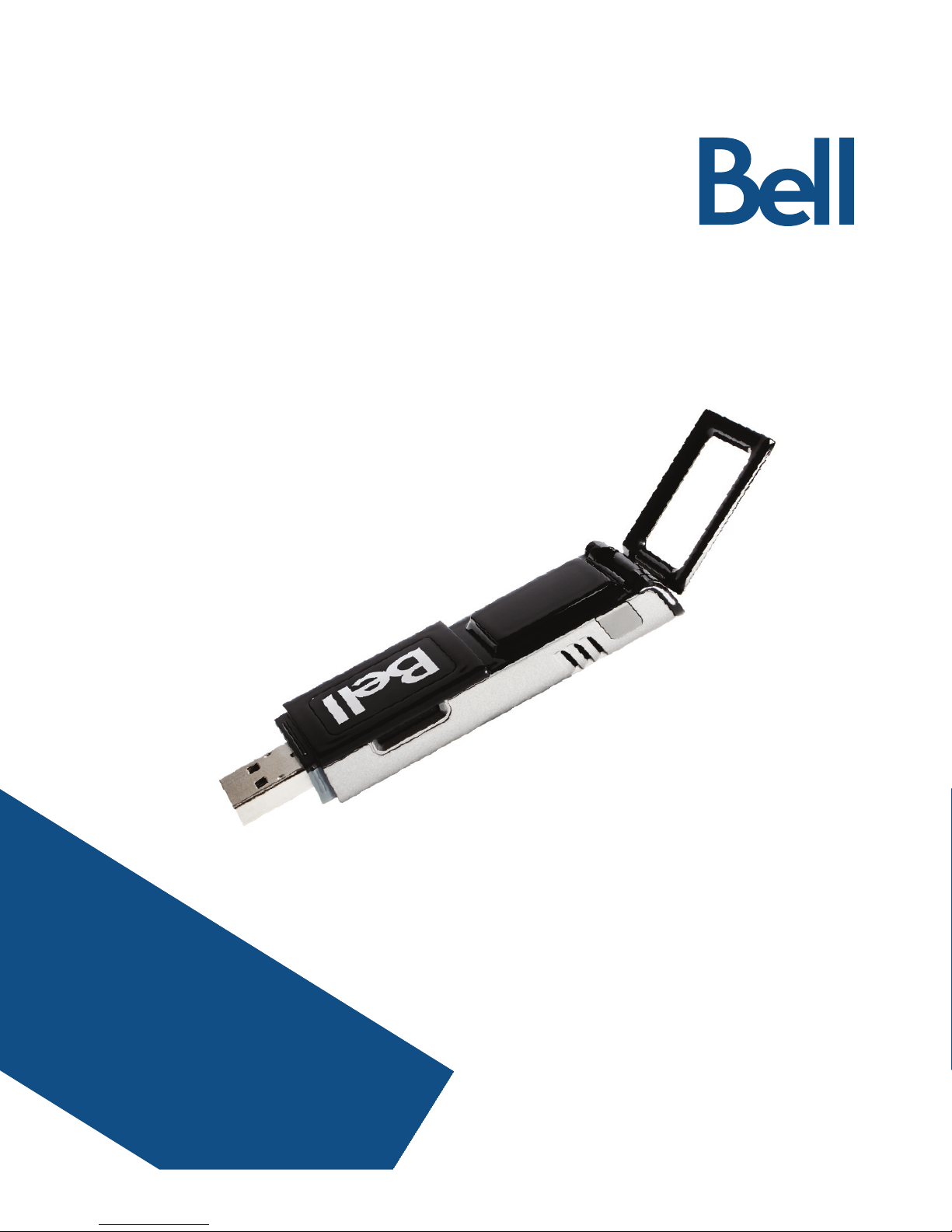

3G Novatel Wireless

U727 USB modem

Please note that using your Mobile Internet Stick to transmit data on

a pay per use basis will result in per megabyte data usage charges at

the Bell Mobility rates current at the time of usage. THESE FEES CAN

BE HIGH.

We encourage you to minimize these changes by subscribing to a data

plan that includes sufﬁcient data usage for your individual needs. Data

plans are available at a variety of included usage levels. Usage over

that which is included in your individual plan, is also charged at the per

megabyte rate identiﬁed in your plan.

Finally please note data roaming rates may apply if you are

transmitting data through your Mobile Internet Stick on one of Bell

Mobility’s roaming partners’ network. THESE FEES VARY WIDELY. PLEASE

ENSURE YOU ARE FAMILIAR WITH THESE RATES WHEN PLANNING TO

TRANSMIT DATA ON A BELL ROAMING PARTNER NETWORK.

Visit bell.ca/coverage for more information.

Visit: bell.ca/datapricing or call 1 866 235-5249

(1 866 BELL-BIZ) for more information.

Important information about data usage charges

Thank you for purchasing the 3G Novatel Wireless U727 USB modem

from Bell. This two-in-one Mobile Internet Stick with memory storage

(microSD card sold separately) will enable you to connect to the

Internet using the 3G network and have access to storage space at

your fingertips.

This guide provides an overview of your new device and details on

how to configure your computer for use with this Mobile Internet Stick.

• Gettingstarted

• InstallingtheMobileConnectBasicsoftware

• ActivatingyourMobileInternetStick

• UsingyourMobileInternetStick

• Hardwareoverview

• Troubleshooting

Welcome

Getting started

Before activating your Mobile Internet Stick, ensure you have the

following:

• ABellwirelessaccountwithadatarateplan(Ifyoudon’thavean

account or a data rate plan, go to your nearest Bell store, Bell wireless

dealer or speak with a Bell account representative to get set up.)

• YourMobileDirectoryNumber(MDN)/

phone number

• YourMobileStationID(MSID)

• YourUnlockKey

• YourElectronicSerialNumber(ESN),

located on the device bar code label

SYSTEM REQUIREMENTS To install and operate the Mobile Internet Stick, ensure

your computer has the following system resources:

Operating system

USB ports

Communication ports

I/O Resources

Memory

Disk space

Disk drives

Microsoft® Windows XP or Windows Vista™

1 type A USB port

2 free COM ports

1 IRQ, 4,096 bytes of I/O space

128 MB

20 MB

CD-ROM drive

Installing the Mobile Connect Basic software

Mobile Connect Basic from Bell is a software application that allows

you to manage your wireless connections over the 3G network. This

software is preloaded onto the Mobile Internet Stick and can be

installed on your computer; no CD required.

Under the Start Menu, select Control Panel. A new window will open

up; select User Accounts & Family Safety, then select User Accounts

and then Turn User Account Control on or off. Lastly, deselect Use User

Account Control (UAC) to help protect your computer, and click OK.

You may need to restart your computer.

1. Insert the Mobile Internet Stick into an available USB port on your

computer. You will be prompted to install Mobile Connect Basic.

2. Follow the Mobile Connect Basic InstallShield® Wizard. It will guide

you through the process of installing the Mobile Connect Basic

application. Use the Next and Back buttons to navigate through the

installation. To continue with the installation, you must click Agree to

accept the terms of the License Agreement.

3. Select Restart or Finish to complete the installation. Once the

installation procedure is complete, you may be required to restart your

computer. If a restart is not required, Mobile Connect Basic will launch

automatically. If your computer restarts, launch the Mobile Connect

Basic application by clicking on the Mobile Connect Basic desktop icon.

Select Install/Run Mobile Connect Basic. If this prompt does not appear, you

can manually install the software by selecting Start > Run > d:\setup.exe.

Note: The drive letter assigned to the USB modem by the computer’s

operating system may be different (e:\, f:\, g:\, etc.).

4. When Mobile Connect Basic runs, it will check if your Mobile Internet

Stick has been activated. The modem must be activated to operate

on the Bell Mobility network. Mobile Connect Basic will begin the

automatic activation process.

Activating your Mobile Internet Stick

The automatic activation process will make a connection to the Bell

Mobility network. Should the process fail, Mobile Connect Basic will

prompt you to retry the activation or to try manual activation.

For manual activation, you will need the following information:

• YourMobileDirectoryNumber(MDN)/phonenumber

• YourMobileStationID(MSID)

• YourUnlockKey

This information can be provided by your nearest Bell store, Bell

wireless dealer or account representative. Enter this information when

prompted by Mobile Connect Basic.

The Activation Wizard will prompt you to enter your Unlock Key. Type

the six-digit number into the ﬁeld provided and click Next.

The Activation Wizard will also prompt you to enter your Mobile

Directory Number (MDN) and Mobile Station ID (MSID). Enter these two

numbers into the ﬁelds provided.

5. After successful ﬁrst-time activation, Mobile Connect Basic is now

ready to use. The main screen will appear.

To disconnect, click the Disconnect button.

The Mobile Connect Basic main program window indicates the status

of the Mobile Internet Stick and enables you to establish a network

connection. Some of the key indicators and buttons include:

To connect to the Internet, click the Connect button on the Mobile

Connect Basic main program window.

Using your Mobile Internet Stick

Note: To disable roaming and only connect to the Bell Mobility network,

select Home Only in the Roaming Selection entry in the Tools Menu.

A. Connect/Disconnect

B. Signal strength

C. Status display

D. Usage counters

E. Minimize button

F. Tools menu

G. Roaming indicator

Connect or disconnect from the Bell Mobility wireless network

Graphically illustrated Bell Mobility wireless network

signal status

Indicates the availability of the network and status of

current network connection

An overview of the data you have transmitted and received,

plus a total sum for your reference

Minimize Mobile Connect Basic to the Windows® System Tray

Select various conﬁguration options, set preferences or

reactivate your modem

Notiﬁcation that your network connection is with a Bell

partner network (roaming rates will apply)
