Quick start guide

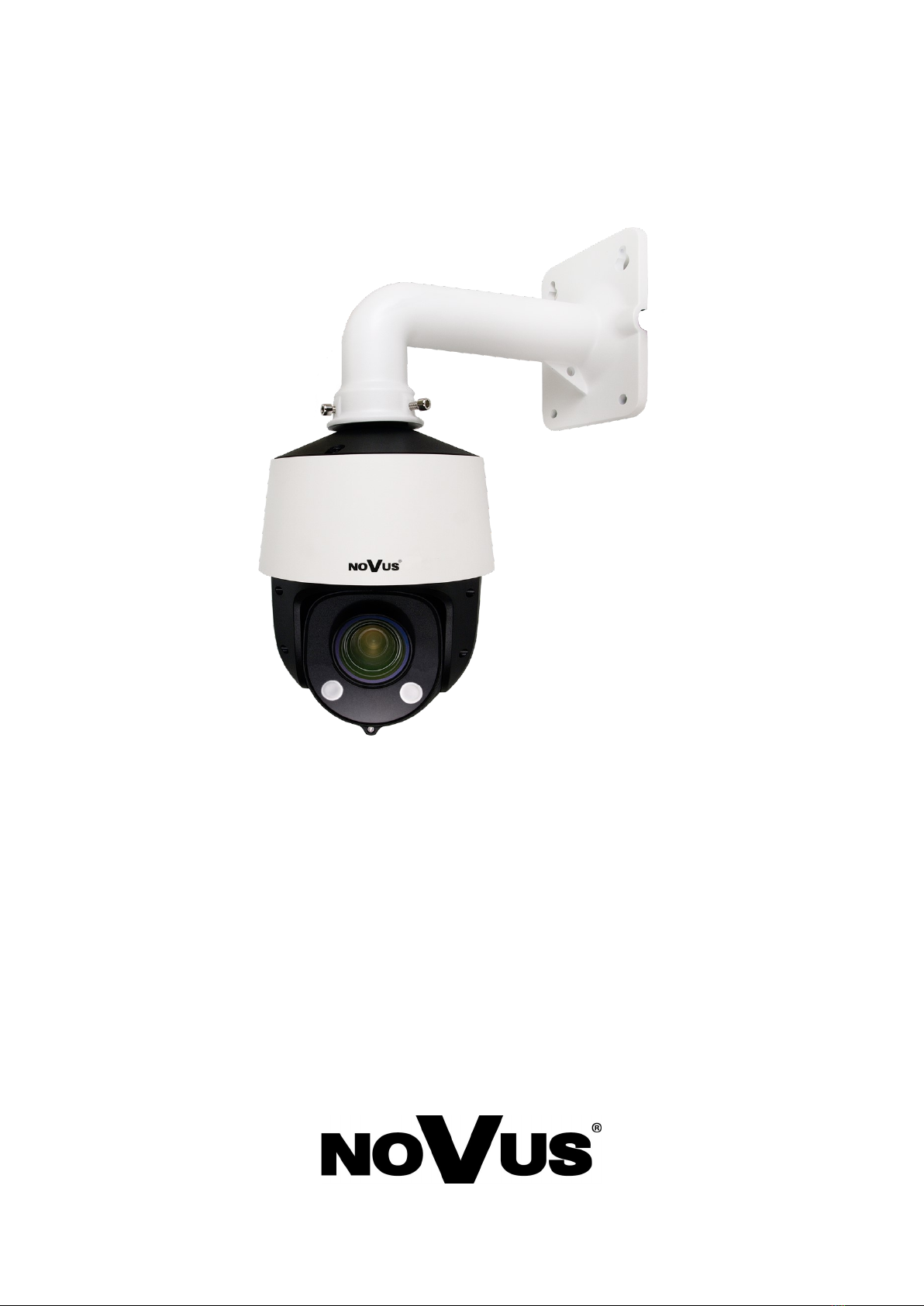

NVIP-2SD-6540/15

NVIP-2SD-6540/15 Quick start guide version 1.0

THE PRODUCT MEETS THE REQUIREMENTS CONTAINED IN THE FOLLOWING DIRECTIVES:

Exclusion of liability in the event of damage to data contained on disks or other devices or media:

The manufacturer is not liable in the event of damage or loss of data contained on disks or other

devices or carriers during the operation of the Product.

Obligation to consult the Manufacturer before performing any action not provided for in the

instruction manual or other documents:

Before performing an action that is not provided for a given Product in the user manual, other

documents attached to the Product or does not result from the normal purpose of the Product, it is

necessary, under pain of exclusion of the Manufacturer's liability for the consequences of such action,

to contact the Manufacturer.

CAUTIONS AND WARNINGS

Pictures in this publication showing camera views can be simulations. Actual camera

images may vary depending on the type, model, settings, observation area, or

environmental conditions.

DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIMENT AND OF THE

COUNCIL of 26 February 2014 on the harmonization of the laws of the Member States

relating to electromagnetic compatibility (OJ L 96, 29.3.2014, p. 79–106, with changes).

DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 4 July 2012 on waste electrical and electronic equipment WEEE)

(OJ L 197, 24.7.2012, p. 38–71, with changes).

DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substances in

electrical and electronic equipment (OJ L 174, 1.7.2011, p. 88–110, with changes).

COMMISION DELEGATED DIRECTIVE (EU) 2015/863 of 31 March 2015 amending

Annex II to Directive 2011/65/EU of the European Parliament and of the Council as regards

the list of restricted substances.

DIRECTIVE (EU) 2017/2102 OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 15 November 2017 amending Directive 2011/65/EU on the restriction of the

use of certain hazardous substances in electrical and electronic equipment.

NVIP-2SD-6540/15 Quick start guide version 1.0

1. Please read this manual carefully before installation and operation;

2. Please keep this manual for the lifespan of the device in case referring to the contents of this

manual is necessary;

3. It is necessary to comply with the safety requirements described in the manual, as they have a

direct impact on the safety of users and the durability and reliability of the device;

4. All activities performed by installers and users must be carried out as described in the manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. It is not allowed to use any additional devices, components or accessories not provided for and not

recommended by the manufacturer;

7. Do not install this device in places where proper ventilation cannot be provided (e.g. closed

cabinets, etc.), as this may cause heat build-up and may result in damage;

8. Do not place the device on unstable surfaces. Installation must be carried out by qualified

personnel with appropriate permissions in accordance with the recommendations provided in this

manual;

9. The device may be powered only from sources with parameters compliant with those indicated by

the manufacturer in the technical data;

SAFETY REQUIREMENTS

Before using the device, read the instruction manual in order to ensure proper and safe operation

of the device. Failure to comply with the instructions may lead to damage to the device and/or

safety violations.

The user may not repair the device himself. Repairs and maintenance of the device may only be

performed by qualified service personnel.

The device, which is an element of a professional CCTV system used for supervision and

control, is not intended for self-assembly in households by persons without specialist

knowledge.

As the product is constantly improved and optimised, some of its parameters and functions may have

changed from those described in this manual. If in doubt, please refer to the user manual at

www.novuscctv.com

The user manual located at www.novuscctv.com is always the most up-to-date version.

NVIP-2SD-6540/15 Quick start guide version 1.0

TABLE OF CONTENTS

1. FOREWORD INFORMATION .....................................................................................5

1.1. General characteristics.........................................................................................5

1.2. Technical specification .......................................................................................6

1.3. Camera dimension ..............................................................................................8

1.4. Package contents..................................................................................................8

2. START-UP AND INITIAL CONFIGURATION .........................................................9

2.1. Description of connectors....................................................................................9

2.2. Connecting ethernet cable ...................................................................................9

2.3. Description of the camera components .............................................................10

2.4. Protection against water ingress ........................................................................10

2.5. Wall mounting of the camera. ...........................................................................11

2.6. Starting the camera ............................................................................................12

2.7. Initial configuration via the web browser..........................................................13

2.8. Security recommendations for network architecture and configuration ...........14

3. NETWORK CONNECTION UTILIZING WEB BROSWER ................................15

3.1. Recommended PC specification for web browser connections .........................15

3.2. First connection to the camera via a web browser .............................................15

4. WEB INTERFACE - WORKING WITH THE CAMERA .......................................16

4.1. The remote preview interface.............................................................................16

5. SD CARD INSTALLATION .......................................................................................10

6. RESTORING FACTORY DEFAULTS .....................................................................20

6.1. Software factory reset.........................................................................................20

6.2. Software factory reset using the NMSiptool ......................................................20

6.3. Hardware factory reset ......................................................................................20

7. SPECIAL PRESETS.....................................................................................................20

8. CONFIGURATION OF OBJECT TRACKING OPTIONS ....................................22

TABLE OF CONTENTS

NVIP-2SD-6540/15 Quick start guide version 1.0

1. FOREWORD INFORMATION

1.1. General Characteristics

• Sensor resolution: 2 megapixels

• Mechanical IR cut filter, IR operation capability

• Min. Illumination from 0.00025 lx/F1.6 (0 lx with IR LED on)

• Wide Dynamic Range (WDR) for enhanced image quality in diverse light conditions

• Digital Slow Shutter (DSS)

• Digital Noise Reduction (DNR)

• Defog Function (F-DNR)

• Highlight Compensation (HLC)

• Back Light Compensation (BLC)

• Lens type: motorzoom with AF and AI, f=5 ~ 75 mm/F1.6 ~ F2.8

• Optical zoom: 15x

• Built-in IR LED illuminator

• 8 cruises (16 presets per cruise)

• 4 traces (up to 180 seconds each)

• 2 scan modes

• 360 presets

• Auto-flip - automatic camera rotation 180°

• The ability to control zoom, tilt and pan directly via the website and from the NOVUS

MANAGEMENT SYSTEM VSS program

• Motion detection

• Compression: H.264, H.264+, H.265, H.265+, MJPEG

• Max video processing resolution: 1920 x 1080

• Operation in 3-stream mode: ability to define compression, resolution, speed and quality for each

stream

• Content analysis based on Deep Learning

• The ability to track recognized objects

• Pre & post-alarm functions

• Built-in web server - the ability to view and configure camera settings via the website

• Support for micro SD memory cards up to 256 GB

• Possibility to broadly define the system's reaction to alarm events

• Degree of protection IP66

• Power supply: 12 VDC, PoE (IEEE 802.3af, Class 3)

FOREWORD INFORMATION

NVIP-2SD-6540/15 Quick start guide version 1.0

1.2. Technical specification

FOREWORD INFORMATION


Image Sensor 2 MPX CMOS sensor 1/2.8” SmartSens

Number of Eecve Pixels 1920 (H) x 1080 (V)

Min. Illuminaon

0.00125 lx/F1.6 - color mode,

0.00025 lx/F1.6 - B/W mode,

0 lx (IR on) - B/W mode

Electronic Shuer auto: 1 s ~ 1/100000 s

Digital Slow Shuer (DSS) up to 1 s

Wide Dynamic Range (WDR) yes (double scan sensor), 128dB

Digital Noise Reducon (DNR) 2D, 3D

Highlight Compensaon (HLC) yes

Back Light Compensaon (BLC) yes

Reducon of image icker (Anicker) yes

LENS

Opcal Zoom 15x

Lens Type motorized, auto-iris funcon, f=5 ~ 75 mm/F1.6 ~ F2.8

Auto-focus zoom trigger, day/night mode trigger, manual trigger

DAY/NIGHT

Switching Type mechanical IR cut lter

Switching Mode auto, manual, me

Switching Level Adjustment yes

Switching Schedule yes

Visible Light Sensor yes

NETWORK

Stream Resoluon 1920 x 1080 (Full HD), 1280 x 720 (HD), 704 x 576, 640 x 480 (VGA),

480 x 240, 352 x 288 (CIF)

Frame Rate 30 fps for each resoluon

Mulstreaming Mode 3 streams

Video/Audio Compression H.264, H.264+, H.265, H.265+, MJPEG/-

Number of Simultaneous Connecons max. 10

Bandwidth 40 Mb/s in total

Network Protocols Support HTTP, TCP/IP, IPv4/v6, UDP, HTTPS, FTP, DHCP, DNS, DDNS, NTP, RTSP, RTP,

UPnP, SNMP, QoS, IEEE 802.1X, PPPoE, SMTP, RTCP, HTML5

ONVIF Protocol Support Prole S/G/T

Camera Conguraon from Internet Explorer, Firefox, Chrome, Opera, Edge browser

languages: Polish, English, and others

Compable Soware NOVUS MANAGEMENT SYSTEM VSS, NOVUS MANAGEMENT SYSTEM AC,

N Control 6000

Mobile applicaons SuperLive Plus (iPhone, Android)

NVIP-2SD-6540/15 Quick start guide version 1.0

FOREWORD INFORMATION

PTZ

Preset Commands 360 including 21 special (funcon) presets

Tours 8 (up to 16 presets per tour)

Paerns 4 (max. 180 s for each paern)

Tilt/Pan Range -10° ~ 90°/360° (connuous)

Pan/Tilt Speed up to 80°/s (proporonal to zoom)

Preset Speed up to 80°/s

OTHER FUNCTIONS

Privacy Zones 4 video mask type: single color

Moon Detecon yes

Video Content Analysis (VCA)

tamper, line cross, zone entrance, zone exit, Scene Change,

Video Blurred, Video Color Cast, objects disnguishing,

objects tracking, intrusion detecon

Image Processing vercal ip, horizontal ip

Prealarm/Postalarm up to 6 s/up to 120 s

System Reacon to Alarm Events e-mail with aachment, saving le on FTP server, saving le

on SD card, object tracking

Restoring default sengs via web browser, using reset buon, via NMS IPTool soware

IR LED

LED Number 6

Range up to 200 m (depends on current opcal zoom value)

Smart IR yes (hardware support)

INTERFACES

Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s

Memory Card Slot microSD - capacity up to 256GB

INSTALLATION PARAMETERS

Dimensions (mm) 173 (Ф) x 268 (H) with bracket: 173 (W) x 415 (H) x 300 (L)

Weight 2.1 kg with bracket: 2.8 kg

Degree of Protecon IP 66 (details in the user’s manual)

Enclosure aluminium, white, IK10 impact rang, in set: outdoor housing

(integrated with the camera), wall mount bracket

Power Supply 12 VDC, PoE (IEEE 802.3af, Class 3)

Surge protecon TVS 6000 V

Power Consumpon 8 W, 12 W (IR illuminator on)

Operang Temperature -30°C ~ 65°C

Humidity max. 90%, relave (non-condensing)

NVIP-2SD-6540/15 Quick start guide version 1.0

FOREWORD INFORMATION

1.3. Camera dimensions

1.4. Package contents

After you open the package make sure that the following elements are inside:

• IP camera

• Wall mount

• Accessories bag

• Quick start guide

If any of this elements has been damaged during transport, pack all the elements back into the original

box and contact your supplier for further assistance.

Caution!

If the device was brought from a location with lower temperature, please wait until it reaches the

temperature of location it is currently in. Turning the device on immediately after bringing it from a

location with lower ambient temperature is forbidden, as the condensing water vapour may cause

short-circuits and damage the device as a result.

NVIP-2SD-6540/15 Quick start guide version 1.0

START-UP AND INITIAL CONFIGURATION

2.START-UP AND INITIAL CONFIGURATION

Before starting the device familiarize yourself with the description and the role of particular

inputs, outputs and adjusting elements that the device is equipped with.

2.2. Connecting ethernet cable

To maintain tightness of ethernet cable connection, please follow instruction below:

1. Unscrew the nut (b) from the connector cover (a), put the sealing ring on the socket (c)

2. Route the network cable through parts (a) and (b). Insert the RJ-45 plug into the socket (c)

3. Screw the connector cover (a) onto the socket (c). Press the cable seal (d) into the upper part of the

connector cover (a) as far as it will go - the seal has a cut enabling it to be put on the cable.

4. Tighten the nut (b) as far as it will go.

2.1. Description of connectors

1. 100 Mb/s Ethernet port (RJ-45

connector)

2. 12 VDC Power connector

3. Grounding

NVIP-2SD-6540/15 Quick start guide version 1.0

2.2. Power supply connection

The camera can be powered from a commercially available DC power supply, provided that it meets

the technical requirements of the camera. The source must provide stabilized 12VDC voltage, must

allow the consumption of at least 15W of power, and have a barrel DC 2.1/5.5 plug with the correct

polarity of the contacts:

It is also possible to power the camera via the RJ45 network socket, using PoE technology (IEEE

802.3af, Class 3).

Caution!

Do not use power supplies and POE adapters that do not comply with the IEEE 802.3af standard,

the so-called "passive POE" power supplies. Damage resulting from the use of an unsuitable

adapter is not covered by the warranty!

2.3 Protection against water ingress

The declared degree of protection applies only to camera housing and the location where the

connection cable enters the inside of the housing.

This means that the connection cable, including sockets, connectors, switches, buttons, and other

elements on this cable, as well as other camera equipment/construction elements (such as hoods,

brackets, supports, etc.), are not waterproof. It is the responsibility of the person installing the camera

to protect the elements that require it (and in any case the connection cable) against moisture.

The manufacturer is not responsible for any damages or camera malfunctions resulting from failure to

comply with the above obligation, which also means that they are not covered by the warranty repairs.

The RJ-45 socket cover included in the camera accessories (depending on the version/model) is not a

water protection element. Its purpose is to protect against the ingress of dust and atmospheric moisture

into the socket and prevent accidental disconnections by mechanically stabilizing the network plug in

the RJ-45 socket.

START-UP AND INITIAL CONFIGURATION

Illustrave drawing

Water protected area Area that needs to be sealed

during installaon

Indice

Lingue:

Altri manuali Novus Macchina fotografica digitale

Novus

Novus NVIP-5DN3512H/IR-1P Manuale utente

Novus

Novus 5000 Series Manuale utente

Novus

Novus NVDN-601D/IR-white Manuale utente

Novus

Novus NVC-125B Manuale utente

Novus

Novus NVIP-4DN3514V/IR-1P Manuale utente

Novus

Novus NVAHD-1DN5106H/IR-1 Manuale utente

Novus

Novus NVC-BC2403D-II Manuale utente

Novus

Novus NVAHD-2DN5504MH/IR-1-II Manuale utente

Novus

Novus NVAHD-2DN3201MV/IR-1-PIR Manuale utente

Novus

Novus NVAHD-1DN5104H/IRH-2 Manuale utente

Novus

Novus NVAHD-2DN5102H/IR-1 Manuale utente

Novus

Novus NVAHD-2DN5504MD/IR-1 Manuale utente

Novus

Novus NVC-621D-white Manuale utente

Novus

Novus NVIP-4DN3500C-2P Manuale utente

Novus

Novus NVAHD-1DN5301V-1 Manuale utente

Novus

Novus 400 Series Manuale utente

Novus

Novus NVB-4010VB Manuale utente

Novus

Novus NVAHD-4DN3202V/IR-1-II Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
