Novus NVIP-6DN3618V/IR-1P Manuale utente

User’s ma n ua l

(s h o rt fo rm )

NVIP-6DN3618V/IR-1P

NVIP-6DN3618V/IR-1P User’s manual ver.1.0

IMPORTANT SAFEGUARDS AND WARNINGS

EMC (2014/30/EU) and LVD (2014/35/EU ) Directives

CE Marking

Our products are manufactured to comply with the requirements of the following directives and

national regulations implementing the directives:

• Electromagnetic compatibility EMC 2014/30/EU.

• Low voltage LVD 2014/35/EU with further amendment. The Directive applies to electrical

equipment designed for use with a voltage rating of between 50VAC and 1000VAC as well

as 75VDC and 1500VDC.

WEEE 2012/19/EU

Information on Disposal for Users of Waste Electrical and Electronic Equipment

This appliance is marked according to the European Directive on Waste Electrical and

Electronic Equipment (2012/19/EU) and further amendments. By ensuring this product is

disposed of correctly, you will help to prevent potential negative consequences for the

environment and human health, which could otherwise be caused by inappropriate waste handling of

this product.

The symbol on the product, or the documents accompanying the product, indicates that this appliance

may not be treated as household waste. It shall be handed over to the applicable collection point for

used up electrical and electronic equipment for recycling purpose. For more information about

recycling of this product, please contact your local authorities, your household waste disposal service

or the shop where you purchased the product.

RoHS Directive 2011/65/EU

Out of concern for human health protection and friendly environment, we assure that our

products falling under RoHS Directive regulations, regarding the restriction of the use of

hazardous substances in electrical and electronic equipment, have been designed and

manufactured in compliance with the above mentioned regulations. Simultaneously, we

claim that our products have been tested and do not contain hazardous substances whose

exceeding limits could have negative impact on human health or natural environment.

Information

The device, as a part of professional CCTV system used for surveillance and control, is not designed

for self installation in households by individuals without technical knowledge.

The manufacturer is not responsible for defects and damages that result from improper or inconsistent

with user’s manual installation of the device in the system.

NVIP-6DN3618V/IR-1P User’s manual ver.1.0

IMPORTANT SAFEGUARDS AND WARNINGS

WARNING!

THE KNOWLEDGE OF THIS MANUAL AND FULL VERSION OF THE MANUAL IS AN

INDISPENSIBLE CONDITION OF A PROPER DEVICE OPERATION. YOU ARE KINDLY

REQEUSTED TO FAMILIARIZE YOURSELF WITH THE MANUAL PRIOR TO INSTALLATION

AND FURTHER DEVICE OPERATION.

WARNING!

USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER-

SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL

MAY OPEN THE UNIT

INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE

PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS

1. Prior to undertaking any action please consult the following manual and read all the safety and

operating instructions before starting the device.

2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual

is necessary;

3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct

influence on user’s safety and durability and reliability of the device;

4. All actions conducted by the servicemen and users must be accomplished in accordance with the

user’s manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. Usage of additional devices and components neither provided nor recommended by the producer is

forbidden;

7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools,

bath tubs, damp basements);

8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.)

is not recommended since it may lead to heat build-up and damaging the device itself as

aconsequence;

9. Mounting the camera on unstable surface or using not recommended mounts is forbidden.

Improperly mounted camera may cause a fatal accident or may be seriously damaged itself. The

camera must be mounted by qualified personnel with proper authorization, in accordance with this

user’s manual.

10. Device should be supplied only from a power sources whose parameters are in accordance with

those specified by the producer in the camera technical datasheet. Therefore, it is forbidden to

supply the camera from a power sources with unknown parameters, unstable or not meeting

producer’s requirements;

Due to the product being constantly enhanced and optimized, certain parameters and functions

described in the manual in question may change without further notice. We strongly suggest visiting

the www.novuscctv.com website in order to access the newest full version of the manual.

Data included in the following user’s manual is up to date at the time of printing. AAT Holding S.A.

holds exclusive rights to modify this manual. The producer reserves the rights for device specification

modification and change in the design without prior notice.

NVIP-6DN3618V/IR-1P User’s manual ver.1.0

1. FOREWORD INFORMATION

1.1. General Characteristics

• Imager resolution: 6.0 megapixels

• Mechanical IR cut filter

• IR operation capability

• Min. Illumination from 0.04 lx/F=2.5

• Wide Dynamic Range (WDR)

• Digital Noise Reduction (DNR)

• Lens type: fish eye lens, f=1.07mm, F=2.5

• Built-in IR illuminator, 6 LEDs

• 1 Alarm input and 1 alarm output

• Compression: H.264, H.265, MJPEG

• Max video processing resolution: 2160x2160

• Three streams

• RTSP protocol support for video transmission

• Built-in microphone

• Post-alarm function

• Built-in webserver: camera configuration through the website

• MicroSD card support

• Wide range of responses to alarm events: e-mail with attachment, triggering alarm output, saving

file on microSD card, HTTP notification

• Network protocol support : HTTP, TCP/IP, IPv4, UDP, FTP, DHCP, DDNS, NTP, RTSP,

PPPoE, SMTP

• Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring,

playback and remote IP devices administration

• Power supply: 12VDC, PoE (Power over Ethernet)

FOREWORD INFORMATION

NVIP-6DN3618V/IR-1P User’s manual ver.1.0

1.2. Specification

FOREWORD INFORMATION


Image Sensor 6 MPX CMOS sensor 1/2.9” SONY Exmor R STARVIS

Number of Effective Pixels 3096 (H) x 2202 (V)

Min. Illumination 0.1 lx/F2.5 - color mode,

0 lx (IR on) - B/W mode

Electronic Shutter auto: 1/25 s ~ 1/100000 s

Wide Dynamic Range (WDR) yes

Digital Noise Reduction (DNR) 2D, 3D

Highlight Compensation (HLC) yes

Back Light Compensation (BLC) yes

Lens

Lens Type fisheye, f=1.07 mm/F2.5

Day/Night

Switching Type mechanical IR cut filter

Switching Mode auto, manual, time

Switching Level Adjustment yes

Switching Schedule yes

Visible Light Sensor yes

Network

Stream Resolution 2160 x 2160, 1920 x 1920, 1440 x 1440, 960 x 960, 480 x 480

Frame Rate 30 fps for 2160 x 2160 and lower resolutions

Multistreaming Mode 3 streams

Video/Audio Compression H.264, H.265, MJPEG/G.711

Number of Simultaneous Connec-

tions max. 11

Bandwidth 16 Mb/s in total

Network Protocols Support HTTP, TCP/IP, IPv4, UDP, FTP, DHCP, DDNS, NTP, RTSP, PPPoE, SMTP

ONVIF Protocol Support Profile S/G

Camera Configuration from Internet Explorer browser

languages: Polish, English, Russian, and others

Compatible Software NMS

Other functions

Privacy Zones 4

Motion Detection yes

Prealarm/Postalarm -/up to 120 s

System Reaction to Alarm Events e-mail with attachment, saving file on FTP server, saving file on SD card, alarm

output activation

IR LED

LED Number 6

Range 30 m

Angle 120°

Interfaces

Video Output BNC, 1.0 Vp-p, 75 Ohm - maintenance only

Audio Input/Output 1 x Jack (3.5 mm)/1 x Jack (3.5 mm) built-in microphone,

Alarm Input/Output 1 (NO/NC)/1

Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s

Memory Card Slot microSD - capacity up to 128GB

NVIP-6DN3618V/IR-1P User’s manual ver.1.0

FOREWORD INFORMATION

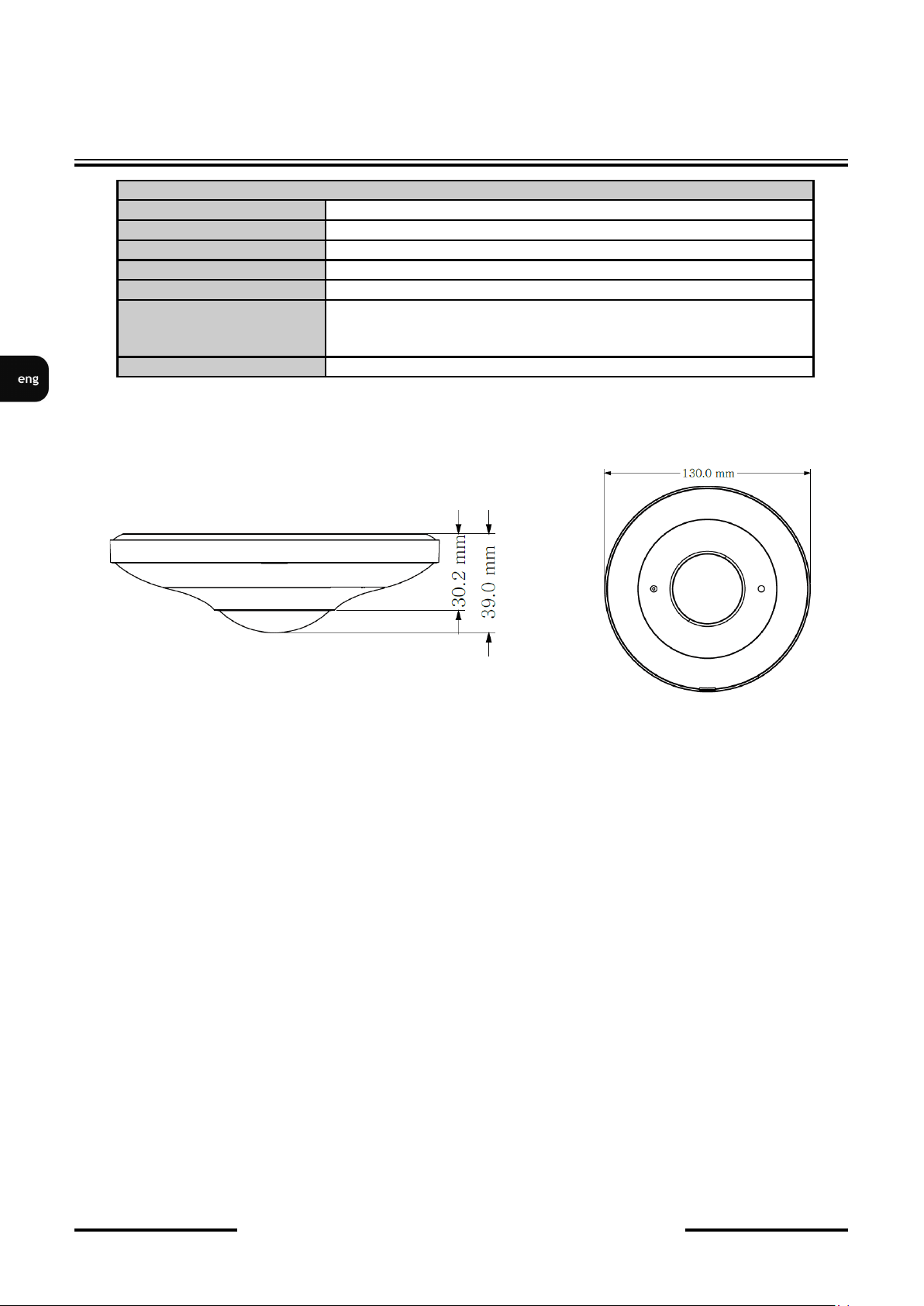

1.3. Camera dimensions

1.4. Package contents

After you open the package make sure that the following elements are inside:

• IP camera

• Accessories bag

• Short version of user’s manual

If any of this elements has been damaged during transport, pack all the elements back into the original

box and contact your supplier for further assistance.

Caution:

If the device was brought from a location with lower temperature, please wait until it reaches

the temperature of location it is currently in. Turning the device on immediately after bringing it

from a location with lower ambient temperature is forbidden, as the condensing water vapour

may cause short-circuits and damage the device as a result.

Before starting the device familiarize yourself with the description and the role of particular

inputs, outputs and adjusting elements that the device is equipped with.

Caution:

In order to provide protection against voltage surges/lightning strikes, usage of appropriate

surge protectors is advised. Any damages resulting from surges are not eligible for service

repairs.

Installation parameters

Dimensions (mm) 130 (Ф) x 39 (H)

Weight 0.45 kg

Degree of Protection IP 67

Enclosure vandalproof aluminium, white

Power Supply PoE, 12 VDC

Power Consumption 5 W,

14.5 W (IR on)

Operating Temperature -20°C ~ 50°C

NVIP-6DN3618V/IR-1P User’s manual ver.1.0

Caution:

It is forbidden to use – as the camera power source – PoE equipment (adapters, etc.) not compatible

with IEEE 802.3af standard (items called “passive PoE power supply”). Damages that results from

the usage of improper power supply source are not covered by the warranty.

Caution:

Camera connectors / sockets are not hermetic. The user should ensure their hermeticity on his

own.

Caution:

Please note that the wall or ceiling must have enough strength to support the IP Camera.

Caution:

In order to obtain declared degree of protection please seal the camera base to prevent water

getting inside. Furthermore, when installing the camera on rough/uneven surfaces, please

additionally seal the junction with appropriate sealing mass. Please pay special attention to any

mounting holes and if they are a loop-through ones, seal them too.

Caution:

The declared degree of protection of the camera relates to its housing and does not take into account

the possibility of moisture infiltration into the interior of the camera by connecting cables.

Connection cables protection through i.e. sealing up is the responsibility of the camera installer. The

manufacturer is not liable for any damages to the camera caused as a result of failing in performing

that activity by installer, which also means that camera damaged in that way is not subject to

warranty repairs.

2. START-UP AND INITIAL IP CAMERA CONFIGURATION

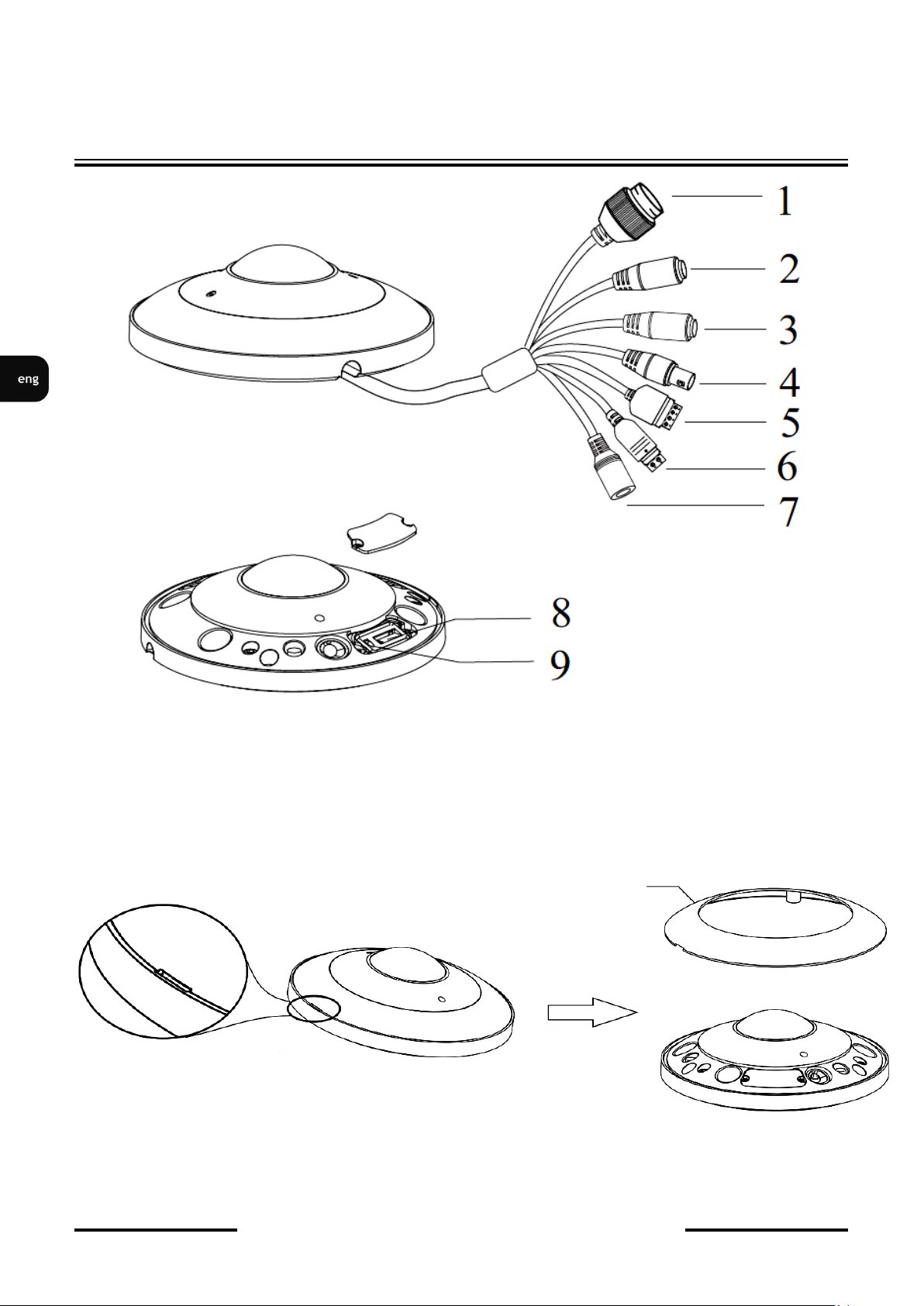

2.1. Description of connectors and control tools

1. 100 Mb/s Ethernet port (RJ-45)

2. Audio input (jack 3.5mm )

3. Audio output (jack 3.5mm )

4. Video output BNC - for service purpose

5. Alarm IN/OUT

6. RS-485

7. Power supply 12VDC

8. Reset button

9. MicroSD card slot

START-UP AND INITIAL IP CAMERA CONFIGURATION

NVIP-6DN3618V/IR-1P User’s manual ver.1.0

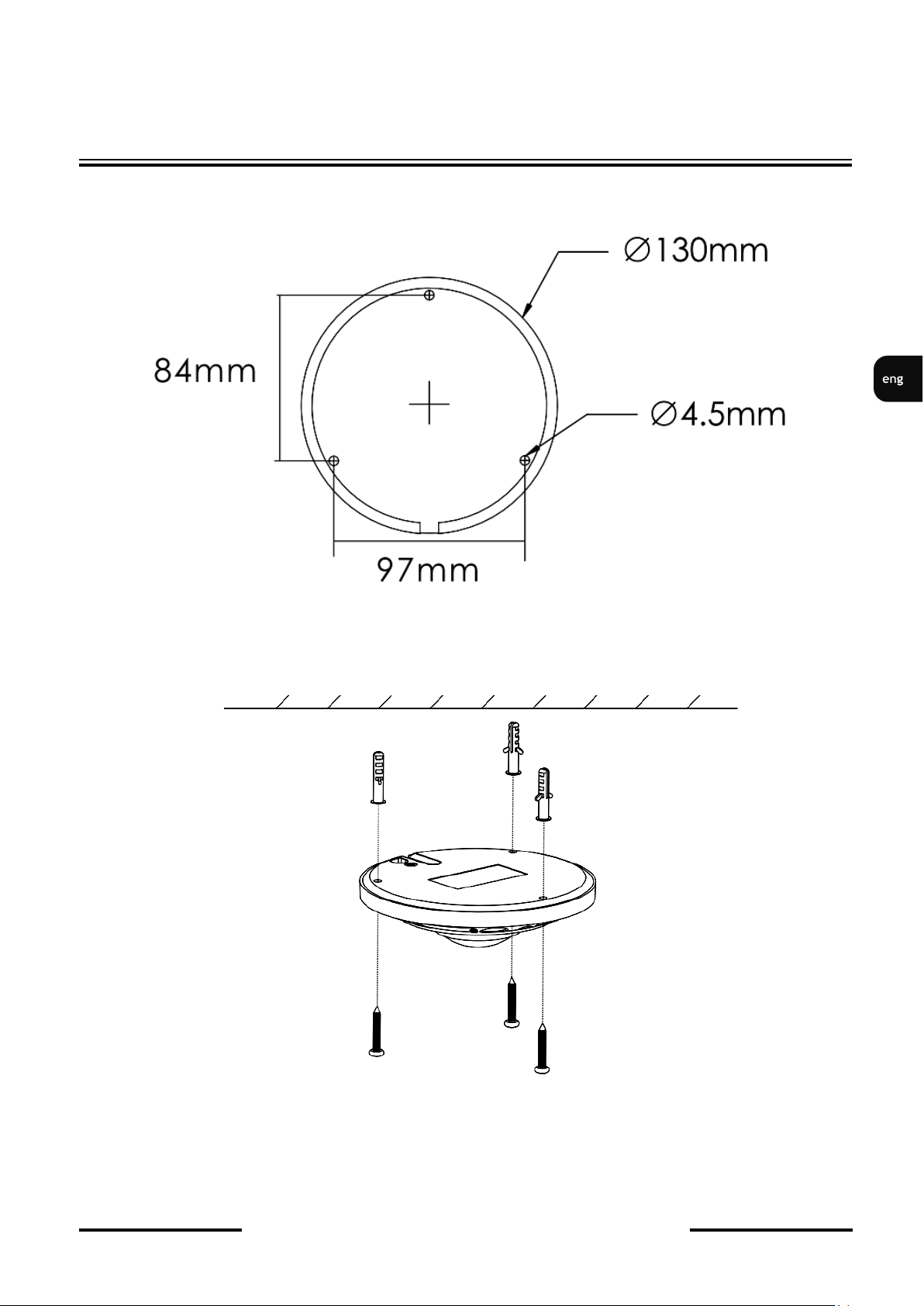

2.2. Camera mounting

Before installation, make sure that surface is strong enough to hold 3 times the weight of the camera.

1. Pry the magnetic cover (2) using the gap (1).

2. Use the mounting template or the camera base plate to mark holes for mounting screws.

START-UP AND INITIAL CAMERA CONFIGURATION

NVIP-6DN3618V/IR-1P User’s manual ver.1.0

3. Drill holes in marked places and optionally make an extra hole for camera cables.

4. Put the electric cable in place. Install the camera using included mounting screws.

5. Put the magnetic cover (2) on the camera.

START-UP AND INITIAL CAMERA CONFIGURATION

NVIP-6DN3618V/IR-1P User’s manual ver.1.0

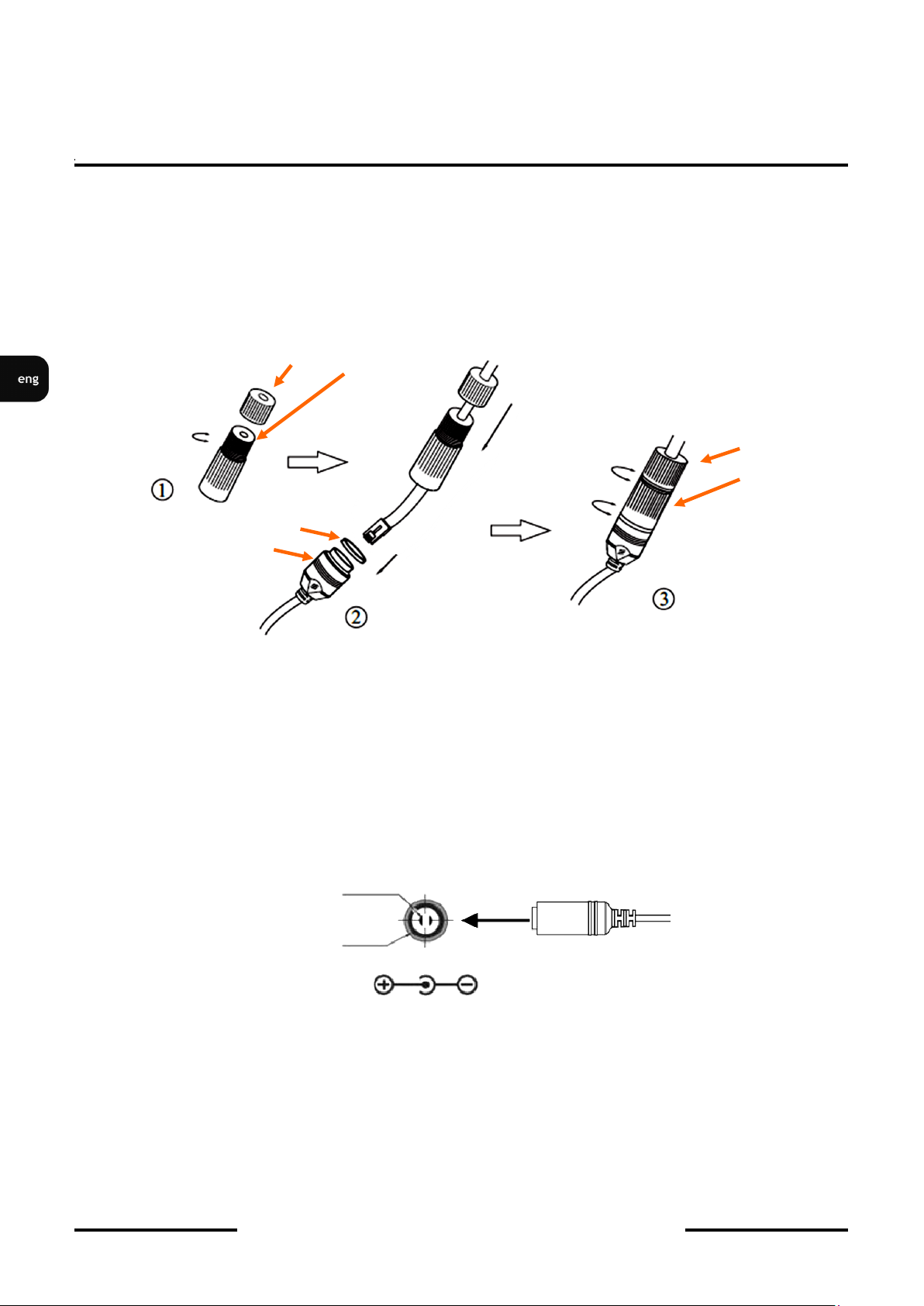

2.3. Connecting Ethernet cable

To maintain tightness of Ethernet cable connection, please follow instruction below:

1. Loosen the nut (a) from the main element (b).

2. Run power cable (without RJ-45 connector) though both elements. Then crimp the cable with RJ-45

connector. Install rubber gasket (d) on the connector (c).

3. Connect the cable to the waterproof connector (c), screw main cover (b), then screw the nut (a).

Caution: The other camera connectors are not waterproof. User should seal them by himself.

2.4. Connecting power supply to the camera.

The camera can be supplied by using RJ45 network socket or by power connector. To run NOVUS IP

camera you can connect ethernet cable between camera and network switch with PoE support (IEEE

802.3af). You can also use a power injector with (IEEE 802.3af) PoE standard. Use power supply with

parameters compatible with camera specification to power camera via power in jack.

Information:

Power supply adapter is not included. Please use power adapter with parameters specified in user’s

manual.

Caution : Make sure to follow the correct polarity if connecting the camera to DC power.

Polarity is marked on the power connector.

Caution: In order to provide protection against voltage surges/lightning strikes, usage of

appropriate surge protectors is advised. Any damages resulting from surges are not eligible for

service repairs.

START-UP AND INITIAL CAMERA CONFIGURATION

12 VDC +

GND

12 VDC power supply connector scheme

Indice

Lingue:

Altri manuali Novus Telecamera di sicurezza

Novus

Novus NVIP-2H-6201 Manuale utente

Novus

Novus NVIP-2DN3034AV/IR-1P Manuale utente

Novus

Novus NVC-422D Manuale utente

Novus

Novus NVIP-5DN2004H/IR-1P-II Manuale utente

Novus

Novus NVIP-2DPT-8731/30/T Manuale utente

Novus

Novus NVDN-401H/IR Manuale utente

Novus

Novus NVIP-1DN3040H/IR-1P Manuale utente

Novus

Novus NVIP-2DN3030H/IR-1P Manuale utente

Novus

Novus NVIP-5VE-6401/F Manuale utente

Novus

Novus NVIP-2H-4231/PIR Manuale utente

Novus

Novus NVIP-4VE-6202-II Manuale utente

Novus

Novus NVIP-8H-6402M/F Manuale utente

Novus

Novus NVIP-2SD-6540/25/F Manuale utente

Novus

Novus NVH-200H/230 Manuale utente

Novus

Novus NVIP-2VE-6231-II Manuale utente

Novus

Novus NVIP-8VE-6201-II Manuale utente

Novus

Novus NVIP-6DN5022H/IRH-1P Manuale utente

Novus

Novus 800 Series Manuale utente

Novus

Novus NVIP-2DN5002V/IRH-1P Manuale utente

Novus

Novus NVIP-5H-4502M/F Manuale utente

Novus

Novus NVAHD-2DN5101MH/IR-1 Manuale utente

Novus

Novus NVIP-H-8501/T Manuale utente

Novus

Novus NVAHD-2DN3201MH/IR-1-PIR Manuale utente

Novus

Novus NVIP-2VE-6601-II Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
