Quick start guide

NVIP-8VE-4511/FWLAD

NVIP-8H-4511/FWLAD

NVIP-8VE-4511/FWLAD, NVIP-8H-4511/FWLAD Quick start guide version 1.1

THE PRODUCT MEETS THE REQUIREMENTS CONTAINED IN THE FOLLOWING DIRECTIVES:

Exclusion of liability in the event of damage to data contained on disks or other devices or media:

The manufacturer is not liable in the event of damage or loss of data contained on disks or other

devices or carriers during the operation of the Product.

Obligation to consult the Manufacturer before performing any action not provided for in the

instruction manual or other documents:

Before performing an action that is not provided for a given Product in the user manual, other

documents attached to the Product or does not result from the normal purpose of the Product, it is

necessary, under pain of exclusion of the Manufacturer's liability for the consequences of such action,

to contact the Manufacturer.

CAUTIONS AND WARNINGS

Pictures in this publication showing camera views can be simulations. Actual camera

images may vary depending on the type, model, settings, observation area, or

environmental conditions.

DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIMENT AND OF THE

COUNCIL of 26 February 2014 on the harmonization of the laws of the Member States

relating to electromagnetic compatibility (OJ L 96, 29.3.2014, p. 79–106, with changes).

DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 4 July 2012 on waste electrical and electronic equipment WEEE)

(OJ L 197, 24.7.2012, p. 38–71, with changes).

DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substances in

electrical and electronic equipment (OJ L 174, 1.7.2011, p. 88–110, with changes).

COMMISION DELEGATED DIRECTIVE (EU) 2015/863 of 31 March 2015 amending

Annex II to Directive 2011/65/EU of the European Parliament and of the Council as regards

the list of restricted substances.

DIRECTIVE (EU) 2017/2102 OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 15 November 2017 amending Directive 2011/65/EU on the restriction of the

use of certain hazardous substances in electrical and electronic equipment.

NVIP-8VE-4511/FWLAD, NVIP-8H-4511/FWLAD Quick start guide version 1.1

1. Please read this manual carefully before installation and operation;

2. Please keep this manual for the lifespan of the device in case referring to the contents of this

manual is necessary;

3. It is necessary to comply with the safety requirements described in the manual, as they have a

direct impact on the safety of users and the durability and reliability of the device;

4. All activities performed by installers and users must be carried out as described in the manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. It is not allowed to use any additional devices, components or accessories not provided for and not

recommended by the manufacturer;

7. Do not install this device in places where proper ventilation cannot be provided (e.g. closed

cabinets, etc.), as this may cause heat build-up and may result in damage;

8. Do not place the device on unstable surfaces. Installation must be carried out by qualified

personnel with appropriate permissions in accordance with the recommendations provided in this

manual;

9. The device may be powered only from sources with parameters compliant with those indicated by

the manufacturer in the technical data;

SAFETY REQUIREMENTS

Before using the device, read the instruction manual in order to ensure proper and safe operation

of the device. Failure to comply with the instructions may lead to damage to the device and/or

safety violations.

The user may not repair the device himself. Repairs and maintenance of the device may only be

performed by qualified service personnel.

The device, which is an element of a professional CCTV system used for supervision and

control, is not intended for self-assembly in households by persons without specialist

knowledge.

As the product is constantly improved and optimised, some of its parameters and functions may have

changed from those described in this manual. If in doubt, please refer to the user manual at

www.novuscctv.com

The user manual located at www.novuscctv.com is always the most up-to-date version.

NVIP-8VE-4511/FWLAD, NVIP-8H-4511/FWLAD Quick start guide version 1.1

FOREWORD INFORMATION

1. TECHNICAL SPECIFICATION COMMON TO BOTH CAMERAS


Image Sensor 8 MPX CMOS sensor 1/2.7” SmartSens

Number of Eecve Pixels 3840 (H) x 2160 (V)

Min. Illuminaon 0.002 lx/F1.0 - color mode,

0 lx (IR on) - B/W mode

Electronic Shuer auto/manual: 1/5 s ~ 1/20000 s

Digital Slow Shuer (DSS) up to 1/5 s

Wide Dynamic Range (WDR) yes

Digital Noise Reducon (DNR) 2D, 3D

Highlight Compensaon (HLC) yes

Back Light Compensaon (BLC) yes

Reducon of image icker (Anicker) yes

LENS

Lens Type xed focal, f=2.8 mm/F1.0

DAY/NIGHT

Switching Type mechanical IR cut lter

Switching Mode auto, manual, me

Switching Delay 1 ~ 36 s

NETWORK

Stream Resoluon

3840 x 2160 (4K Ultra HD), 3072 x 1728, 2592 x 1944, 2592 x

1520, 2560 x 1440 (QHD), 2304 x 1296, 1920 x 1080 (Full HD),

1280 x 960, 1280 x 720, 640 x 480 (VGA), 320 x 240

Frame Rate 20 fps for each resoluon

Mulstreaming Mode 3 streams (main stream, sub stream, third stream)

Video/Audio Compression H.264, H.264+, H.265, H.265+/G.711

Number of Simultaneous Connecons max. 3 connecons, (max. 40 streams in total)

Bandwidth 30 Mb/s in total

Network Protocols Support HTTP, TCP/IP, IPv4/v6, HTTPS, FTP, DHCP, DNS, DDNS, NTP,

RTSP, RTP, UPnP, SNMP, SMTP, P2P, HTML5

Camera Conguraon from Internet Explorer, Firefox, Chrome, Safari, Edge browser

languages: Polish, English, and others

Compable Soware NOVUS MANAGEMENT SYSTEM VSS,

NOVUS MANAGEMENT SYSTEM AC

Mobile applicaons RxCamView (iPhone, Android)

NVIP-8VE-4511/FWLAD, NVIP-8H-4511/FWLAD Quick start guide version 1.1

FOREWORD INFORMATION

OTHER FUNCTIONS

Privacy Zones 4 video mask type: single color

Moon Detecon yes

Region of interest (ROI) 8

Audio Detecon yes

Video Content Analysis (VCA)

abandoned object, object disappearance, line cross, zone

violaon, mul loiter, face detecon, cross counng, heat

map, queue length detecon, objects disnguishing, target

counng by area

Image Processing 180˚ image rotaon, vercal ip, horizontal ip

Prealarm/Postalarm up to 5 s/up to 30 s

System Reacon to Alarm Events

e-mail with aachment, saving le on FTP server, saving le

on SD card, saving in the cloud storage, push nocaon,

acve deterrent funcons

Determent

white LEDs, steady/ashing light, red and blue LEDs, ashing

light, audio signaling device (siren), built-in speaker

(predened or custom voice messages)

Restoring default sengs via web browser, using reset buon

IR LED

LED Number 1

Range 25 m

Smart IR yes (hardware support)

WHITE LIGHT ILLUMINATOR

LED Number 2, warm white color

Range 20 m

Smart Light yes (hardware support)

INTERFACES

Audio Input/Output built-in microphone/speaker

Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s

Memory Card Slot microSD - capacity up to 256GB

NVIP-8VE-4511/FWLAD, NVIP-8H-4511/FWLAD Quick start guide version 1.1

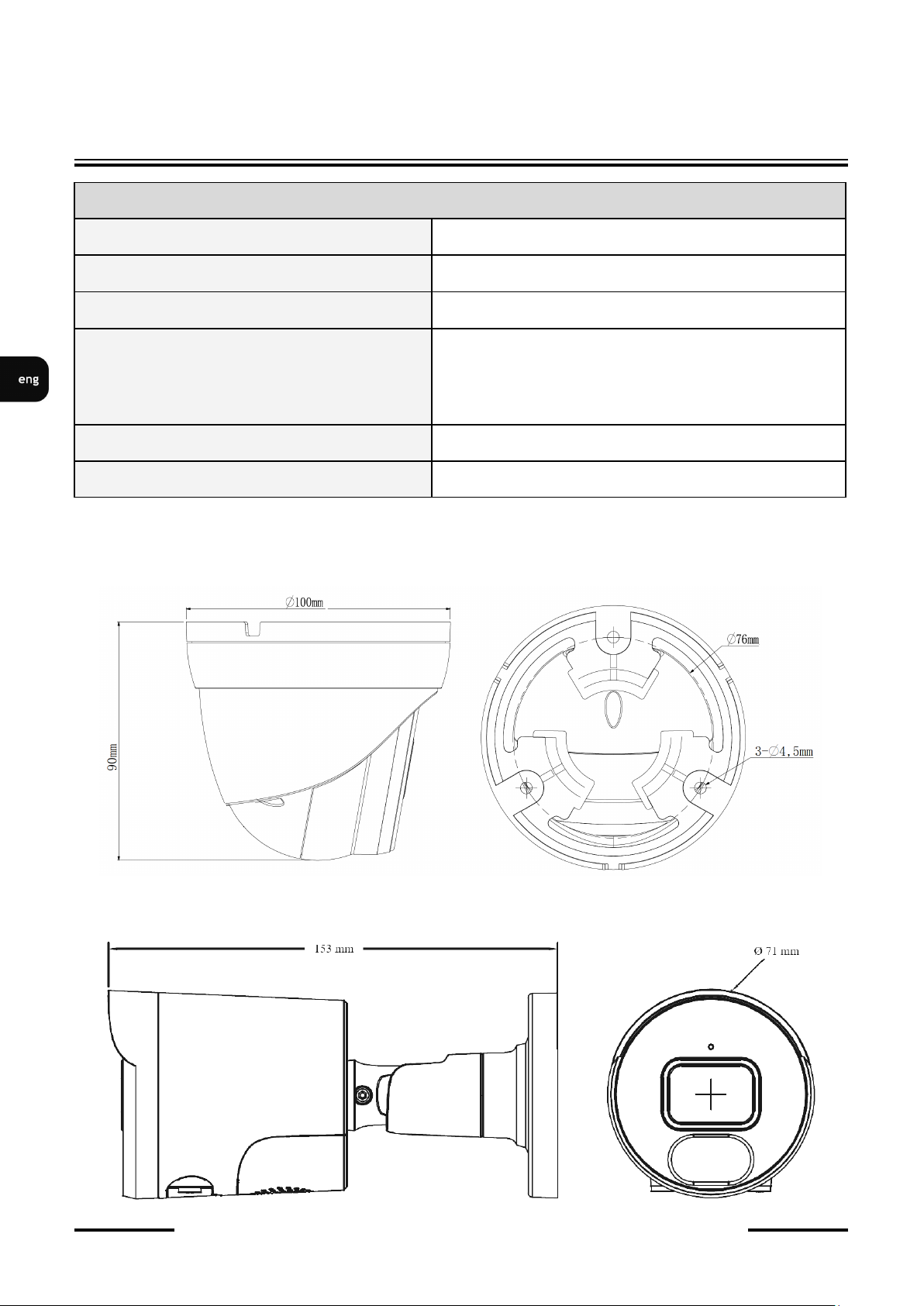

1.1 Camera housings

NVIP-8VE-4511/FWLAD, vandal-proof aluminium housing, white. Weight 0.43 kg

NVIP-8H-4511/FWLAD, aluminium, white, fully cable managed wall mount bracket in-set included.

Weight 0.36 kg

START-UP AND INITIAL CONFIGURATION

INSTALLATION PARAMETERS

Degree of Protecon IP 66 (details in the user’s manual on page 8)

Power Supply 12 VDC, PoE (IEEE 802.3af, Class 3)

Surge protecon TVS 4000 V

Power Consumpon

2.5 W,

3.8 W (IR illuminator on),

5.3 W (white light illuminator on),

7 W (acve deterrence funcons enabled)

Operang Temperature -35°C ~ 60°C

Humidity max. 95%, relave (non-condensing)

NVIP-8VE-4511/FWLAD, NVIP-8H-4511/FWLAD Quick start guide version 1.1

Caution:

If the device was brought from a room with a lower temperature, wait until it reaches the

temperature of the room in which it is to work. Do not switch the device immediately after

bringing from a cooler place. The condensation of water vapor can cause short circuits and

consequently damage the device.

2. START-UP AND INITIAL CONFIGURATION

Before starting the device familiarize yourself with the description and the role of particular

inputs, outputs and adjusting elements that the device is equipped with.

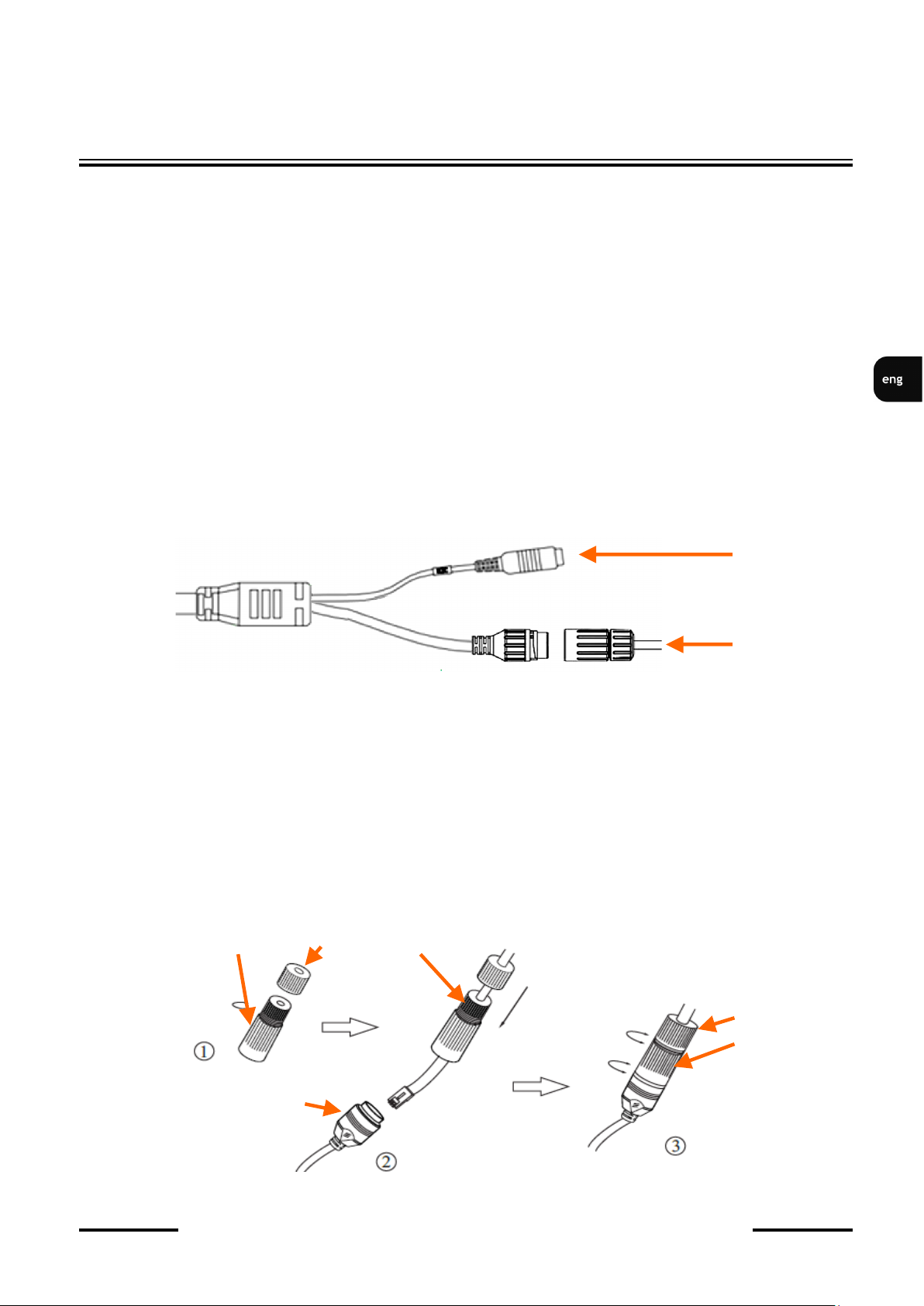

2.1. Description of the camera's electrical connectors

1. 12VDC camera power socket

2. 100 Mb/s Ethernet port (hermetic RJ-45 socket)

2.2. Connecting ethernet cable

To maintain hermeticity network cable connection, follow the instructions below:

1. Unscrew the nut (b) from the connector cover (a), mount the sealing ring on the socket (c)

2. Route the network cable through the components (a) and (b). Plug the RJ-45 connector into the

socket (c)

3. Screw the connector cover (a) on the socket (c). Inside the upper part of the connector cover (a) push

in to the stop the seal of the cable (d) - the seal is cut to insert on the network cable.

4. Tighten up to the stop nut (b)

START-UP AND INITIAL CONFIGURATION

NVIP-8VE-4511/FWLAD, NVIP-8H-4511/FWLAD Quick start guide version 1.1

START-UP AND INITIAL CONFIGURATION

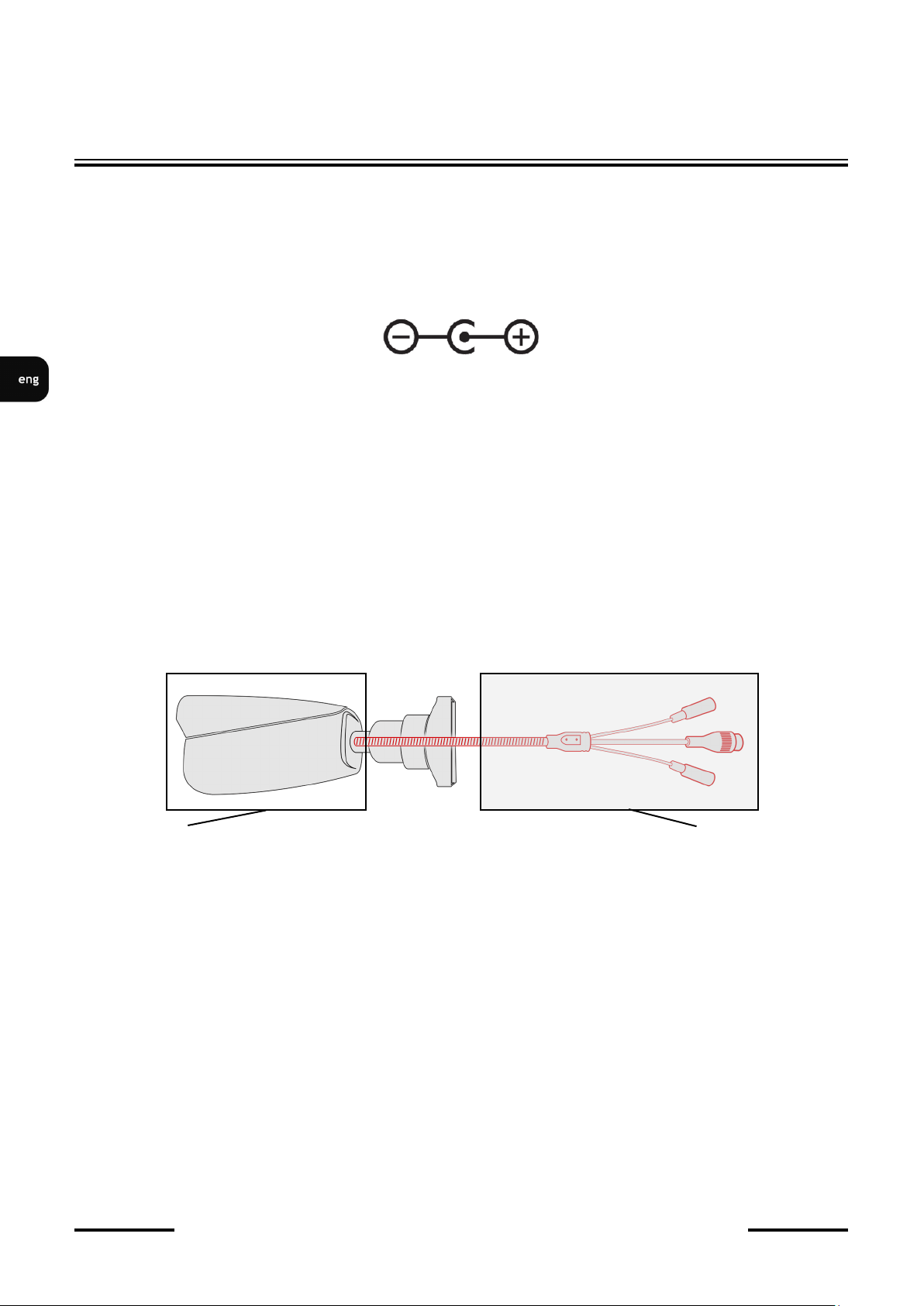

2.3. Power supply connection

The camera can be powered from a commercially available DC power supply, provided that it meets

the technical requirements of the camera. The source must provide stabilized 12VDC voltage, must

allow the consumption of at least 10W of power, and have a barrel DC 2.1/5.5 plug with the correct

polarity of the contacts:

It is also possible to power the camera via the RJ45 network socket, using PoE + technology (IEEE

802.3af, Class 3).

Caution!

Do not use power supplies and POE adapters that do not comply with the IEEE 802.3at standard,

the so-called "passive POE" power supplies. Damage resulting from the use of an unsuitable

adapter is not covered by the warranty!

2.4. Protection against water ingress

The declared degree of protection applies only to camera housing and the location where the

connection cable enters the inside of the housing.

This means that the connection cable, including sockets, connectors, switches, buttons, and other

elements on this cable, as well as other camera equipment/construction elements (such as hoods,

brackets, supports, etc.), are not waterproof. It is the responsibility of the person installing the camera

to protect the elements that require it (and in any case the connection cable) against moisture.

The manufacturer is not responsible for any damages or camera malfunctions resulting from failure to

comply with the above obligation, which also means that they are not covered by the warranty repairs.

The RJ-45 socket cover included in the camera accessories (depending on the version/model) is not a

water protection element. Its purpose is to protect against the ingress of dust and atmospheric moisture

into the socket and prevent accidental disconnections by mechanically stabilizing the network plug in

the RJ-45 socket.

Illustrave drawing

Water protected area Area that needs to be sealed

during installaon

NVIP-8VE-4511/FWLAD, NVIP-8H-4511/FWLAD Quick start guide version 1.1

2.5. "Two way power" function

The camera is equipped with the "Two way power" function. When the camera is connected to the PoE

switch, 12VDC is available in the 12V camera power socket. This allows user to power the receiver

with low power consumption from the camera power socket.

2.6. Camera mounting

2.6.1. Mounting the NVIP-8VE-4511/FWLAD camera

• Unscrew the ring that secures the camera to the base, remove the cover and the clamping ring,

take the camera out of the base.

• Use the template or the location of the holes on the base of the camera to mark the points for

future mounting holes and the cable entry.

• Drill mounting holes and a hole for the signal cable.

• Attach the camera base

• Connect the camera cables, place the camera on the base, put on the cover and pre-screw the

fixing ring. Adjust the position of the camera

• Tighten the clamping ring as far as it will go

2.6.2. Mounting the NVIP-8H-4511/FWLAD camera

• Place the camera foot or template on the installation site

• Mark the points for future fastening holes and the cable entry.

• Drill mounting holes and a hole for the signal cable

• Fix the camera using the provided dowels and screws.

• Loosen the HEX screws that secure the handle and the foot

• Adjust the position of the camera, tighten the counter screws

Caution!

Pay particular attention to the surface to which is attached the camera to have the appropriate capacity.

Caution!

It is recommended to install the camera using one of the dedicated adapters. The use of an adapter

allows for an aesthetic camera installation, facilitates later servicing and provides a water-protected

space for hiding cables.

START-UP AND INITIAL CONFIGURATION

The maximum power consumption of the device using the “Two way power” function is 3W.

Adapters are additional equipment, to be purchased separately. The characteristics and functions

of the adapter (such as mounting method, space for cables, etc.) depend on its model. The list of

dedicated adapters and their specifications can be found on the camera’s catalog card under the

“Related Products” tab

NVIP-8VE-4511/FWLAD, NVIP-8H-4511/FWLAD Quick start guide version 1.1

2.7. Starting the camera

To start the camera, connect the Ethernet cable to the RJ45 network socket of the IP camera, and the

other end to the network switch. As a power source, it is possible to use an external stabilized power

supply with parameters that meet the requirements of the camera or PoE network switch.

The recommended method of starting and configuring the IP camera is to connect it to a PC or laptop

in a dedicated network switch to which no other devices are connected. In case of power supply from

an external power supply, it is enough to use any network switch or a cable connected directly to the

computer. For network configuration data (IP address, gateway, netmask etc.), please contact the

administrator of the network in which the device is to work.

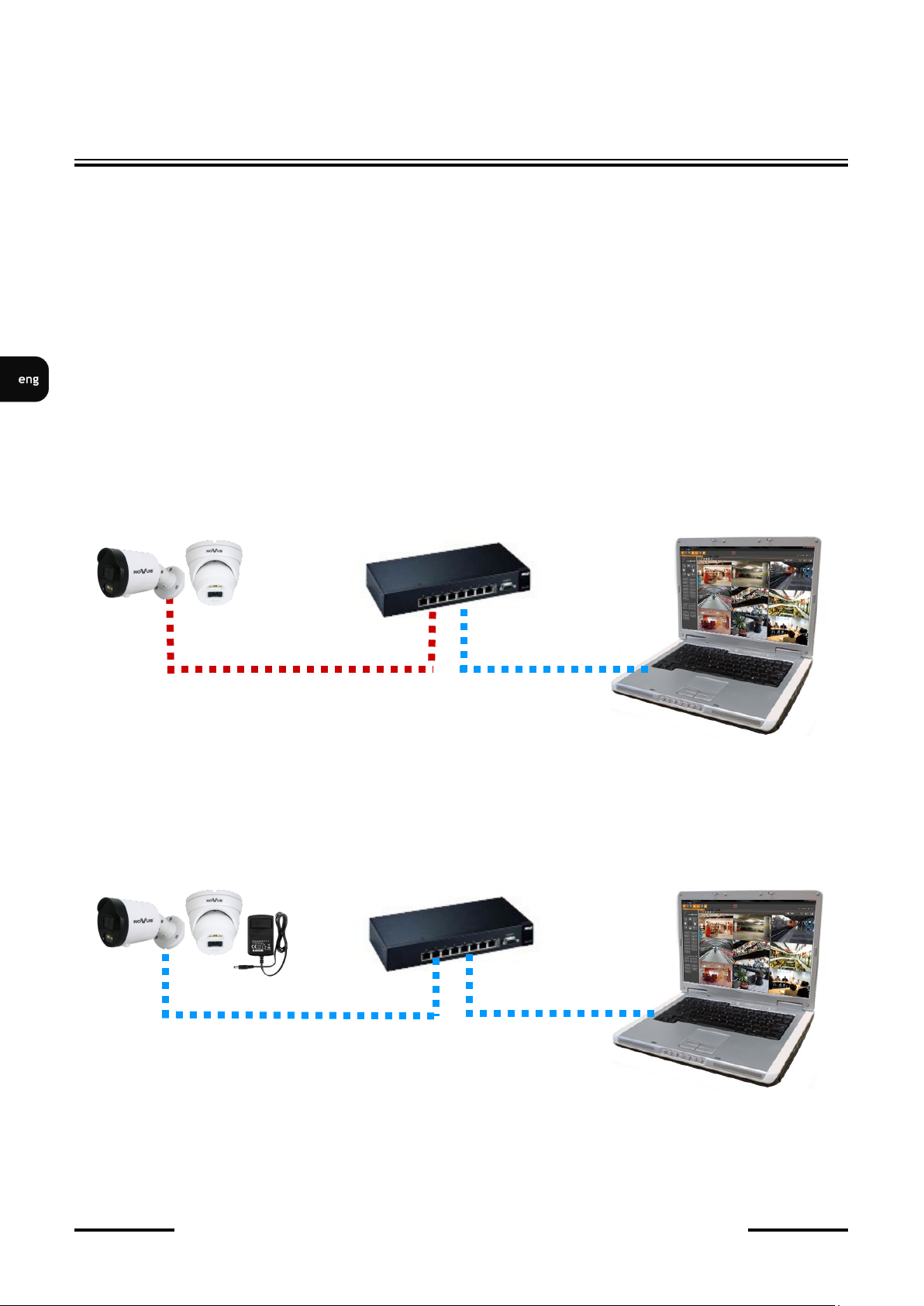

• Connection using network switch with PoE support

• Connection using external power supply and network switch

START-UP AND INITIAL CONFIGURATION

PCIP camera

Power and data transmission Data transmission

PoE network switch

IP camera

Data transmission Data transmission

Network switch PC

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Novus Telecamera di sicurezza

Novus

Novus NVIP-1DN3000H/IR-1P Manuale utente

Novus

Novus NVIP-4H-6532M/F-II Manuale utente

Novus

Novus NVAHD-2DN3202MV/IR-1-II Manuale utente

Novus

Novus NVIP-5F-4301 Manuale utente

Novus

Novus NVIP-5VE-6201-II Manuale utente

Novus

Novus NVC-DN6112MSD-II Manuale utente

Novus

Novus NVIP-3DN3630SD/IRH-2 Manuale utente

Novus

Novus NVIP-8VE-6201 Manuale utente

Novus

Novus 4000 series Manuale utente

Novus

Novus NVDN-261H/IR Manuale utente

Novus

Novus NVIP-4VE-4231/WLAD Manuale utente

Novus

Novus NVIP-2DN2101V/IR-1P Manuale utente

Novus

Novus 4000 series Foglio di istruzioni

Novus

Novus NVIP-8SD-6540/25/F Manuale utente

Novus

Novus NVIP-5H-6401/F Manuale utente

Novus

Novus NVIP-2DN3038D/IR-1P Manuale utente

Novus

Novus NVIP-5VE-4502M/F Manuale utente

Novus

Novus NVAHD-2DN5102MH/IR-1 Manuale utente

Novus

Novus NVIP-8H-6511/F Manuale utente

Novus

Novus NVIP-2DN5020H/IR-1P Manuale utente

Novus

Novus NVIP-4DN2004H/IR-1P-II Manuale utente

Novus

Novus NVAHD-1DN5301H-1 Manuale utente

Novus

Novus NVIP-8H-4511/FWLAD Manuale utente

Novus

Novus NVIP-TDN5410C/MPX1.0 Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
