INSTALLATION GUIDE

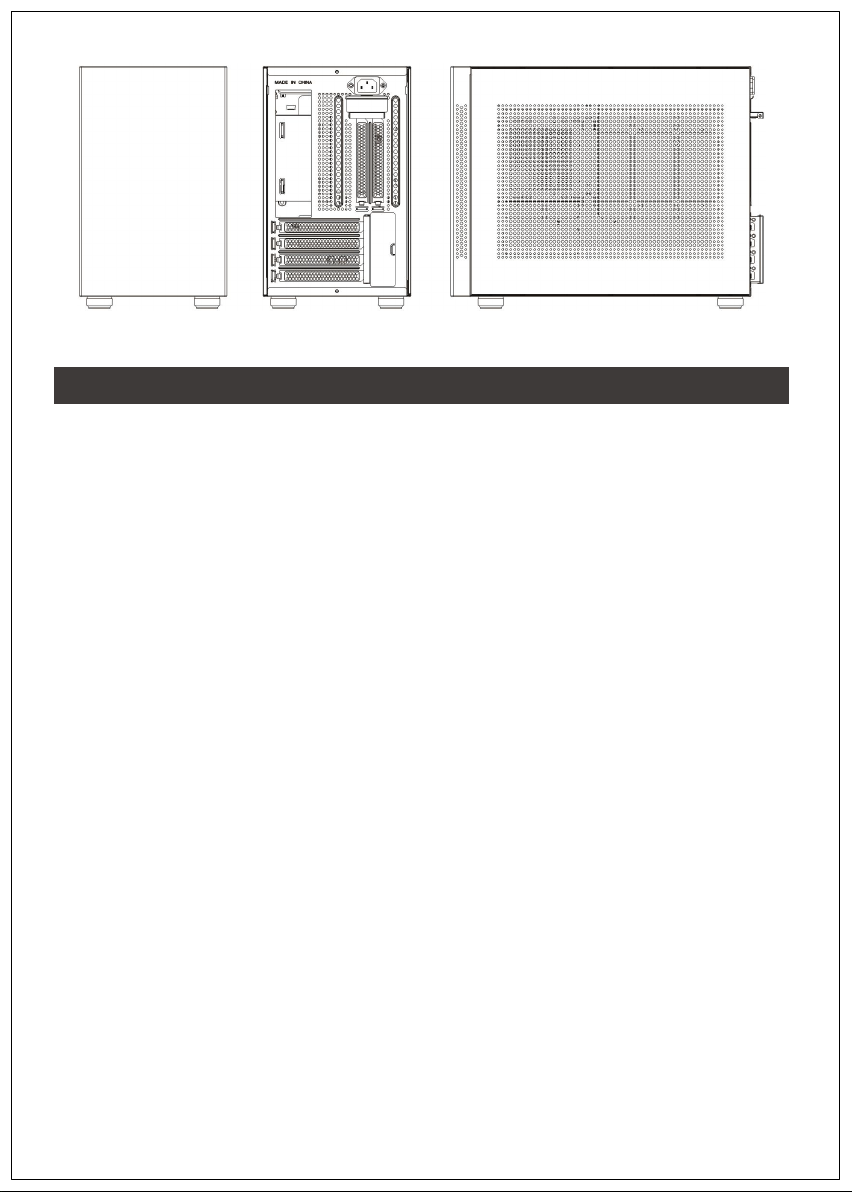

SPECIFICATIONS
Main features:
Chassis size type:
MB form factor:
External drive bays:
Internal drive bays:
Cooling system:
Expansion slots:
Material:
Dimensions:
Color:
PSU:
Clearance:
Water cooling option:
Ports:
Weight:
• Micro tower case
• Magnetic dust lter
• Up to 7 fans capability (depends of PSU system used)
• Vertical or horizontal GPU assemble
• High speed USB 3.0 (x2)
Micro tower
Micro ATX; ITX
-
3x 3.5" | 3x 2.5"
• Top: 2x 120 mm (1x for ATX PSU) (not included)
• Rear: 1x 80 mm (not included)
• Side: 2x 120 mm (not included)
• Bottom: 2x 120 mm (not included)
4x Horizontal | 2x Vertical
SPCC 0.8 mm steel chassis | Metal side and front panel
185 x 303 x 391 mm (W x H x D)
Black
ATX/SFX standard compatible (not included)
• CPU cooler:
— 88 mm (vertical Graphic card installed)
— 155 mm
• VGA card:
— 245 mm (vertical GPU and ATX PSU)
— 335 mm (horizontal GPU and ATX)
• Side: 240 / 120 mm (with SFX PSU)
• Bottom: 240 / 120 mm
2x USB 3.0 | HD Audio | Mic
5.2 Kg
PSU SCREW (x4)
Fixes PSU
GASKET (x4)
Used on step screws
xing 3.5’’ HDDs
HDD SCREW (x8)
Fixes 3.5’’ HDD units
CABLE TIE A (x8)
Used in cable management
MB SCREW (x16)
Fixes MB / 2.5’’ SSD units
CABLE TIE B (x8)
Used in cable management
COPPER CYLINDER (x1)
Used in MB
COPPER PILLAR (x1)
Fixes / Removes copper cylinder
SSD STEP SCREW (x4)
Fixes 2.5’’ SDD units
HDD STEP SCREW (x4)
Fixes 3.5’’ HDD units
Front Panel
Bottom Plate
HDD / Fan Bracket
Left HDD
/ Fan Bracket
Side Cover
Micro-PSU Bracket
ATX PSU Bracket
Top Cover
Power
Reset
USB 3.0
Audio & Mic
USB 3.0
I
Remove side panels from the back Remove front panel
Remove screws on rear plate, then
open top and bottom plate
Unscrew to remove HDD / Fan
bracket and the side bracket
Open
& lift
DISASSEMBLY
MATX MOTHERBOARD INSTALLATION
Prepare the IO slot Put the MATX motherboard in the
right place
Fix the MATX motherboard using the
correct screws
Job done!
II
III
Unscrew the hard drive enclosure from
the back of the motherboard tray
Remove the micro PSU enclosure, place
the ATX PSU in the correct position
Fix with hexagonal screws from above
MATX MOTHERBOARD: ATX PSU INSTALLATION
Put in the gaskets before xing the
HDD / SSD with the step screws.
Apply the correct screws according to:
SSD 2.5’’ SSD screws |HDD 3.5’’ HDD screws
Put in the PSU and x it using the
hexagonal screws
Place the power supply
bracket in its location on
the front plate and
secure it with screws
MATX MOTHERBOARD: SFX PSU INSTALLATION
II
I
Unscrew the Micro HDD enclosure
from the back of the motherboard tray
Remove the micro PSU enclosure, place
the ATX PSU in the correct position
Fix with hexagonal screws from above
ITX MOTHERBOARD: ATX PSU INSTALLATION
Prepare the IO slot Put the ITX motherboard in the
right place
Put the motherboard in the right place
ITX MOTHERBOARD INSTALLATION
III
IV
Put in the gaskets before xing the
HDD / SSD with the step screws.
Apply the correct screws according to:
SSD 2.5’’ SSD screws |HDD 3.5’’ HDD screws
Put in the PSU and x it using the
hexagonal screws
Place the power supply
bracket in its location on
the front plate and
secure it with screws
ITX MOTHERBOARD: MICRO PSU INSTALLATION (METHOD 1)
ITX MOTHERBOARD: MICRO PSU INSTALLATION (METHOD 2)
Place the HDD and PSU enclosure at
the rear of the chassis
Fix with screws from the rear side of
the motherboard tray
I
MAXIMUM CPU COOLER HEIGHT
GRAPHIC CARD INSTALLATION
Up to 155mm when the GPU is
installed horizontally and without the
left side bracket
Up to 88mm when the GPU is
installed vertically
Lift the magnetic PCI bay Unscrew and remove the PCI bay
Insert the GPU and x it with a screw Job’s done!
II
III
Lift the magnetic cover of the PCI bay
and unscrew it
Insert the GPU and x it with screws,
then connect it with the cable
245mm, with Micro PSU
(when PSU is xed to the front panel)
245mm, with ATX PSU
ITX MOTHERBOARD:
MAXIMUM GPU LENGHT
—
335mm, with Micro PSU (when Micro
PSU is xed to motherboard tray)
VERTICAL GPU INSTALLATION: GPU MAX. LENGHT
VERTICAL GPU INSTALLATION
I
II
Prepare the SSD / HDD and the
bracket
Place the SSD / HDD into the bracket
on the side with the raised edge
Fix with screws:
HDD HDD screws |SSD MB screws
Fix it back to the side of the chassis
(ATX PSU installed: allows only x1 HDD)
Prepare the SSD / HDD and the
bracket
Place the SSD / HDD into the bracket
on the side with the raised edge
Fix with screws:
HDD HDD screws |SSD MB screws
Fix it back to the chassis bottom / top
(ATX PSU installed: allows only x1 HDD)
HDD INSTALLATION ON HDD / FAN BRACKET
HDD / SSD INSTALLATION ON FAN LEFT BRACKET
