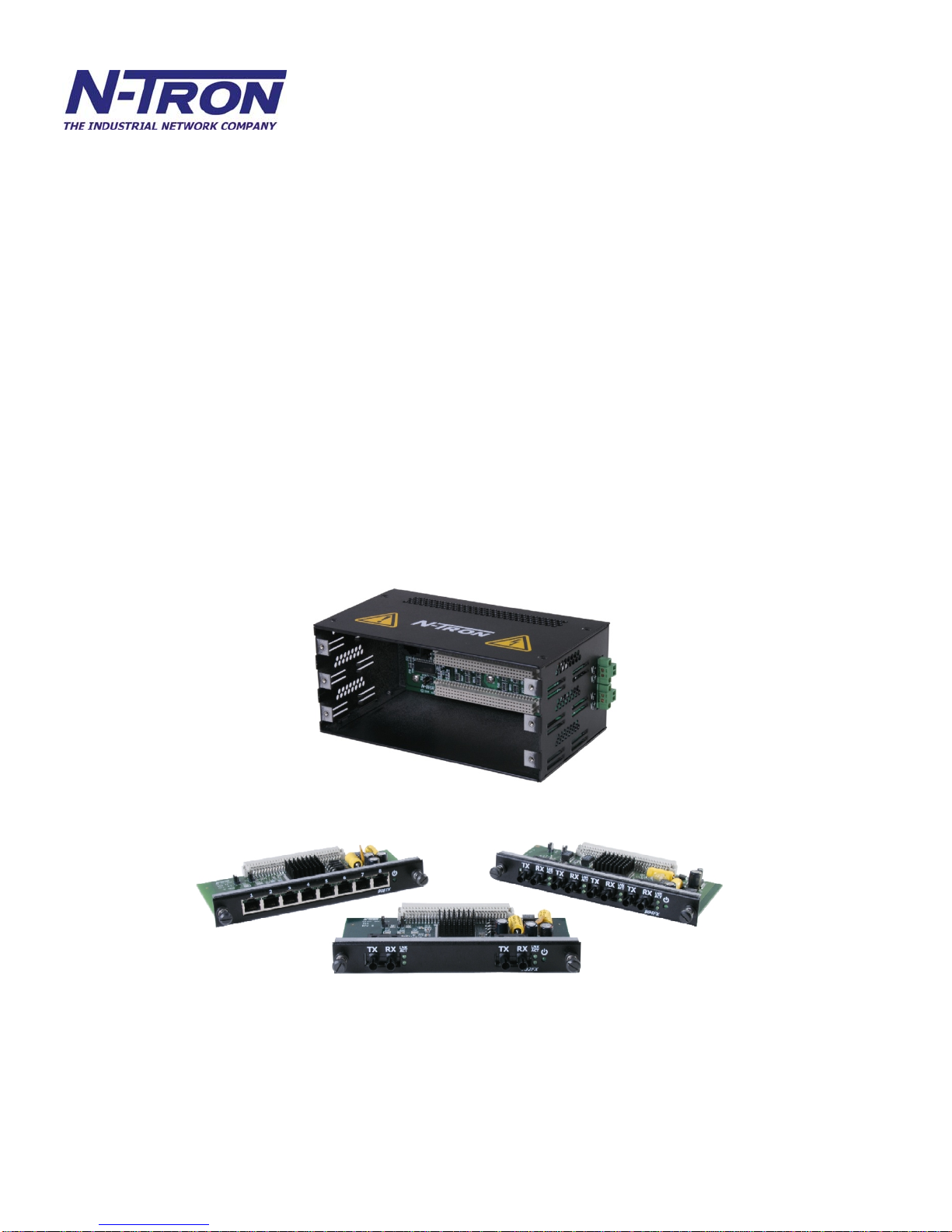

Ntron 900B Manuale operativo

900 Series

Industrial Ethernet

Switch

Installation

& User’s Guide

Rev050908 2

Rev050908 3

Industrial Ethernet Switch Installation Guide

900B/900N (3 Slot Enclosure and Backplane)

900B-FP (Filler Panel for empty slots)

908TX (Module)

902FX-SC (Module)

902FX-ST (Module)

902FXE-SC-YY (Module)

902FXE-ST-YY (Module)

904FX-SC (Module)

904FX-ST (Module)

904FXE-SC-YY (Module)

904FXE-ST-YY (Module)

Where: YY = -15, -40, or -80

Rev050908 4

N-TRON Corp.

820 S. University Blvd., Suite 4E

Mobile, AL 36609

Corp. is prohibited, except as allowed under copyright laws.

Ethernet is a registered trademark of Xerox Corporation. All other product names, company names, logos

or other designations mentioned herein are trademarks of their respective owners.

The information contained in this document is subject to change without notice. N-TRON Corp. makes no

warranty of any kind with regard to this material, including, but not limited to, the implied warranties of

merchantability or fitness for a particular purpose. In no event shall N-TRON Corp. be liable for any

incidental, special, indirect or consequential damages whatsoever included but not limited to lost profits

arising out of errors or omissions in this manual or the information contained herein.

Warning

Do not perform any services on the unit unless qualified to do so.

Do not substitute unauthorized parts or make unauthorized modifications to the unit.

Do not operate the unit with the top cover removed, as this could create a shock or fire hazard.

Do not block the air vents on the sides or the top of the unit.

Do not operate the equipment in the presence of flammable gasses or fumes. Operating electrical equipment

in such an environment constitutes a definite safety hazard.

Rev050908 5

Safety Warnings

ELECTRICAL SAFETY

WARNING: Disconnect the power cable before removing the enclosure top.

WARNING: Do not operate the unit with the top cover removed.

WARNING: Do not work on equipment or cables during periods of lightning activity.

WARNING: Do not perform any services on the unit unless qualified to do so.

WARNING: Do not block the air vents.

WARNING: Observe proper DC Voltage polarity when installing power input cables. Reversing

voltage polarity can cause permanent damage to the unit and void the warranty.

LASER SAFETY (904FXE and 902FXE Only)

WARNING: CLASS 1 Laser Product. Do not stare into the Laser Beam.

Rev050908 6

900 Series Hazardous Location Installation Requirements

1. WARNING: EXPLOSION HAZARD. DO NOT DISCONNECT UNIT WHILE CIRCUIT IS LIVE,

UNLESS KNOWN TO BE NON-HAZARDOUS.

2. AVERTISEMENT: RISQUE D’EXPLOSION. NEPAS DE’BRANCHER TANT QUE LE CIRCUIT

EST SOUS TENSION, A’MOINS QU’IL S’ A GISSE D’UN EMPLACEMENT NON DANGEREUX.

3. WARNING: Install only in accordance with Local & National Codes of Authorities Having Jurisdiction.

4. Power must be supplied by an isolating source, and a 3.3A max rated UL recognized fuse must be

installed immediately before the unit.

5. Class I, Div 2 installations require that all devices connected to this product must be UL listed for the area in

which it is installed.

6. Only UL listed wiring with temperature ratings greater than 90OC permitted for Class I, Div 2 installations

operating at temperatures up to 70OC ambient.

7. Limited Operating Voltage: 12-30V for Class I, Div 2 installations.

Rev050908 7

900 Series Industrial Ethernet Switches

The 900 Series Modular Industrial Ethernet Switches support high speed layer 2 switching between ports.

The 900B and 900N enclosures contain a three slot backplane that supports up to three modules. The

908TX, 902FX and 904FX modules are the available modules. The N-TRON Corp. 900B is housed in a

ruggedized steel enclosure, and can withstand industrial temperatures, as well as extreme shock & vibration.

The 908TX is an 8 port module that is capable of auto negotiating 10/100 Mb and half/full duplex

communications. The N-TRON 908TX also supports MDIX auto sensing (for auto connector of straight

through or crossover cables) and provides 8 Category 5 compliant 10/100-BaseT connections for high

performance network design, and hub/repeater upgrades.

The 902FX is a two port 100Mb module that supports multimode fiber. ST and SC connectors are

available.

The 902FXE is a single mode (laser) version of the 902FX, and can support distances of up to 80km.

The 904FX and 904FXE are four port versions of the 902FX and 902FXE respectively.

Key Features

•Full IEEE 802.3 & 100BASE-FX Compliance

•Extended Environmental Specifications

•Support for Full/Half Duplex Operation

•LED Link/Activity Status Indication

•Auto Sensing Speed and Flow Control

•Auto MDIX (908TX only)

•Up to 4.8 Gb/s Maximum Throughput

•Industry Standard DIN-Rail Enclosure

Rev050908 8

PACKAGE CONTENTS

Please make sure the Ethernet Switch package contains the following items:

1. 900 Series Ethernet Switch

2. Installed Modules

3. This Installation Guide

Contact your carrier if any items are damaged.

INSTALLATION

Read the following warning before beginning the installation:

WARNING

The 902FXE and 904FXE unit contain a class 1 laser. Do not stare into the laser beam (fiber optic

connector) when installing or operating the product.

Never install or work on electrical equipment or cabling during periods of lightning activity.

Disconnect the power cable before removing the enclosure top.

Do not operate the unit with the top cover removed

UNPACKING

Remove all the equipment from the packaging, and store the packaging in a safe place.

File any damage claims with the carrier.

Rev050908 9

902FX/FXE & 904FX /FXE HALF DUPLEX SETUP

All 900 series fiber modules are factory configured for full duplex operation. The setting is controlled

by jumper JP1 on the backplane.

Note: Most 100Mbit fiber systems will be compatible with this Full Duplex setting. If Half Duplex

operation is desired, then follow these steps using proper wrist strap grounding techniques:

1. Remove the power & power plugs from the unit.

2. Loosen all thumbscrews & remove all modules.

3. Remove the six screws holding the backplane

4. Remove the backplane.

5. Move the jumper JP1 from position 1-2 to 3-4

6. Re-install the backplane & modules & power plugs.

902/904 Note:

Rev. C & D boards are hard wired for Port1 = HDPLX,

Rev. B & E boards are hard wired for Port1 = FDPLX.

JP1

Rev05

0908

IN-Rail

nstall the u

iber optic

ertically.

o install th

he back of t

he back (a

o remove

isengages

pward and

ptional M

he 900 Se

owever,

ounting so

ur 900 Pa

o a panel or

ur Rack M

ountin

it in a stan

able bend

unit to 35

e unit agai

ay from yo

he unit fro

rom the bo

owards yo

untin

ies Etherne

IN-Rail m

utions.

el Mount A

other flat s

ount Assem

ard DIN-

adius (2”

m industri

st the top f

) until it sn

the 35 m

ttom of the

to complet

switches

unting ma

ssembly (P/

rface.

ly (P/N: 9

ail. Recess

r TX mod

l DIN-Rail

ange of the

ps into pla

industrial

unit from

ly remove

ere designe

not be s

: 900-PM

)

0-RM) ma

the unit to

ls). Note:

Place the t

DIN-Rail a

DIN-Rails

he DIN-R

d to be mo

itable for

)

may be us

be used to

allow at le

This unit

p edge of t

a 15° angl

- Apply do

il. Then, r

nted on in

all applicat

d to secure

ount our p

st 5” of ho

ay be mo

e included

. Rotate the

nward for

tate the un

ustry stand

ions. We

y mount th

oducts to s

izontal clea

nted horiz

mounting b

bottom of t

e to the un

t approxim

rd 35mm

ffer two a

900 Series

andard 19"

ance for

ntally or

acket on

e unit to

t until it

tely 15°

IN-Rail.

ternative

products

acks.
