Nuvico CB-HD21N-L Manuale utente
2• Color Bullet Camera
Disclaimer
• While every effort has been made to ensure that the information contained in this guide
is accurate and complete, no liability can be accepted for any errors or omissions.
• NUVICO reserves the right to change the specications of the hardware and software
described herein at any time without prior notice.
• No part of this guide may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language in any form, by any means, without prior written
permission of NUVICO.
• NUVICO makes no warranties for damages resulting from corrupted or lost data due to a
mistaken operation or malfunction of the cameras, peripheral devices, or unapproved/un
supported devices.
Color Bullet Camera • 3
WARNING!
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE
VENTILATION GRILLS OR OPENINGS ON THE EQUIPMENT.

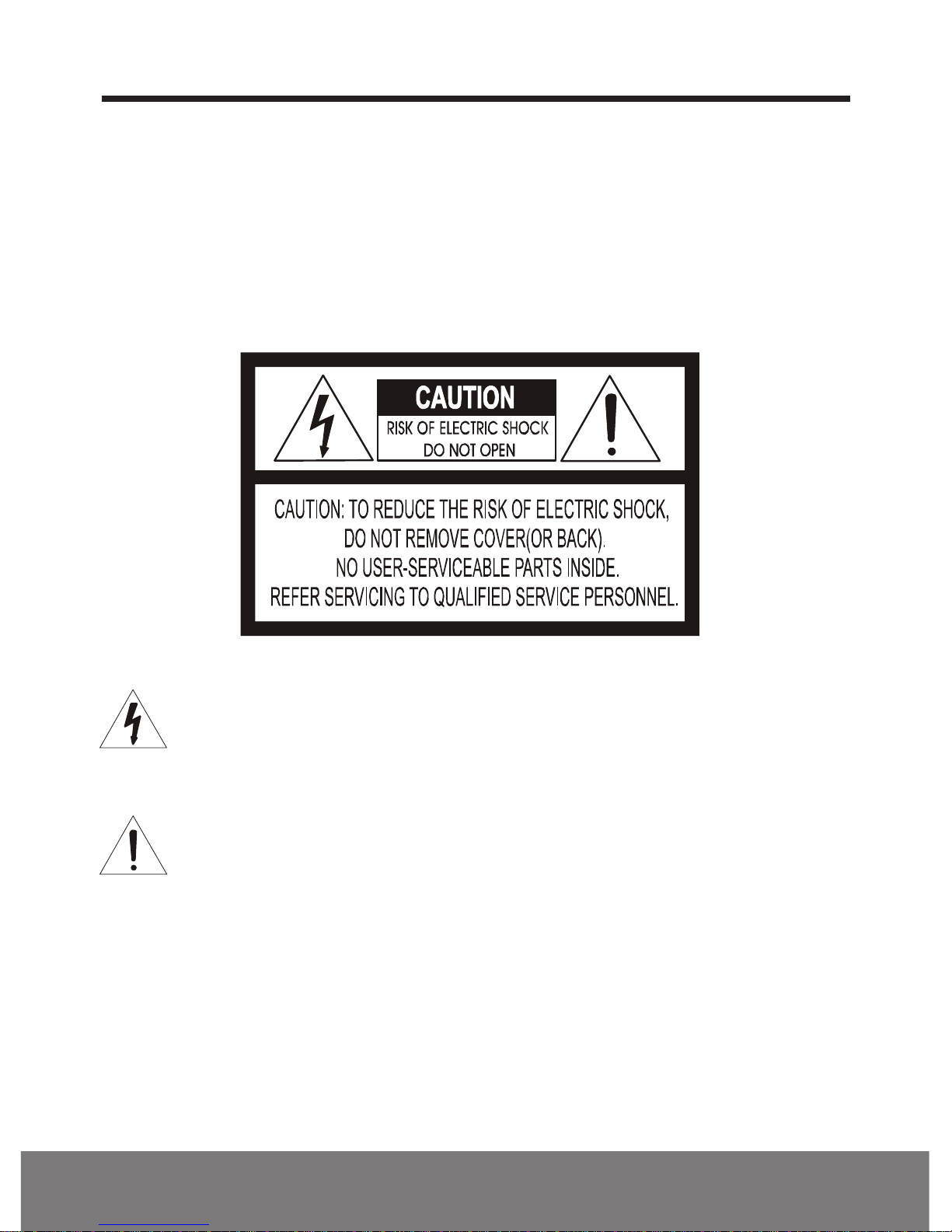

Warning and Caution
The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufcient magnitude to constitute a risk of electric shock to
persons.
CAUTION!
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instruction in the literature
accompanying the product.
4• Color Bullet Camera
.
Important Safeguards
• Read these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this equipment near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other
equipment (including ampliers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third prong is provided for your safety. If
the provided plug does not t into your outlet, consult an electrician for replacement of the
obsolete outlet.
• Protect the power cord from being walked on or pinched, particularly at plugs, conve-
nience receptacles, and the point where they exit from the equipment.
• Only use attachments/accessories specied by the manufacturer.
• Unplug this equipment during lightning storms or when unused for long periods of time.
• Refer all servicing to qualied service personnel. Servicing is required when the equip-
ment has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the equipment, the equipment has been
exposed to rain or moisture, does not operate normally, or has been dropped.
• CAUTION - THIS MANUAL IS FOR USE BY QUALIFIED SERVICE PERSONNEL ONLY. TO
REDUCE THE RISK OF ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER THAN
THAT CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO
SO.
• Use Certied/Listed Class 2 power supply transformer only.
Color Bullet Camera • 5
Table of Contents
...............................................................................................
..............................................................................
.............................................................................
....................................................................................
...................................................................
................................................................................
...............................................................................
................................................................................
..........................................................................
.....................................................
...........................................
.....................................................
...........................................................
..................................................................................................
..................................................................................................
...................................................................................
........................................................................
Disclaimer
Warning and Caution
Important Safeguards
Table of Contents
Introduction / Key Features
Content Verication
Parts & Descriptions
Camera Dimensions
Connecting to Monitors
Adjusting the Pan, Tilt and Rotation
Adjusting the Vari-focal DC Auto Iris Lens
Dip Switch Functions and Operation
Dip Switch Menu Control Terms
Technical Specications
A. Switching OFF/ON the IR LEDs
B. FLK
C. BLC
D. White Balance
2
3
4
5
6
7
8
9
10
11
12
13
14
14
14
14
15
6• Color Bullet Camera
Introduction
ABOUT THIS MANUAL
Thank you for purchasing our camera.
Before installing and using this camera, please read this manual fully and carefully, and
be sure to keep it handy for later use.
• 1/3” CCD Sensor
• 550 TV Lines (Color), 600 TV Lines (B/W)
• 2.8~10mm DC Auto Iris Lens
• Day/Night Functionality w/ ICR
• 0.1 Lux(Color), 0.00 Lux (B/W, IR LEDs On)
• 36 IR LEDs
• Built-in IR LEDs On/Off Dip Switch
• Dip Switch Menu
• Service Monitor Output
• 12VDC/24VAC Dual Voltage
Key Features
Color Bullet Camera • 7

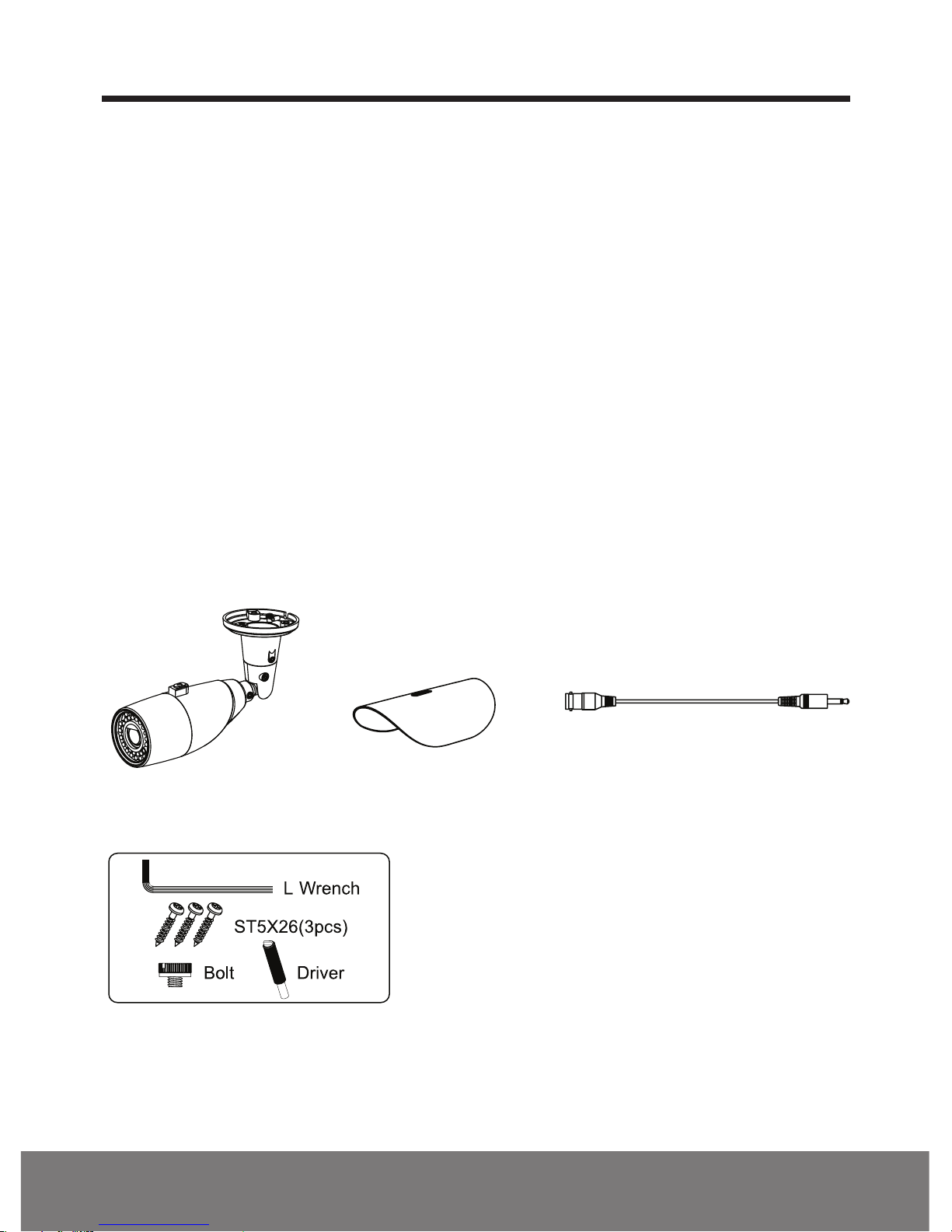

Content Verication
Before installing the camera, please make sure that all of the following items are
included in the box.
IR LED Bullet CAMERA
1. Bullet Camera
2. Bullet Camera Sun Shield
3. Installation Manual
4. Service Monitor Cable - Model#: CA-SMC30
5. Assembly & Mounting Accessories
• (x1) L-Wrench
• (x3) Philips ST5x26 Mounting Screws
These screws are used to rmly attach the bracket to a wall or ceiling.
• (x1) Bolt
This bolt is used to afx the Sun Shield to the Bullet Camera.
IR LED Bullet Camera Sun Shield Service Monitor Cable
(CA-SMC30)
Assembly & Mounting Accessories
8• Color Bullet Camera
Parts & Descriptions
For longer, more consistant performance, avoid
installation locations prone to direct sunlight.
Bolt
Sun Shield
Front Case
Back Case
Service Monitor Output Cap
Bracket
Power Input (24VAC / 12VDC)
Video Output Connector
24VAC / 12VDC
Color Bullet Camera • 9
Dimensions Unit: Inch (mm)
6.22” (158)
2.95” (75)
3.43” (87)
3.62” (92)
7.13” (181)
4.05” (103)
See the diagrams below for the exact dimensions of the color bullet camera.
10 • Color Bullet Camera
• Power Connection - 12VDC/24VAC Dual Voltage (Auto polarity detection and protection)
• This camera is equipped with a service monitor output on the camera module.

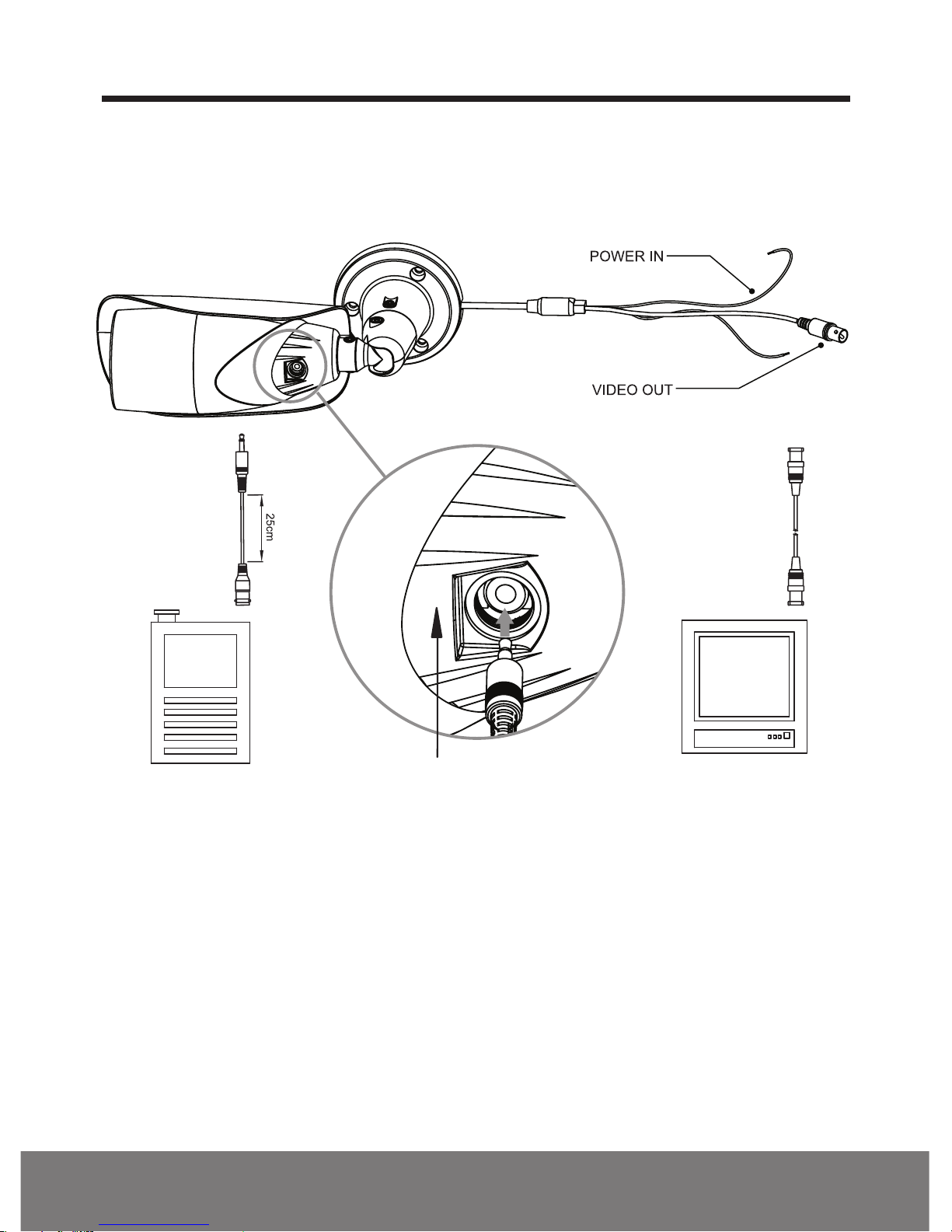

Connecting to Monitors
Follow the diagram below to make proper connections to the CRT Monitor or the Service
Monitor.
SERVICE MONITOR OUTPUTSERVICE MONITOR
(Not Included)
CCTV MONITOR
