ASSEMBLY & OPERATION MANUAL
250/500
CELLAR nuvo
k o o l s pac e TM
~2~
~3~
1. LOCATING YOUR WINE CELLAR - Remember, it is not an appliance, it is a piece of furniture
2. AREA FOR ASSEMBLING YOUR WINE CELLAR
Choose a clear 12’ by 12’ area with a level oor and carpeting to help reduce scratching of surfaces.
3. TOOLS
* Hex wrench (included)
* Phillips screwdriver
* Carpenter’s level
* Helper or two is strongly recommended
4. TEST THE COOLING UNIT
Plug it in for a few minutes on a table top, to verify that controls and display are functional, and that
the unit is producing cool air after a few minutes of operation.
Note that the electronic controller has a one-minute cautionary delay between initial plug-in and
start-up of the compressor.
NOTE: Fill out the WARRANTY REGISTRATION FORM with the serial number located on the LEFT
SIDE of unit.
A. Provide 4” minimum clearance for both sides and back, keep the top completely clear.
Under no circumstances should the unit be “built-in” in any way.
B. Never locate your wine cellar outdoors or in an area with extremes of temperature and
humidity.
Garages, attics, unnished basements, laundry rooms, breezeways, closets, bedrooms or
any unventilated room. In other words these units must be installed in air-conditioned
environments which do not “trap” the warm air being exhausted.
C. Temperatures in surrounding area must not exceed 80 °F (25 °C) with humidity levels not
to exceed 70% R.H. (Relative Humidity). Never set your temperatures below default (57ºF)
whenever ambient conditions are warm (above 75ºF) or humid (above 50%R.H.).
D. Outlet power must be a DEDICATED separately fused, grounded, 15 Amp 110 - 120 V line or
7.5 Amp - 240 V line rated for your unit (CHECK BOX OR SERIAL NUMBER LABEL ON UNIT
FOR YOUR LINE VOLTAGE REQUIREMENTS).
E. You must monitor your unit DAILY. If unit is in “Alarm”, unplug the unit inmediately. Always
check for any water (condensate) leaks.
Vintage Keeper will not be liable or responsible for incidental or consequential damages.
(See Warranty).
F. Place unit in a clean area and allow access to the exterior surfaces for periodic vacuuming
of the condensor coil. (See troubleshooting for details.)
G. Always remove all bottles before relocating your wine cellar.
READ BEFORE YOU START
~2~
~3~
Cam Cap
x 26 (x30)*
Hex bolt
x 22 (x30)*
Coupler screw
x 8
Hex wrench
x 1
Cam
x 24 (x28)*
Cam Pin
x 24 (x28)*
Coupler hanger
x 4
Hinge
x 4
In Cooling Unit Box
Hex Bolt (Flange)
x 2
Panel Insulation Strip
*NOTE : Hardware quantities for Model 500 are indicated in parenthesis.
HARDWARE KIT
C
B
A
G
F
I
E
J
H
D
~4~
~5~

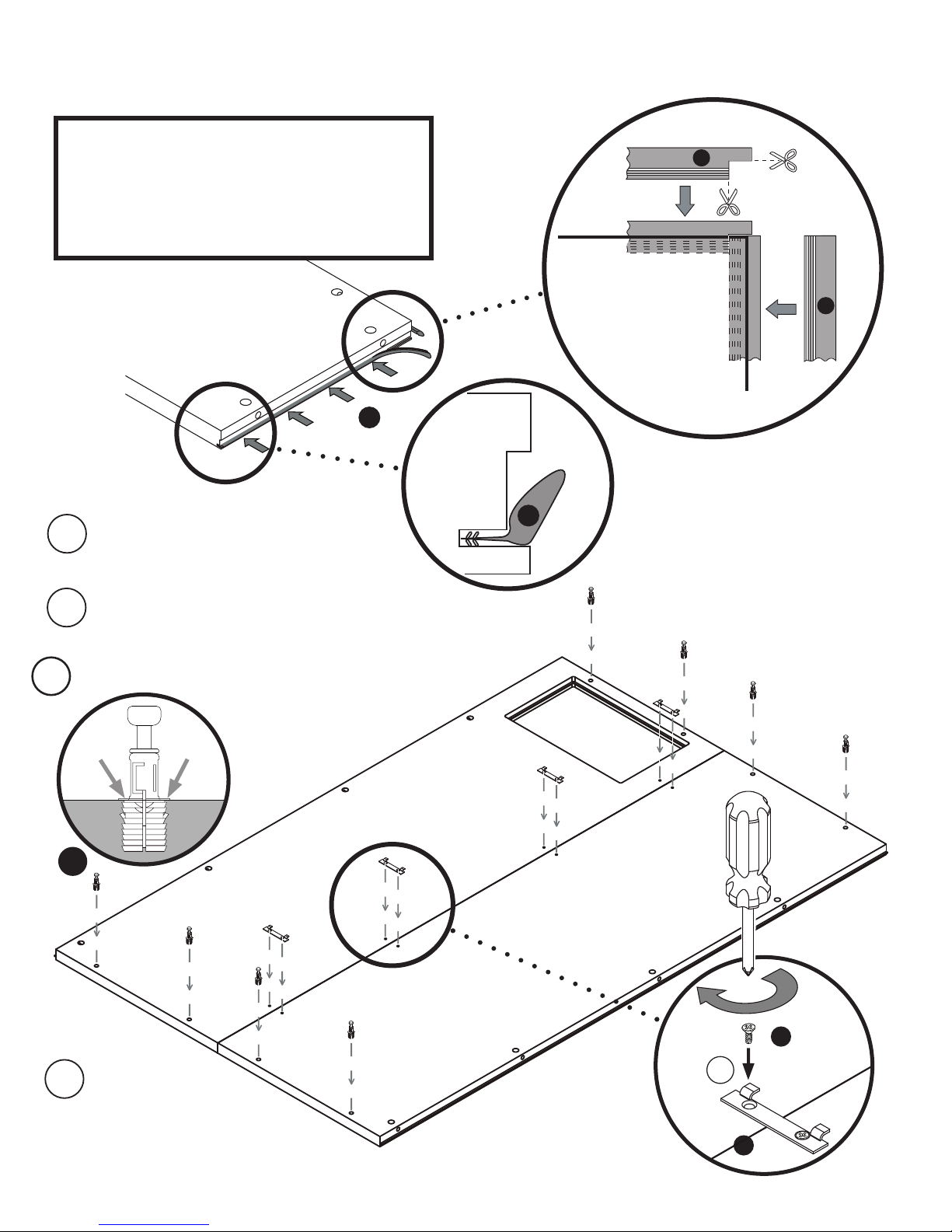

Open Boxes VP6 and VP7.
Install INSULATION STRIP (J) to
Back, Top, and Bottom Panels. PUSH
IN FULLY!
Insert Cam Pins (F) in BACK PANEL’S
predrilled holes down to TAB. (May
require some force)
STEP 1 : PANEL PREPARATION
1
PANEL EDGE
J
CAUTION :
1. Watch for sharp staples on boxes.
2. DO NOT STEP ON PANELS
3. The manual will give a recommended
order to open boxes, it saves time and space.
2
J
J
J
C
G
3
F
Screw in both
screws (C) half
way in Coupler
Hanger (G) to back
panels and tighten
fully when both
screws are in.
3
CAUTION : DO NOT BREAK CAM PIN TABS!
DO NOT HAMMER!
TAB
TAB
BACK PANEL
!
~4~
~5~
Use allen key provided or
#3 phillips screwdriver.
Attach TOP and Bottom to
Back by CAREFULLY aligning
edge holes over Cam Pins
and gently push together to
avoid damaging cam pins. DO
NOT BANG OR SLAP PANELS
TOGETHER!!!
Insert Cam, push all the way
in under panel level (may
require some force) and
make sure Arrow points to
outside edge.
Gently push down to bring
panels together before you
tighten the Cam. Start with
cams at each end.
Cam Arrow faces away from
outside edge when tightened.
STEP 2 : CABINET ASSEMBLY
1
2
CAM in LOCKED
POSITION
PANEL EDGE
COUPLER BAR
INSIDE
CABINET
2
3
Insert Center COUPLER
BAR by guiding edge
holes over bottom
Cam Pins. Lightly push
out top panel edge to
allow Cam Pins to go in
Coupler Bar. Insert and
tighten Cams.
3
BOTTOM PANEL
BOTTOM PANEL
METAL
METAL
~6~
~7~
Insert Cam Cap (A) in
all Cam Holes.
3
STEP 2 : CABINET ASSEMBLY CONTINUED
TOP !!!
Open Box VP5 or VP2.
Insert Cam Pins (F) in BACK PANEL’S predrilled holes down
to TAB. (May require some force)
Attach SIDES to Back/Bottom/Top by CAREFULLY aligning
edge holes over Cam Pins and gently push together to
avoid damaging cam pins. DO NOT BANG OR SLAP PANELS
TOGETHER!!!
Insert Cam, push all the way in under panel level (may
require some force) and make sure Arrow points to outside
edge., Push Panels together before tightening Cam, use allen
key provided or #3 phillips screwdriver. Start with cams at
1
2
3
A
F
BOTTOM PANEL
2 HOLES FOR MODEL 250
3 HOLES FOR MODEL 500
~6~
~7~

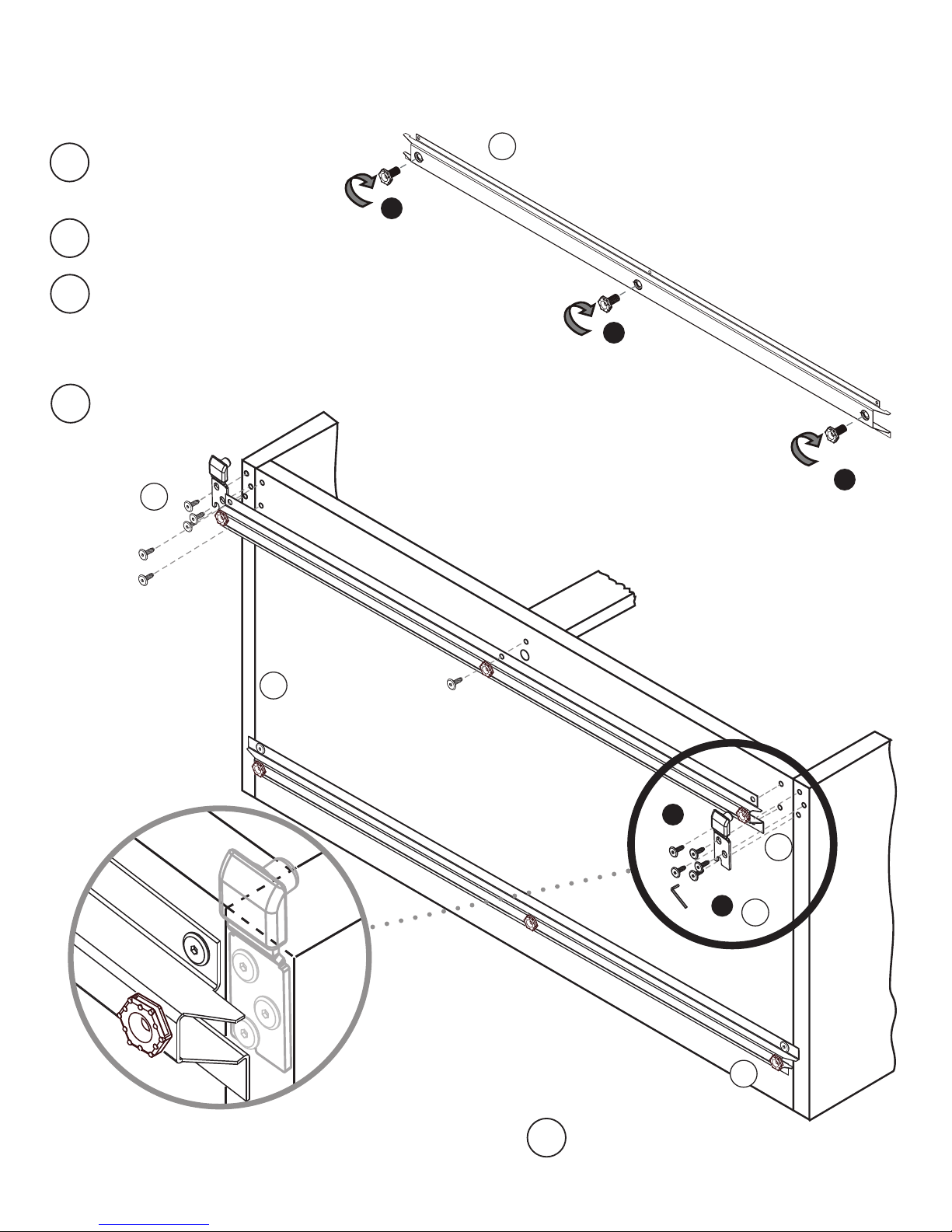

Open Box VP3.
Fasten one HINGE (found in
door box) to the SIDE of the
cabinet
Install four LEGS (H) into
BASES fully in.
Fasten FRONT BASE to
the BOTTOM of the cabinet
(FRONT BASE has to be set
with end tabs away from front
edge)
Fasten BASE with HEX BOLTS
(B)
4
1
3
4
STEP 3 : HINGE,BASE AND LEGS INSTALLATION
Raise cabinet and check for potential air
leaks at panel joints from inside.
2
3
1
H
D
B
NOTE: Fasten base with base tab away from the
front edge, then fasten and adjust the hinge
before fully tightening HEX BOLTS (B)
H
5
5
H
1
2
BOTTOM OF CABINET
~8~
~9~
STEP 4 : SHELVES
Open box VP4S or VP4D
Hook SHELVES into hangers start-
ing from the bottom of cabinet, (12
shelves on cooling unit side, 14 on
the other) alternating the two sides
HINT :
CENTER SHELVES ON HANGERS
1
2
Snap SHELVES into
hangers on one side
Push the SHELVES
down to snap into op-
posite side hangers
3
3
12
PRESS
BOTTOM
TOP
1
2
Install COUPLER SHELVES between
the VERTICAL COUPLER and the
BACK PANEL, hook them on the
COUPLER HANGERS (G)
Install 4 HANGERS STRIPS, hook-
ing them to the COUPLER SHELVES
through square holes. (Watch for
orientation, all hooks have to point
upwards).
NOTE : Assure that each of them is
hooked to all 4 shelves
1
2
COUPLER SHELVES
VERTICAL COUPLER
G
~8~
~9~
STEP 5 : COOLING UNIT INSTALLATION
GET HELP BEFORE INSTALLING AND KEEP CHILDREN CLEAR OF CELLAR CONSTRUCTION AREA.
Get helper to help guide unit, keep light cord clear of edge inside cellar and to prevent tipping of cellar. MAKE
SURE INSULATION STRIP IS IN CORRECT ORIENTATION. Run light cord through Cut-out. Slide unit into the back
opening by angling unit A to allow light cord to clear and straighten to push in B . Screw allen bolts (I) through
bottom ange holes. Make sure unit is level!
1
I
D
NOTE: If unit is operated according to speci cations over ows will not occur. Excess
condensation is only caused by extreme conditions. Unit will shut off at 72 °F and will
restart when temperature drops or unit is repluged. (In this case insert 3/8” O.D. hose
to drain hole, cut to appropriate length.)
Container
Optional (not required)
except as emergency
drain.
CORD MUST
CLEAR OPENING
A
B
SIDE VIEW
DO NOT!!!
KEEP UNIT LEVEL
INSIDE CELLAR
INSULATION
STRIP
CHECK
LEVEL TO
OPENING
STRAIGHTEN AND
PUSH THROUGH
GET HELPER TO
LIFT UNIT LEVEL
AND PULL FROM
INSIDE
(I) x2 Flange
bolts in
cooling unit
box.
SHELF
DO NOT OVER
TIGHTEN
~10~
~11~

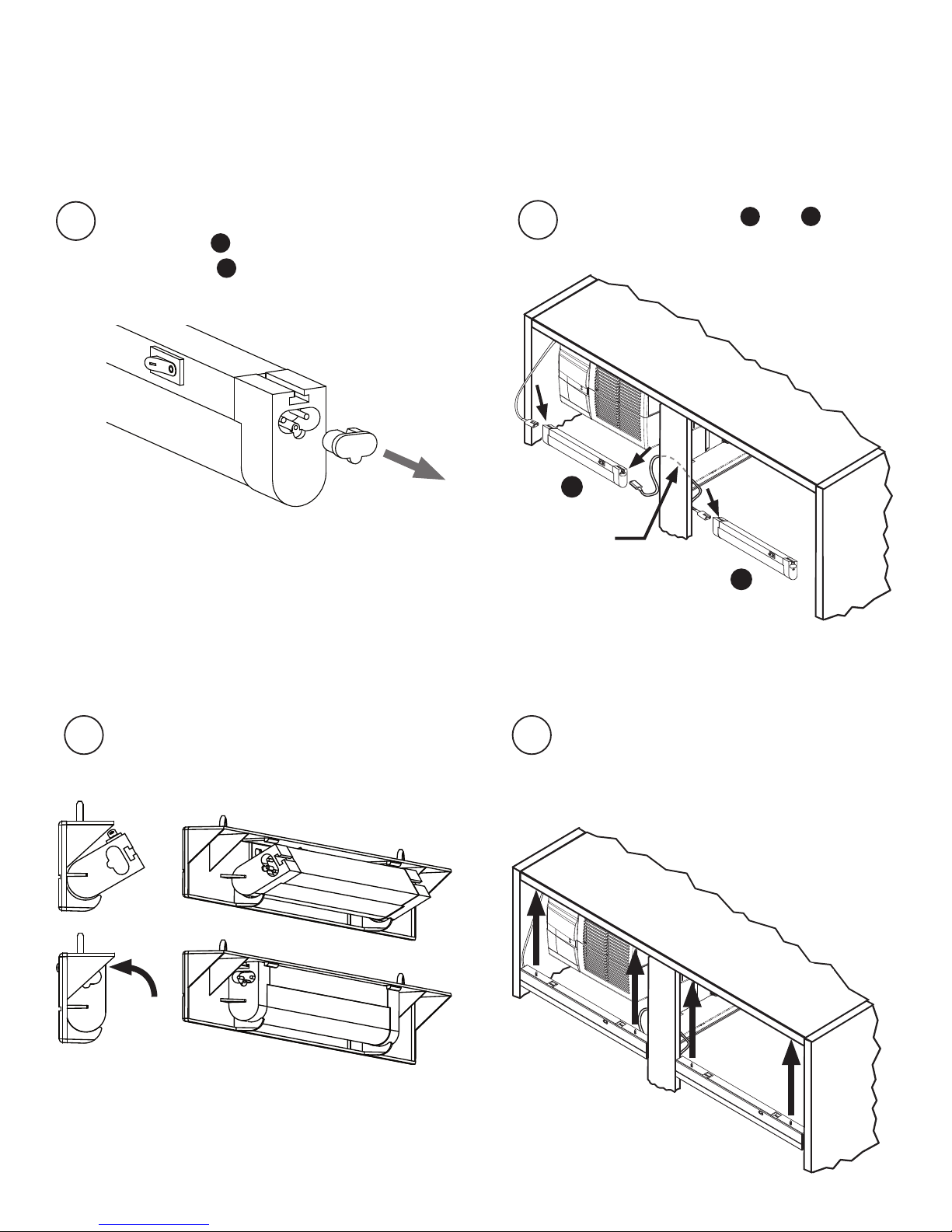

STEP 6 : LIGHT AND LIGHT COVER INSTALLATION
4Insert LIGHT COVER to holes pre
drilled on front edge of TOP panel.
2Plug cord to LIGHTS and
1Remove plastic CAP at right end for
only LIGHT , DO NOT remove CAP
from LIGHT .
CAP
1
LIGHT
2
LIGHT
1
2
3Insert LIGHT to LIGHT COVER
12
Cord behind
