Nvidia GeForce GT series Manuale utente
GeForce GT series
Copyright © 2013 Jaton Corporation, USA 1
NVIDIA GeForce™GT
User’s Manual
Version 4.00
GeForce GT series
Copyright © 2013 Jaton Corporation, USA 2
Contents
INTRODUCTION.........................................................................................3
FEATURES AND SPECIFICATIONS.......................................................4
CHECK LIST................................................................................................7
HARDWARE DESCRIPTION....................................................................8
DISPLAY DEVICES OUTPUT.................................................................11
HARDWARE INSTALLATION...............................................................13
SOFTWARE INSTALLATION ................................................................15
TECHNICAL ASSISTANCE.....................................................................18
LIMITED WARRANTY............................................................................22
GeForce GT series
Copyright © 2013 Jaton Corporation, USA 3
Introduction
The GeForce GT is the perfect GPU for accelerating
photos and video, playing games, and enjoying the
new GPU-accelerated web.
GeForce GT series
Copyright © 2013 Jaton Corporation, USA 4
Features and Specifications
Microsoft® DirectX® 11 Support
DirectX 11 GPU with Shader Model 5.0 support
designed for ultra high performance in the new API’s
key graphics feature, GPU-accelerated tessellation.
Blu-Ray 3D Support
Enable a theater quality 3D in your home with
seamless support for 1080p Blu-Ray 3D discs across
any compatible 3D viewing system over HDMI 1.4,
including active-shutter glasses and passive polarized
displays.
Hardware Video Decode Acceleration¹
The combination of high-definition video decode
acceleration and post-processing that delivers
unprecedented picture clarity, smooth video, accurate
color, and precise image scaling for movies and
video.
TrueHD and DTS-HD Audio Bitstreaming Support
Full support for TrueHD and DTS-HD advanced
lossless multi-channel HD audio codecs brings the
rich sound of the master recording to your living
room.
NVIDIA CUDA™ Technology
CUDA technology unlocks the power of the GPU’s
processor cores to accelerate the most demanding
tasks such as video transcoding, physics simulation,
GeForce GT series
Copyright © 2013 Jaton Corporation, USA 5
ray tracing, and more, delivering incredible
performance improvements over traditional CPUs.
NVIDIA PhysX® Technology
Full support for PhysX technology, enabling a totally
new class of physical gaming interaction for a more
dynamic and realistic experience with GeForce.
HDMI Output
Support for HDMI 1.4 output enables sending both
high-definition video and audio signals to an HDTV via
a single cable.
Dual-link DVI Support
Able to drive industry’s largest and highest resolution
flat-panel displays up to 2560x1600 and with support
for High-bandwidth Digital Content Protection (HDCP).
PCI Express 2.0 Support
Designed for the new PCI Express 2.0 bus
architecture offering the highest data transfer speeds
for the most bandwidth-hungry games and 3D
applications, while maintaining backwards
compatibility with existing PCI Express motherboards
for the broadest support.
Operating Systems
•Microsoft Windows 8, 7, Vista, XP
GeForce GT series
Copyright © 2013 Jaton Corporation, USA 6
Compatibility
•NVIDIA Unified Driver Architecture (UDA)
•Fully compliant with OpenGL including OpenGL 3.1
•Microsoft DirectX 11
•WHQL-certified for Windows 8, 7, Windows Vista, Windows
XP
GeForce GT series
Copyright © 2013 Jaton Corporation, USA 7
System Requirement
•Intel Pentium® P4 or compatible system with PCI- Express
Bus (x16) Extension Slot or PCI slot (depend on card
purchased)
•CD-ROM drive, Quad speed or faster
•Hard Drive with at least 200MB Free space
•MS Windows® 8/7/Vista/XP operating system
•Minimum 300 Watt power supply (Minimum recommended
power supply with +12 Volt current rating of 20 Amp Amps.)
Check List
•Video-PX630GT-EX, Video-PX630GT-LX Video-PX620GT-
EX, Video-PX620GT-LX, Video-PX610GT-EX, Video-
PX520GT-LX, Video-PX430GT-LX, Video-PX658-DLP,
Video-PX658-DLP-LX , Video-PX658-DLP-EX , Video-PX678-
DLP or Video-PX678-DLP-EX Multimedia Accelerator
•DVI to VGA converter
•LFH to Dual DVI adapter cable (part# CB59DVI-I2C00) –
Video-PX658-DLP, Video-PX658-DLP-LX, Video-PX658-
DLP-EX, Video-PX678-DLP, Video-PX678-DLP-EX
•Software & Documents CD
•Quick Start Guide (Printed)
GeForce GT series

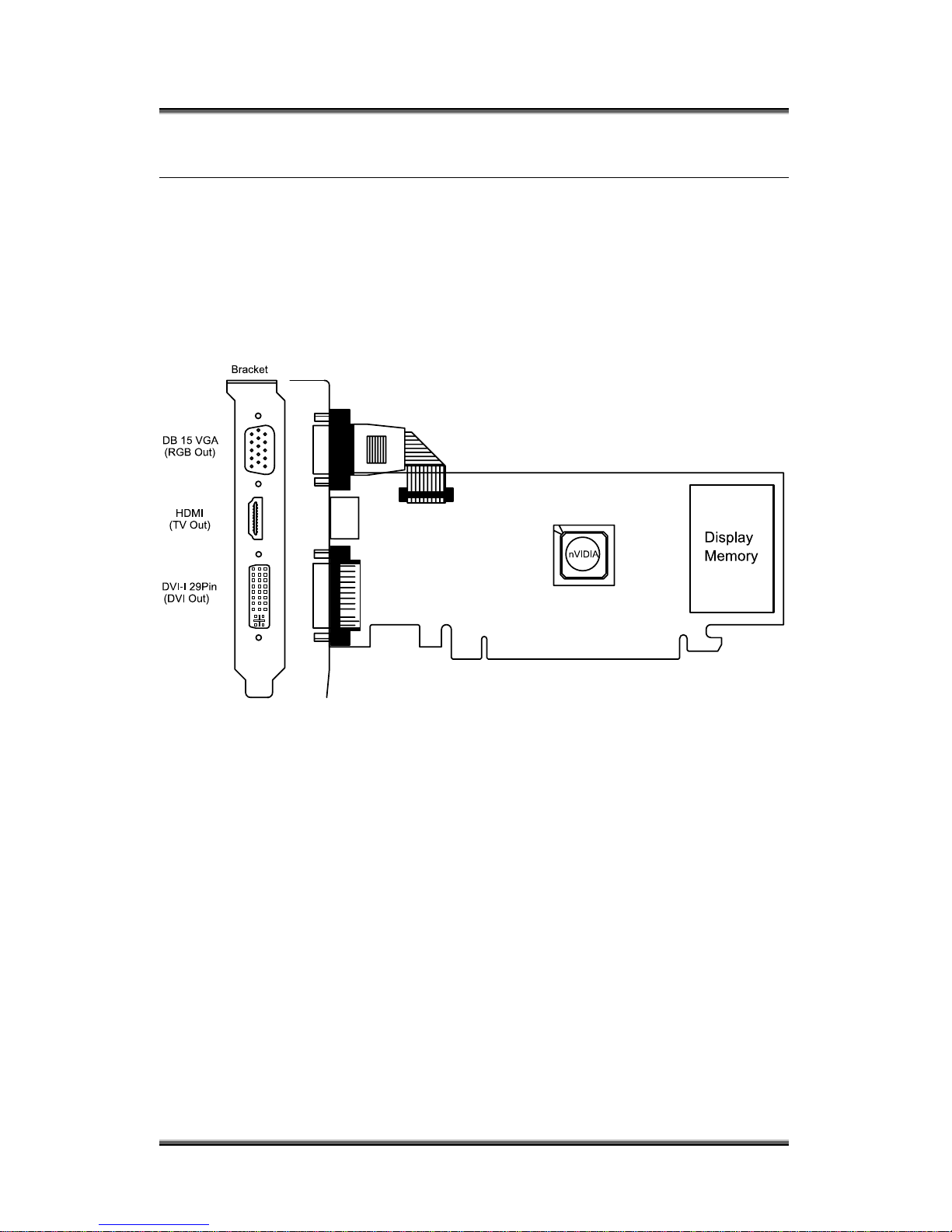

Hardware Description
Video-PX430GT-LX / Video-PX520GT-LX / Video-
PX610GT-EX / Video-PX610GT-LX / Video-PX620GT-LX
/ Video-PX620GT-EX
Copyright © 2013 Jaton Corporation, USA 8
GeForce GT series

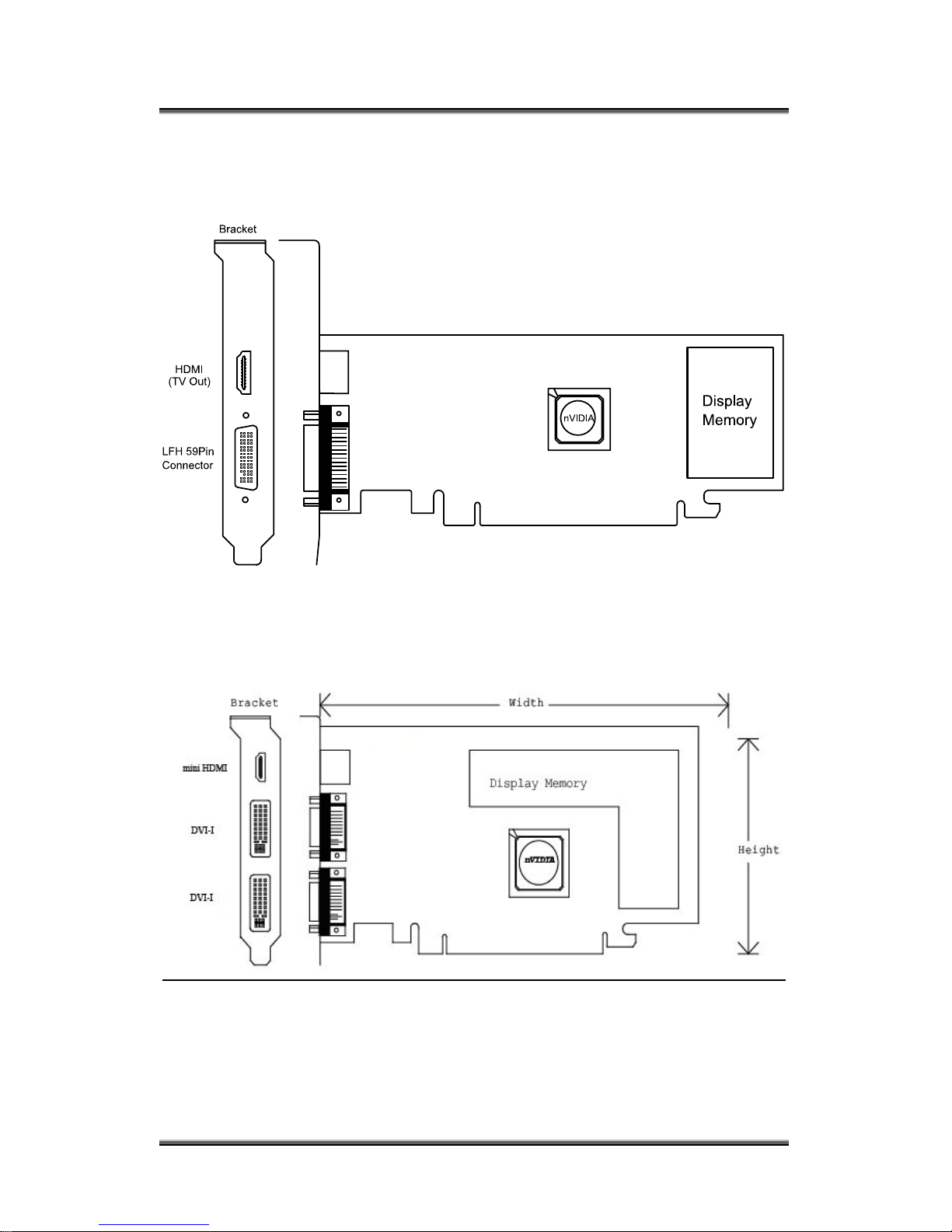

Video-PX658-DLP/Video-PX658-DLP-LX / Video-PX658-
DLP-EX / Video-PX678-DLP / Video-PX678-DLP
Video-PX630GT-LX / Video-PX630GT-EX
Copyright © 2013 Jaton Corporation, USA 9
GeForce GT series
Copyright © 2013 Jaton Corporation, USA 10
Product name / PCB version Core Chipset PCB Size Memory Size
Video-PX430GT-LX 82658B NVIDIA GeForce GT430 W=5.7” X H=2.713” 64M X 16 DDR3 1GB
Video-PX620GT-LX 82658C NVIDIA GeForce GT620 W=5.94” X H=2.713” 128M X 8 DDR3 1GB
Video-PX620GT-EX 82658C NVIDIA GeForce GT620 W=5.94” X H=2.713” 256M X 8 DDR3 2GB
Video-PX658-DLP 82658F NVIDIA GeForce GT430 W=5.7” X H=2.713” 64M X 16 DDR3 1GB
Video-PX520GT-LX 82678A NVIDIA GeForce GT520 W=5.7” X H=2.713” 128M X 16 DDR3 1GB
Video-PX610GT-LX 82678A NVIDIA GeForce GT610 W=5.7” X H=2.713” 128M X 16 DDR3 1GB
Video-PX610GT-EX 82678A NVIDIA GeForce GT610 W=5.7” X H=2.713” 128M X 16 DDR3 2GB
Video-PX678-DLP 82678F NVIDIA GeForce GT610 W=5.7” X H=2.713” 128M X 16 DDR3 1GB
Video-PX678-DLP-EX 82678F NVIDIA GeForce GT610 W=5.7” X H=2.713” 128M X 16 DDR3 2GB
Video-PX658-DLP-LX 82658F NVIDIA GeForce GT630 W=5.7” X H=2.713” 64M X 16 DDR3 1GB
Video-PX658-DLP-EX 82658F NVIDIA GeForce GT630 W=5.7” X H=2.713” 128M X 16 DDR3 2GB
Video-PX630GT-LX 82688A NVIDIA GeForce GT630 W=6.6” X H=4.376” 64M X 16 DDR3 1GB
Video-PX630GT-EX 82688A NVIDIA GeForce GT630 W=6.6” X H=4.376” 128M X 16 DDR3 2GB
Accessories for VGA cards are sold separately. Please go to
http://www.anvshopper.net for details
