O.S. engine MAX-32SX Guida all'installazione
It is of vital importance, before attempting to
operate your engine, to read the general
'SAFETY INSTRUCTIONS AND WARNINGS'
section on pages 2-6 of this booklet and to strictly
adhere to the advice contained therein.
●Also, please study the entire contents of this
instruction manual, so as to familiarize yourself
with the controls and other features of the
engine.
Keep these instructions in a safe place so that
you may readily refer to them whenever
necessary.
It is suggested that any instructions supplied
with the aircraft, radio control equipment, etc.,
are accessible for checking at the same time.
●
●
MAX-15CV-A, 25FX, 32SX
CONTENTS
SAFETY INSTRUCTIONS AND
WARNINGS ABOUT YOUR O.S. ENGINE
INTRODUCTION,
BEFORE INSTALLING THE ENGINE
BASIC ENGINE PARTS
CARBURETOR PARTS
INSTALLATION OF THE ENGINE
THROTTLE LINKAGE, SILENCER
FUEL TANK LOCATION
GLOWPLUG
FUEL, PROPELLERS
MIXTURE CONTROLS
BEFORE STARTING
STARTING
RUNNING-IN (Breaking-in)
IDLING ADJUSTMENT CHART
MIXTURE CONTROL VALVE ADJUSTMENT,
REALIGNMENT OF MIXTURE CONTROL VALVE
SUBSEQUENT STARTING PROCEDURE
SUBSEQUENT READJUSTMENT
CARBURETOR CLEANLINESS,
ENGINE CARE AND MAINTENANCE
GENUINE O.S. PARTS & ACCESSORIES
ENGINE EXPLODED VIEWS &
ENGINE PARTS LISTS
CARBURETOR EXPLODED VIEWS
& PARTS LISTS
ENGINE THREE VIEW DRAWING
2
~
6
7
8
9
10
~
11
11
12
13
~
14
14
14
~
16
16
~
17
17
~
19
20
21
22
23
24
~
25
26
~
29
30
~
31
31
~
32
1
Remember that your engine is not a "toy", but a highly efficient internal-
combustion machine whose power is capable of harming you, or others, if it is
misused.
As owner, you, alone, are responsible for the safe operation of your engine, so act
with discretion and care at all times.
If at some future date, your O.S. engine is acquired by another person, we would
respectfully request that these instructions are also passed on to its new owner.
SAFETY INSTRUCTIONS AND WARNINGS ABOUT YOUR O.S. ENGINE
The advice which follows is grouped under two headings according to the
degree of damage or danger which might arise through misuse or neglect.
WARNINGS NOTES
These cover events which
might involve serious (in
extreme circumstances, even
fatal) injury.
These cover the many other
possibilities, generally less obvious
sources of danger, but which, under
certain circumstances, may also
cause damage or injury.
2
WARNINGS
Model engine fuel is poisonous. Do not
allow it to come into contact with the eyes
or mouth.Always store it in a
clearlymarkedcontainerand
out of the reach of children.
Never operate your engine in an en-
closed space. Model engines, like auto-
mobile engines, exhaust deadly carbon-
monoxide. Run your engine only in an
open area.
Model engines generate considerable
heat. Do not touch any part of your
engine until it has cooled. Contact with
the muffler (silencer),
cylinder head or exhaust
header pipe, in particular,
may result in a serious burn.
•
•
•
•
Never touch, or allow any object to come
into contact with, the rotating
propeller and do not crouch
over the engine when it is
running.
A weakened or loose propeller may
disintegrate or be thrown off and, since
propeller tip speeds with powerful
engines may exceed 600 feet(180 metres)
per second, it will be understood that
such a failure could result in serious
injury, (see 'NOTES' section relating to
propeller safety).
•
Model engine fuel is also highly
flammable. Keep it away from open flame,
excessive heat, sources of sparks, or
anythingelsewhichmightignite
it.Donotsmokeorallowanyone
else to smoke, near to it.
•
3
NOTES
•
•
•
•
•
This engine was designed for model
aircraft. Do not attempt to use it for any
other purpose.
Mount the engine in your model securely,
following the manufacturers' recommenda-
tions, using appropriate screws and lock-
nuts.
Be sure to use the silencer (muffler)
supplied with the engine. Frequent
exposure to an open exhaust may
eventually impair your hearing.
Such noise is also likely to cause
annoyance to others over a wide area.
Install a top-quality propeller of the
diameter and pitch specified for the engine
and aircraft. Locate the propeller on the
shaft so that the curved face of the blades
faces forward-i.e. in the direction of flight.
Firmly tighten the propeller nut, using the
correct size wrench.
If you remove the glowplug from the engine
and check its condition by connecting the
battery leads to it, do not hold the plug with
bare fingers.Use an appropriate tool or a
folded piece of cloth.
4
NOTES
•
•
Always check the tightness of the propeller
nut and retighten it, if necessary, before
restarting the engine, particularly in the
case of four-stroke-cycle engines. If a
safety locknut assembly is provided with
your engine, always use it. This will prevent
the propeller from flying off in the event of a
"backfire", even if it loosens.
If you fit a spinner, make sure that it is a
precision made product and that the slots
for the propeller blades do not cut into the
blade roots and weaken them.
Preferably, use an electric starter. The
wearing of safety glasses is also strongly
recommended.
•
•Discard any propeller which has become
split, cracked, nicked or otherwise rendered
unsafe. Never attempt to repair such a
propeller: destroy it. Do not modify a propeller
inanyway,unlessyouarehighlyexperienced
in tuning propellers for specialized
competition work such as pylon-racing.
Take care that the glow plug clip or battery
leads do not come into contact with the
propeller. Also check the linkage to the
throttle arm. A disconnected linkage could
also foul the propeller.
After starting the engine, carry out any
needle-valve readjustments from a safe
position behind the rotating propeller. Stop
the engine before attempting to make other
adjustments to the carburetor.
•
•
5
NOTES
•
•
•
•
•
Adjust the throttle linkage so that the engine
stops when the throttle stick and trim lever
on the transmitter are fully retarded.
Alternatively, the engine may be stopped by
cutting off the fuel supply. Never try to stop
the engine physically.
Take care that loose clothing (ties, shirt
sleeves, scarves, etc.)do not come into
contact with the propeller.Do not carry loose
objects (such as pencils, screwdrivers, etc.)
in a shirt pocket from where they could fall
through the propeller arc.
Do not start your engine in an area
containing loose gravel or sand.
The propeller may throw such material in
your face and eyes and cause injury.
For their safety, keep all onlookers
(especially small children) well back (at
least 20 feet or 6 meters) when preparing
your model for flight. If you have to carry
the model to the take-off point with the
engine running, be especially cautious.
Keep the propeller pointed away from you
and walk well clear of spectators.
Warning! Immediately after a glowplug-
ignition engine has been run and is still
warm, conditions sometimes exist whereby
it is just possible for the engine to abruptly
restart if the propeller is casually flipped
over compression WITHOUT the glowplug
battery being reconnected. Remember this
if you wish to avoid the risk of a painfully
rapped knuckle!
6
This range of engines is ideally suited to a variety
of R/C aircraft, including trainer, sports, aerobatic
and scale types.
A separate precision-made needle-valve unit is
installed at the rear, where manual adjustment is
safely remote from the rotating propeller.
INTRODUCTION
With these engines, the piston will feel tight at the
top of its stroke when the engine is cold. This is
normal. The piston and cylinder are designed to
achieve a perfect running clearance when they
reach their intended running temperature.
Note :
•
•
Carefully insert plug, with
washer, fingertight only, before
final tightening with the correct
size plug wrench.
BEFORE INSTALLING THE ENGINE
Installing the glowplug
Connect the short length of fuel tubing (supplied)
securely between the needle-valve outlet and
carburetor inlet as shown in the illustration on the
next page.
In the event of the tubing becoming damaged, it
should be replaced with a suitable length (as
indicated below) of best quality 5mm ODx2mm ID
silicone tubing. Use similar material to connect the
fuel inlet nipple to the fuel tank.
Connecting fuel tubing
Length
15CV-A
25FX
32SX
44mm
38mm
44mm
Glow plug
Washer
7
BASIC ENGINE PARTS
Cylinder head
Carburetor
Silicone Tube
Crankshaft
Propeller nut
Propeller washer
Drive Hub
Crankcase
Needle valve
Cover Plate
Fuel outlet
Fuel inlet
Glowplug
Fuel inlet
Beam Mount
MAX-15CV-A
Throttle Lever
Throttle Stop
Screw
INSTALLATION OF THE CARBURETTOR
Loosen the retainer screw, rotate the
carburettor to its correct position and make
sure that it is pressed well down into the
intake boss, compressing the rubber gasket,
before retightening screw.
Rotate the retainer screw gently until it
stops, then tighten a further 60-90˚.
Do not overtighten the screw as this will
damage the carburettor body.
1.
2.
Rotate the retainer nut
gently until it stops. Tighten a further 60-90˚
For 15CV-A
8
Retaining Screw Size
15CV-A
25FX
32SX
3.0mm
3.0mm
3.0mm

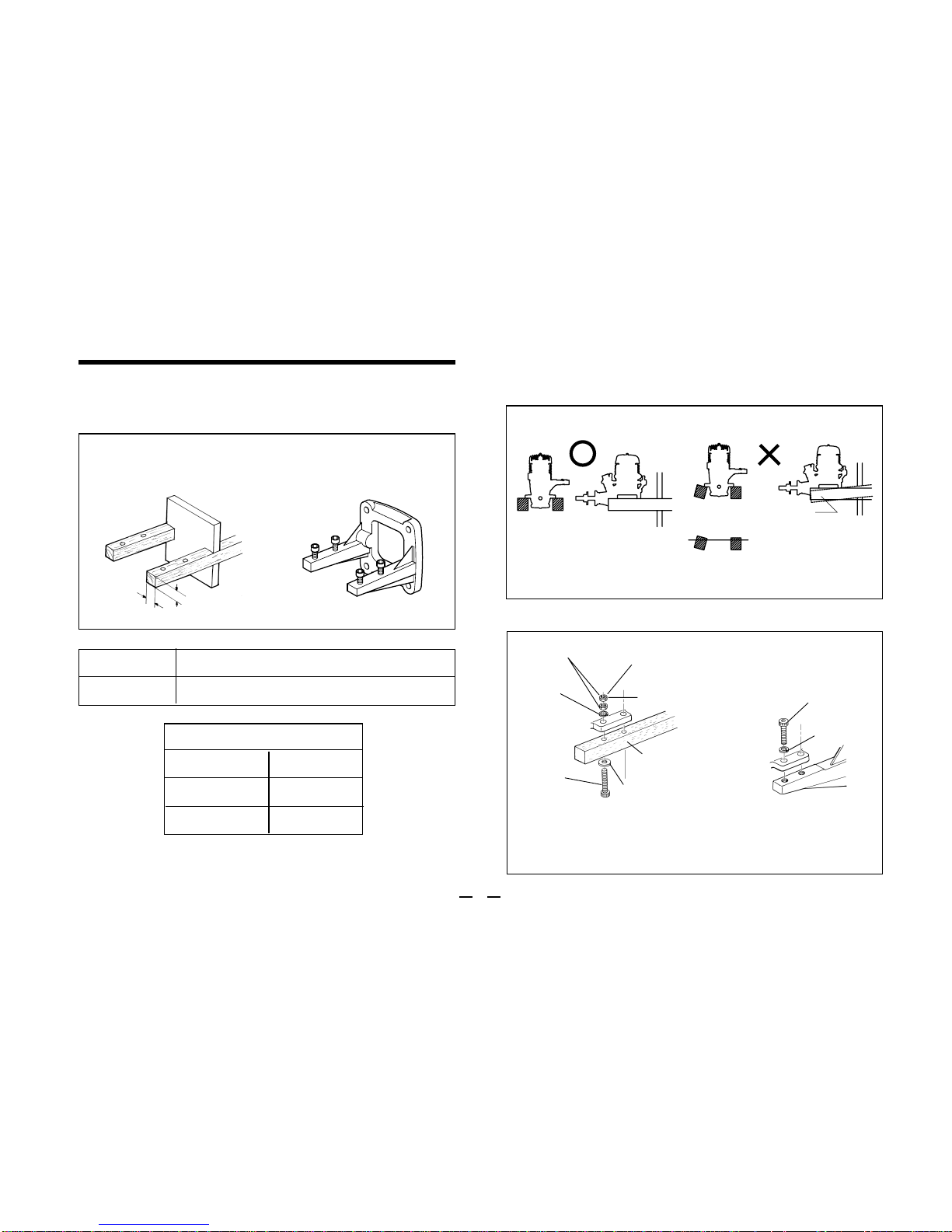

INSTALLATION OF THE ENGINE
Rigid hardwood
(e.g. maple)
At least
12mm(1/2")
At least
12mm(1/2")
O.S. radial motor mount
(Available as an optional extra
part. See parts list)
Hardwood mounting beams O.S. radial motor mount
(cast aluminum)
How to fasten the mounting screws.
A typical method of beam
mounting is shown below, left.
Installation in the model
15CV-A
25FX/32SX
For CZ, 15CV-A(Code No. 71909410)
For 25FX¡32SX(Code No. 71908410)
Make sure that the mounting beams are parallel and
that their top surfaces are in the same plane.
Front view Side view Top surfaces
are not in the
same plane. Opposite
beam Top surfaces
are not in the
same plane.
Re-align the surfaces
as necessary Engine does not
rest firmly.
CORRECT INCORRECT
Top surfaces are in
the same plane.
Tighten second nut firmly
down onto first nut.
Tighten this nut first.
Steel washer
3mm
steel screw
Spring
washer or
lock washer
Hardwood such as
cherry or maple.
Spring
washer
3mm steel
Allen screw
3mm steel nuts
Use mounting screws of a diameter (between 3mm)
appropriate to engine size (see table left).
9
Questo manuale è adatto per i seguenti modelli
2
Indice
Altri manuali O.S. engine Motore
O.S. engine
O.S. engine MAX-55HZ HYPER Guida all'installazione
O.S. engine
O.S. engine OMA-2820-950 Guida all'installazione
O.S. engine
O.S. engine MAX-12CV-R Guida all'installazione
O.S. engine
O.S. engine GT15 Guida all'installazione
O.S. engine
O.S. engine MAX-18CV-RMX Guida all'installazione
O.S. engine
O.S. engine FS-56A Guida all'installazione
O.S. engine
O.S. engine fs-70II Guida all'installazione
O.S. engine
O.S. engine MAX-70SZ-Hring Guida all'installazione
O.S. engine
O.S. engine GGT10 Manuale utente
O.S. engine
O.S. engine FS-200S-P Guida all'installazione
O.S. engine
O.S. engine MAX-120AXRING Manuale utente
O.S. engine
O.S. engine max-18tz series Guida all'installazione
O.S. engine
O.S. engine MAX FXi 46 Guida all'installazione
O.S. engine
O.S. engine MAX-91SX-HRING C Spec PS VIPER Guida all'installazione
O.S. engine
O.S. engine MaX-37SZ-HRING Guida all'installazione
O.S. engine
O.S. engine max-12TZ series Guida all'installazione
O.S. engine
O.S. engine MAX-32SX-MX Guida all'installazione
O.S. engine
O.S. engine MAX-28XZ Manuale utente
O.S. engine
O.S. engine FS-30S Guida all'installazione
O.S. engine
O.S. engine Alpha Series Guida all'installazione
