Oase 320 Manuale utente
Fountain Pump 320
Operating instructions
Notice d’emploi
Instrucciones de uso
2
- English -
REMINDER
CALL 1-866-627-3435
BEFORE RETURNING TO STORE.

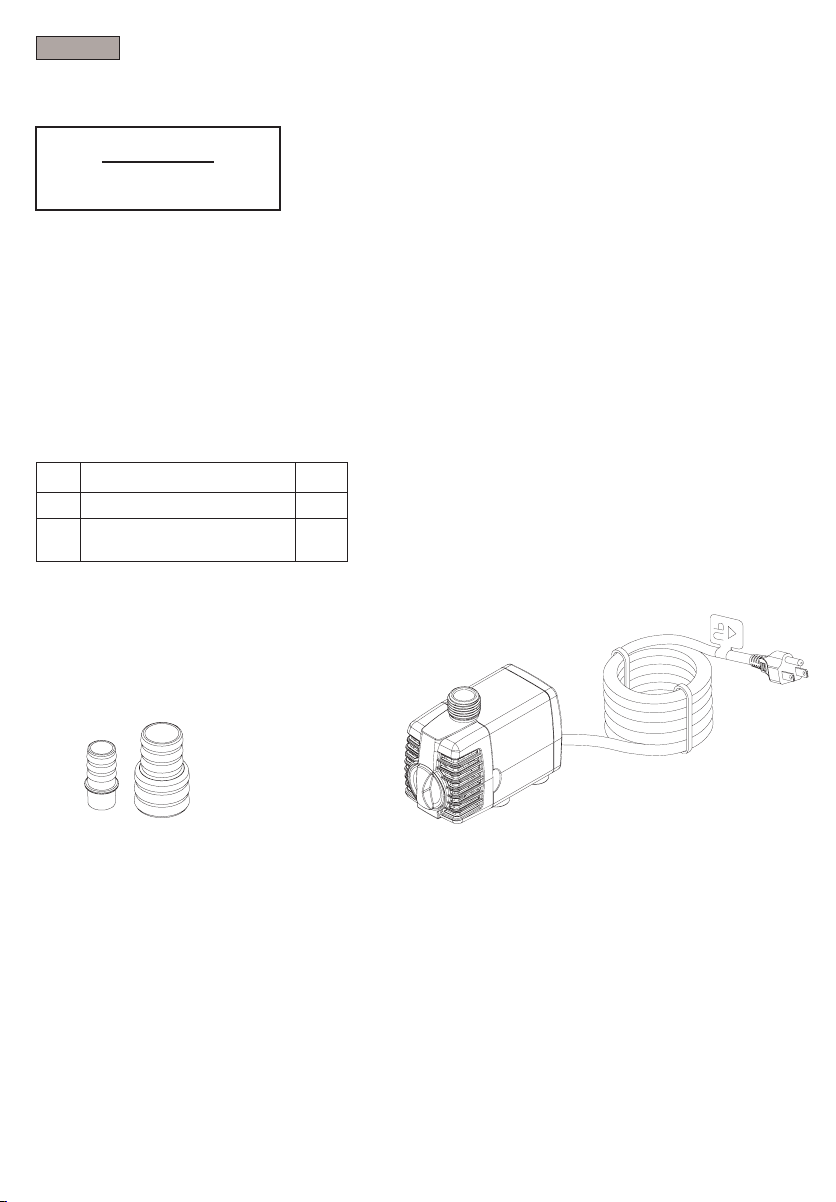

Part Description QTY
APump with ow control 1
B1/2 in. and 3/4 in. ID tubing
adapter 1
Information about these operating instructions
Welcome to OASE Living Water. You made a great choice with the purchase of this product Fountain Pump 320. Prior
to operating the unit, please read the instructions of use carefully and fully familiarize yourself with the unit. Ensure that
all work on and with this unit is only carried out in accordance with these instructions. Please strictly follow the enclosed
instructions to ensure safe and correct handling of the product. Keep these instructions in a safe place. Please also hand
over the instructions when passing the unit on to a new owner.
A.
B.
- English -
3
2
Questions, problems, missing parts?
Before returning to your retailer, call us at 1-866-627-3435, 8 a.m.-6 p.m., EST, Monday-Friday, or email
us at customercare@oase-livingwater.com. Or visit our website at www.oase-livingwater.com
WARNINGS AND CAUTIONS SYMBOLS
Symbols used in these instructions
The symbols used in this operating manual have the following meanings:
Risk of injury to persons due to dangerous electrical voltage.
This symbol indicates an imminent danger, which can lead to death or severe injuries if the appropriate measures are
not taken.
Risk of personal injury caused by a general source of danger.
This symbol indicates an imminent danger, which can lead to death or severe injuries if the appropriate measures are
not taken.
Important! The unit is equipped with a permanent magnet. The magnetic eld may affect the function of pacemakers.
Important information for trouble-free operation.
!
Intended use
Fountain Pump 320, referred to in the following as “unit”, may only be used as specied in the following:
• For pumping clean water in indoor and outdoor fountains, table fountains, and statues.
• Operation under observance of the technical data.
The following restrictions apply to the unit:
• Do not use in swimming pools.
• CAUTION - this pump has been evaluated for use with water only.
• Never run the unit without water.
• Do not use for commercial or industrial purposes.
• Do not use in conjunction with chemicals, food products, easily ammable or explosive substances.
• Do not connect to the domestic water supply.
• Do not exceed the voltage shown on the pump.
• Do not remove the grounding pin from the power cord plug.
• Inspect the power cord for damage before installation and maintenance.
• WARNING - To reduce the risk of an electric shock, use only on portable self-contained fountains no larger than 5 feet in
any direction.
Use other than that intended
This unit can be dangerous and cause harm if not used in accordance with these instructions. Any use not in accordance
with these instructions or modication(s) to the unit will void the limited warranty.
!
4
- English -

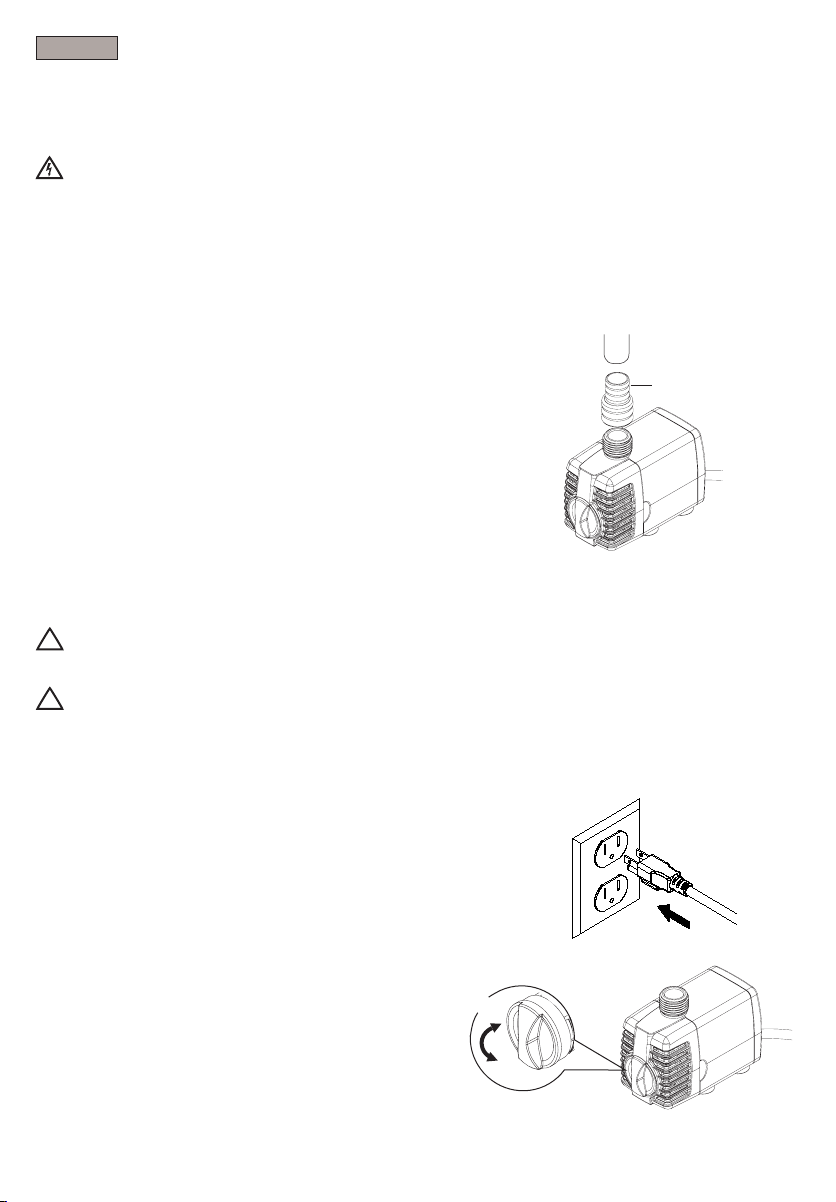

Installation
WARNING
Risk of electric shock – This pump is supplied with a grounding conductor and grounding-type attachment plug. To
reduce the risk of electric shock, be certain that it is connected only to a properly grounded, grounding-type
receptacle.
1. Attach the adapter to the pump rst, then connect the
appropriate tubing to the adapter.
NOTE: Tubing is NOT INCLUDED.
2. Attach the other end of tubing to desired fountain feature.
1.
1.
Start-up
Attention! The pump must never run dry.
Possible consequences: The pump will be destroyed.
Protective measures: Check the water level at regular intervals. Always place the unit below water level.
Attention! The installed temperature sensor automatically turns the pump off, if it is overloaded. The pump
automatically switches on again once the motor has cooled down. Risk of accident!
Install the unit so that it is not exposed to direct sun radiation (max. 104 ºF - 40 ºC).
!
Important:
● The unit switches on automatically when power connection
is established.
1. Switching on: Connect power plug to the socket.
2. Adjust the ow control to the preferred setting.
3. Switching off: Disconnect the power plug.
Important:
● Always place the unit below water level.
● It is recommened to place the unit horizontally on the ground ensuring its stable position.
● Do not lift the pump by its power cord.
Tubing
Adapter
Pump
2.+
-
!
- English -
5
4
Questions, problems, missing parts?
Before returning to your retailer, call us at 1-866-627-3435, 8 a.m.-6 p.m., EST, Monday-Friday, or email
us at customercare@oase-livingwater.com. Or visit our website at www.oase-livingwater.com
1.
Maintenance and cleaning
Attention! Dangerous electrical voltage.
Possible consequences: Death or serious injuries.
Protective measures:
• Electrical units and installations with a rated voltage of U > 12 V AC or U >30 V DC located in the water: Isolate the
units and installations (switch off and disconnect from the power supply) before reaching into the water.
• Isolate the unit before starting any work.
• Secure the unit to prevent unintentional switching on.
WARNING
This pump uses a very strong magnet to achieve superior performance. When removing the impeller assembly there
will be considerable magnetic force resisting the extraction of the impeller assembly. This is normal. Likewise when
replacing the impeller assembly there will be a strong magnetic force pulling the assembly into the pump to potentially
cause injury to ngers and in rare cases damaging the ceramic shaft or rear bearing. Use thick gloves when replacing
the impeller assembly.
Cleaning the unit
●Regular cleaning of the pump may be necessary depending
upon the environment in which it is operated. Clean the pump
when it is visibly soiled or when a drop in performance is
detected. Clean the unit with warm water using a soft brush.
●Never use aggressive cleaning agents or chemical solutions.
These could attack the housing surface or impair the function.
●In the event of stubborn furring (calcium deposits), a common
household cleaner free from vinegar and chlorine can be used.
Subsequently, clean the pump thoroughly using warm water.
Cleaning the pump
1. Disconnect the pump from the power source.
○ Disconnect the tubing.
2. Remove the front cover and disassemble the impeller
cover to expose the impeller assembly.
3. Remove the impeller assembly by gently pulling on
the impeller blades.
4. Use a soft cloth or brush to clean the impeller assembly
and the inside of the impeller housing.
●Check parts for damages such as cracked rotor, shaft
or bearing, cracks in the magnet, and broken plastics.
Replace parts if necessary.
5. Reassemble in the reverse order.
2.
3.
4.
!
6
- English -
Storage/Winterization
● Put the unit out of operation at water temperatures below 46 °F (8 °C) or, at the latest, when freezing temperatures are
to be expected.
● Thoroughly clean the unit, check for damage.
● Ensure that the storage place is inaccessible to children.
Wear parts
The impeller unit is a wear part and is excluded from the warranty.
Disposal
Do not dispose of this unit with domestic waste! Disable the unit beforehand by cutting off the cables. Further
information about the recycling of this product can be obtained from your local municipal authority.
Issue Cause Solution
The unit is not
performing its
suction function
Power supply not connected Connect pump power supply, check the supply lines to make sure
the voltage is correct
Impeller blocked, shaft broken Remove the front cover, and impeller cover to expose the
impeller. Turn the impeller to ensure that it is not broken or
jammed by debris. Also check to make sure that the ceramic
shaft or bearings are not broken.
Fountain or spitter clogged Check for kinks or obstructions in tubing or spitter.
Pump is not completely
submerged
Completely submerge pump in the water
Insufcient ow Flow control closed too far Adjust ow control
Screen clogged Clean
Tubing blocked Clean or replace tubing
Tubing kinked Eliminate kink, replace tubing if it is damaged
Excessive ow loss in the
tubing due to friction
○ Reduce tubing length to reduce frictional loss
○ Select larger adapter and hose diameter.
Pump overload. The ow is
automatically stopped to protect
the pump.
○ Clean the pump housing and impeller assembly
○ Reduce the ambient temperature (e.g. ensure that the specied
water temperature is adhered to, avoid direct sunlight)
Pump is not completely submerged Completely submerge pump in the water
Impeller worn Replace impeller assembly
Unit switches
off after a short
running period
Excessive soiled water Clean impeller housing, bearing and impeller assembly on pump
and clean fountain water
Impeller blocked, shaft broken Remove the front cover, and impeller cover to expose the
impeller. Turn the impeller to ensure that it is not broken or
jammed by debris. Also check to make sure that the ceramic
shaft or bearings are not broken.
Water temperature too high Maximum water temperature: +95° F (+35 °C)
Troubleshooting
7
6
Questions, problems, missing parts?
Before returning to your retailer, call us at 1-866-627-3435, 8 a.m.-6 p.m., EST, Monday-Friday, or email
us at customercare@oase-livingwater.com. Or visit our website at www.oase-livingwater.com 7
Model Model No. Rated
voltage Power consumption Max. ow
rate
Max. head
height
cord
length
connection for
hoses Dimensions
320 45414 120V /
60 Hz 0.4 A / 23 W 320 GPH 6.2 ft. 16 ft. 1/2″, 3/4″ 3.97 x 2 x 3.09 in.
Fountain Pump
- English -
Pos.
Fountain Pump
320
1Front cover
2Flow control
3Impeller cover
4Shaft support
5Shaft
6Impeller assembly
71/2 in. ID tubing
adapter
83/4 in. ID tubing
adapter
1
2
34
5
6
87
4
- Français -
8
Pièce Description Quant.
Apompe dotée d’un contrôle de débit 1
B2 adaptateur pour tuyaux de 13 / 19 mm de diamètre 1
A.
B.
RAPPEL
APPELEZ LE 1-866-627-3435
AVANT DE RETOURNER AU MAGASIN.
Informations sur le mode d’emploi
Bienvenue à OASE Living Water. L’achat de votre pompe pour fontaine 320 constitue un excellent choix. Avant d’utiliser
la pompe, lisez les instructions attentivement et familiarisez-vous parfaitement avec l’appareil. Assurez-vous que tout
travail effectué sur cet appareil et toute utilisation est conforme aux instructions qui suivent. Suivez ces instructions à la
lettre an de vous assurer d’une manutention de l’appareil adéquate et sans risque. Conservez ces instructions dans un
endroit sûr et remettez-les au nouveau propriétaire si vous transmettez l’appareil.
- Français -
9
8
Questions, problèmes, pièces manquantes ?
Avant de retourner chez votre détaillant, appelez au 1 866 627-3435, entre 8 h et 18 h, heure de l’Est, ou encore envoyez-nous un
courriel à l’adresse customercare@oase-livingwater.com. Vous pouvez aussi consulter notre site web au www.oase-livingwater.com
Utilisation prévue
Les pompes pour fontaine 320, désignées ci-après comme « l’appareil », peuvent être utilisées seulement comme indiqué
dans les points suivants :
• Pour le transport de l’eau claire pour les pompes de fontaines intérieures et extérieures et les pompes de fontaines de
table et statuaires.
• Fonctionnement en respect avec les données techniques.
Les restrictions suivantes s’appliquent à l’appareil :
• Ne pas utiliser dans une piscine.
• Attention - Cette pompe a été évaluée pour une utilisation avec de l’eau seulement.
• Ne jamais faire fonctionner l’appareil sans eau.
• Ne pas utiliser à des ns commerciales ou industrielles.
• Ne pas utiliser avec des produits chimiques, des aliments ou des substances facilement inammables ou explosives.
• Ne pas relier au système d’approvisionnement en eau domestique.
• Ne pas dépasser le voltage indiqué sur la pompe.
• Avant l’installation ou l’entretien, inspectez le cordon d’alimentation pour vous assurer qu’il n’est pas endommagé.
• Ne pas retirer la broche de terre de la che du cordon d’alimentation.
• Avertissement - Pour réduire le risque de choc électrique, n’utiliser que sur des fontaines autonome portable aucun plus
grand que 1,5 mètres dans n’importe quelle direction.
Utilisation non conforme
Cet appareil peut être dangereux et causer des dommages s’il n’est pas utilisé conformément aux instructions qui suivent.
Toute utilisation non conforme à ces instructions ou toute modication à l’appareil annulera la garantie.
PICTOGRAMMES DE PRÉCAUTIONS ET MISES EN GARDE
Pictogrammes utilisés dans ces instructions
Les pictogrammes utilisés dans ce manuel d’utilisation ont les signications suivantes :
Risque de blessures aux personnes en raison de la tension électrique dangereuse.
Ce pictogramme indique un danger imminent pouvant entraîner la mort ou des blessures graves si les mesures
appropriées ne sont pas prises.
Situation dangereuse pour les personnes en raison d’un danger d’ordre général.
Ce pictogramme indique un danger imminent pouvant entraîner la mort ou des blessures graves si les mesures
appropriées ne sont pas prises.
Important ! L’appareil est doté d’un aimant permanent. Le champ magnétique peut inuencer le fonctionnement des
stimulateurs cardiaques.
Renseignements importants pour un bon fonctionnement.
!
!
- Français -
10
Installation
AVERTISSEMENT
Risque de décharge électrique. Cette pompe est fournie avec un conducteur de terre et une che de terre. An de
réduire le risque de décharge électrique, assurez-vous qu’elle est uniquement connectée à une prise avec mise à la
terre, bien mise à la terre.
1.
1.
!
Important :
●Toujours placer l’appareil sous le niveau de l’eau.
● Il est recommandé de placer l’appareil horizontalement sur le sol an d’assurer sa stabilité.
● Ne soulevez pas la pompe par son cordon d’alimentation.
2.+
-
1. Reliez d’abord l’adaptateur à la pompe, puis le tuyau à
l’adaptateur.
REMARQUE : le tuyau n’est PAS INCLUS.
2. Reliez l’autre extrémité du tuyau à l’élément de fontaine
désiré.
Important :
● L’appareil se met en marche automatiquement lorsque la
connexion électrique est établie.
1. Mise en marche : branchez la che dans la prise de
courant.
2. Ajustez le débit d’eau selon vos préférences.
3. mise hors circuit : retirez la che de la prise de courant.
Démarrage
Attention ! La pompe ne doit jamais fonctionner à sec.
Conséquences possibles : la pompe sera détruite.
Mesures de protection : Vérifiez le niveau d’eau à intervalles réguliers. Placez toujours l’appareil sous le niveau de l’eau.
Attention ! Le capteur de température arrête automatiquement la pompe si elle est surchargée. La pompe repartira
automatiquement lorsque le moteur sera refroidi. Risque d’accident !
Installez l’appareil de façon à ce qu’il ne soit pas exposé directement aux rayons du soleil (max. 40 °C — 104 °F).
tuyau
adaptateur
pompe
!
Indice
Lingue:
Altri manuali Oase Pompa per laghetto
Oase
Oase Varionaut 150 24V/DMX/02 Manuale utente
Oase
Oase 525 Manuale utente
Oase
Oase WATER STARLET Manuale utente
Oase
Oase AquaMax Eco Classic Series Manuale utente
Oase
Oase Aquamax Eco 12000 CWS Manuale utente
Oase
Oase AquaOxy 400 Manuale utente
Oase
Oase SwimSkim CWS Manuale utente
Oase
Oase AquaMax Eco Classic Series Manuale utente
Oase
Oase AquaMax Eco Twin 20000 Manuale utente
Oase
Oase 280 Manuale utente
Oase
Oase AquaMax Eco Classic Series Manuale utente
Oase
Oase AquaOxy 450 Manuale utente
Oase
Oase Bitron Premium 60 W Manuale utente
Oase
Oase AquaOxy 1000 Manuale utente
Oase
Oase AquaMax Eco 5000 Manuale utente
Oase
Oase Jumping Jet Rainbow Star Set Manuale utente
Oase
Oase SwimSkim 25 Manuale utente
Oase
Oase PondJet Eco Guida
Oase
Oase AquaMax Eco Classic Series Manuale utente
Oase
Oase AquaMax Eco Premium 6000 / 12000 / 12V Manuale utente
Manuali Pompa per laghetto popolari di altre marche
Hozelock Cyprio
Hozelock Cyprio Cascade 5500 Manuale utente
Hozelock Cyprio
Hozelock Cyprio Aquaforce Series Manuale utente
HEISSNER
HEISSNER SPF 150-00 Manuale utente
AquaScape
AquaScape AQUAFORCE 4000-8000 Istruzioni per l’uso
Messner
Messner system-X 1501 Manuale utente
WilTec
WilTec TeichTip SunSun SuperEco CTM Series Manuale utente
