Oasis PCPEBF Manuale utente

FREE STANDING CONTACTLESS BOTTLE FILLER

Installation Instructions For:

UNFILTERED

PCPEBF

PCP10EBF

PCPEBFY 230V)

PCP10EBFY 230V)

FILTERED

PFCP10EBF

OASIS International

222 East Campus View Blvd.

Columbus, OH 43235

614-861-1350

www.oasiscoolers.com

INDEX

INDEXINDEX

INDEX

1. PRODUCT SPECIFICATIONS

2. IMPORTANT REQUIREMENTS

3. SAFETY WARNINGS

4. GETTING STARTED

5. PROPER QUICK CONNECT FITTING CONNECTION INSTRUCTIONS

6. INSTALLATION

7. SET-UP GUIDE FOR DISPENSER PCB ELECTRONICS

1. PRODUCT SPECIFICATIONS

1. PRODUCT SPECIFICATIONS1. PRODUCT SPECIFICATIONS

1. PRODUCT SPECIFICATIONS

Dimensions:

Depth 13.35” 339.0 mm)

Width 12” 304.8 mm)

Height 49.7” 1262.4 mm)

Refrigerant: R-134a

Input Voltage: 115 VAC, 60 HZ or 220/240 VAC, 50/60HZ –See Data Plate

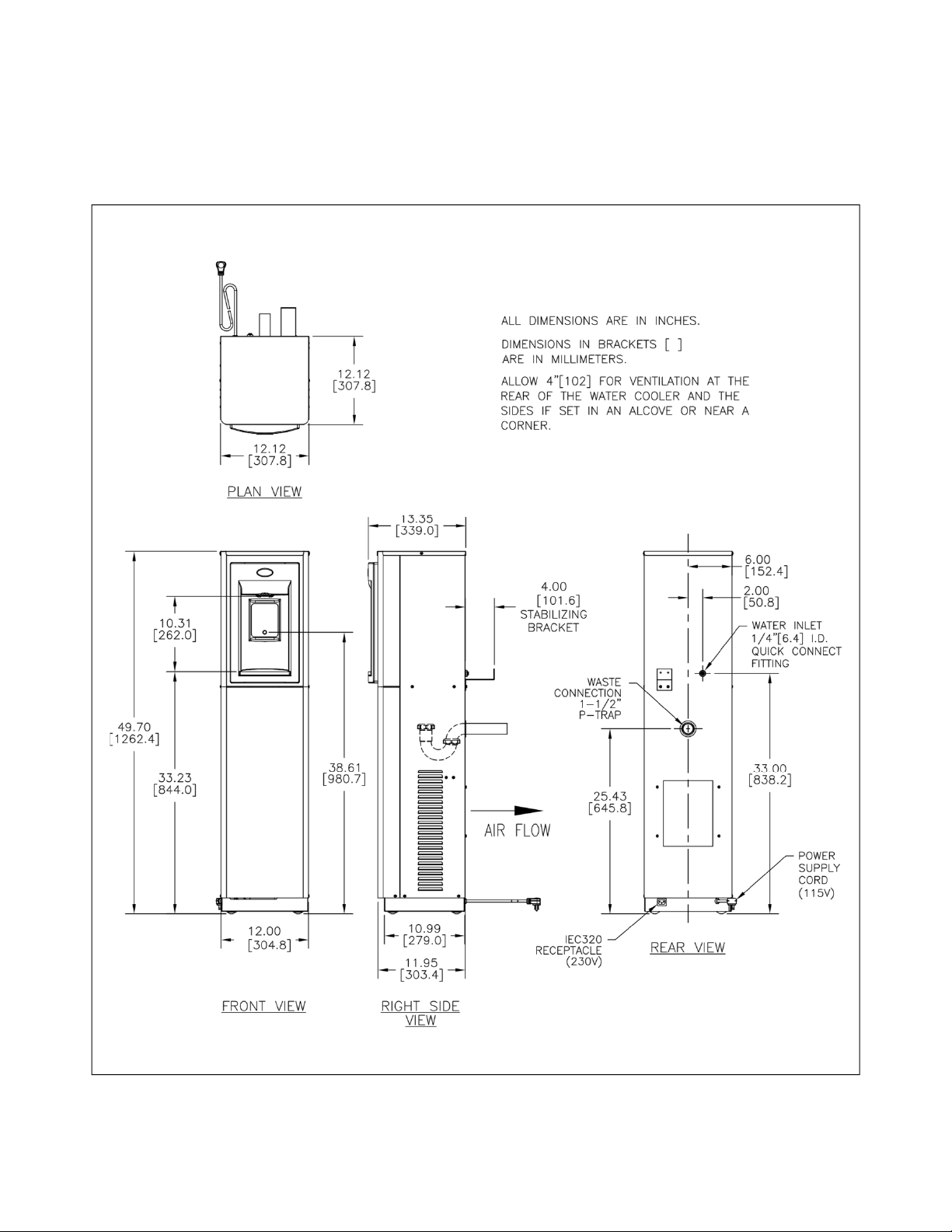

ROUGHING-IN AND DIMENSIONAL DRA ING

•Use only original and new parts to guarantee the reliability, optimization, and

performance of the OASIS water machine.

•Always wear proper protection when performing any type of service or

maintenance.

•When cleaning the unit, do not use corrosive acidic products, or metal

brushes.

•Do not wash the unit using high-pressure water.

•Connect to a water supply with a pressure of 45 PSI minimum to 100 PSI

maximum 3.10 bar minimum to 6.89 bar maximum ).

•ARNING: DO NOT USE WITH WATER THAT IS MICROBIOLOGICALLY UNSAFE

OF UNKNOWN QUALITY.

•ATTENTION: IT IS IMPORTANT TO MAKE PROPER CONNECTIONS TO THE

QUICK CONNECT FITTINGS TO AVOID LEAKS. SEE SECTION 5.

•CAUTION: DO NOT PLACE UNDUE STRESS OR SIDE LOAD ON ANY OF THE

PLASTIC FITTINGS.

2. IMPORTANT REQUIREMENTS

2. IMPORTANT REQUIREMENTS2. IMPORTANT REQUIREMENTS

2. IMPORTANT REQUIREMENTS

BEFORE YOU START USING THIS ATER DISPENSER, PLEASE READ THE

FOLLO ING INSTRUCTIONS CAREFULLY.

•The unit must be connected to a 115 VAC GFCI or 230VAC power supply as

listed on the equipment data label.

•The unit must be protected by a properly installed 20 amp circuit breaker.

Verify that the electrical current is correct for the power of this unit, which is

listed on the machine data label.

•To avoid electrical shock always unplug the unit from the electrical outlet

before servicing.

•If the power supply cord is damaged, it must be replaced by a special cord or

assembly available from the manufacturer or its service agent.

•This appliance must be earthed.

•Children should be supervised to ensure that they do not play with this

appliance.

3. SAFETY WARNINGS:

3. SAFETY WARNINGS:3. SAFETY WARNINGS:

3. SAFETY WARNINGS:

4. GETTING STARTED:

4. GETTING STARTED:4. GETTING STARTED:

4. GETTING STARTED:

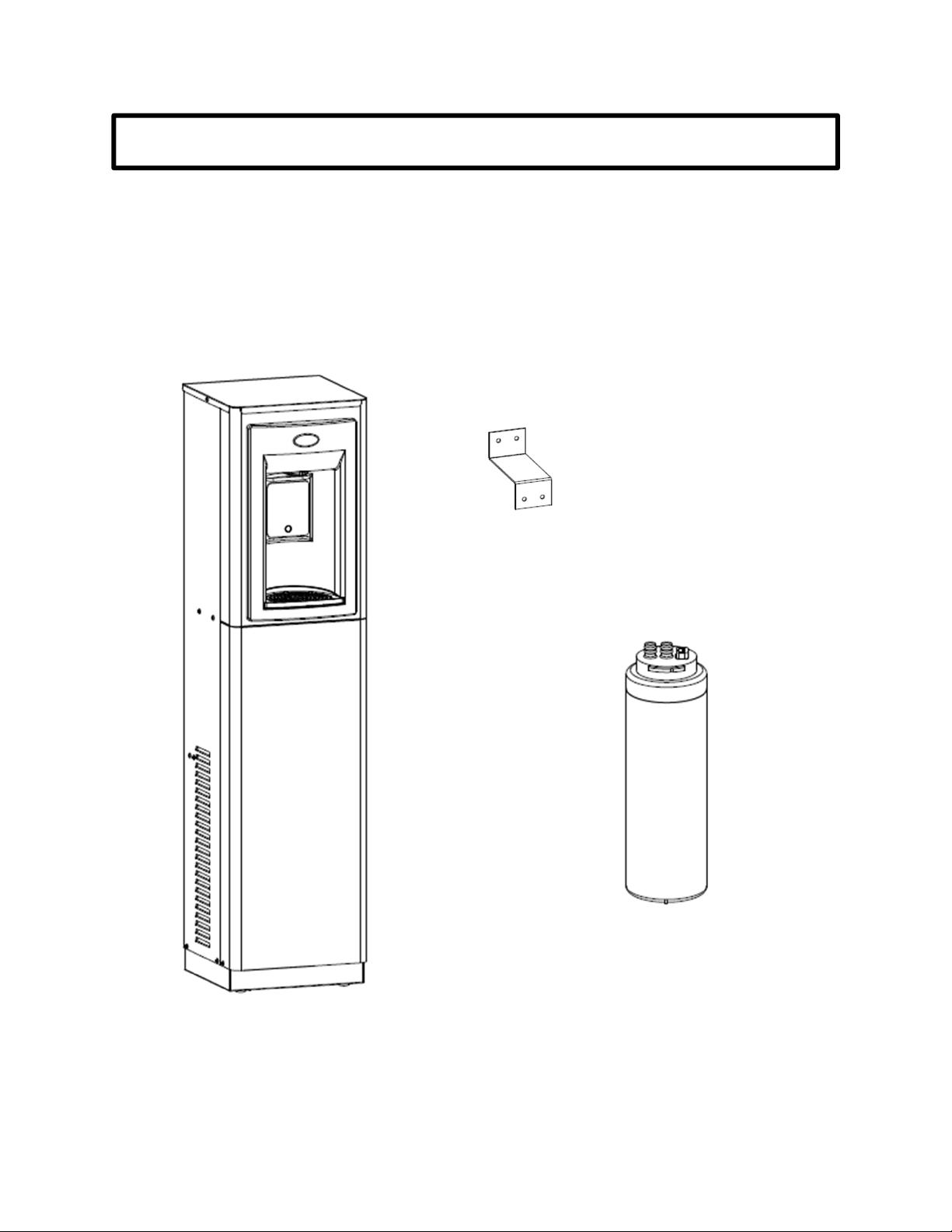

What’s Included:

a. CONTACTLESS BOTTLE FILLER

b. STABILIZER BRACKET

c. OPTIONAL VERSAFILTER III

VERSAFILTER III

Filtered models only)

CONTACTLESS

BOTTLE FILLER

STABILIZER BRACKET

Quick-Connect Fittings

•If you need to cut the plastic tubing, be sure to cut tube ends square

and straight. Do not deform the tube i.e., cause tube to compress its

diameter so it is no longer round, or it may result in a water leak at the

fitting).

•Make sure the outer surface of the tube is clear of marks or scratches

for a length equal to twice the tube diameter. This allows the “O” ring

to seat properly against the tube See figure below).

•Avoid sharp changes in direction when routing the tubing. Sharp turns

could cause the tubing to kink, which reduces its flow capacity and or

stops it completely.

•Fittings consist of two parts: a body and a collet. See figure below).

•To install a tube, push it through the collet until it seats firmly at the

bottom of the fitting.

•To remove a tube, push and hold the collet against the body while

pulling the tube out. Pushing the tube into the body before pushing the

collet in will aid in the removal of the tube.

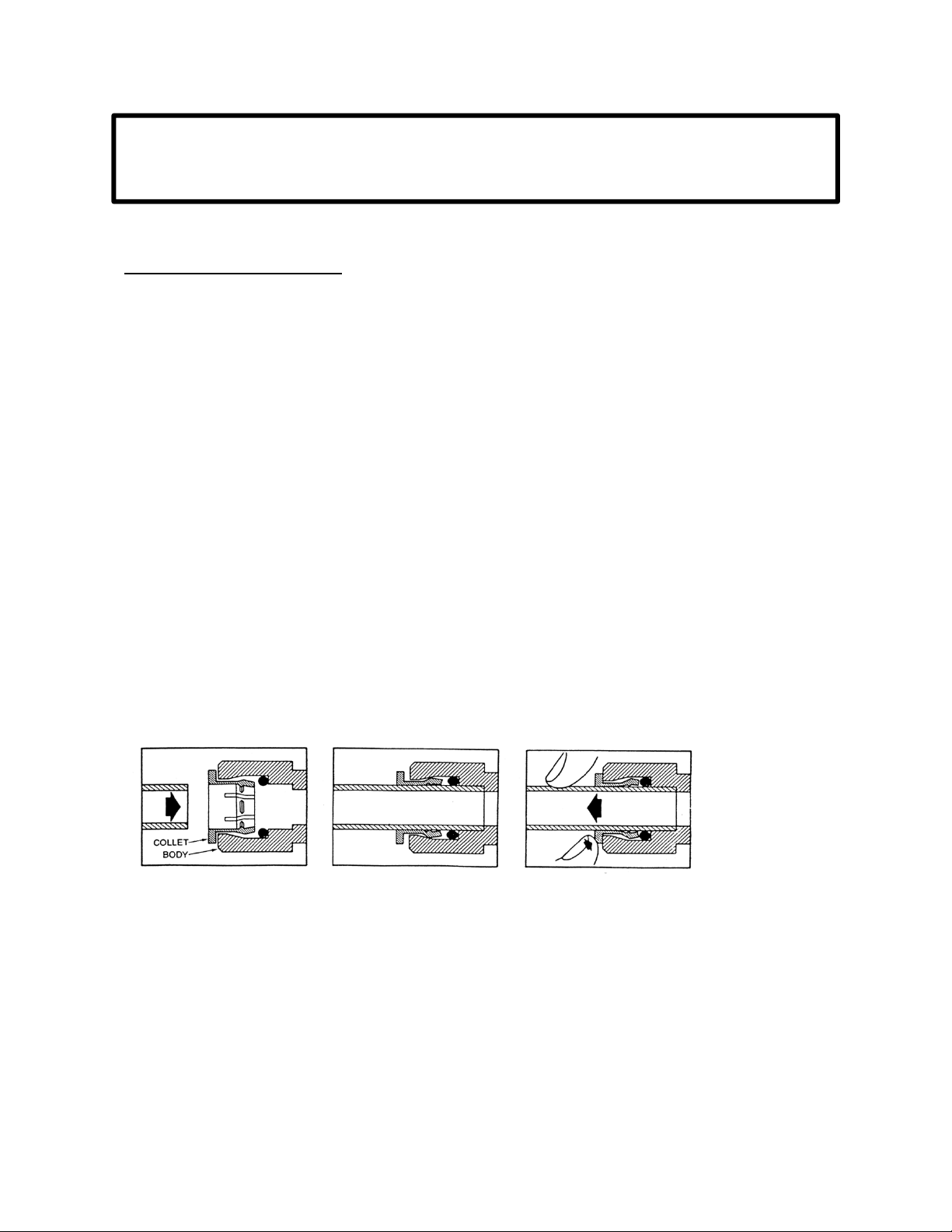

5. PROPER QUICK CONNECT FITTING CONNECTION

5. PROPER QUICK CONNECT FITTING CONNECTION 5. PROPER QUICK CONNECT FITTING CONNECTION

5. PROPER QUICK CONNECT FITTING CONNECTION

INSTRUCTIONS:

INSTRUCTIONS:INSTRUCTIONS:

INSTRUCTIONS:

Push tube through

Collet into Body

Tube must seat firmly

At bottom of fitting

Push Collet against

Body to release tube

STEP 1 & 2:

1. Carefully unpack Water Dispenser and remove filter from the alcove

filtered models only).

2. Remove Front Panel by removing the 2 screws at the bottom of the panel

on the sides. See Diagram 1 and 2.

6. INSTALLATION:

6. INSTALLATION:6. INSTALLATION:

6. INSTALLATION:

DIAGRAM 1 DIAGRAM 2

REMOVE

T15 TORX SCREWS

QTY. 2

6. INSTALLATION:

6. INSTALLATION:6. INSTALLATION:

6. INSTALLATION:

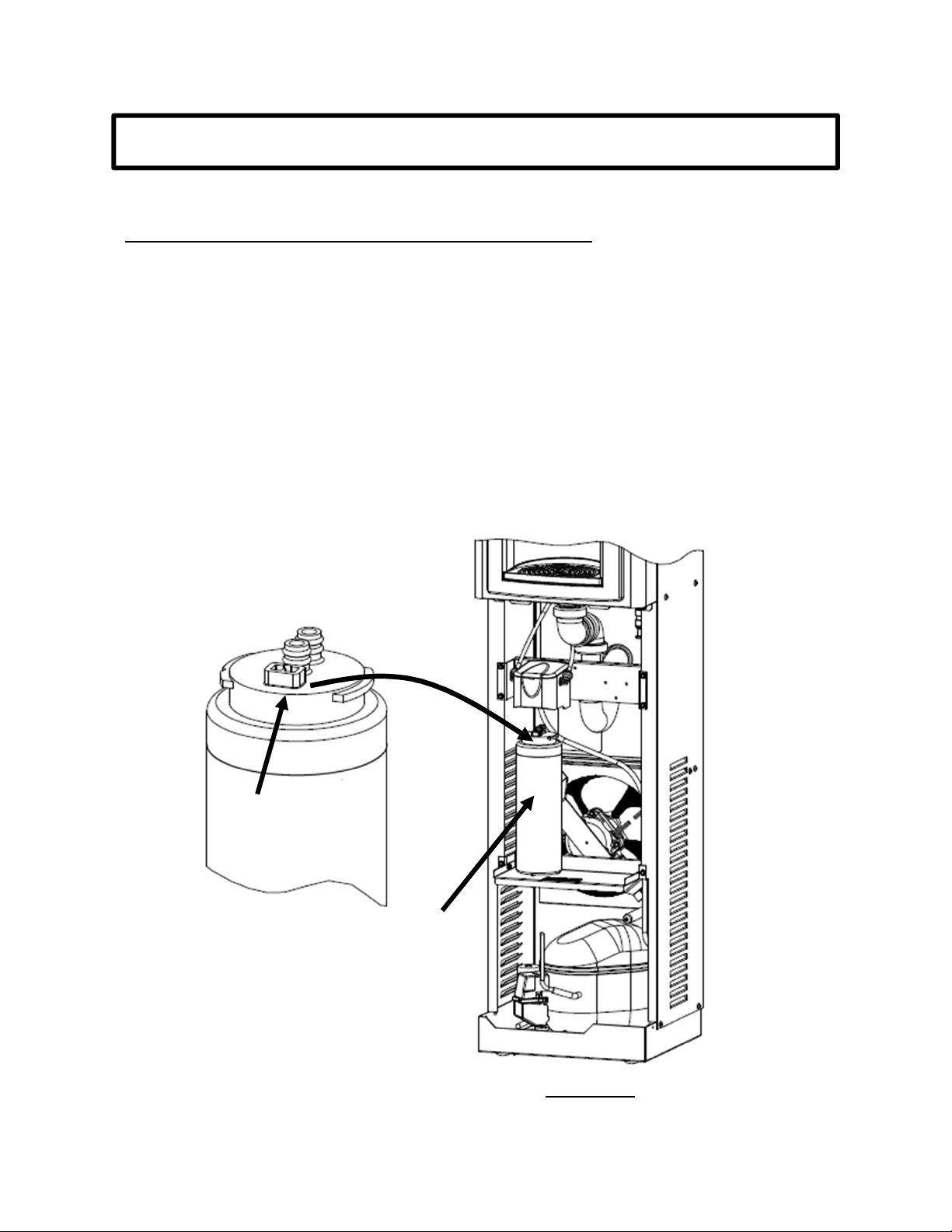

STEPS 3 through 5 (for optional filters)

Note: The VersaFilter III was placed in the alcove on the front of the cooler for

shipping.

3. Unpack the VersaFilter III and remove the sanitary cap.

4. Looking at the filter top, orient the filter so that the rectangular lug, on top

of the filter faces forward.

5. Push the filter up into the filter housing and rotate the filter one-quarter

turn to the right until it stops turning. Refer to Diagram 3

DIAGRAM 3

VERSAFILTER III

Lug

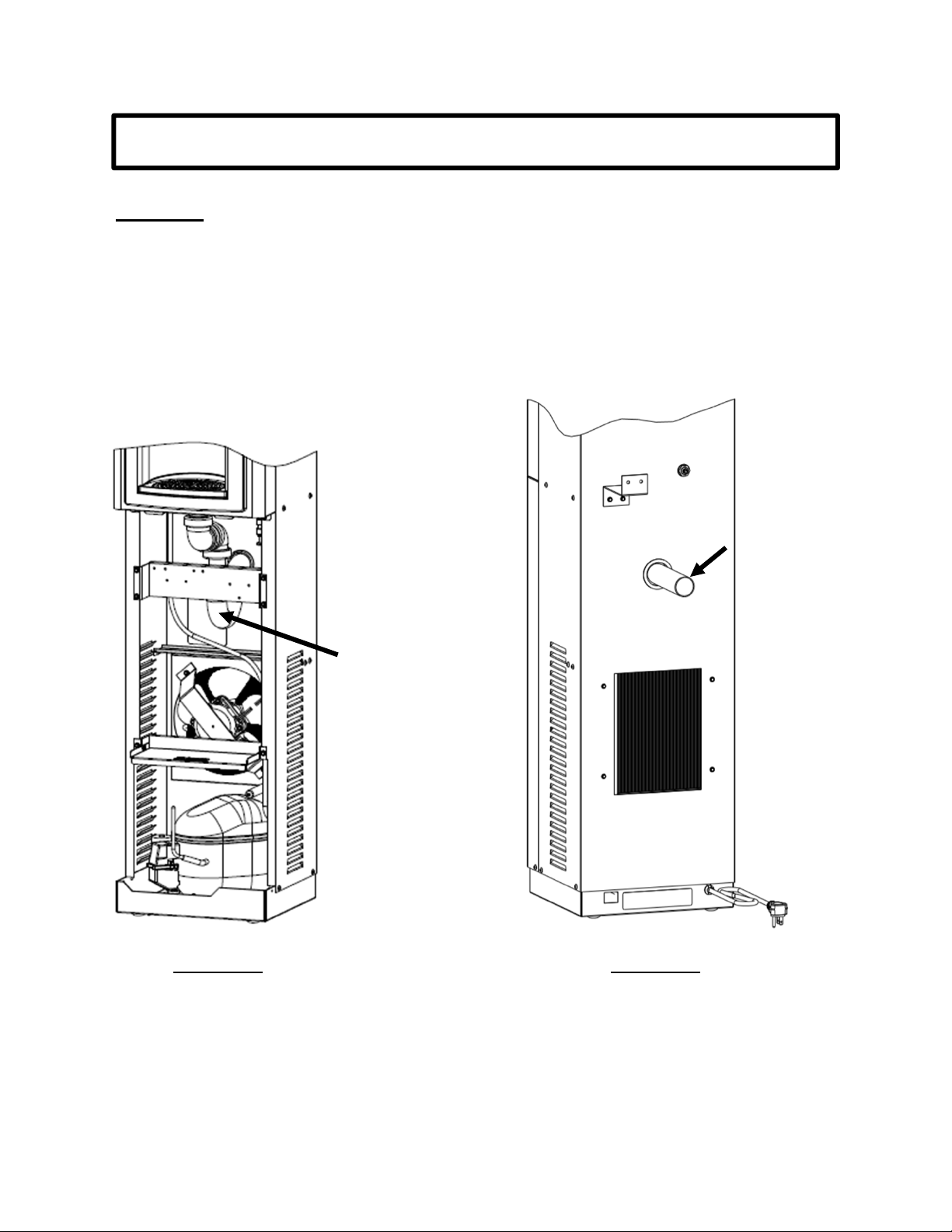

STEP 6:

6. Locate the Snap Bushing in the back of the cabinet and feed 1-1/2” OD Drain

Pipe through the hole. See Diagram 4 & 5.

6. INSTALLATION:

6. INSTALLATION:6. INSTALLATION:

6. INSTALLATION:

DIAGRAM 4

Front View

DIAGRAM 5

Rear View

P-Trap Located

behind the

filter mounting

bracket

Drain Pipe –

shown after

completing

Step 6.

6. INSTALLATION:

6. INSTALLATION:6. INSTALLATION:

6. INSTALLATION:

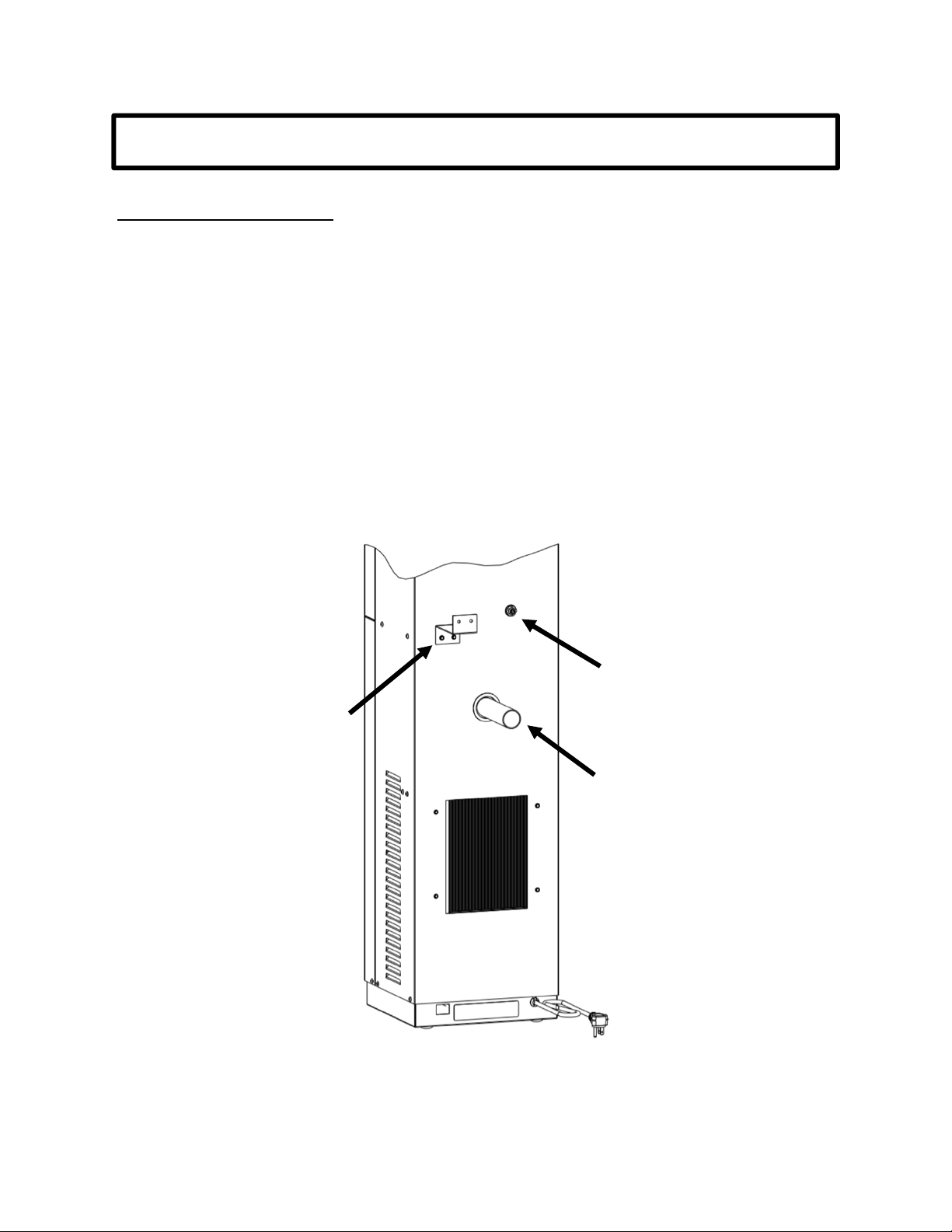

STEPS 7 through 9:

7. Connecting 1/4” OD water supply tube to 1/4” quick connect fitting on the

back of the unit. Refer to Section 5 for instructions on how to properly

connect to quick connect fittings. IMPORTANT: Before connecting water

supply to dispenser, flush building water supply.

8. Connect 1-1/2” OD drain pipe to Elbow Coupling not provided). Connect to

building drain.

9. Attach stabilizing bracket to the unit with screws provided. Then secure the

bracket to the wall with wall anchors provided by others.

CONNECT WATER SUPPLY

Rear View

CONNECT DRAIN

Diagram 6

ATTACH STABILIZER BRACKET
