Oasis Quasar PWEBQ Manuale utente
QUASAR Hands-Free Bottle Filler
UVC-LED WATER TREATMENT
Model PWEBQ and PWF2EBQ (retro fit)
and P*EBQ Family of Drinking
Fountains/Bottle Filler combo
Installation Instructions
The Hands-Free Bottle Filler mounts directly above Versacooler®I and II
products. If the cooler electrical outlet does not have two useable plugs, an
outlet splitter will need to be used.
If installed onto a refrigerated cooler, chilled water can be dispensed through
the Bottle Filler. Otherwise, room temperature water will be dispensed.
The Bottle Filler is shipped partially assembled.
On the combo units, the cooler is plumbed and ready to attach to the Bottle
Filler.
When completed, the finished assembly will look like this:
1
Water Coolers
OR
Ø3/8” pilot drill and either a step drill bit up to 7/8” diameter that will drill
through SS top or 7/8” diameter punch die (retrofit version only)
ØElectric drill; wrench for punch die
ØSmall tubing cutter for copper tube
Ø1/4“ nut driver
Ø# 2 Phillips screw driver
Ø#15 torx bit driver
38” of ¼ OD plastic
tubing with 19” of
sponge tubing
insulation (included
with “Quasar Bottle
Filler ready” coolers)

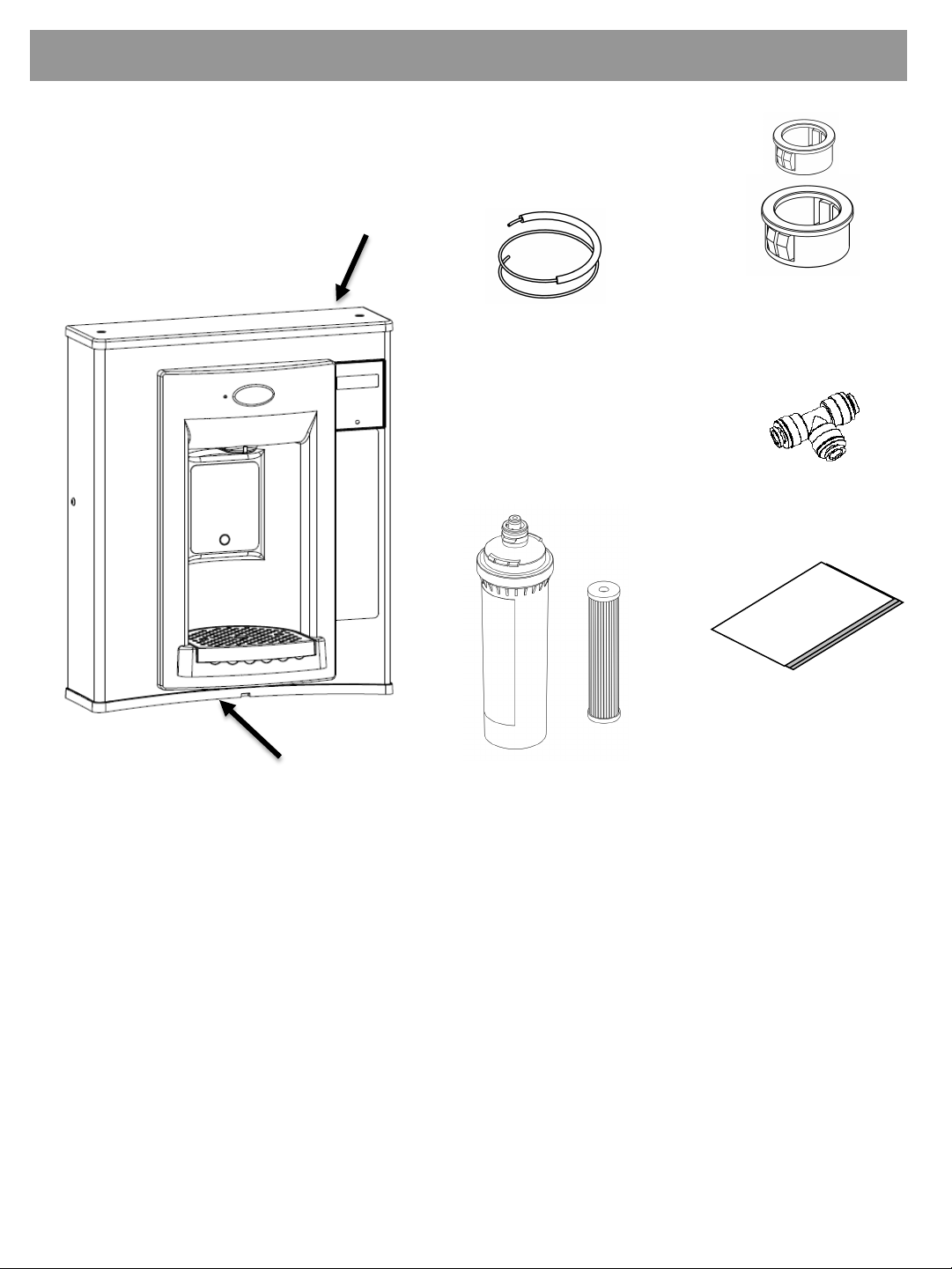

What’s Included:
Tools required:
Section 1: Getting Started
Rubber
Gasket
2
Installation
instructions
Quick connect tee
fitting
Snap bushings 7/8”
and 1½”
Quasar Hands-Free
Bottle Filler
Top C ap
Versafilter II
remedi
filter
The Versafilter II and remedi filter are only
included in the PWF2EBQ model.
Oasis PWEBQ: Versacooler® II Models PAC, P8AC with Hands-Free Bottle Filler

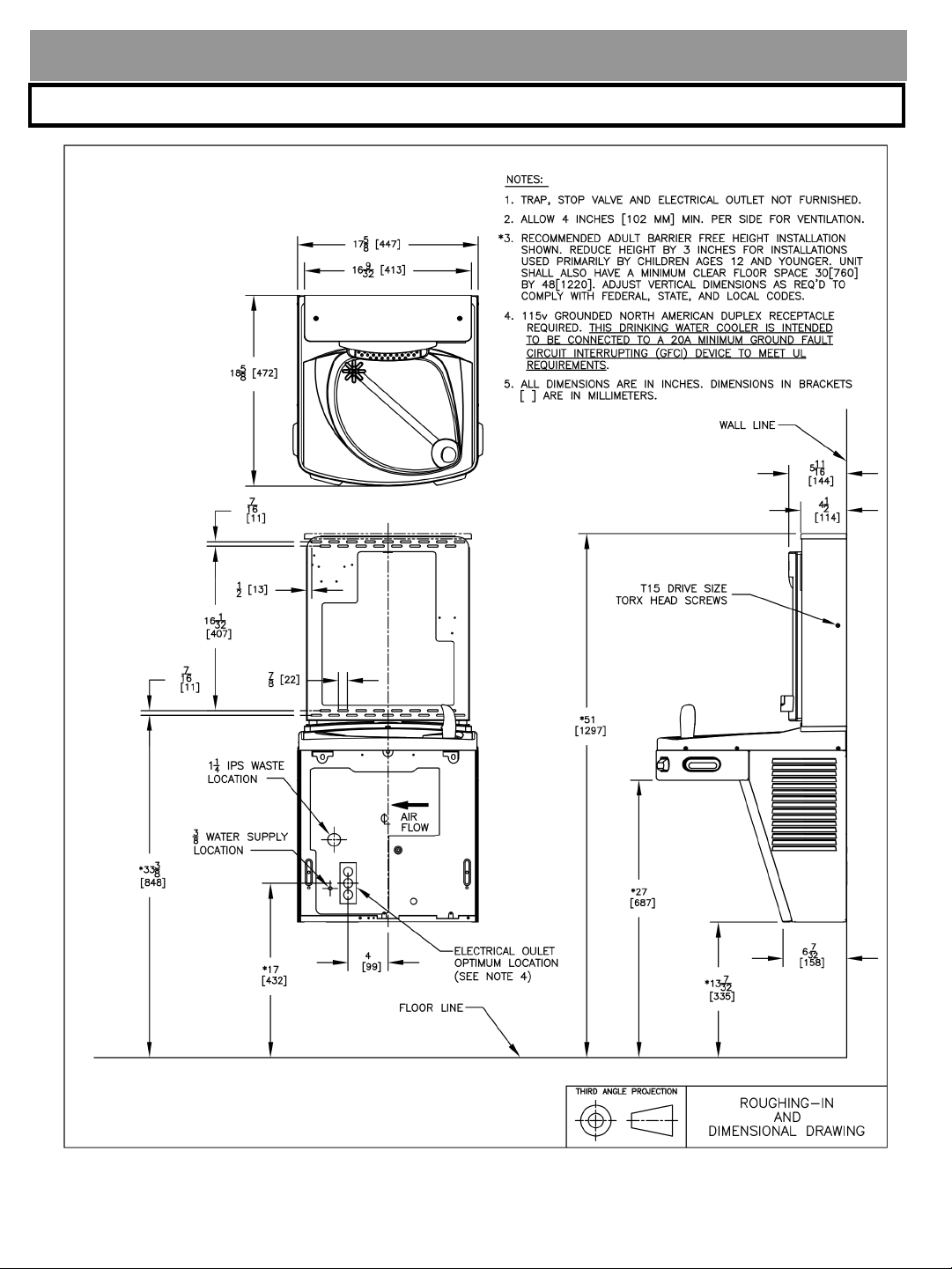

Section 2: Rough In Drawing
3
Oasis PWEBQ: Versacooler® II Split Level Models with Hands-Free Bottle Filler
Section 2: Rough In Drawing
* On split level models, the Bottle Filler must be mounted on the
low unit in order to meet ADA guidelines.
4
A: Drilling hole in the top for water line connection.
1. Disconnect power by UNPLUGGING unit. It might be necessary to remove
the front panel to get access to the power.
2. Turn OFF water supply to the unit. It might be necessary to remove the
front panel to access the water stop valve.
3. Place hole template onto cooler top so it is aligned with the left side of unit
and wall. SEE NEXT PAGE FOR TEMPLATE
4. Mark hole location
5. Remove top from unit.
Section 3A: Installation
Note: Proceed to Section 3B Step 5 “Final steps for both product families” if
the cooler is purchased “Quasar Bottle Filler or VersaFiller ready”.
5
Template
Mark hole location.
6. Using a step drill bit or 7/8” punch die, make a 7/8” hole through top. You
may want to drill a pilot hole to get these started.
7. Install snap bushing into hole to protect tubing from being cut.
Drill
Install bushing
5
Remove top from cooler by
removing six, #15 torx head screws
on sides of top.
PLACE THIS EDGE
AGAINST WALL
ALIGN THIS EDGE
WITH LEFT EDGE OF
COOLER TOP
USE THIS TEMPLATE TO MARK THE
HOLE LOCATION ON COOLER TOP
3-1/4”
from
edge of
paper
2-1/8”
from
edge of
paper
Mark this center point on the
top. Remove the top from the
cooler. Then create a 7/8”
diameter hole through the top
at the marked center point
(step drill bit or punch die).
6
Section 3B: Installation
7
VersaCooler to Quasar Bottle Filler Plumbing Diagram
OPTIONAL
VERSAFILTER II
OPTIONAL
FILTER BOTTLE FILLER
SOLENOID
VALVE UV LED
VERSACOOLER
INLINE
STRAINER,TUBE,
AND REDUCER FTG.
PROVIDED WITH
FOUNTAIN.
BUILDING
INLET WATER
Section 3B: Installation
8
Two VersaCoolers to Quasar Bottle Filler Plumbing Diagram
BOTTLE FILLER
SOLENOID
VALVE UV LED
OPTIONAL
VERSAFILTER II
OPTIONAL
FILTER
VERSACOOLER VERSACOOLER
T-FITTING
INLINE
STRAINER,TUBE,
AND REDUCER FTG.
PROVIDED WITH
FOUNTAIN.
BUILDING
INLET WATER
B: Connecting the water line
Section 3B: Installation
For the single “Bottle Filler ready” cooler, the tube to connect to the Bottle
Filler is found inside the access panel (the compressor compartment). This
tube supplies cold water from the cooling tank to the Bottle Filler.
¼” OD tube to connect
to Versafiller
Note: If you are retrofitting the Bottle Filler to an existing
cooler, follow the instructions starting on page 11.
For split level “Bottle Filler ready” coolers, the tube to plumb in the Bottle
Filler is packaged in the dummy unit.
Remove tube from bag.

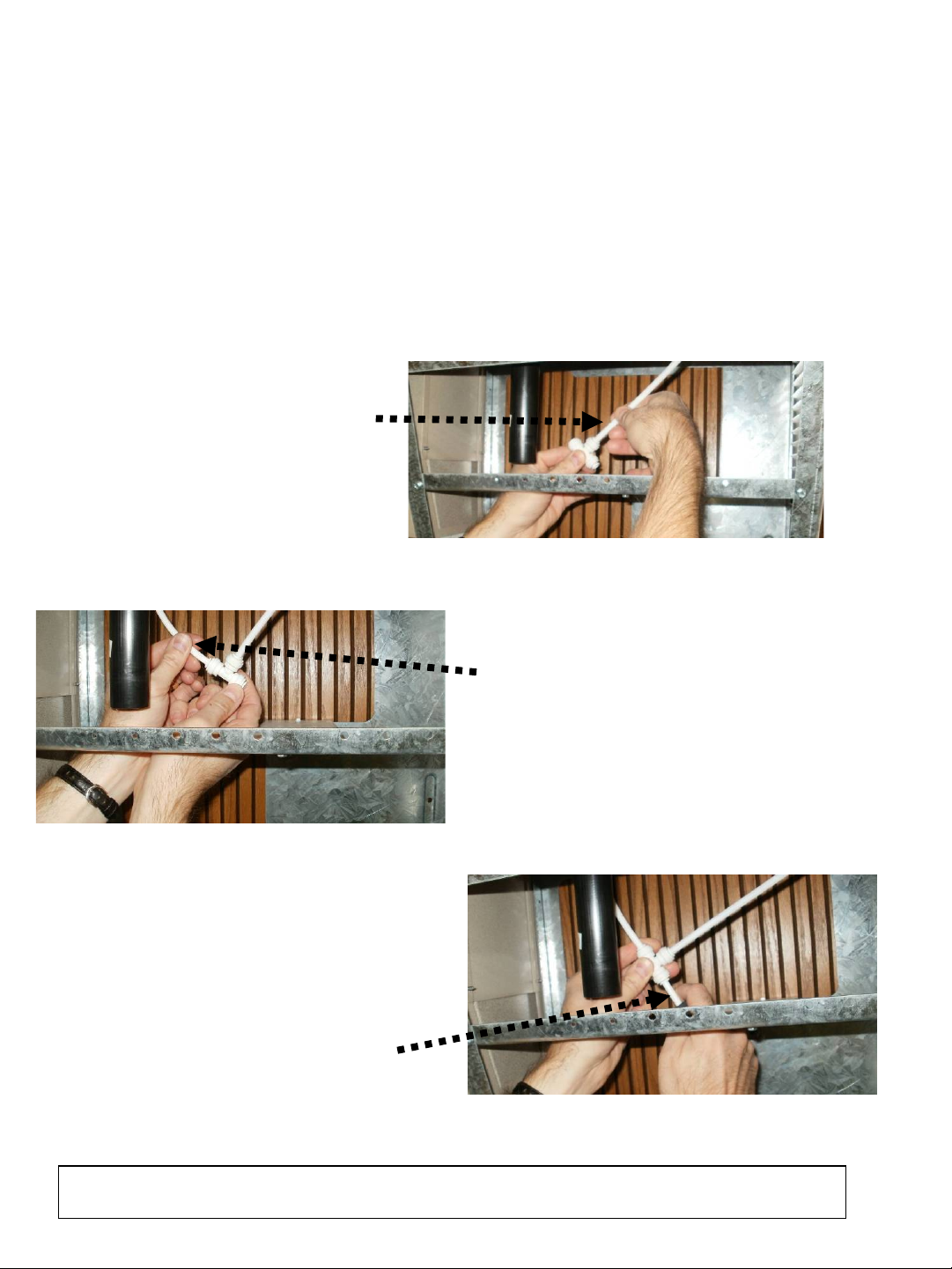

First, remove plug from
fitting on tank drain
Next, insert end of
tube into fitting.
9
Go to Step 5 “Final steps for both product families:”
The tee and tube to the Bottle Filler are packaged with the PWEBQ unit.
One branch of the tee will supply the valve on the dummy unit, the other
branch of the tee will connect to the Bottle Filler.
If a filter is being installed, cut a piece of tubing about 3” long to insert
optional flow switch right after filter and before tee. This allows Bottle
Filler counter to accurately calculate amount of water passing through
filter.
Tube to connect valve
on dummy unit
Tube to connect
Bottle Filler
Tube to connect chilled
water to dummy unit
and Bottle Filler
10
