INSTRUCTION MANUAL

All manuals and user guides at all-guides.com

all-guides.com

EXTENDER!INSTRUCTION!MANUAL!2016!

Extender!Instruction!Manual!2016!

Rel!1.1!

WE WERE ALL BORN FROM THE SEA.

Maybe that’s why we’re so irresistibly attracted to it.

As soon as we’re immersed in it, once again we turn to breathe, we feel we’re back

to our true natural setting.

In our every effort, every thought, every dream, the sea finds its way.

We yearn to be back in it to better observe it, to admire its grandness, always with

new eyes.

To be back in it, to be astonished by it and to share its wonders with our friends.

To be back in it, to imbue new life to the very place that’s been witness to the birth

of all.

All manuals and user guides at all-guides.com

Extender!Instruction!Manual!2016!

Rel!1.1!

PARTS LIST

Number

Name

Quantity


Frame

Bushing

Bushing Cover

L Bridge

R Bridge

All manuals and user guides at all-guides.com

EXTENDER!INSTRUCTION!MANUAL!2016!

Extender!Instruction!Manual!2016!

Rel!1.1!

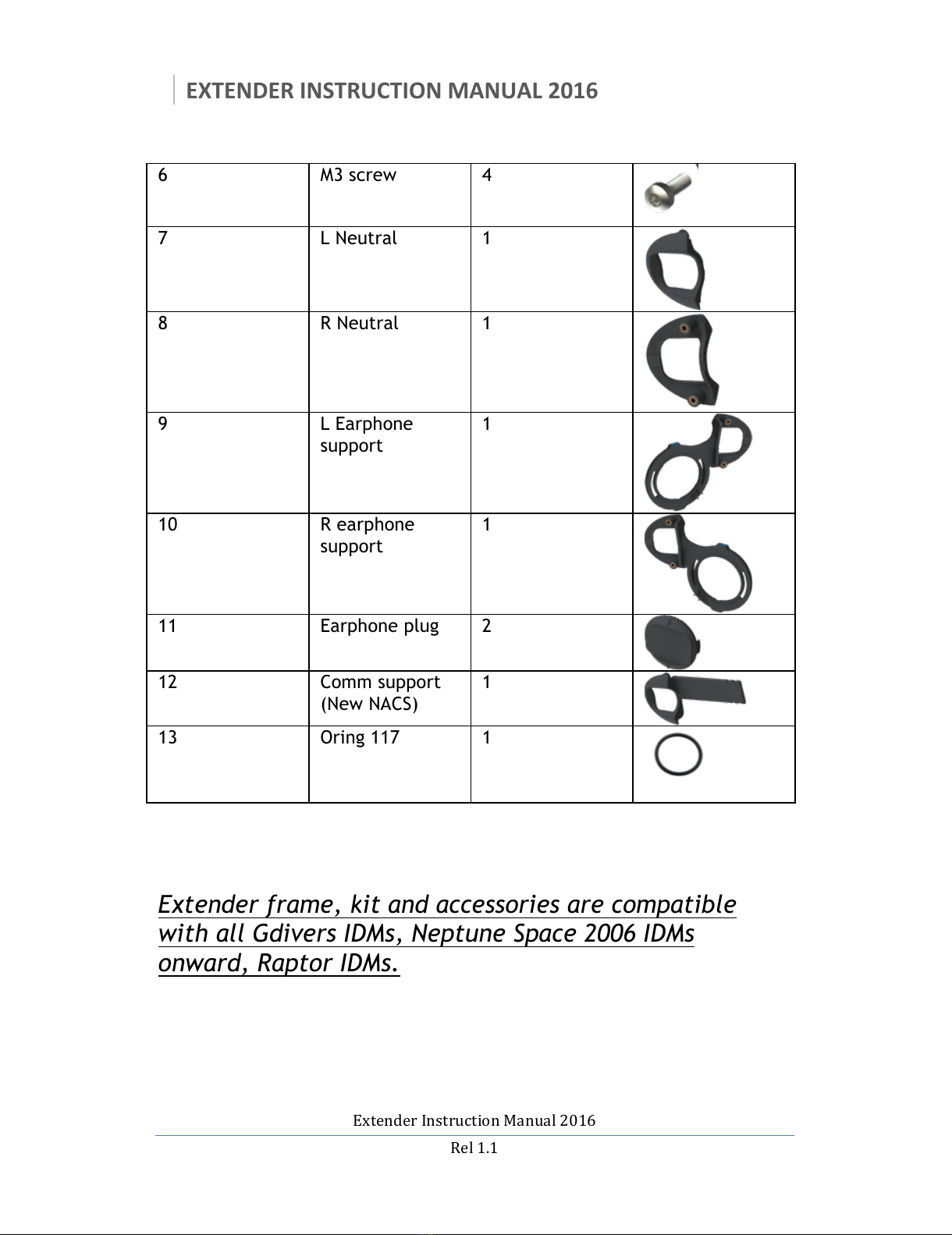

M3 screw

L Neutral

R Neutral

L Earphone

support

R earphone

support

Earphone plug

Comm support

(New NACS)

Oring 117

Extender frame, kit and accessories are compatible

with all Gdivers IDMs, Neptune Space 2006 IDMs

onward, Raptor IDMs.

All manuals and user guides at all-guides.com

Extender!Instruction!Manual!2016!

Rel!1.1!

Extender Product Options

(EXTENDER FRAME) - In the box

(EXTENDER KIT) – in the box

All manuals and user guides at all-guides.com

EXTENDER!INSTRUCTION!MANUAL!2016!

Extender!Instruction!Manual!2016!

Rel!1.1!

(SPACE EXTENDER) – in the box

All manuals and user guides at all-guides.com

all-guides.com

Extender!Instruction!Manual!2016!

Rel!1.1!

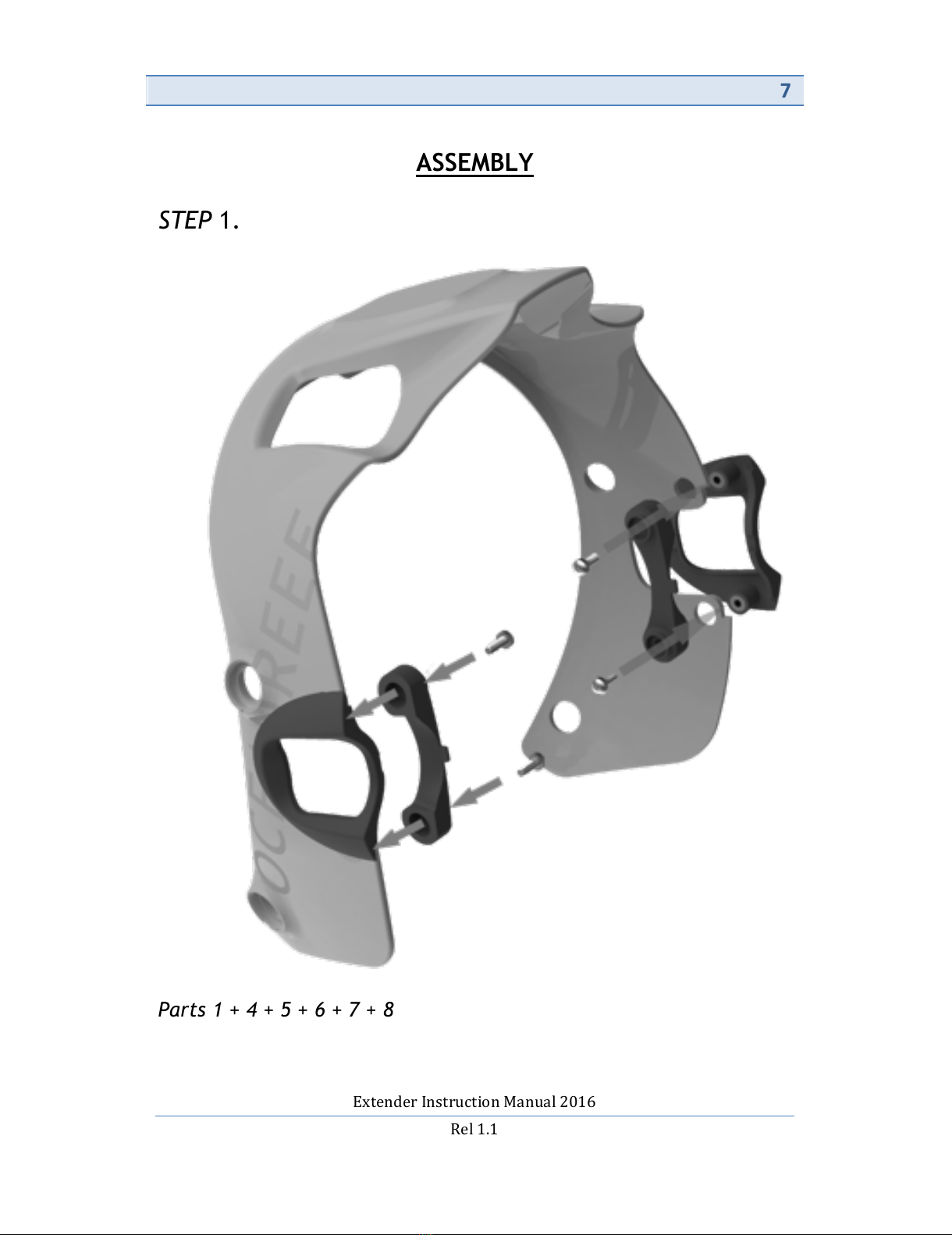

ASSEMBLY

STEP 1.

Parts 1 + 4 + 5 + 6 + 7 + 8

All manuals and user guides at all-guides.com

EXTENDER!INSTRUCTION!MANUAL!2016!

Extender!Instruction!Manual!2016!

Rel!1.1!

Look for

L and R indications on

Parts 7 and 8.

Small flap inside of the

Frame.

STEP 2.

CLICK!

Parts 2+3

All manuals and user guides at all-guides.com

Extender!Instruction!Manual!2016!

Rel!1.1!

CLICK Extender Frame Assembled

STEP 3.

4x Straps must

pass inside the

frame, through

the holes.

All manuals and user guides at all-guides.com

EXTENDER!INSTRUCTION!MANUAL!2016!

Extender!Instruction!Manual!2016!

Rel!1.1!

IDM with assembled frame (straps detail).

STEP 4.

CLICK!

Assemble frame on mask.
