DECOMPRESSION MODEL

The programs within the Versa simulate the absorption of nitrogen into the body by using a math-

ematical model. This model is merely a way to apply a limited set of data to a large range of experi-

ences. The Versa dive computer model is based upon the latest research and experiments in decom-

pression theory. Still, using the Versa, just as using the U.S. Navy (or other) No Decom-

pression Tables, is no guarantee of avoiding decompression sickness, i.e. “the

bends.” Every diver’s physiology is different, and can even vary from day to day. No machine can

predict how your body will react to a particular dive profile.

VERSA

CONTENTS

LIMITED TWO-YEAR WARRANTY ................................................................................................................................2

NOTICES ...................................................................................................................................................................... 2

DECOMPRESSION MODEL ......................................................................................................................................... 2

FEATURES AND DISPLAYS .............................................................................................. 5

CONTROL BUTTON ..................................................................................................................................................... 6

TISSUE LOADING BAR GRAPH ................................................................................................................................... 7

VARIABLE ASCENT RATE INDICATOR ....................................................................................................................... 7

INFORMATIONAL DISPLAYS ....................................................................................................................................... 8

Depth Displays ......................................................................................................................................................... 8

Time Displays ........................................................................................................................................................... 8

POWER SUPPLY .......................................................................................................................................................... 9

Low Battery Condition ............................................................................................................................................... 9

LCD DISPLAY ............................................................................................................................................................. 1

ACTIVATION AND SETUP................................................................................................ 11

ACTIVATION ............................................................................................................................................................... 12

Backup Activation ................................................................................................................................................... 12

SURFACE SEQUENCE .............................................................................................................................................. 13

Time of Day and Surface Mode ................................................................................................................................13

Pre Dive Planning Sequence ................................................................................................................................... 14

SET MODE ................................................................................................................................................................. 14

DIVE MODES ................................................................................................................... 19

DIVE MODE BAR GRAPHS ........................................................................................................................................ 2

CONTROL OF DISPLAYS ........................................................................................................................................... 2

NO DECOMPRESSION DIVE MODE .......................................................................................................................... 21

DECOMPRESSION DIVE MODE ................................................................................................................................22

VIOLATION MODES .................................................................................................................................................... 24

CONTENTS (contin ed)

Pay special attention to items marked with this WARNING symbol.

WARNING: D ring Activation, Diagnostics, or Operation, if any display or f nction

varies from the information provided herein, DO NOT dive with the Versa. Ret rn

it to yo r A thorized Oceanic Dealer for inspection.

POST DIVE MODES ........................................................................................................ 29

POST DIVE SURFACE MODE .................................................................................................................................... 3

TRANSITION PERIOD ................................................................................................................................................ 3

AFTER THE TRANSITION PERIOD (THE FIRST 2 HOURS) ....................................................................................... 31

Time to Fly .............................................................................................................................................................. 31

Pre Dive Planning Sequence ................................................................................................................................... 32

Log Mode ............................................................................................................................................................... 32

AFTER THE FIRST 2 HOURS ..................................................................................................................................... 34

GENERAL ........................................................................................................................ 35

WET CONTACTS ........................................................................................................................................................ 36

CARE AND CLEANING .............................................................................................................................................. 36

INSPECTIONS AND SERVICE ................................................................................................................................... 37

BATTERY REPLACEMENT ........................................................................................................................................ 39

SPECIFICATIONS ............................................................................................................ 45

OCEANIC AFFILIATES/REGIONAL DISTRIBUTORS ...................................................... 48

SERVICE RECORD ......................................................................................................... 49

VERSA

FEATURES and DISPLAYS

WARNING: Prior to diving with the Versa, yo

m st also read and nderstand the Oceanic Dive

Comp ter Safety and Reference Man al which pro-

vides Important Warnings and Safety Recommen-

dations as well as general prod ct information.

WELCOME TO OCEANIC AND THANK YOU FOR CHOOSING THE VERSA !

Your Versa presents the information that you need before, during, and after your Air

dives using a combination of easy to read displays and identification icons. This instruc-

tional guide is intended to help you become familiar with the functions and features avail-

able and show you examples of displays that you could expect to see in the various op-

erational modes. Relax and read through the complete operating manual.

Remember that the rules you learned in your basic scuba certification course(s) still apply

to the diving you will do while using a dive computer - some will become even more im-

portant. Technology is no substitute for common sense, and a dive computer only pro-

vides the person using it with data, not the knowledge to use it.

CONTROL BUTTON (Fig. 1)

• The Control Button is first used to Activate the Versa.

• Once activated (and while on the surface), pressing it

momentarily provides you access to the Log Mode.

• Pressing it for several seconds provides access to the

Set Mode which allows you to set Units of measure,

Hour Format, Time of Day, and Water Activation, which

are described later.

Fig. 1 - Control Button

VERSA

TISSUE LOADING BAR GRAPH (TLBG)

The TLBG (Fig. 2a) represents tissue loading of nitrogen,

showing your relative no decompression or decompression

status. As your depth and elapsed dive time increase, seg-

ments add to the TLBG, and as you ascend to shallower

depths, they will begin to recede, indicating that additional

no decompression time is allowed for multilevel diving.

The TLBG monitors 12 different nitrogen compartments simul-

taneously and displays the one that is in control of your dive.

It is divided into a green No Decompression (normal) zone,

a yellow Caution zone (also No Decompression), and a red

Decompression (danger) zone.

VARIABLE ASCENT RATE INDICATOR (VARI)

The VARI (Fig. 2b) provides a visual representation of ascent

speed (i.e., an ascent speedometer).

• Green is a 'normal' rate, yellow a 'caution' rate, and red

is 'Too Fast'.

• The segments of the VARI represent two sets of speeds

which change at a reference depth of 60 feet (18

meters). Refer to the chart for segment values.

• At depths greater than 60 feet (18 meters), the VARI will

flash as a warning when an ascent exceeds 60 fpm (18

mpm). At depths of 60 feet (18 meters) and shallower, it

will flash if the ascent rate exceeds 30 fpm (9mpm).

Fig. 2 - Bar Graphs

Variable Ascent Rate Indicator

Deeper than 60 feet (18 m)

Segments Ascent Rate =

Displayed FPM MPM

0 0-20 0 - 6

1 21-30 6.5-9

2 31- 0 9.5-12

3 1-50 12.5-15

51-60 15.5-18

5 >60 >18

60 feet (18 m) & Shallower

Segments Ascent Rate =

Displayed FPM MPM

0 0-10 0 - 3

1 11-15 3.5- .5

2 16-20 5-6

3 21-25 6.5-7.5

26-30 8-9

5 >30 >9

INFORMATIONAL DISPLAYS

Each numeric and graphic display represents a

unique piece of information. It is imperative that

you understand the formats, ranges, and values

of the information represented to avoid any pos-

sible misunderstanding that could result in error.

Depth Displays

• During a dive, the Current Depth display (Fig. 3a), in-

dicates depths from 0 to 330 feet (99.9 meters) in 1 foot

(.1 meter) increments.

• By pressing the Button, the Maximum Depth reached

during that dive will also be displayed (Fig. 3b).

• During a Decompression Dive, the required Ceiling

Stop Depth is displayed in place of Maximum Depth

which can be viewed by pressing the Button.

Time Displays

• The Main Time display located in the lower portion of

the screen (Fig. 4a) is configured with large segments.

• A Secondary Time display is located in the center/

right portion of the display (Fig. 4b).

• Both displays are identified by clock icons (Fig. 4c).

Fig. 3 - Depth Displays

Fig. 4 - Time Displays

VERSA

Time displays are shown in hour:minute format (i.e., 1:45 represents one hour and

forty five minutes, not 145 minutes!). The colon that separates hours and minutes blinks

once per second when the display is indicating real time (e.g., Elapsed Dive Time), and is

solid (non-blinking) when times are calculated projections (e.g., Time to Fly).

POWER SUPPLY

The Versa utilizes one (1) type CR 2450 Lithium 3 volt cell that should provide 300

hours of continuous, or 50 activation periods, of operation. If you conduct 1 dive each

time the unit is activated, you should obtain approximately 50 dives. If you conduct 3

dives each time the unit is activated, you should obtain approximately 150 dives.

Low Battery Condition

Voltage level is checked upon activation and every 10 minutes during operation.

• If a Low Battery Condition exists when the unit is activated, it will perform a diagnos-

tic check then the Battery icon will flash once per second for 5 seconds (Fig. 5) fol-

lowed by shutdown of the unit.

• If the button is not pressed to activate the unit prior to a

dive, and a Low Battery Condition exists, the Low Battery

icon will appear flashing as a warning upon descent past

5 feet (1.5 m). No other information will be displayed.

• If the unit did not display the Low Battery icon 'prior to'

entering the Dive Mode, and a Low Battery Condition oc-

curs during the dive, the Low Battery icon appears after

the dive when the unit enters Surface Mode. There will

be sufficient battery power to maintain unit operation for

the remainder of 'that dive'. Fig. 5 - Low Battery Condition

LCD DISPLAY

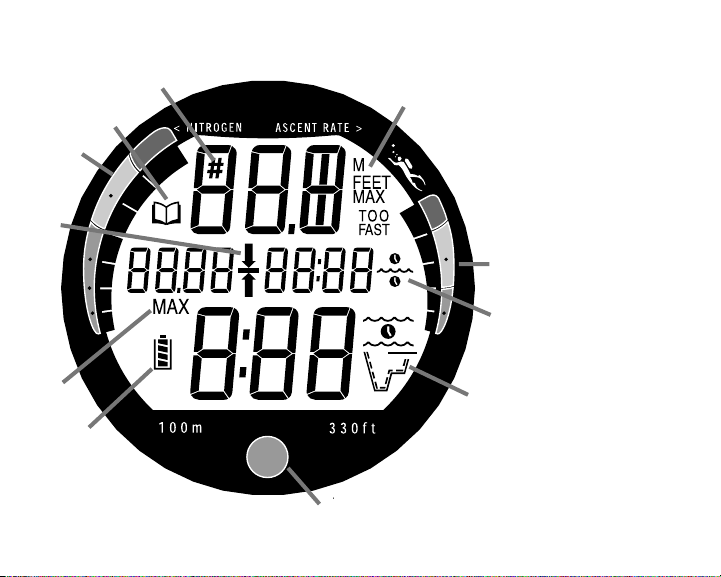

a. Tissue Loading Bar Graph

b. Variable Ascent Rate Indicator

c. Icon - Low Battery Condition

d. Icon - Maximum Depth

e. Icon - Decompression Ceiling

f. Icon - Log Mode

g. Icon - Dive Number

h. Icon - Depth

i. Icon - Time

j. Icon - perating Mode

k. perating Button

Indice

Altri manuali Oceanic Strumento subacqueo

Oceanic

Oceanic Pro Plus Manuale utente

Oceanic

Oceanic Veo 180Nx Manuale utente

Oceanic

Oceanic BioDry Suit Manuale utente

Oceanic

Oceanic Data 100 Manuale utente

Oceanic

Oceanic DataMax Pro Manuale utente

Oceanic

Oceanic Air XS 2 Manuale utente

Oceanic

Oceanic GEO Manuale utente

Oceanic

Oceanic Dive Computer Pro Plus 2 Manuale utente

Oceanic

Oceanic AIR XS II Manuale utente

Oceanic

Oceanic DELTA 2 Manuale

Oceanic

Oceanic ATOM 2.0 Manuale utente

Oceanic

Oceanic Veo 180Nx Manuale utente

Oceanic

Oceanic DATA PLUS Manuale utente

Oceanic

Oceanic Dive Computer Pro Plus 2 Manuale utente

Oceanic

Oceanic Datamask Manuale di istruzioni

Oceanic

Oceanic Alpha 8 Octopus Manuale utente

Oceanic

Oceanic PRO PLUS 3 Manuale utente

Oceanic

Oceanic Regulator Equipment Manuale utente

Oceanic

Oceanic DATATRANS Manuale utente

Oceanic

Oceanic VT 3 Manuale utente

Oceanic

Oceanic OCi Manuale utente

Oceanic

Oceanic OCL Manuale utente

Oceanic

Oceanic versa Pro Manuale utente

Oceanic

Oceanic Personal Dive Computer Veo 100Nx Manuale utente

Manuali Strumento subacqueo popolari di altre marche

Sherwood

Sherwood Amphos Manuale utente

Zeagle

Zeagle N2ition Manuale utente

Tusa

Tusa Q 1203 CE Guida

Sherwood Scuba

Sherwood Scuba Insight Istruzioni per il montaggio

SUBMERSIBLE SYSTEMS

SUBMERSIBLE SYSTEMS Spare Air 600 Manuale utente

OCEANS

OCEANS S1 Supersonic Manuale utente

heinrichs weikamp

heinrichs weikamp OSTC 2 Manuale utente

Omer

Omer SP2 Manuale utente

Scott

Scott PRO-PAK Manuale utente

Apeks

Apeks BLACK SAPPHIRE Manuale utente

Waterproof

Waterproof DRYSUIT Manuale utente

Dräger

Dräger PAS AirPack 1 Manuale utente

Dive Lab

Dive Lab KIRBY MORGAN KMB 18 Manuale utente

Ratio Computers

Ratio Computers iDive Manuale utente

CFA

CFA MSA G1 Manuale utente

Genesis

Genesis Centauri Manuale utente

TREND

TREND GAUGE/60 Manuale utente

Tusa

Tusa B.C.J. Manuale utente

Oceanic versa Manuale utente

Manuali Strumento subacqueo popolari di altre marche
