20 GALLON (75L) PARTS WASHER
Unpacking
After unpacking unit, inspect carefully for any damage
that may have occurred during transit. Check for loose,
missing, or damaged parts. Shipping damage claim
must be filed with carrier.
Specifications and Dimensions
Maximum Capacity Working Capacity Assembled Dims (Inches)(CM) Weight
Model Gallons Gallons Length Width Height (Lbs) (Kgs)
24801 20 (75L) 12 (45L) 31” x 21”x 34 1/2” (78.7 x 53.3 x 87.7cm) 52 23.6
Operating Instructions and Parts Manual 24801
SAFETY RULES
1. Know your tool. Read this manual carefully. Learn
the tool’s applications and limitations, as well as,
potential hazards specific to it.
2. Ground all tools. If the tool is equipped with three-
pin plug, it should be plugged into a three-pin
electrical socket. Never remove the ground pin.
Failure to properly ground unit could result in severe
electrical shock and / or death.
3. Do not abuse cord. Never use the cord to carry tools
or pull the plug from an outlet. Keep cord away from
heat, sharp edges or moving parts. Replace dam-
aged cords immediately. Damaged cords increase
the risk of electric shock.
4. Keep work area clean and well lit. Cluttered or dark
work areas invite accidents.
5. Keep children away. All children should be kept
away from the work area. Never let a child handle a
tool without strict adult supervision.
6. Do not operate this tool if under the influence of
alcohol or drugs. Read warning labels on prescrip-
tions to determine if your judgment or reflexes are
impaired while taking drugs. If there is any doubt, do
not attempt to operate.
7. Use safety equipment. Eye protection should be
worn at all times when operating this tool. Use ANSI
approved safety glasses. Everyday eyeglasses are
NOT safety glasses. Dust mask, non-skid safety
shoes, hard hat, or hearing protection should be
used in appropriate conditions.
3/13
2013 ©OEM-TOOLS
2
Operating Instructions and Parts Manual 24801
20 GALLON (75L) PARTS WASHER
8. Wear proper apparel. Loose clothing, gloves, neck-
ties, rings, bracelets, or other jewelry may present a
potential hazard when operating this tool. Keep all
apparel clear of the tool.
9. Don’t overreach. Keep proper footing and balance
at all times when operating this tool.
10. Always disconnect the tool from power source
before making any adjustments, storing, servicing,
or changing accessories. Such preventative safety
measures reduce the risk of starting the tool ac-
cidentally.
11. Do not use the tool if the switch does not turn it on
and off. Any tool that cannot be controlled with the
switch is dangerous and must be repaired.
12. Check for damage. Check your tool regularly. If
part of the tool is damaged it should be carefully
inspected to make sure that it can perform its
intended function correctly. If in doubt, the part
should be repaired. Refer all servicing to a qualified
technician. Consult your dealer for advice.
13. Keep away from flammables. Do not attempt
to operate this tool near flammable materials or
combustibles. Failure to comply may cause serious
injury or death.
14. Store idle tools out of the reach of children and
untrained persons. Tools may be dangerous in the
hands of untrained users.
GETTING STARTED
Unpack your OEM 20 Gallon (75L) Parts Washer. After
unpacking the unit, inspect carefully for any damage
that may have occurred during transit. Check for any
loose, missing or damaged parts.
YOUR OEM PARTS WASHER INCLUDES:
Bolts . . . . . . . . . . . . . . . . . . . . . . . .24
Spring Washers . . . . . . . . . . . . . . . .24
Lock Nuts . . . . . . . . . . . . . . . . . . . . 24
Legs . . . . . . . . . . . . . . . . . . . . . . . . 4
Lower Shelf . . . . . . . . . . . . . . . . . . .1
Middle Shelf . . . . . . . . . . . . . . . . . . .1
Pump Assembly . . . . . . . . . . . . . . . 1
Basket . . . . . . . . . . . . . . . . . . . . . . .1
POWER SOURCE CONNECTION
POWER REQUIREMENTS
This product is designed to operate on a properly
grounded 120 volt, 60Hz, single-phase alternating
current (AC) power source fused with a 20 amp time
delayed fuse or circuit breaker. It is recommended that
a qualified electrician verify the ACTUAL VOLTAGE at
the receptacle into which the product will be plugged
and confirm that the receptacle is properly fused and
grounded.
DO NOT OPERATE THIS PRODUCT if the ACTUAL
power source voltage is less than 105 volts AC or
greater than 132 volts AC. Contact a qualified electri-
cian if this problem exists. Improper performance and/
or damage to the product will result if operated on
inadequate or excessive power.
CONNECT TO POWER SOURCE
Consult a qualified electrician for proper installation of
receptacle at the power source.
This product must be grounded while in use to protect
the operator from electrical shock. If you are not sure
if your outlet is properly grounded, have it checked
by a qualified electrician. Do not cut off the ground-
ing prong or alter the plug in any way and do not use
any adapters between the product’s power cord and
the power source receptacle. Make sure the POWER
switch is OFF then connect the power cord to a
properly grounded 120V, 60Hz, single phase, 20 amp
power source.
EXTENSION CORDS
For optimum performance, an extension cord should not
be used unless absolutely necessary. If necessary, care
must be taken in selecting an extension cord appropri-
ate for use with your specific product. Select a properly
grounded extension cord that will mate directly with the
power source receptacle and the power cord without
the use of adapters. Make certain that the extension is
properly wired and in good electrical condition. Extension
cords must be a minimum # 12 gauge cord. Do not use
an extension cord over 25 ft. (7.6m) in length.
WHEN INSTALLING YOUR PARTS WASHER
1. Assemble it according to the instructions given below.
2. Sit it on a firm, flat, level surface in a well ventilated
area and away from any open flames.
3. Fill only with a non-flammable water-based degreas-
er or cleaning agent, such as Simple Green to just
below the level of the parts shelf (approximately 24
gallons or 90L).
4. Follow the degreaser manufacturer’s instructions carefully.
5. Do not fill with flammable solvents such as kero-
sene, gasoline, etc.
WARNING
High voltage danger from power source!
3
Operating Instructions and Parts Manual 24801
20 GALLON (75L) PARTS WASHER
WHEN USING YOUR PARTS WASHER
1. Wear suitable protective clothing, gloves and goggles.
2. Clean off any accidental splashes of degreaser on
skin immediately, following the degreaser manufac-
turer’s instructions carefully. Seek medical attention
if necessary.
3. Keep work area tidy and mop up any accidental
spills of degreaser.
WHEN NOT IN USE
1. Switch off pump, close the lid and disconnect from
the electrical supply.
2. Disconnect from the electrical supply before carrying
out any maintenance or cleaning on the parts washer.
The pump of your parts washer may
be damaged if you use solvents like perchloroethy-
lene or trichloroethylene.
ELECTRICAL CONNECTIONS
Plug into a standard 120 volt grounded plug.
This appliance must be grounded.
ASSEMBLY INSTRUCTIONS
1. Remove machine from carton and inspect for any
visual damage.
2. Remove parts inside the machine.
3. Lay clean and hard cardboard on the floor and lay
machine on its lid. (Make sure you hold cover closed
when laying machine on its lid.)
4. Mount four legs on brackets with M6X12 Philips head
screws and M6 nuts. NOTE: DO NOTTIGHTEN.
5. Place lower shelf between legs with flat surface up
and attach to legs with M6X12 philips head screws
and M6 nuts.
6. With legs pressed tight against lower shelf, tighten
all screws to lower shelf.
7. Tighten all the screws installed in Step 4.
8. Stand machine up, being careful to hold lid closed.
9. Put work shelf and basket into the machine.
10. Remove Styrofoam packing from pump (see pump
label for instructions) and mount pump assembly into
slot on the side of the machine. Push down firmly
on pump so that it seats itself onto side wall of tub.
Place filter screen in position.
11. Thread the flexible nozzle into the elbow attachment
on pump housing and firmly screw into place.
12. Plug machine into standard 115 volt 60 Hz ground-
ed outlet and fill with proper amount of fluid.
13. Turn switch on. Fluid should be flowing from the
flexible nozzle.
OPERATION
Always wear protective clothing, gloves and goggles
when using your Parts Washer.
1. Open the parts washer lid and place parts to be
washed on the washboard.
2. Position the flexible nozzle so that it is directly
above your parts.
3. Turn the power switch to the ON position.
4. Clean parts as needed.
5. Turn power switch to the OFF position.
6. Place parts on drying shelf until completely dry.
7. Empty drain tank, as needed, by sliding out of
drying shelf brackets.
MAINTENANCE
1. The lid incorporates a fusible link to close the lid
in the event of a fire. This link is non-resetting and
must be replaced once it has been triggered.
2. Clean the pump filter regularly by sliding it away from
the pump housing and rinsing in clean degreaser.
3. Do not allow the level of liquid in the parts washer to fall
below the pump inlet, as damage to the pump can result.
4. Change degreaser as needed. Tank can be drained by
removing the drain plug located on bottom of tank.
TROUBLE SHOOTING
The only trouble you should ever experience with your Parts
Washer is reduced volume flow or no flow of cleaning liquid
from the flex hose nozzle. The probable cause is:
1. Foreign matter in the flex hose.
2. Low fluid level (not reaching the pump inlet).
3. Blocked/dirty filter.
4. Air in the pump. You can turn on and turn off the
parts washer for several times or knock on the
pump housing for several times to fix this problem.
LIMITED 90 DAY WARRANTY
This warranty excludes inciden-tal/consequential damages and
failures due to misuse, abuse or normal wear and tear. This
warranty gives you specific legal rights, and you may also have
other rights, which vary, from state to state. OEM will not be
responsible for any consequen-tial or incidental damages
arising from the breach of this or any other warranty, whether
expressed, implied or statutory. Some states do not allow the
exclusion or limitation of consequential or incidental damages,
so the above exclusion may not apply to you. This warranty
gives you specific legal rights, and you may also have other
rights which vary from state to state.
ALWAYS WEAR SAFETY GOGGLES.
WARNING
WARNING
WARNING
Clean off any accidental splashes of degreaser
on skin immediately, following the degreaser
manufacturer’s instructions carefully.
Seek medical attention if necessary.
4
Operating Instructions and Parts Manual 24801
20 GALLON (75L) PARTS WASHER

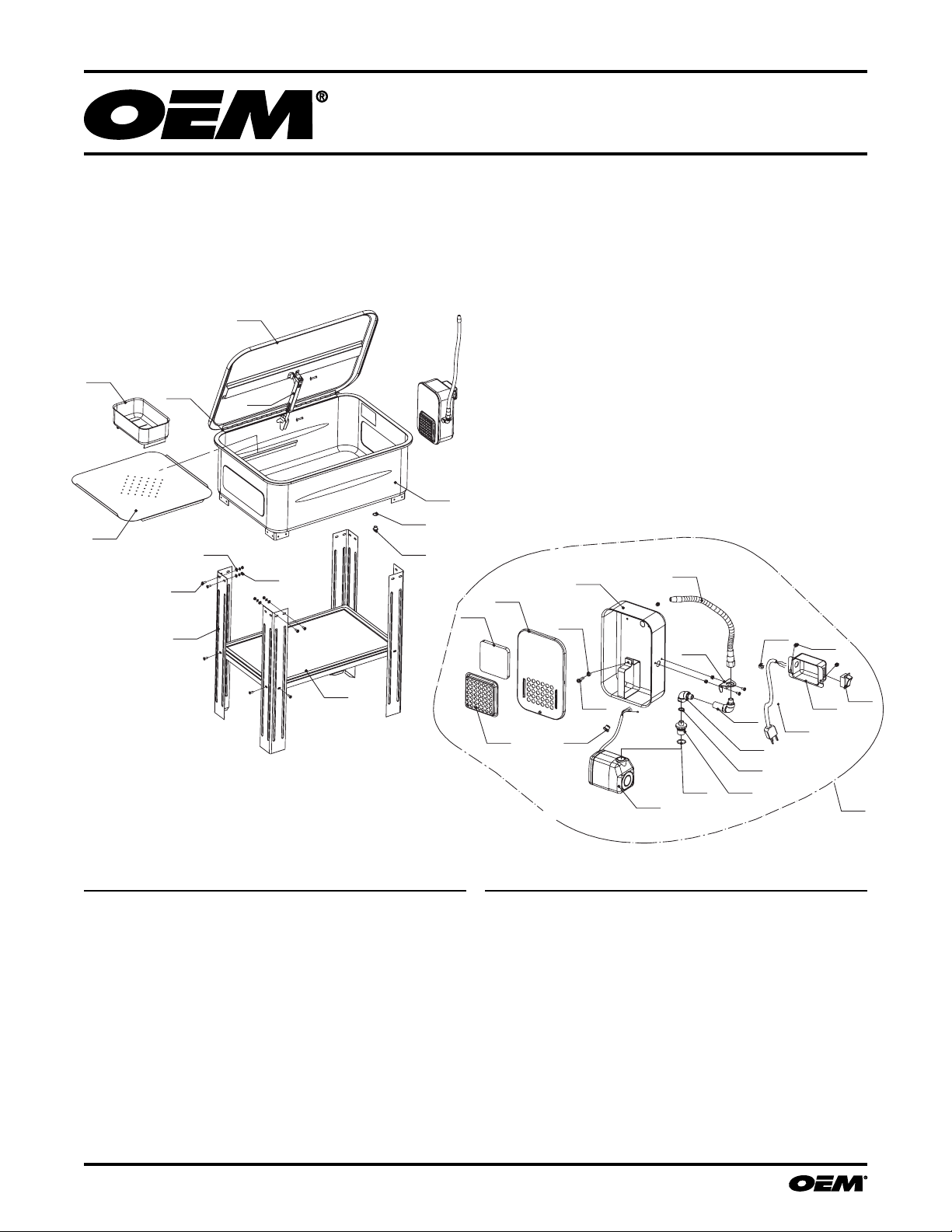

PARTS LIST AND DIAGRAM
Reference No. Description ......................Qty
1 24801-01 Cover .............................4
2 24801-02 Fusible Link .........................1
3 24801-03 Shaft...............................1
4 24801-04 Work Basket ........................1
5 24801-05 Work Shelf ..........................1
6 24801-06 Body ..............................1
7 24801-07 O-ring..............................1
8 24801-08 Plug ..............................1
9 24801-09 M6 Nut ............................24
10 24801-10 Spring Washer .....................24
11 24801-11 M6 x 12 Screw......................24
12 24801-12 Leg ................................4
13 24801-13 Shelf ..............................1
14 24801-14 Filter Cover .........................1
15 24801-15 Filter ..............................1
16 24801-16 Pump Housing Cover .................1
17 24801-17 M5 x 20 Screw ......................1
Reference No. Description ......................Qty
18 24801-18 M5 Nut ............................1
19 24801-19 Pump Housing ......................1
20 24801-20 Flexible Pipe. . . . . . . . . . . . . . . . . . . . . . . . .1
21 24801-21 Elbow Seat..........................1
22 24801-22 Strain Relief .........................1
23 24801-23 M4x8 Screw w/Nut, Spring & Flat Washer .......5
24 24801-24 Switch .............................1
25 24801-25 Switch Box .........................1
26 24801-26 Elbow-1 ............................1
27 24801-27 Elbow-2 ............................1
28 24801-28 O-ring .............................1
29 24801-29 Connector ..........................1
30 24801-30 O-ring..............................1
31 24800-12 Pump ..............................1
32 24801-32 Strain Relief .........................1
33 24801-33 Cable & Plug ........................1
34 24801-34 Pump Assembly......................1
13
12
11
10
9
7
6
5
43
1
8
2
15
17
18
26
27
2930 28
31
32
25
33
34
24
23
22
21
20
19
16
14
Altri manuali OEM Rondella
