OfficeSource EVH400AGG Manuale utente

OFFICE FURNITURE

MODEL NO. EVH400AGG/EVH400BBK

OFFICESOURCE.COM

Last Updated: 6/2022

ASSEMBLY INSTRUCTIONS

72"Height AdjustableDesk

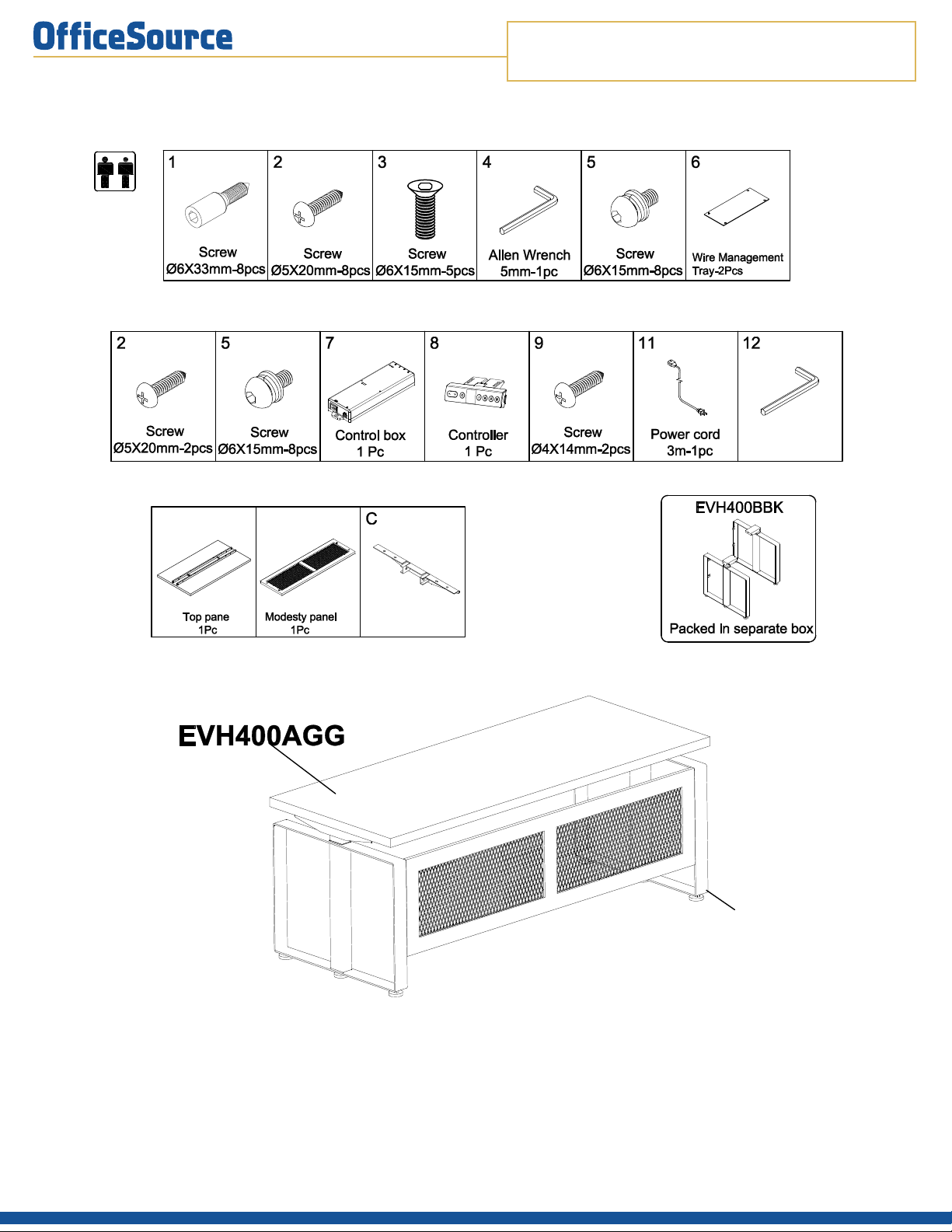

A B

IMPORTANT NOTE:

Place all wooden parts on a cleanand smooth surface such as a rug or carpet to avoid the parts from being scratched

Check that you have all parts and hardware.

Remove all wrapping materials, including staples & packing straps before you start assemble.

Do not tighten all screws or bolts untill all completely assembled.

Keep all hardware parts out of reach of children.

EVH400BBK

Top support Bracket

2Pcs

Hardware is packed with carton EVH400AGG

EVH400AGG

Hardware is packed with carton EVH400BBK

Allen Wrench

4mm-1pc

®

OFFICE FURNITURE

MODEL NO. EVH400AGG/EVH400BBK

OFFICESOURCE.COM

Last Updated: 6/2022

ASSEMBLY INSTRUCTIONS

®

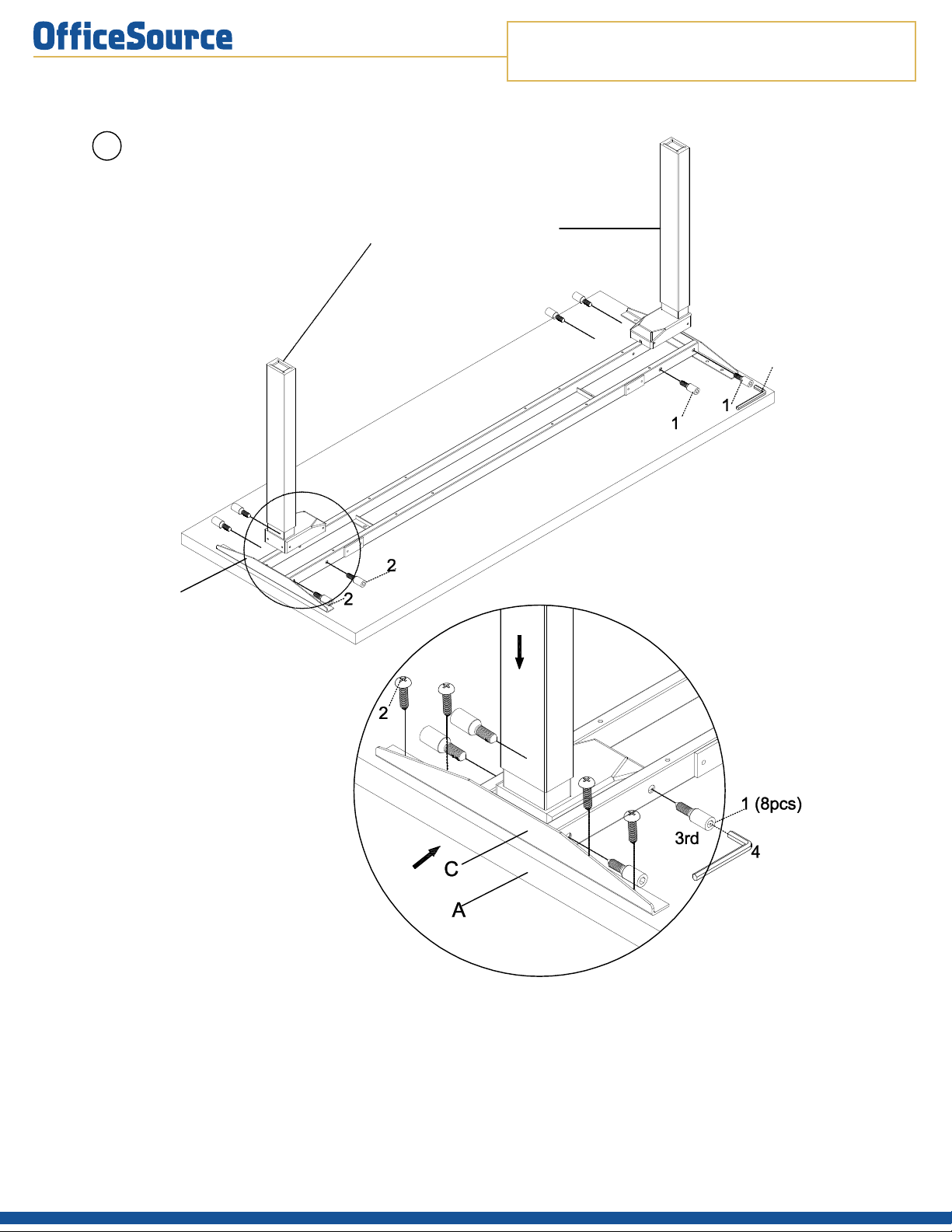

1Assemble Metal Base (EVH400BBK)with Top support

Brackets ( C) using Screws (1).Assemble Top support

Bracket to Desk Top using Screws (2).

P.2

A

C

4

from Metal Base package EVH400BBK

1st

2nd

72"Height AdjustableDesk

OFFICE FURNITURE

MODEL NO. EVH400AGG/EVH400BBK

OFFICESOURCE.COM

Last Updated: 6/2022

ASSEMBLY INSTRUCTIONS

®

P.3

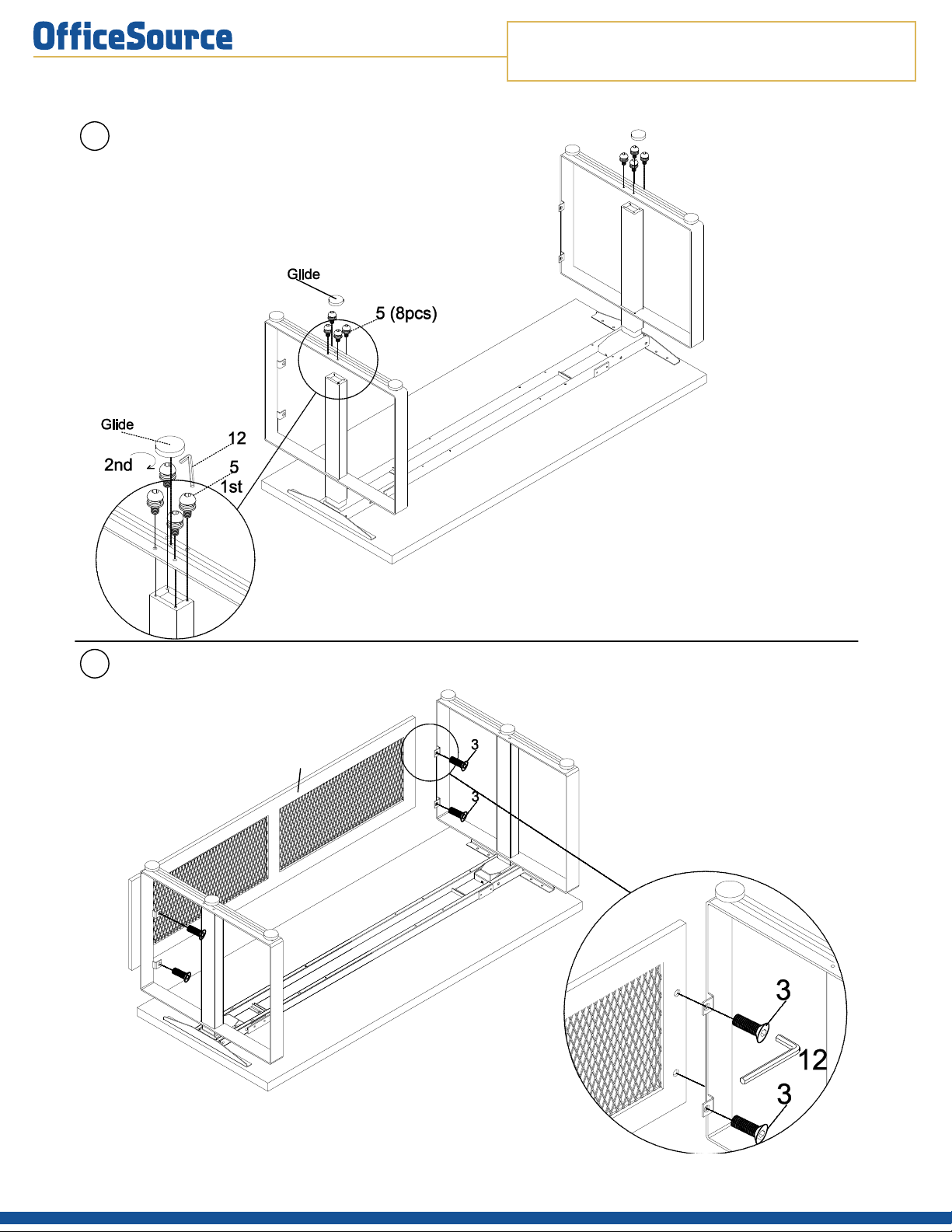

2Assemble Metal Base (EVH400BBK)

using Screws (5)

In this step,screws & Metal frame are from Metal

Base package EVH400BBK

3Assemble Modesty Panel (B) toMetal Base (EVH400BBK) using Screws (3)

A

B

72"Height AdjustableDesk

OFFICE FURNITURE

MODEL NO. EVH400AGG/EVH400BBK

OFFICESOURCE.COM

Last Updated: 6/2022

ASSEMBLY INSTRUCTIONS

®

72"Height AdjustableDesk

P.4

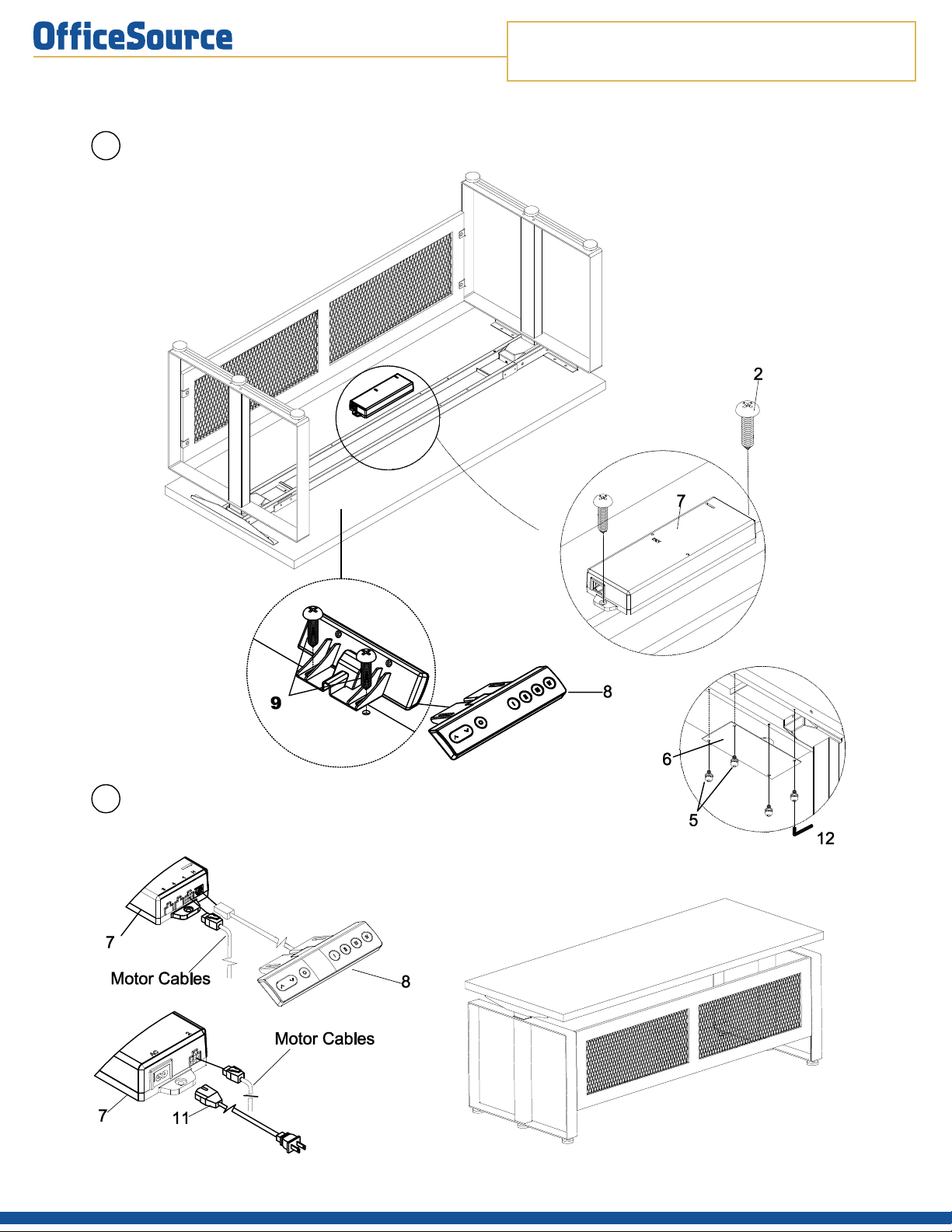

4Install the Control Box (7) to the Top (A) using Screws (2)

Put Memory Controller (8) on desired location on front edge of top,and fasten with Screws (9)

A

5Connect power for Control Box (7) using the Power

Cord (11) and connect Controller (8) into the Control

Box (7); Plug Power Cord (11) into outlet and proceed

with Controller Initialization. See User Manual; FinallyInstall Wire Management

Tray (6) to Frame using

Screws (5) and Wrench (12).

OFFICE FURNITURE

MODEL NO. EVH400AGG/EVH400BBK

OFFICESOURCE.COM

Last Updated: 6/2022

ASSEMBLY INSTRUCTIONS

®

72"Height AdjustableDesk

P.5

Questo manuale è adatto per i seguenti modelli
