Ogawa OG8100 Manuale utente

USER MANUAL OG8100

Hello.

Congratulations on purchasing your new Ogawa Master Drive LE.

At Ogawa we understand every body is diﬀerent and have carefully designed your massage chair with that in mind.

But enough about us, this is about you. Learning how to use your new chair is simple (we designed it that way).

So let’s get started.

For replacement parts and tech support, please call our service and warranty phone number, or visit

www.ogawaworldusa.com

Scan QR Code to Visit Website Scan QR Code for Operation Video Scan QR Code for Service Support

TABLE OF CONTENTS

INTRO

Dimensions

Contents

MASSAGE

Interface

Auto Massage

Demo

Manual Massage

Custom Massage

Settings

Voice Control

Auto Program Descriptions

9-10

11-14

15-16

17-18

19-25

26-35

36-39

40-46

Safety

Grounding Instruction

Troubleshooting

Care and Storage

Warranty

47-49

51-52

CARE

Move & Clearance

Components

Massage Points

Speciﬁcations

CHAIR

DIMENSIONS

First, let’s get your chair inside.

48”

60.6” 31.9”

Base & Backrest Side Panels Footrest

Box 2

Box 3

Box

23.2” 20.1”

23.2”

30.3” 57.7”

39.4”

50.4”

15.0”

26.8”

USER MANUAL OG8100

OG8100

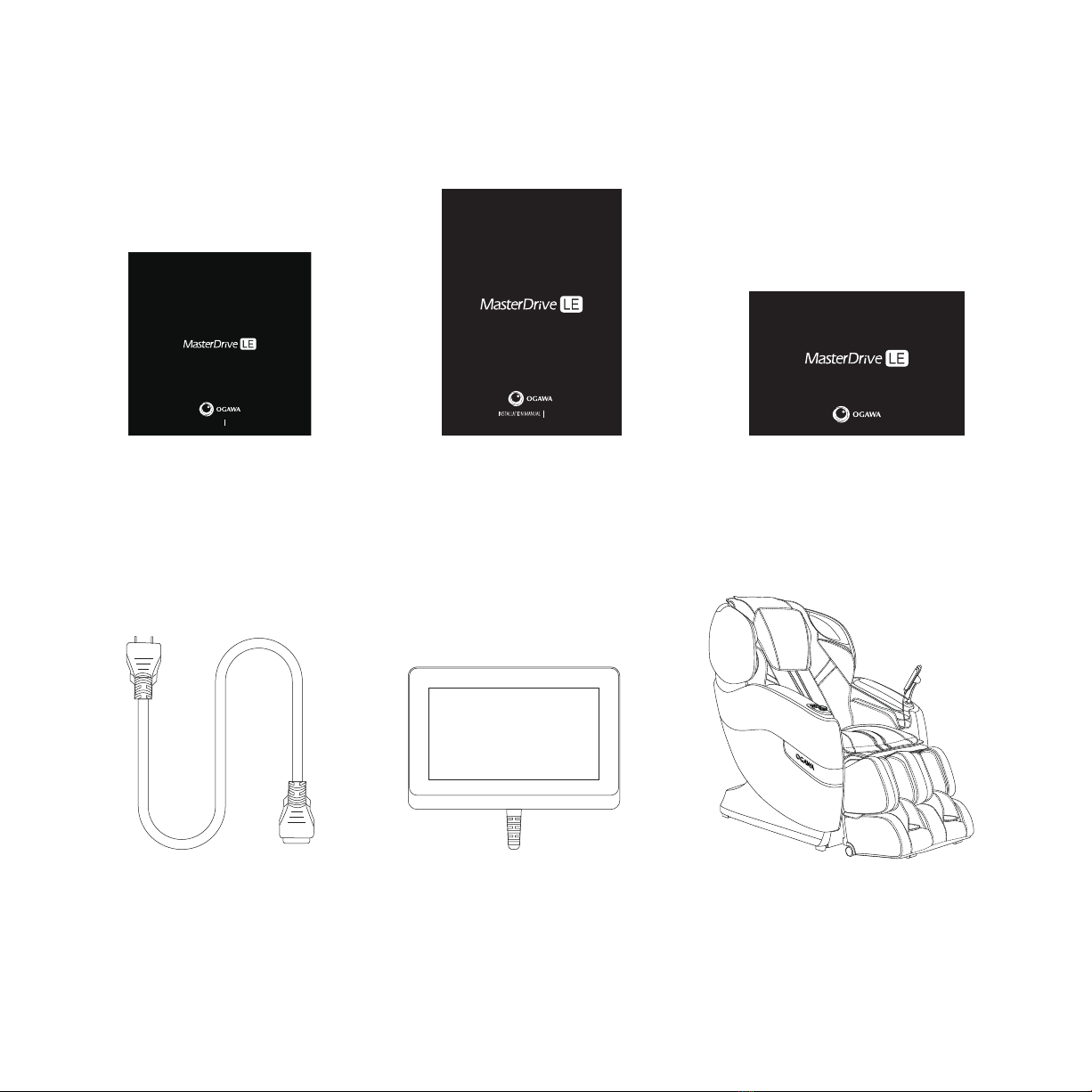

CONTENTS

Warranty Postcard

Power Cord

Everything you need for a relaxing experience.

Wired Touch-Pad OG8100 Massage Chair

Installation Manual

User Manual

HANDLING INSTRUCTIONS

CLEARANCE

Reserve space on left and right

8” 8”

Reserve space on the front and back

4.8”

31.5”

Lift and hold the bottom of the chair One person lift footrest 45 Degrees onto wheels

MOVE & CLEARANCE

Reserve space on left and right Reserve space on the front and back

8” 8”

8”

4“

Clearance

How to move

Caution: If you roll the chair on wood ﬂoor, marks may be left

Two people are needed to lift the chair

A few simple steps to ﬁnd the best place for your new chair.

Move with a slight pull or push

CHAIR COMPONENTS

Some of your chair’s most important features.

Note: The speaker will only operate when the massage chair is in operation

To play music using your massage chair’s speakers please connect your

smartphone, tablet, or other electronic device to your chair using bluetooth.

Note that the code to connect the bluetooth is Ogawa Master Drive LE.

Pillow

Speaker

Wired Touch-Pad

Armrest

Seat Pad

Footrest

Shoulder Panel

Brackrest Pad

Side Panel

Slip Bar

Controller

MASSAGE POINTS

18 air bags

Heat pad on back

12 air bags

Heat pad on leg

18 air bags

Double row

foot roller

Back Massage Area Air Bag Heater Roller

CHAIR SPECIFICATIONS

Model No.

OG8100/Master Drive LE

Rated Current

1.5A

Massage Time

5 to 30 Minutes

Shipping Weight

Gross weight: 313 lbs

Net weight: 269 lbs

Safety Feature

Equipped with child safety lock,

leg rest and backrest safety sensor,

and overheating and power surge detectors

Dimensions (L x W x H)

Chair dimensions: 60.6” x 31.9” x 48”

Reclined dimensions: 79.5” x 31.9” x 46.9”

A few important facts about your massage chair.

Rated Voltage

110 - 120V

Rated Frequency

60Hz

Power of Speakers

14W (2 sides)

Length of Wiring

Controller wiring: 27.6"

Power supply wiring: 70.9”

Usage Condition

Environment temperature: 10。

C-40。

Contrasting humidity: 30-85RH

Storage Condition

Storage temperature: -20。

C-60。

Storage humidity level: 30-85RH
