Replacement Supplies

Where to Purchase

• Consult the dealer where you

purchased your MFP

• Consult an Oki Data Authorized Sales

or Service Dealer. For the nearest

dealer, call 1-800-654-3282.

•U.S., Puerto Rico, Guam, U.S. Virgin

Islands: Order on the Internet

www.okidata.com.

•U.S. only: Order toll-free at

1-800-654-3282, using VISA®,

MasterCard®or AMEX®.

• Check office supply catalogs.

Part Numbers

ADF Pad................................ 43103001

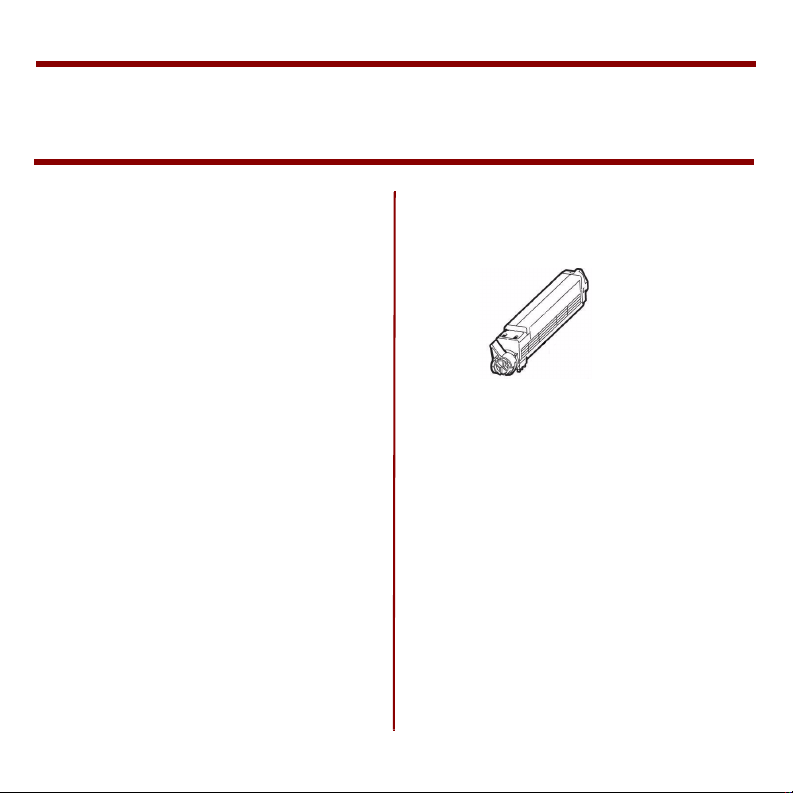

Toner Cartridges, Type C6

STANDARD

Color OKI Part #

Black ..................................... 42804504

Cyan ...................................... 42804503

Magenta................................. 42804502

Yellow ................................... 42804501

HIGH CAPACITY

Black ..................................... 42127404

Cyan ...................................... 42127403

Magenta................................. 42127402

Yellow ................................... 42127401

Replacement Supplies

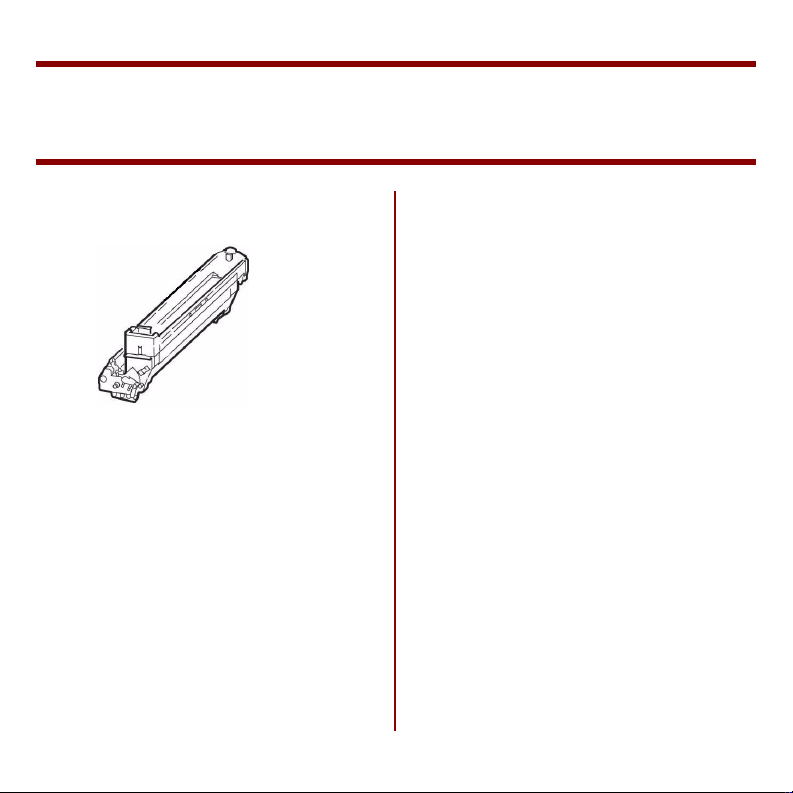

Image Drums, Type C6

Color OKI #

Black ..................................... 42126604

Cyan ...................................... 42126603

Magenta................................. 42126602

Yellow ................................... 42126601

Other Consumables

Consumable Oki #

Fuser .......................... 42625501, 120V

................... 42625502, 230V

Transfer Belt ......................... 42158711

Replacement Supplies

Measuring Usage

Take Advantage of

OKI’s Supply Manager!

• Calculates your usage based on

information you provide.

• Sends you an E-mail when it’s time to

reorder.

To register, go to www.okidata.com.

Check Out

OKI Managed Services

A document output analysis of your

business which could save you up to

30% on your printing costs.

Call 1-888-654-6264 today to schedule

an appointment with an OKI Managed

Services project manager.

Or, for more information, go to

www.okidata.com.

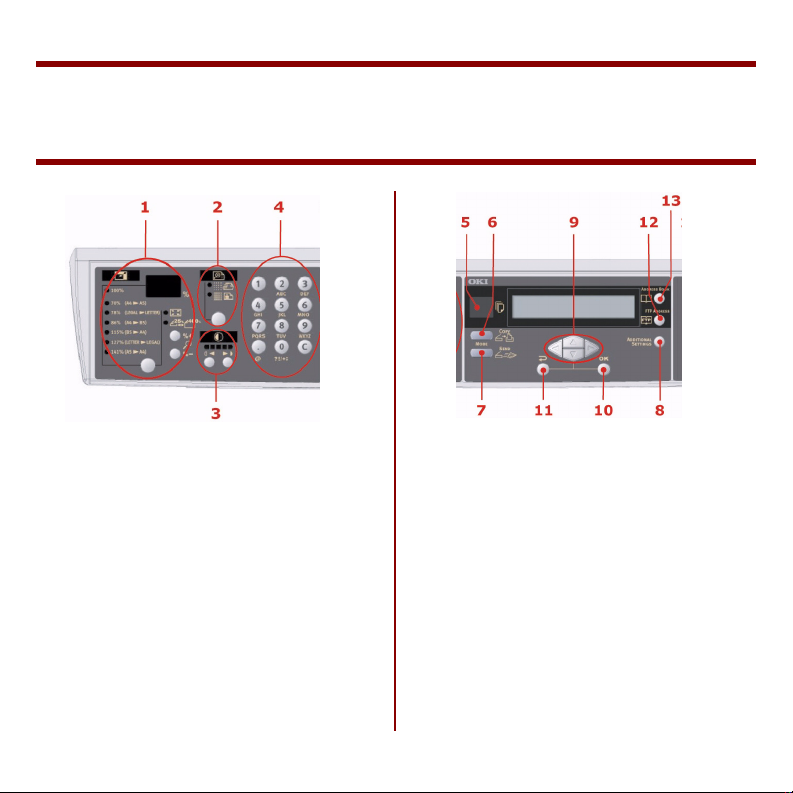

Control Panel Keys

Copy Area

1. Zoom - Increase or decrease scaling

in 1% increments up to 400% and

down to 25%.

2. Copy Quality - Select copy quality.

3. Copy Density - Change the density

level.’’

4. Copy Count - Enter copy quantity or

e-mail address.

Display and Function Area

5. Copy Count - Indicates the number

of copies selected.

6. Copy Mode - Select copy mode.

7. Scan Mode - Select the Scan mode

(also the default working mode).

Control Panel Keys (cont’d)

8. Additional Settings - Execute

additional settings of "Copy" and

"Scan" modes. (The settings are

available only for three minutes.

After three minutes, the settings

automatically return to the default

value).

9. Up/Down/Left/Right Keys - Move

the cursor in the display up/down/

left/right. The up/down keys

switches function indication. The left

key returns to the upper level of the

setting. The right key goes to the

lower lever of the setting.

10. OK/Select - Select and confirm

current setting selections.

11. Cancel/Return - Cancel selections

and go back to the top level of the

setting. The key cancels any previous

input.

12. FTP Address - Indicates the existing

FTP address for the "Scan to" mode.

13. Address book - Indicates the

existing mail address for the "Scan

to" function. This key is only

available in the "Scan to" mode.

Control Panel Keys (cont’d)

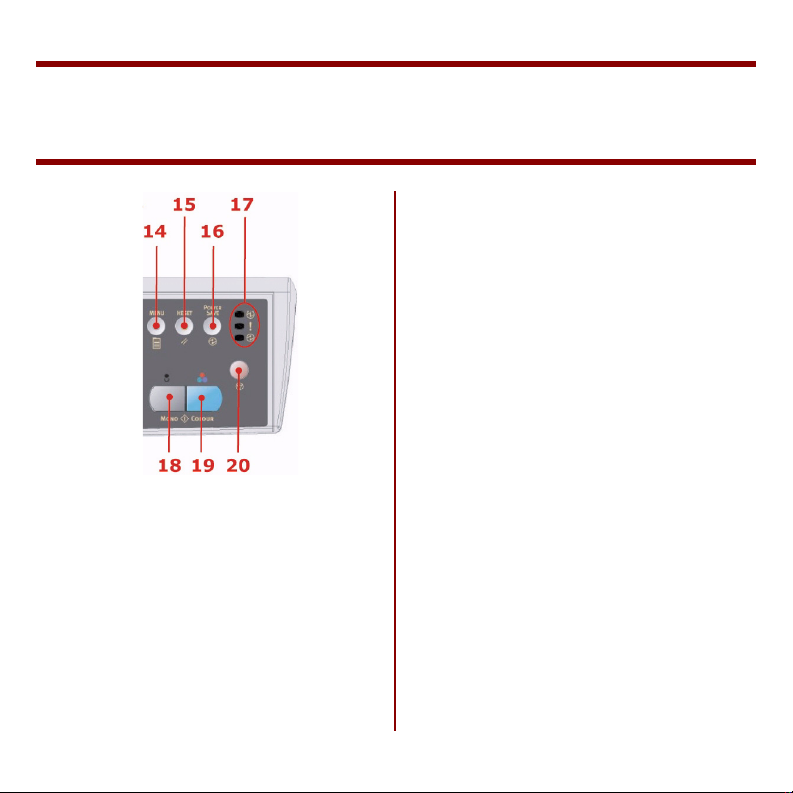

Start and Other Keys

14. Menu - Access the menu to set up

the MFP.

15. Reset - Change the scanner to the

factory default settings.

16. Power save - Press once to go to

"sleep" mode (continuous press is

invalid).

17. Power LEDs

Power - Lights to indicate "power on

and ready".

Alarm - Lights to indicate error

conditions.

Sleep - Lights to indicate power save

mode.

18. Mono - Select to send or copy

document(s) in black/white.

19. Color - Select to send or copy in

color.

20. Stop - Select to stop all operations

(display shifts to stand-by screen for

each function). Does not affect

settings.

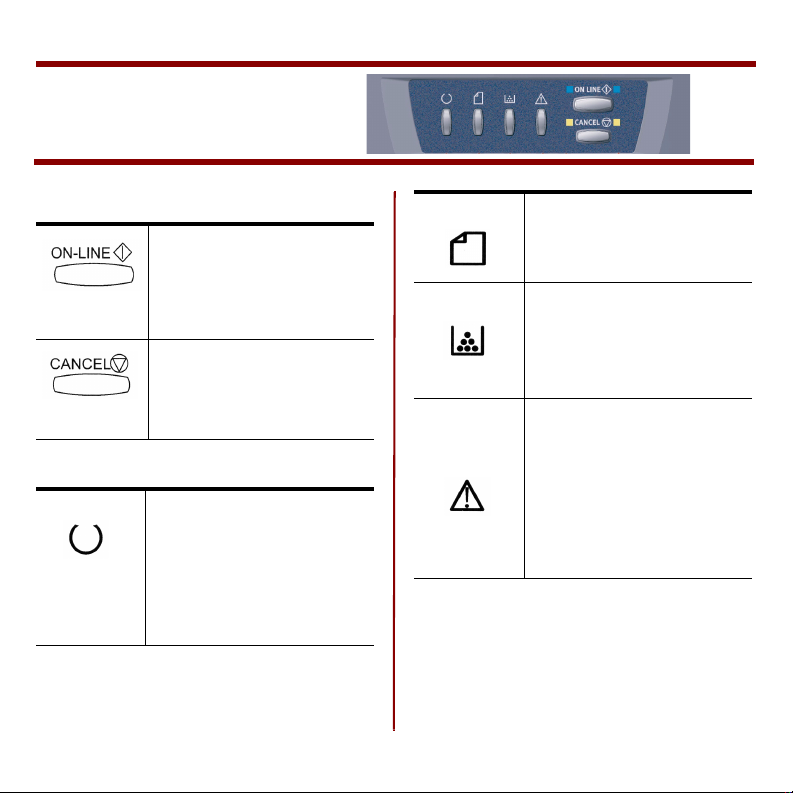

Status Panel

SWITCH Operation.

STATUS Lights:

* The Status Page provides details of printer

settings and status information.

1 sec press: Start paper

supply in MP Tray; recover

from memory overflow error

2 sec press: Print Status Page*

5 sec press: Print Demo Page

2 sec press: Job Cancel

POWER/ONLINE/OFFLINE

Warm-up, Data Printing,

temperature/density adjusting

2 sec blink: off-line error is

occurring

3 sec blink: job cancelled

4 sec blink: Power Save Mode

(Green)

PAPER OUT WARNING

Empty Tray

Manual Feed Request

CONSUMABLE LIFE

WA R N I N G

Example: Order toner (See

scanning unit display panel for

specific toner cartridge.)

ALARM

1 sec blink: Error, press ON-

LINE or CANCEL to continue

printing.

2 sec blink: Cover open, Paper

Jam, Replace consumable

3 sec blink: serious error, call

service.
