Replacement Supplies

Purchasing Information, Part Numbers

Where to Purchase

• Consult the dealer where you

purchased your printer

• Consult an Oki Data Authorized

Sales or Service Dealer. For the

nearest dealer, call

1-800-654-3282.

•U.S., Puerto Rico, Guam, U.S.

Virgin Islands only: Order on the

Internet at

www.okiprintingsolutions.com

•U.S. only: Order toll-free at

1-800-654-3282, using VISA

MasterCard

or AMEX

• Check office supply catalogs.

Use Oki Supply Manager

• Calculates your usage based on

information you provide.

• Sends you an E-mail when it’s time

to reorder.

To register, go to

www.okiprintingsolutions.com

Part Numbers

Important!

Consumables designated “C9000

Series” do not work with these printers.

Use only Type C7 Toner Cartridges and

Image Drums having the part numbers

listed below.

Toner Cartridges, Type C7

Color OKI Part #

Black............................ 42918984

Cyan ............................ 42918983

Magenta ....................... 42918982

Yellow........................... 42918981


Image Drums, Type C7

Color OKI Part #

Black............................ 42918168

Cyan ............................ 42918167

Magenta ....................... 42918166

Yellow........................... 42918165

Other Items

Item OKI Part #

Fuser ()........... 42931701, 120V

.......... 42931702, 230V

Transfer Belt ().......... 42931601

Toner Waste Bottle ......... 42869401




1f.tif, 2f.tif

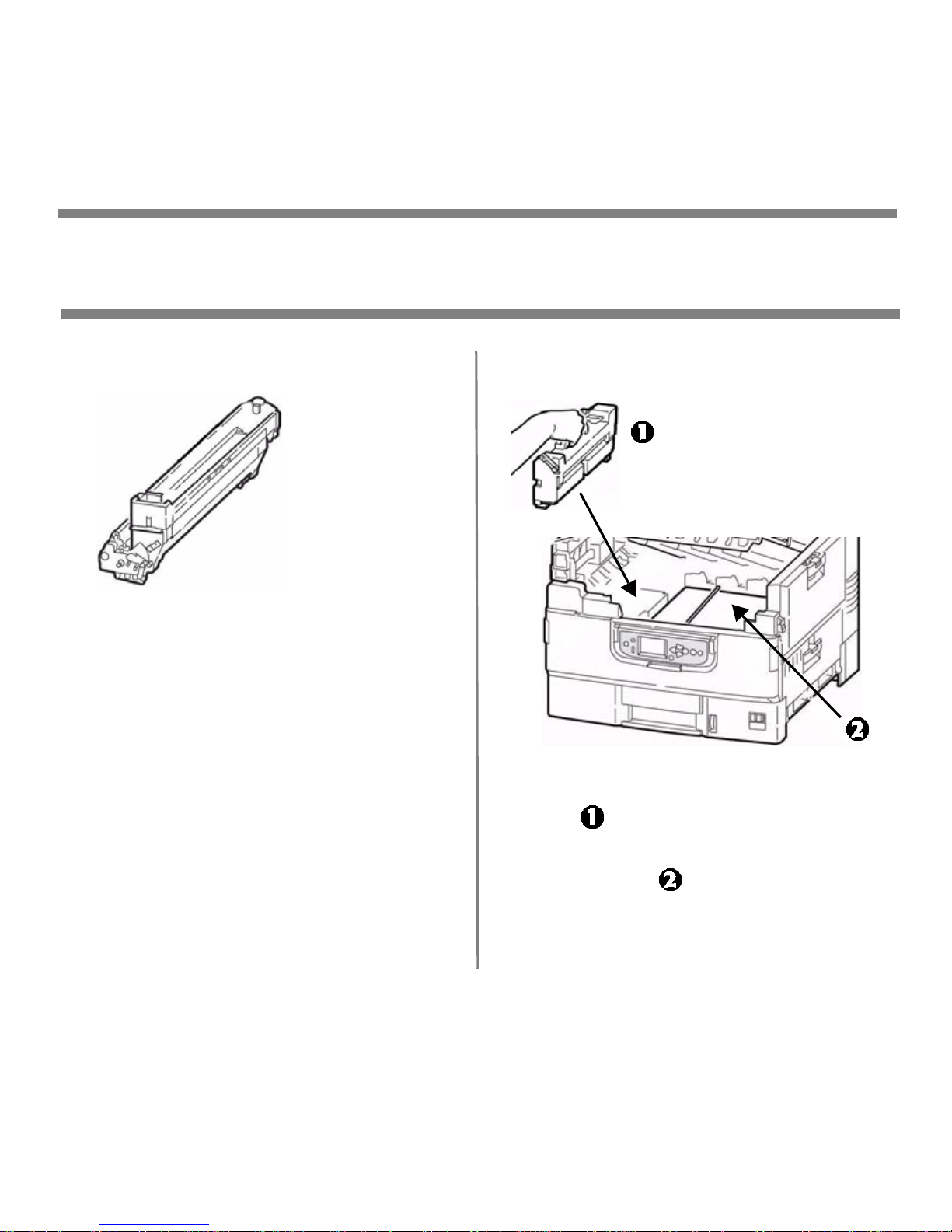

Replacement Supplies

Part Numbers (cont.)

Using the Printer Menu

Changing Settings

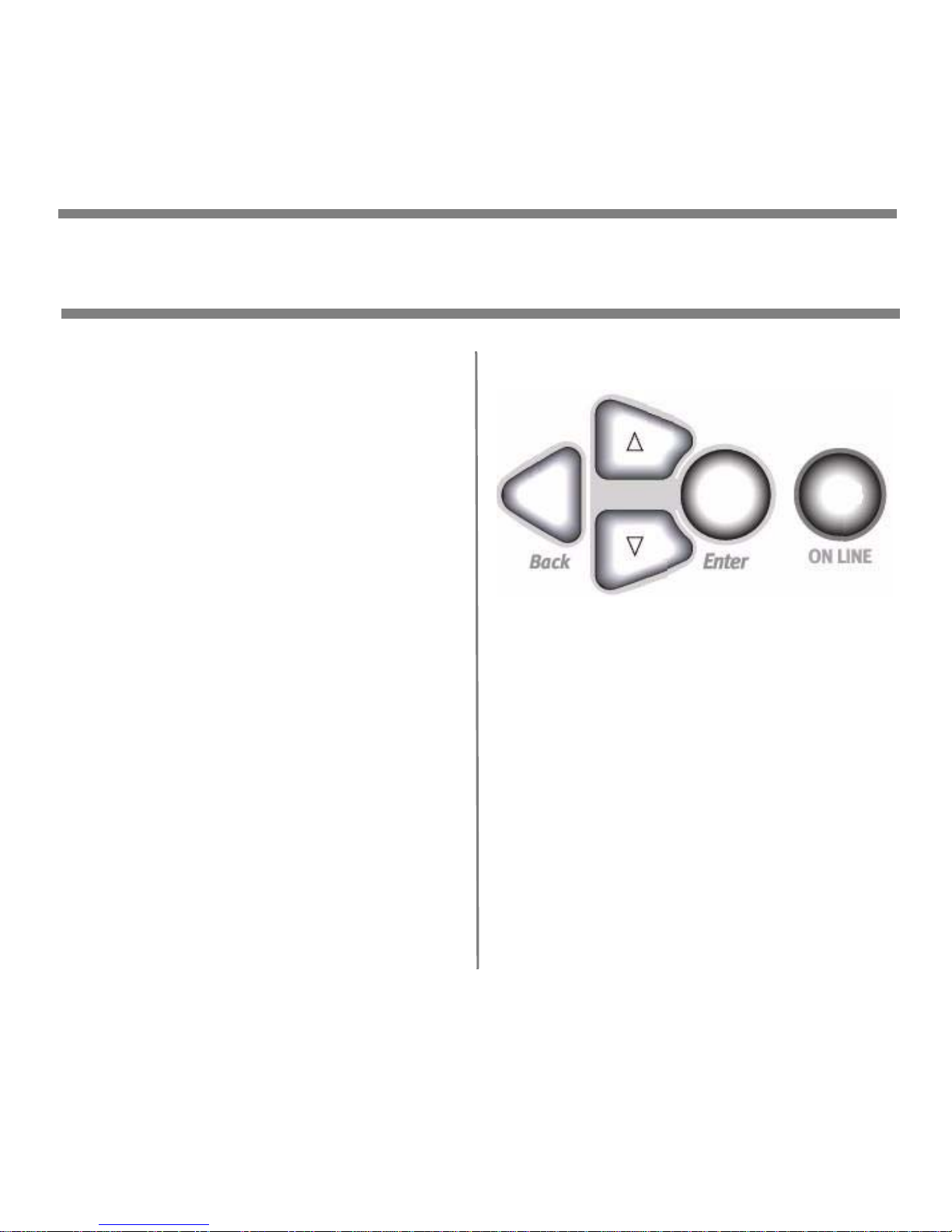

1. Press

Enter

2. Use the

∇

key to scroll down to the

Function you wish to change.

3. Press

Enter

4. Continue to use the

∇

and

Enter

keys to drill down to the item you

wish to change.

5. Use the

∇

key to move down to the

setting you wish to engage.

6. Press

Enter

An asterisk appears next to the

setting.

7. Press

ON LINE

to exit the Menu

mode.

For more information, see the on-line

User's Guide on the Documentation

CD provided with your printer or at

http://my.okidata.com

C96_Ready


C96_Fu

nctions_

Menu_a.

jpg

– Configuration

•Page Count, Supplies Life

•Network and System Settings,

etc.

– Print Information

•Printer & Network Configurations

•Print Demo Page

•Lists, etc.

– Print Secure Job

(Password Protected)

Appears only if the Hard Disk

Drive (HDD) (optional on Models

C9650n and C9650dn) is

installed.

•Print out confidential documents

downloaded to the HDD

–Menus

•Set the size, weight and type of

media for the various feed trays

– Admin Setup

(Password Protected)

•Various Network Setups

•Print Setup

•PS and PCL Setups

•IBM and Epson Setups

•Color Setup

•Memory and Flash Memory

Setups

•HDD and System Setups

•Reset/Save/Restore Settings

– Calibration

•Density adjustments

•Registration

•Color tuning

– Print Statistics

(Password Protected)

Using the Printer Menu

Menu Summary

Why Change?

Wrong media settings can cause:

• poor quality printing

•flaking

• damage to the printer

Media Weight

The default media weight setting for

all trays is AUTO.

Individual Print Jobs

If you are using special media for only

one print job, you can adjust the

media settings in the driver. Load the

media in the appropriate tray (usually

the MP tray). In your application, click

File

→

Print and adjust the media

settings as necessary.

All Print Jobs (Defaults)

1. Press

Enter

∇

key

→

Menus. Press

Enter

3. With Tray Configuration

highlighted, press

Enter

∇

key

→

tray to be configured.

Press

Enter

5. Use the

∇

and

Enter

keys to scroll

through the submenus and to make

your setting changes.

6. Press

ON LINE

to exit the Menu

Mode.

Using the Printer Menu

Changing Paper (Media) Settings

Altri manuali per C9650n

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Oki Stampante tutto in uno

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Brother

Brother MFC-J430w Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Brother

Brother MFC-9760 Manuale utente

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Brother

Brother Business Smart MFC-J4510dw Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente
